General

Description

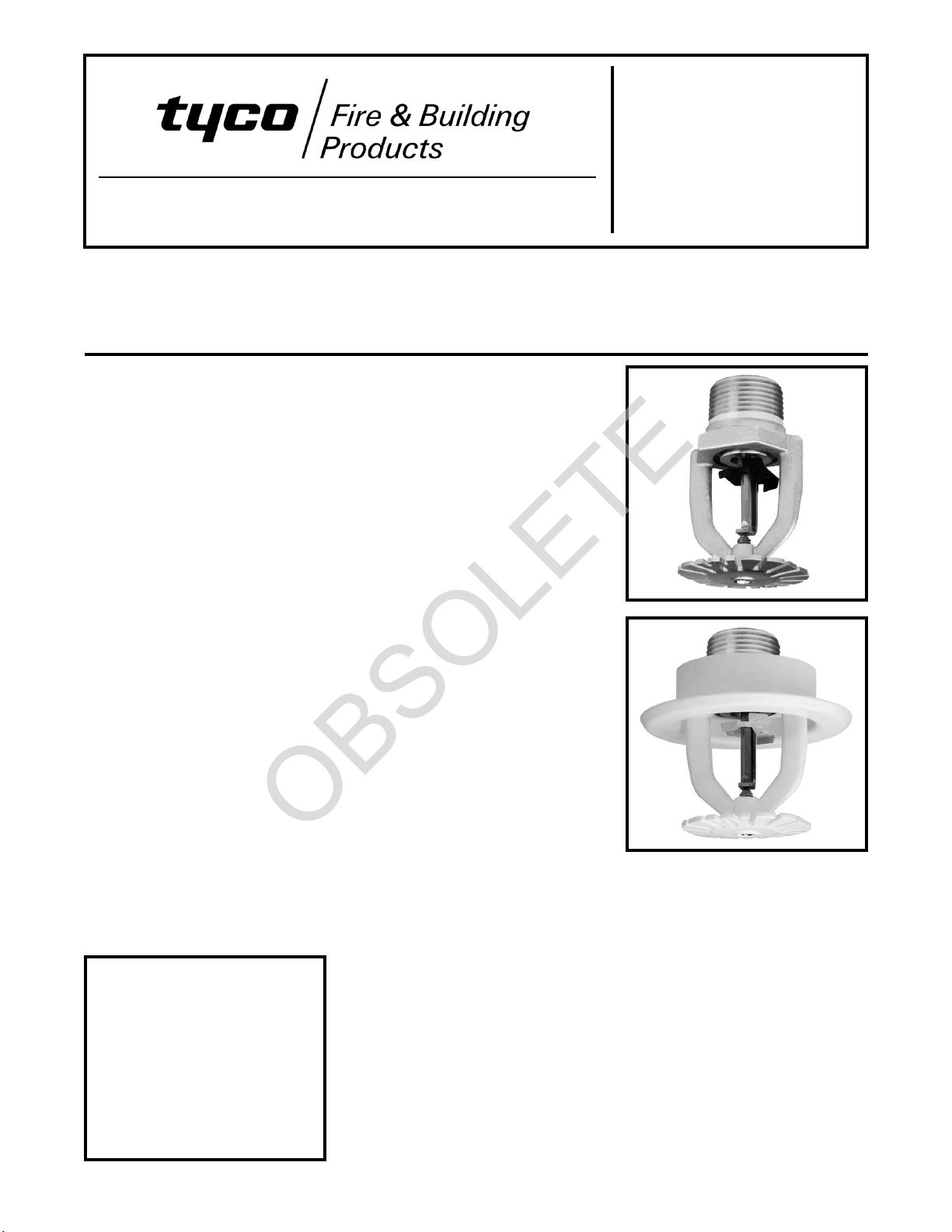

The Tyco®Model EC-17 Extended

Coverage Pendent Sprinklers (Ref.

Figure 1) are “Control-Mode Extended

Coverage Sprinklers” having a nomi-

nal K-factor of 16.8. Their use is espe-

cially advantageous as a means of de-

creasing the number of required

sprinklers to protect occupancies re-

quiring an area/density application of

water.

Features:

•The EC-17 Sprinklers offer a maxi-

mum coverage area of 196 ft2(18,2

m2) at a maximum spacing of 14 feet

(4,3 m), almost double that of stand-

ard coverage sprinklers used for

similar applications.

•The EC-17 Sprinklers offer a maxi-

mum coverage area of 144 ft2(13,4

m2) at a maximum spacing of 15 ft.

(4,3 m) which can be beneficial to

maximizing sprinkler line spacing.

•The 144 ft2(13,4 m2) coverage with

maximum spacing of 15 ft. (4,3 m)

for the EC-17 Sprinklers can be

beneficial for retrofitting an existing

system to a higher applied water

density, especially where the sys-

tem had utilized sprinklers having a

maximum sprinkler spacing of 15

feet (4,3 m).

TherecessedversionoftheModelEC-

17 Pendent Sprinkler is intended for

use in areas with a finished ceiling. It

uses a two-piece Style 30 (3/4 inch

NPT) Recessed Escutcheon with 1/4

inch (6,4 mm) of recessed adjustment,

or up to 1/2 inch (12,7 mm) of total

adjustment from the flush pendent po-

sition. The adjustment provided by the

RecessedEscutcheonreducestheac-

curacy to which the fixed pipe drops to

the sprinklers must be cut.

Applications for the Model EC-17

Sprinklers are expanding beyond the

current testing. For information re-

garding additional research fire tests

that may be acceptable to an Authority

Having Jurisdiction please contact the

Technical Services Department.

WARNINGS

The Model EC-17 Sprinklers de-

scribed herein must be installed and

maintained in compliance with this

document, as well as with the applica-

ble standards of the National Fire Pro-

tection Association, in addition to the

standards ofany other authorities hav-

ing jurisdiction. Failure to do so may

impair the performance of these de-

vices.

The owner is responsible for maintain-

ing their fire protection system and de-

vices in proper operating condition.

The installing contractor or sprinkler

manufacturer should be contacted

with any questions.

Sprinkler

Identification

Number

SIN TY7228 - (Pendent K=16.8)

Model EC-17 — 16.8 K-factor

Extended Coverage Area Density Sprinklers

Pendent and Recessed Pendent

Page 1 of 4 TFP215

NOVEMBER, 2007

Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500

IMPORTANT

Always refer to Technical Data

Sheet TFP700 for the “INSTALLER

WARNING” that provides cautions

with respect to handling and instal-

lation of sprinkler systems and com-

ponents. Improper handling and in-

stallation can permanently damage

a sprinkler system or its compo-

nents and cause the sprinkler to fail

tooperate in a firesituationorcause

it to operate prematurely.

OBSOLETE

Technical

Data

Approvals

UL and C-UL Listed. (Approvals only

apply to the service conditions indi-

cated in the Design Criteria section.)

Maximum Working Pressure

175 psi (12,1 bar)

Pipe Thread Connection

3/4 inch NPT

Discharge Coefficient

K = 16.8 GPM/psi1/2

(241,9 LPM/bar1/2)

Temperature Ratings

160°F/71°C or 212°F/100°C

Finish

NaturalBrass,White,orChrome

Plated

Physical Characteristics

Frame..............Brass

Deflector . . . . . Phosphor Bronze

Compression Screw . . . . . . . . .

............StainlessSteel

Hook ..............Monel

Strut...............Monel

Link Assembly . . . . Solder, Nickel

Button..............Brass

SealingAssembly ..........

. . . . . Beryllium Nickel w/Teflon†

Patents

Patent Pending

Operation

The fusible link assemblyis comprised

of two link halves that are joined to-

gether by a thin layer of solder. When

the rated temperature is reached, the

solder melts and the two link halves

separate allowing the sprinkler to acti-

vate and flow water.

Design

Criteria

The Tyco®Model EC-17 Extended

Coverage Pendent Sprinklers (SIN

TY7228) are UL and C-UL Listed,

with

the exception of using plastic pallets

as described in 5.6.2.6 of NFPA 13-

2007

, for installation in accordance

with the extended coverage pendent

spray sprinkler requirements of NFPA

13, or other applicable NFPA stand-

ards, when used in conjunction with

the following guidelines :

•Suitable for the protection of extra

hazard and high-piled storage occu-

pancies where area/density design

criterion are provided.

•Suitable for “unobstructed” or “non-

combustible obstructed” construc-

tion.

•The Model EC-17 Sprinklers, having

been specifically tested and listed

for noncombustible obstructed con-

struction, are suitable for use within

trusses or bar joists having non-

combustible web members greater

than1inch(25,4mm) whenapplying

the four times obstruction criteria

rule defined under “Obstructions to

Sprinkler Discharge Pattern Devel-

opment”.

•The maximum area of coverage per

sprinkler is 196 sq. ft. (18,2 m2).

•The maximum distance between

sprinklersis 15feet(4,6m) whenthe

coverage does not exceed 144 ft.2

(13,4 m2), and the maximum dis-

tance between sprinklers is 14 feet

(4,3 m) when the coverage does not

exceed 196 ft2(18,2 m2).

•The minimum distance between

sprinklers is 8 feet (2,44 m).

•The minimum flow requirement is to

be based on the design density ap-

plied over the actual area of cover-

age per sprinkler.

For example: when sprinkler spac-

ing is 14 feet by 12 feet - 6 inches

(4,3 x3,8 m) or 175ft2(16,3m2), and

the design density is 0.3 gpm/ft2

(16,3 mm/m), the sprinkler design

flow rate is 53 GPM (200 LPM) and

the required design pressure is 10

psi (0,7 bar).

•The minimum clearance between

the deflector and the top of storage

is 36 inches (0,9 m).

•The ordinary and intermediate tem-

perature rated EC-17 Sprinklers

have been investigated for use in

high-piled storage occupancies at

the hydraulic demand normally as-

sociated with high temperature

sprinklers.As such,theEC-17sprin-

klers are listed storage sprinklers

having a K-factor greater than 11.2

and having ordinary and intermedi-

ate temperature ratings (i.e., 160F

and 212F). Consequently, the EC-

17 Sprinklers, in accordance with

the NFPA 13, may be used in con-

junction with the density curves for

high temperature sprinklers.

Page2of4 TFP215

FIGURE 1, MODEL EC-17 EXTENDED COVERAGE PENDENT SPRINKLER

2-3/4"

WRENCH

FLATS

SEATING SURFACE

ESCUTCHEON PLATE

NPT

3/4"

2 Button

Temperature

Deflector

Compression

Screw

Link

Sealing

omponents:

Frame1 -1/2" (12,7 mm)

NOMINAL MAKE-IN

rating is indicated 78

(69,9 mm)

(50,8 mm)

Hook

Stem

on deflector.

Assembly

PENDENTCROSS SECTION RECESSED PENDENT

2-7/8" (73,0 mm) DIA.

STYLE 30

ESCUTCHEON

RECESSED

OBSOLETE

Installation

NOTES

Damage to the fusible Link Assembly

during installation can be avoided by

handling the sprinkler by the frame

arms only and by usingthe appropriate

sprinkler wrench. Do not grip or apply

any force to the Fusible Link Assem-

bly. Damaged sprinklers must be re-

placed immediately.

A leak tight 3/4 inch NPTsprinkler joint

should be obtained with a torque of 10

to 20 ft.lbs. (13,4 to 26,8 Nm). Higher

levels of torque may distort the sprin-

kler inlet with consequent leakage or

impairment of the sprinkler.

The Model EC-17 Pendent Sprin-

klers must be installed in accordance

with the following instructions:

Step 1. The EC-17 Sprinkler must be

installed in the pendent position.

Step 2. With pipe thread sealant ap-

plied, hand tighten the sprinkler into

the sprinkler fitting. Do not apply any

forceto theLinkAssembly,and handle

the EC-17 Sprinkler only by the Frame

arms.

Step 3. Wrench tighten the EC-17

Sprinkler using only the W-Type 3

Sprinkler Wrench (Ref. Figure 3) and

by fully engaging (seating) the wrench

on the sprinkler wrench flats.

TheModel EC-17 Recessed Pendent

Sprinklers must be installed in ac-

cordance with the following instruc-

tions.

Step A. After installing the Style 30

Mounting Plate over the sprinkler

threads, and with pipe thread sealant

applied to the pipe threads, hand

tighten the sprinkler into the sprinkler

fitting.

Step B. Wrench tighten the EC-17

Sprinkler using only the W-Type 24

Sprinkler Wrench (Ref. Figure 4) and

fully engaging (seating) the wrench on

the sprinkler wrench flats.

Step C. After the ceiling has been in-

stalled, slide the Style 30 Closure over

the Model EC-17 Sprinkler and push

the Closure over the Mounting Plate

until its flange comes in contact with

the ceiling.

Care and

Maintenance

The Tyco®Model EC-17 must be

maintained and serviced in accord-

ance with the following instructions:

NOTE

Before closing a fire protection system

main control valve for maintenance

work on the fire protection system that

itcontrols,permissiontoshutdownthe

affected fire protection systems must

be obtained from the proper authori-

ties and all personnel who may be

affectedbythisactionmustbenotified.

Sprinklers that are found to be leaking

or exhibiting visible signs of corrosion

must be replaced.

Automatic sprinklers must never be

painted, plated, coated, or otherwise

altered after leaving the factory. Modi-

fied or over-heated sprinklers must be

replaced.

Care must be exercised to avoid dam-

age - before, during, and after instal-

lation. Sprinklers damaged by drop-

ping, striking, wrench twist/slippage,

or the like, must be replaced.

The owner is responsible for the in-

spection, testing, and maintenance of

their fire protection system and de-

vices in compliance with this docu-

ment, as well as with the applicable

standards of the National Fire Protec-

tion Association (e.g., NFPA 25), in

addition to the standards of any other

authorities having jurisdiction. The in-

stalling contractor or sprinkler manu-

facturer should be contacted relative

to any questions.

Automaticsprinklersystemsshouldbe

inspected, tested, and maintained by a

qualified Inspection Service in accord-

ance with local requirements and/or

national code.

TFP215 Page 3 of 4

FIGURE 3

W-TYPE 3

SPRINKLER WRENCH

"FITTING SIDE"

FITTING

TOWARDS SPRINKLER

RECESS

WRENCH

(END "B")

1/4" (6,4 mm)

1/2" (12,7 mm)

MOUNTING

SURFACE

SPRINKLER

FITTING

FACE OF

(12,7±3,2 mm)

1/2±1/8"

(57,2 mm)

2-1/4" DIA.

2-7/8" DIA.

(73,0 mm)

CLOSURE

1-1/2" (38,1 mm)

1-1/4" (31,8 mm)

MOUNTING

PLATE

(3,2 mm)

1/8"

FIGURE 2

MODEL EC-17 RECESSED PENDENT SPRINKLER ASSEMBLY

WITH TWO-PIECE 1/2 INCH TOTAL ADJUSTMENT

STYLE 30 RECESSED ESCUTCHEON

FIGURE 4

W-TYPE 24

RECESSED SPRINKLER

WRENCH

RECESS

WRENCH

HEX

OBSOLETE

Limited

Warranty

Products manufactured by Tyco Fire &

Building Products (TFBP) are war-

ranted solely to the original Buyer for

ten (10) years against defects in mate-

rial and workmanship when paid for

and properly installed and maintained

under normal use and service. This

warranty will expire ten (10) years

from date of shipment by TFBP. No

warranty is given for products or com-

ponents manufactured by companies

not affiliated by ownership with TFBP

or for products and components which

havebeensubject tomisuse,improper

installation,corrosion, or which have

not been installed, maintained, modi-

fied or repaired in accordance with ap-

plicable Standards of the National Fire

Protection Association, and/or the

standards of any other Authorities

Having Jurisdiction. Materials found

by TFBP to be defective shall be either

repaired or replaced, at TFBP’s sole

option. TFBP neither assumes, nor

authorizesanypersontoassumeforit,

any other obligation in connection with

the sale of products or parts of prod-

ucts.TFBP shall not beresponsiblefor

sprinkler system design errors or inac-

curate or incomplete information sup-

plied by Buyer or Buyer’s repre-

sentatives.

In no event shall TFBP be liable, in

contract, tort, strict liability or under

any other legal theory, for incidental,

indirect,specialor consequentialdam-

ages, including but not limited to labor

charges, regardless of whether TFBP

was informed about the possibility of

such damages, and in no event shall

TFBP’s liability exceed an amount

equal to the sales price.

Theforegoingwarrantyismadeinlieu

of any and all other warranties, ex-

press or implied, including warranties

ofmerchantabilityandfitnessforapar-

ticular purpose.

This limited warranty sets forth the ex-

clusive remedy for claims based on

failure of or defect in products, materi-

als or components, whether the claim

is made in contract, tort, strict liability

or any other legal theory.

This warranty will apply to the full ex-

tent permitted by law. The invalidity, in

whole or part, of any portion of this

warranty will not affect the remainder.

Ordering

Procedure

Whenplacinganorder,indicatethefull

product name. Please specify the

Sprinkler Identification Number (SIN),

quantity, and temperature rating. Re-

fer to the Price List for complete listing

of Part Numbers.

Contact your local distributor for avail-

ability.

Sprinkler Assemblies:

Specify: (specify temperature rating),

(specify finish), Model EC-17

(TY7228) Extended Coverage Pen-

dent Sprinkler, P/N (specify).

Natural Brass

160°F/71°C . . . . . . . . . . . . . . P/N 51-310-1-160

212°F/100°C . . . . . . . . . . . . . P/N 51-310-1-212

Chrome Plated

160°F/71°C . . . . . . . . . . . . . . P/N 51-310-9-160

212°F/100°C . . . . . . . . . . . . . P/N 51-310-9-212

White Polyester

160°F/71°C . . . . . . . . . . . . . . P/N 51-310-4-160

212°F/100°C . . . . . . . . . . . . . P/N 51-310-4-212

Recessed Escutcheon:

Specify: Style 30 Recessed Escutch-

eon with (specify finish),P/N (specify).

Chrome Plated. . . . . . . . . . . . PSN 56-705-9-011

White Color Coated. . . . . . . . PSN 56-705-4-011

Brass Plated . . . . . . . . . . . . . PSN 56-705-2-011

Sprinkler Wrench

Specify: W-Type 3 Sprinkler Wrench,

P/N 56-895-1-001.

Specify: W-Type 24 Sprinkler Wrench,

P/N 56-000-6-856.

Page4of4 TFP215

OBSOLETE

Andere Tyco Fire Product Bewässerungssystem Handbücher

Tyco Fire Product

Tyco Fire Product CENTRAL TFP1 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star StarMax S102 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-16 GB Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Gem STAINLESS STEEL QUARTZOID Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Luminous S170 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL H Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL BVR Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL K17-231 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL LD Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231TM Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Gem RFII Series Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star SG-R Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL Attic Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Galaxy SGQR Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL TY-B Series Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL GB-20 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL DS-1 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL TY-B Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product SIN S2983 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Gem F938 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star SG S180 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Gem F890 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product TY-B Series Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 Bedienungsanleitung

Beliebte Bewässerungssystem Handbücher anderer Marken

Hunter

Hunter Institutional Series Bedienungsanleitung

Cellfast

Cellfast 52-305 Bedienungsanleitung

Oral Care Technologies

Oral Care Technologies Hydro Floss Bedienungsanleitung

Reliable

Reliable F1-300 Bedienungsanleitung

Netafim

Netafim NETBEAT Bedienungsanleitung

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Bedienungsanleitung

Tyco

Tyco CC3 Bedienungsanleitung

Reliable

Reliable F4FR Bedienungsanleitung

OpenSprinkler

OpenSprinkler OSPi Bedienungsanleitung

EINHELL

EINHELL GE-WW 5537 E Bedienungsanleitung

Valley

Valley Bender160 Bedienungsanleitung

Reliable

Reliable F1FR42 Series Bedienungsanleitung

Reliable

Reliable F1FR-300 Bedienungsanleitung

Toro

Toro 730 Series Kurzanleitung

Eden

Eden 97063-EDAMZ Bedienungsanleitung

Tyco

Tyco TY-L Series Bedienungsanleitung

Johnson Controls

Johnson Controls tyco ESFR-17 Bedienungsanleitung

Victaulic

Victaulic VicFlex I-VICFLEX.AQC-U Bedienungsanleitung
