Tyco TY-B Series Bedienungsanleitung

General

Description

The Series TY-B, 80 and 115 K-factor,

Conventional Sprinklers described in

this data sheet are special response -

standard coverage, decorative 4 mm

glass bulb sprinklers designed for use

in accordance with the installation

rules recognized by the applicable Ap-

proval agency (e.g.. VdS).These sprin-

klers are intended to be installed either

pendent or upright, and in either posi-

tion, they produce a spherical water

discharge pattern with approximately

50% of the discharge directed up-

wards and approximately 50% of the

discharge directed downwards.

WARNINGS

The Series TY-B Sprinklers described

herein must be installed and main-

tained in compliance with this docu-

ment, as well as with the applicable

standards recognized by the Approval

agency, in addition to the standards of

any other authorities having jurisdic-

tion. Failure to do so may impair the

performance of these devices.

The owner is responsible for maintain-

ing their fire protection system and de-

vices in proper operating condition.

The installing contractor or sprinkler

manufacturer should be contacted

with any questions.

Model/Sprinkler

Identification

Numbers

TY3641 - Conventional 80K

TY4641 - Conventional 115K

Technical

Data

Approvals

VdS Approved (CEA 4001)

Maximum Working Pressure

12,1 bar

Discharge Coefficient

K = 80 LPM/bar1/2

K=115LPM/bar

1/2

Temperature Ratings

57°C, 68°C, 79°C, 93°C, 141°C, and

182°C

Finishes

Natural Brass, Chrome Plated, and

Polyester Coated

Physical Characteristics

Frame .............Bronze

Button .........Brass/Copper

SealingAssembly...........

. . . . . . Beryllium Nickel w/Teflon*

Bulb .............. Glass

Compression Screw . . . . . Bronze

Deflector........... Copper

* DuPont Registered Trademark

Operation

The glass Bulb contains a fluid which

expands when exposed to heat. When

the rated temperature is reached, the

fluid expands sufficiently to shatter the

glass Bulb, allowing the sprinkler to

activate and water to flow.

Installation

The Series TY-B Sprinklers must be

installed in accordance with the follow-

ing instructions:

NOTES

Do not install any bulb type sprinkler if

the bulb is cracked or there is a loss of

liquid from the bulb. With the sprinkler

held horizontally, a small air bubble

should be present. The diameter of the

air bubble is approximately 1,6 mm for

the 57°C to 2,4 mm for the 182°C tem-

perature ratings.

A leak tight 1/2 inch NPT sprinkler joint

should be obtained with a torque of 9

to 19 Nm. A maximum of 28 Nm of

torque may be used to install sprin-

klers with 1/2 NPT connections. A leak

tight 3/4 inch NPT sprinkler joint

should be obtained with a torque of 13

Series TY-B — 80 and 115 K-factor

Conventional Sprinklers

Special Response, Standard Coverage

Page 1 of 4 TFP663

JULY, 2004

Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500

IMPORTANT

Always refer to Technical Data

Sheet TFP700 for the “INSTALLER

WARNING” that provides cautions

with respect to handling and instal-

lation of sprinkler systems and com-

ponents. Improper handling and in-

stallation can permanently damage

a sprinkler system or its compo-

nents and cause the sprinkler to fail

to operate in a fire situation or cause

it to operate prematurely.

to 27 Nm. A maximum of 40 Nm of

torque is to be used to install sprinklers

with 3/4 NPT connections. Higher lev-

els of torque may distort the sprinkler

inlet and cause leakage or impairment

of the sprinkler.

Do not attempt to make-up for insuffi-

cient adjustment in the escutcheon

plate by under- or over-tightening the

sprinkler. Readjust the position of the

sprinkler fitting to suit.

The Series TY-B Conventional

Sprinklers must be installed in ac-

cordance with the following instruc-

tions.

Step 1. With pipe thread sealant ap-

plied to the pipe threads, hand tighten

the sprinkler into the sprinkler fitting.

Step 2. Tighten the sprinkler into the

sprinkler fitting using only the W-Type

6 Sprinkler Wrench (Ref. Figure 2) or

W-Type 7 Sprinkler Wrench (Ref. Fig-

ure 3). With reference to Figure 1, the

W-Type 6 or W-Type 7 Sprinkler

Wrench is to be applied to the wrench

flats.

Care and

Maintenance

The Series TY-B Sprinklers must be

maintained and serviced in accord-

ance with the following instructions:

NOTE

Before closing a fire protection system

main control valve for maintenance

work on the fire protection system that

it controls, permission to shut down the

affected fire protection system must be

obtained from the proper authorities

and all personnel who may be affected

by this action must be notified.

Sprinklers that are found to be leaking

or exhibiting visible signs of corrosion

must be replaced.

Automatic sprinklers must never be

painted, plated, coated or otherwise

altered after leaving the factory. Modi-

fied sprinklers must be replaced.

Sprinklers that have been exposed to

corrosive products of combustion, but

have not operated, should be replaced

if they cannot be completely cleaned

by wiping the sprinkler with a cloth or

by brushing it with a soft bristle brush.

Care must be exercised to avoid dam-

age to the sprinklers - before, during,

and after installation. Sprinklers dam-

aged by dropping, striking, wrench

twist/slippage, or the like, must be re-

placed. Also, replace any sprinkler that

has a cracked bulb or that has lost

Page2of4 TFP663

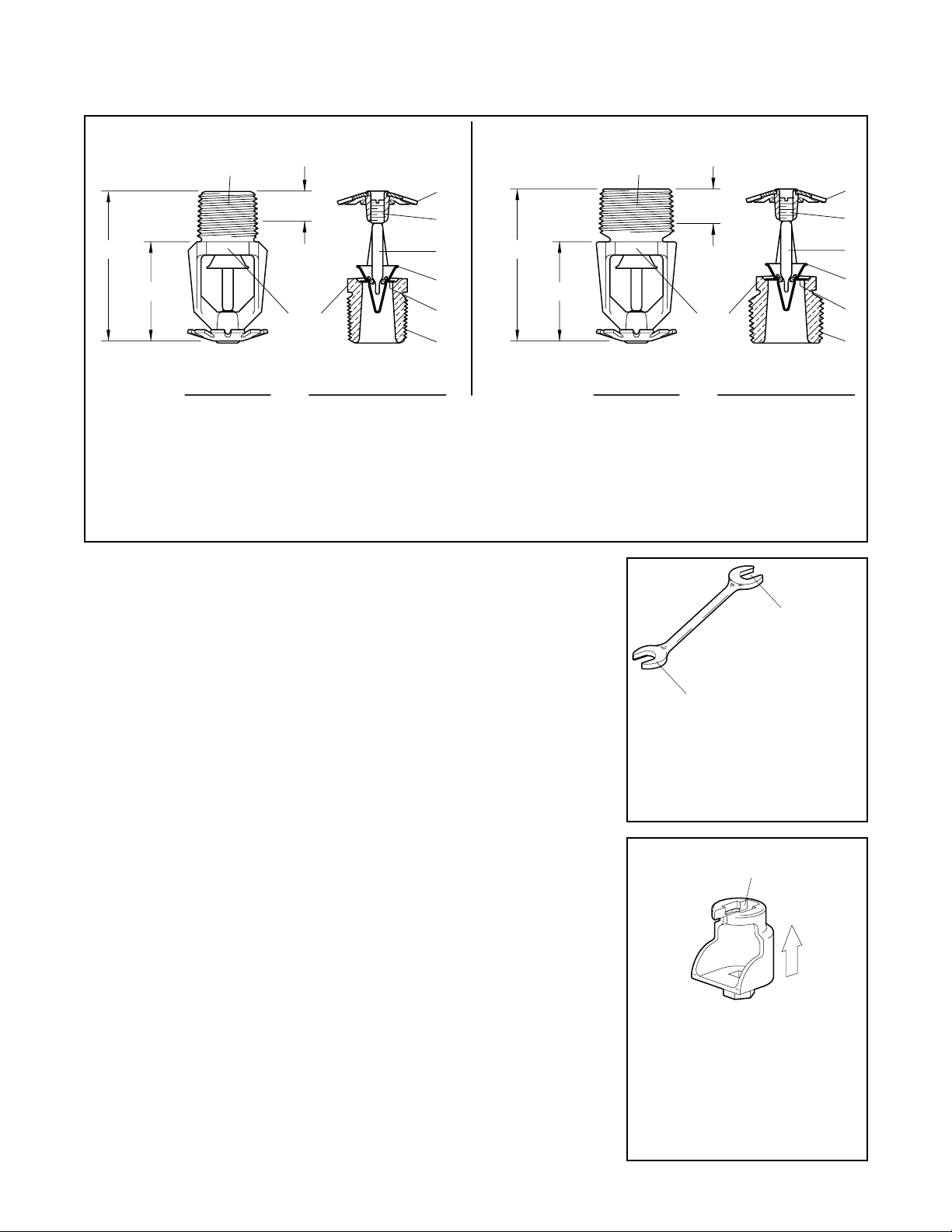

FIGURE 1, SPECIAL RESPONSE SERIES TY-B CONVENTIONAL SPRINKLERS

1-Frame

2-Button

3 - Sealing

Assembly

4-Bulb

5-Compression

Screw

6 - Deflector *Temperature rating is indicated on deflector or adjacent to

orifice seat on frame.

**Pipe thread connections per ISO 7/1 can be provided on

special request.

TY3641 WITH 1/2 INCH NPT TY4641 WITH 3/4 INCH NPT

56 mm 57 mm

38 mm

11 mm

NOMINAL

MAKE-IN

FLATS

WRENCH

13 mm

MAKE-IN

NOMINAL

3/4"

FLATS

WRENCH

NPT**

NPT

1/2" **

PENDENT SHOWN UPRIGHT

CROSS SECTION

PENDENT

CROSS SECTION

SHOWN UPRIGHT

SHOWN SHOWN

38 mm

TY3641 WITH 1/2 INCH NPT

FIGURE 2

W-TYPE 6 SPRINKLER

WRENCH

WRENCH RECESS

(END "A" USED FOR

1/2" NPT MODELS)

WRENCH RECESS

(END "B" USED FOR

3/4" NPT MODELS)

FIGURE 3

W-TYPE 7 SPRINKLER

WRENCH

RECESS

WREN

WITH SPRINKLER

ENGAGEMENT

IN TO ENSURE

WREN

HIN

AREA

PUSH WRENCH

liquid from its bulb. (Ref. Installation

Section).

The owner is responsible for the in-

spection, testing, and maintenance of

their fire protection system and de-

vices in compliance with this docu-

ment, as well as with the applicable

standards of the National Fire Protec-

tion Association (e.g., NFPA 25), in

addition to the standards of any other

authorities having jurisdiction. The in-

stalling contractor or sprinkler manu-

facturer should be contacted relative to

any questions.

It is recommended that automatic

sprinkler systems be inspected,

tested, and maintained by a qualified

Inspection Service in accordance with

local requirements and/or national

codes.

Limited

Warranty

Products manufactured by Tyco Fire

Products are warranted solely to the

original Buyer for ten (10) years

against defects in material and work-

manship when paid for and properly

installed and maintained under normal

use and service. This warranty will ex-

pire ten (10) years from date of ship-

ment by Tyco Fire Products. No war-

ranty is given for products or

components manufactured by compa-

nies not affiliated by ownership with

Tyco Fire Products or for products and

components which have been subject

to misuse, improper installation, corro-

sion, or which have not been installed,

maintained, modified or repaired in ac-

cordance with applicable Standards of

the National Fire Protection Associa-

tion, and/or the standards of any other

Authorities Having Jurisdiction. Mate-

rials found by Tyco Fire Products to be

defective shall be either repaired or

replaced, at Tyco Fire Products’ sole

option. Tyco Fire Products neither as-

sumes, nor authorizes any person to

assume for it, any other obligation in

connection with the sale of products or

parts of products. Tyco Fire Products

shall not be responsible for sprinkler

system design errors or inaccurate or

incomplete information supplied by

Buyer or Buyer’s representatives.

IN NO EVENT SHALL TYCO FIRE

PRODUCTS BE LIABLE, IN CON-

TRACT, TORT, STRICT LIABILITY OR

UNDER ANY OTHER LEGAL THE-

ORY, FOR INCIDENTAL, INDIRECT,

SPECIAL OR CONSEQUENTIAL

DAMAGES, INCLUDING BUT NOT

LIMITED TO LABOR CHARGES, RE-

GARDLESS OF WHETHER TYCO

FIRE PRODUCTS WAS INFORMED

ABOUT THE POSSIBILITY OF SUCH

DAMAGES,ANDINNOEVENT

SHALL TYCO FIRE PRODUCTS’ LI-

ABILITY EXCEED AN AMOUNT

EQUAL TO THE SALES PRICE.

THE FOREGOING WARRANTY IS

MADE IN LIEU OF ANY AND ALL

OTHER WARRANTIES EXPRESS OR

IMPLIED, INCLUDING WARRANTIES

OF MERCHANTABILITY AND FIT-

NESS FOR A PARTICULAR PUR-

POSE.

Ordering

Procedure

When placing an order, indicate the full

product name. Refer to the Price List

for complete listing of Part Numbers.

Contact your local distributor for avail-

ability.

Sprinkler Assemblies:

Specify: (Specify Model/SIN), Special

Response, (specify K-factor), (specify

temperature rating), Series TY-B Con-

ventional Sprinkler with (specify type

of finish ), P/N (specify from Table A).

Sprinkler Wrench:

Specify: W-Type 6 Sprinkler Wrench,

P/N 56-000-6-387, or

W-Type 7 Sprinkler Wrench,

P/N 56-850-4-001.

TFP663 Page 3 of 4

P/N 57 — XXX — X — XXX

182°C

68°C

360

155

TEMPERATURE

RATING

57°C135

SPRINKLER

TABLE B

PART NUMBER SELECTION

SERIES TY-B SPECIAL RESPONSE CONVENTIONAL SPRINKLERS

79°C

286

93°C200

141°C

175WHITE POLYESTER

NATURAL BRASS

MODEL/SIN

CHROME PLATED

473 80K CONVENTIONAL (1/2" NPT)

493 115K CONVENTIONAL (3/4" NPT)

TY3641

TY4641

3WHITE (RAL9010)*

* Eastern Hemisphere sales only.

Page4of4 TFP663

TYCO FIRE PRODUCTS, 451 North Cannon Avenue, Lansdale, Pennsylvania 19446

Andere Handbücher für TY-B Series

Dieses Handbuch passt für folgende Modelle

Andere Tyco Bewässerungssystem Handbücher

Tyco

Tyco D4a Bedienungsanleitung

Tyco

Tyco RAPID RESPONSE Series Bedienungsanleitung

Tyco

Tyco DS-2 Series Bedienungsanleitung

Tyco

Tyco RapidResponse SIN TY4334 Bedienungsanleitung

Tyco

Tyco TY-FRB Series Bedienungsanleitung

Tyco

Tyco ELO-231FRB Series Bedienungsanleitung

Tyco

Tyco TY-L Series Bedienungsanleitung

Tyco

Tyco F08 FIP Bedienungsanleitung

Tyco

Tyco Royal Flush II Bedienungsanleitung

Tyco

Tyco CC2 Bedienungsanleitung

Tyco

Tyco RAVEN 5.6K Bedienungsanleitung

Tyco

Tyco G1 Bedienungsanleitung

Tyco

Tyco ESFR-22 Bedienungsanleitung

Tyco

Tyco rapid response LFII Series Bedienungsanleitung

Tyco

Tyco ESFR-22 Bedienungsanleitung

Tyco

Tyco RFII-C Series Bedienungsanleitung

Tyco

Tyco TY-B Series Bedienungsanleitung

Tyco

Tyco TY-FRB Series Bedienerhandbuch

Tyco

Tyco Rapidresponse LFII Series Bedienungs- und Wartungsanleitung

Tyco

Tyco TY-B Series Bedienungsanleitung

Tyco

Tyco ELO-231 Series Bedienungsanleitung

Tyco

Tyco Rapidresponse LFII Series Bedienungsanleitung

Tyco

Tyco ESFR-25 Bedienungs- und Wartungsanleitung

Tyco

Tyco TY-QRF-EU Bedienungsanleitung

Beliebte Bewässerungssystem Handbücher anderer Marken

Hunter

Hunter Institutional Series Bedienungsanleitung

Cellfast

Cellfast 52-305 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Galaxy SGQR Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL A Bedienungsanleitung

Oral Care Technologies

Oral Care Technologies Hydro Floss Bedienungsanleitung

Reliable

Reliable F1-300 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Gem F892 Bedienungsanleitung

Netafim

Netafim NETBEAT Bedienungsanleitung

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Bedienungsanleitung

Reliable

Reliable F4FR Bedienungsanleitung

OpenSprinkler

OpenSprinkler OSPi Bedienungsanleitung

EINHELL

EINHELL GE-WW 5537 E Bedienungsanleitung

Valley

Valley Bender160 Bedienungsanleitung

Reliable

Reliable F1FR42 Series Bedienungsanleitung

Reliable

Reliable F1FR-300 Bedienungsanleitung

Toro

Toro 730 Series Kurzanleitung

Eden

Eden 97063-EDAMZ Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 Bedienungsanleitung
