Tyco TY-FRL Series Bedienungsanleitung

General

Description

The Series TY-FRL, 2.8, 5.6, and 8.0

K-factor, Upright and Pendent Sprin-

klers described in this data sheet are

quick response - standard coverage,

solder type spray sprinklers designed

for use in light and ordinary hazard,

commercial occupancies such as

banks, hotels, shopping malls,

schools, hospitals, etc.

The recessed version of the 2.8 and

5.6 K-factor, Series TY-FRL Pendent

Sprinkler, where applicable, is in-

tended for use in areas with a finished

ceiling. It uses a two-piece Style 20

(1/2 inch NPT) Recessed Escutcheon.

The Recessed Escutcheon provides

1/4 inch (6,4 mm) of recessed adjust-

ment or up to 1/2 inch (12,7 mm) of

total adjustment from the flush pen-

dent position. The adjustment provided

by the Recessed Escutcheon reduces

the accuracy to which the fixed pipe

drops to the sprinklers must be cut

An intermediate level version of the 5.6

and 8.0 K-factor, Series TY-FRL Pen-

dent Sprinkler can be obtained by util-

izing the Series TY-FRL Pendent

Sprinkler in combination with the

Model S4 Shield.

WARNINGS

The Series TY-FRL Sprinklers de-

scribed herein must be installed and

maintained in compliance with this

document, as well as with the applica-

ble standards of the National Fire Pro-

tection Association, in addition to the

standards of any other authorities hav-

ing jurisdiction. Failuretodosomay

impair the performance of these de-

vices.

The owner is responsible for maintain-

ing their fire protection system and de-

vices in proper operating condition.

The installing contractor or sprinkler

manufacturer should be contacted

with any questions.

Model/Sprinkler

Identification

Numbers

TY1121 - Upright 2.8K, 1/2"NPT

TY1221 - Pendent 2.8K, 1/2"NPT

TY3121 - Upright 5.6K, 1/2"NPT

TY3221 - Pendent 5.6K, 1/2"NPT

TY4121 - Upright 8.0K, 3/4"NPT

TY4221 - Pendent 8.0K, 3/4"NPT

TY1121 is a redesignation for S1879

and G8973.

TY1221 is a redesignation for S1880

and G8971.

TY3121 is a redesignation for S1864

and G8974.

TY3221 is a redesignation for S1865

and G8972.

TY4121 is a redesignation for S1866

and G8174.

TY4221 is a redesignation for S1867

and G8172.

Page 1 of 6 TFP130

JULY, 2004

Series TY-FRL — 2.8, 5.6, and 8.0 K-factor

Upright, Pendent, and Recessed Pendent Sprinklers

Quick Response, Standard Coverage

Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500

IMPORTANT

Always refer to Technical Data

Sheet TFP700 for the “INSTALLER

WARNING” that provides cautions

with respect to handling and instal-

lation of sprinkler systems and com-

ponents. Improper handling and in-

stallation can permanently damage

a sprinkler system or its compo-

nents and cause the sprinkler to fail

to operate in a fire situation or cause

it to operate prematurely.

Page2of6 TFP130

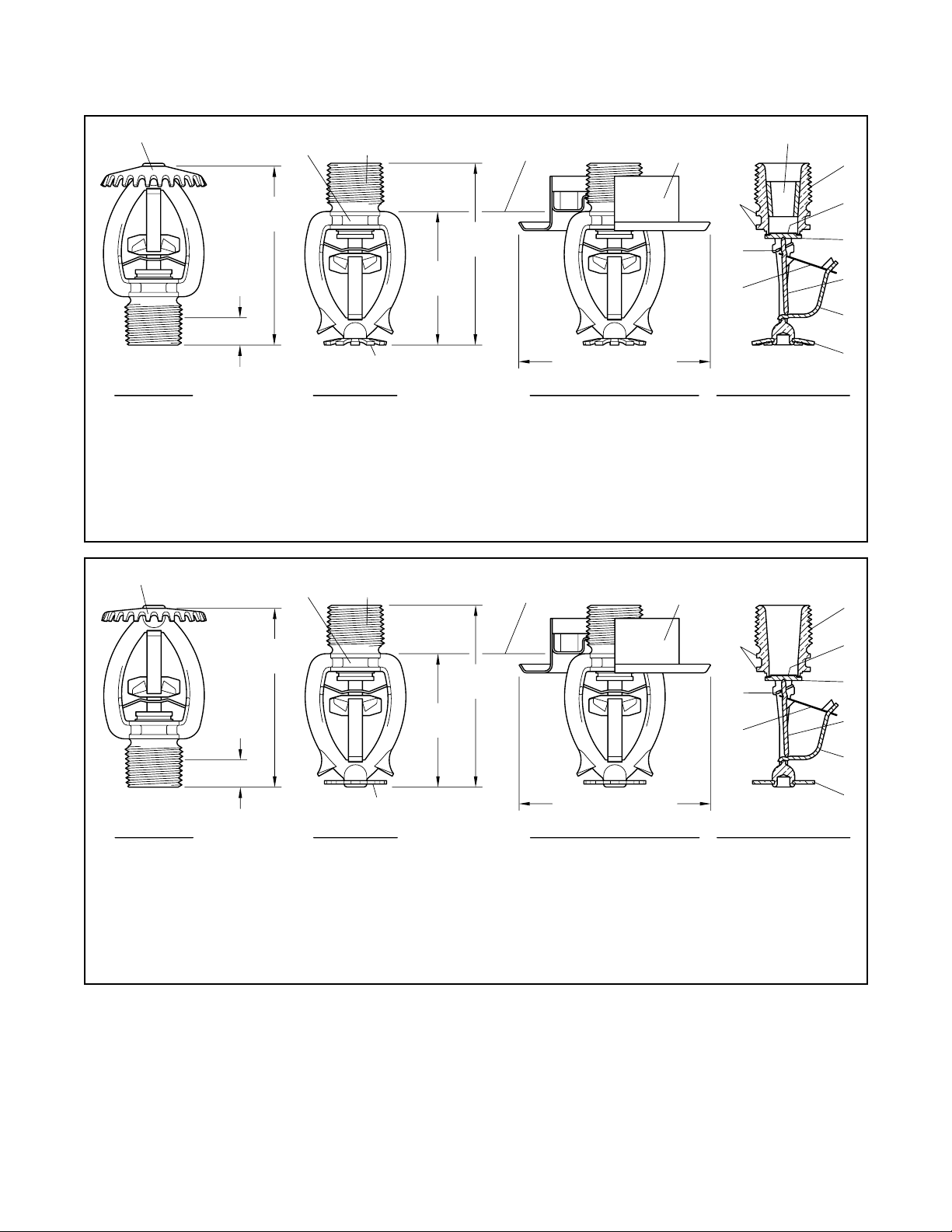

FIGURE 1

QUICK RESPONSE SERIES TY-FRL UPRIGHT (TY1121) AND PENDENT (TY1221) SPRINKLERS

2.8 K-FACTOR, 1/2 INCH NPT

*Temperature rating is indicated on deflector.

**Pipe thread connections per ISO 7/1 can be provided on

special request.

1-Frame

2-Strut

3-Deflector

4-Hook

5 - Link Assembly

6 - Ejection

Spring

7-Button

8-Seal

9-Bushing

FIGURE 2

QUICK RESPONSE SERIES TY-FRL UPRIGHT (TY3121) AND PENDENT (TY3221) SPRINKLERS

5.6 K-FACTOR, 1/2 INCH NPT

*Temperature rating is indicated on deflector.

**Pipe thread connections per ISO 7/1 can be provided on

special request.

1-Frame

2-Strut

3-Deflector

4-Hook

5-LinkAssembly

6-Ejection

Spring

7-Button

8-Seal

ESCUTCHEON

PLATE SEATING

SURFACE

MAKE-IN

(11,1 mm)

NOMINAL

2-11/16"

(68,3 mm)

UPRIGHT

7/16"

DEFLECTOR*

DEFLECTOR

PENDENT

(68,3 mm)

2-11/16"

(50,8 mm)

WRENCH

AREA

1/2"

NPT

CROSS SECTION

WRENCH

2-7/8" (73,0 mm) DIA.

RECESSED PENDENT

FLANGES

STYLE 20

ESCUTCHEON

RECESSED 9

ESCUTCHEON

PLATE SEATING

SURFACE

MAKE-IN

(11,1 mm)

NOMINAL

2-11/16"

(68,3 mm)

UPRIGHT

7/16"

DEFLECTOR*

DEFLECTOR

PENDENT

(68,3 mm)

2-11/16"

(50,8 mm)

WRENCH

AREA

1/2"

NPT

CROSS SECTION

WRENCH

2-7/8" (73,0 mm) DIA.

RECESSED PENDENT

FLANGES

STYLE 20

ESCUTCHEON

RECESSED

Technical

Data

Approvals

UL and C-UL Listed.

FM, NYC, and LPCB Approved.

(Refer to Table A for complete approval

information including corrosion resis-

tant status.)

Maximum Working Pressure

175 psi (12,1 bar)

Discharge Coefficient

K=2.8GPM/psi

1/2 (40,3 LPM/bar1/2)

K=5.6GPM/psi

1/2 (80,6 LPM/bar1/2)

K=8.0GPM/psi

1/2 (115,2 LPM/bar1/2)

Temperature Ratings

RefertoTableA

Finishes

Sprinkler: Refer to Table A

Recessed Escutcheon: White Coated,

Chrome Plated, or Brass Plated

Physical Characteristics

Frame............. Bronze

Strut ..............Monel

Deflector ........... Bronze

Hook ..............Monel

Link Assembly . . . . . . . . . Nickel

EjectionSpring........Inconel

Button............. Bronze

Seal..............Teflon†

Bushing (2.8K only) . . . . . . Brass

† DuPont Registered Trademark

Operation

The fusible link (heat collector) assem-

bly is comprised of two halves that are

joined together by a thin layer of solder.

When the rated temperature is

reached, the solder melts and the two

link halves separate, allowing the

sprinkler to operate.

Design

Criteria

The Series TY-FRL Pendent and Up-

right Sprinklers are intended for fire

protection systems designed in ac-

cordance with the standard installation

rules recognized by the applicable

Listing or Approval agency (e.g., UL

Listing is based on the requirements of

NFPA 13, and FM Approval is based

on the requirements of FM’s Loss Pre-

vention Data Sheets). Only the Style

20 Recessed Escutcheon, as applica-

ble, is to be used for recessed pendent

installations.

Installation

The Series TY-FRL Sprinklers must be

installed in accordance with the follow-

ing instructions:

NOTES

A leak tight 1/2 inch NPT sprinkler joint

should be obtained with a torque of 7

to 14 ft.lbs. (9,5 to 19,0 Nm). A maxi-

mum of 21 ft. lbs. (28,5 Nm) of torque

may be used to install sprinklers with

1/2 NPT connections. A leak tight 3/4

inch NPT sprinkler joint should be ob-

tained with a torque of 10 to 20 ft.lbs.

(13,4 to 26,8 Nm). A maximum of 30

ft.lbs. (40,7 Nm) of torque is to be used

to install sprinklers with 3/4 NPT con-

nections. Higher levels of torque may

distort the sprinkler inlet and cause

leakage or impairment of the sprinkler.

Do not attempt to make-up for insuffi-

cient adjustment in the escutcheon

plate by under- or over-tightening the

sprinkler. Readjust the position of the

sprinkler fitting to suit.

The Series TY-FRL Pendent and Up-

right Sprinklers must be installed in

accordance with the following instruc-

tions.

Step 1. Pendent sprinklers are to be

installed in the pendent position, and

upright sprinklers are to be installed in

the upright position.

Step 2. With pipe thread sealant ap-

plied to the pipe threads, hand tighten

the sprinkler into the sprinkler fitting.

TFP130 Page 3 of 6

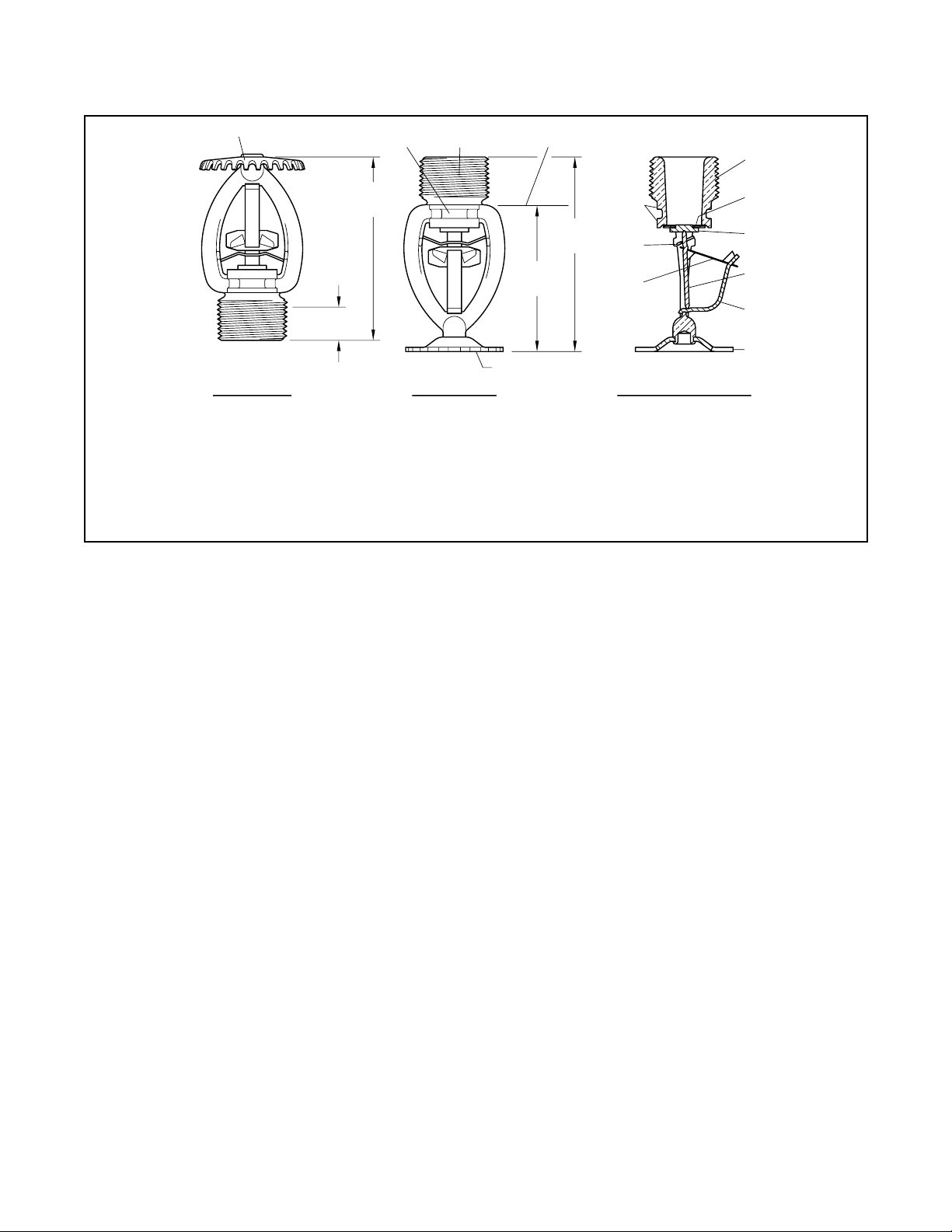

FIGURE 3

QUICK RESPONSE SERIES TY-FRL UPRIGHT (TY4121) AND PENDENT (TY4221) SPRINKLERS

8.0 K-FACTOR, 3/4 INCH NPT

1-Frame

2-Strut

3-Deflector

4-Hook

5 - Link Assembly

6 - Ejection

Spring

7-Button

8-Seal *Temperature rating is indicated on deflector.

**Pipe thread connections per ISO 7/1 can be provided on

special request.

DEFLECTOR

EILIN

PLATE

SEATING SURFACE

2-3/16"

(55,6 mm)

DEFLECTOR

UPRIGHT

2-13/16"

(71,4 mm)

MAKE-IN

(12,7 mm)

NOMINAL

1/2"

PENDENT

WREN

AREA

NPT**

WRENCH

CROSS SECTION

(74,6 mm)

2-15/16"

FLANGES

Step 3. Tighten the sprinkler into the

sprinkler fitting using only the W-Type

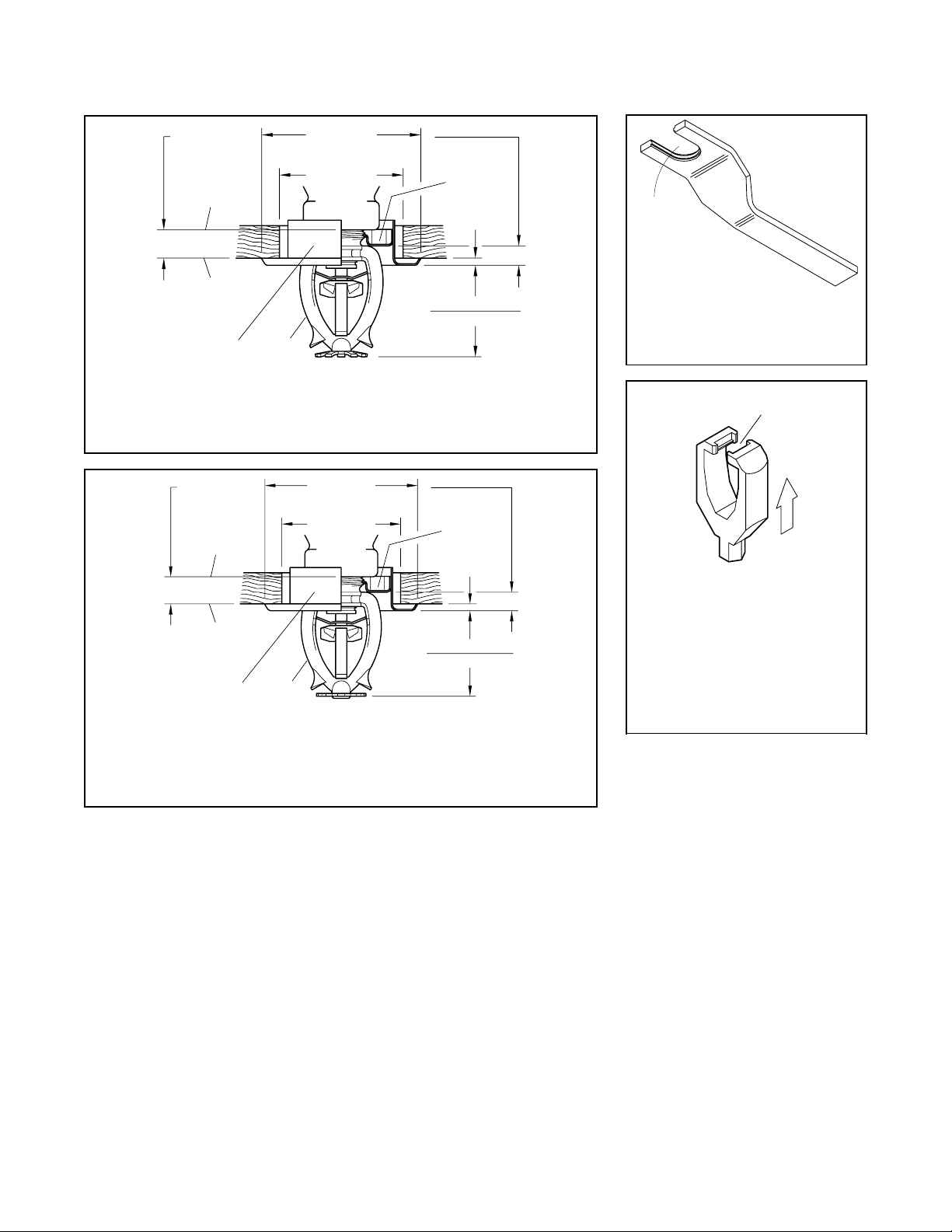

9 Sprinkler Wrench (Ref. Figure 6).

With reference to Figures 1, 2, and 3,

the W-Type 9 Sprinkler Wrench is to be

applied to the wrench area.

The Series TY-FRL Recessed Pen-

dent Sprinklers must be installed in

accordance with the following instruc-

tions.

Step A. After installing the Style 20

Mounting Plate, as applicable, over the

sprinkler threads and with pipe thread

sealant applied to the pipe threads,

hand tighten the sprinkler into the

sprinkler fitting.

Step B. Tighten the sprinkler into the

sprinkler fitting using only the W-Type

12 Recessed Sprinkler Wrench (Ref.

Figure 7). With reference to Figure 1,

or 2, the W-Type 12 Recessed Sprin-

kler Wrench is to be applied to the

sprinkler wrenching flanges.

Step C. After the ceiling has been in-

stalled or the finish coat has been ap-

plied, slide on the Style 20 Closure

over the Series TY-FRL Sprinkler and

push the Closure over the Mounting

Plate until its flange comes in contact

with the ceiling.

Page4of6 TFP130

TYPE TEMP.

RATING

FRAME

COLOR

CODE

NATURAL

BRASS

CHROME

PLATED

SPRINKLER FINISH

RECESSED PENDENT

(TY1221 w/ Style 20)

NOTES:

1. Listed by Underwriters Laboratories, Inc. (UL) as Quick Response Sprinklers.

2. Listed by Underwriters Laboratories, Inc. for use in Canada (C-UL) as Quick Response

Sprinklers.

3. Approved by Factory Mutual Research Corporation (FM) as Quick Response Sprinklers.

4. Approved by the Loss Prevention Certification Board (LPCB Ref. No. 094a/03) as Quick

Response Sprinklers.

5. Approved by the City of New York under MEA112-04-E.

N/A: Not Available

TABLE A

LABORATORY LISTINGS AND APPROVALS

2.8

1/2"

NPT

PENDENT

(TY1221)

165°F/74°C Unpainted

212°F/100°C White

1, 2, 5

165°F/74°C Unpainted

212°F/100°C White

UPRIGHT

(TY1121)

165°F/74°C

212°F/100°C

Unpainted

White

TYPE TEMP.

RATING

FRAME

COLOR

CODE

NATURAL

BRASS

CHROME

PLATED

SPRINKLER FINISH

5.6

1/2"

NPT

PENDENT

(TY3221)

RECESSED PENDENT

(TY3221 w/ Style 20)

165°F/74°C Unpainted

212°F/100°C White

165°F/74°C Unpainted

212°F/100°C White

1, 2, 3, 4, 5

1, 2, 5

UPRIGHT

(TY3121)

165°F/74°C Unpainted

212°F/100°C White

1, 2, 3, 5

1, 2, 3, 4, 5

1, 2, 3, 5

TYPE TEMP.

RATING

FRAME

COLOR

CODE

NATURAL

BRASS

CHROME

PLATED

SPRINKLER FINISH

8.0

3/4"

NPT

PENDENT

(TY4221)

165°F/74°C Unpainted

212°F/100°C White

White

165°F/74°C Unpainted

212°F/100°C

UPRIGHT

(TY4121)

1, 2, 3, 5

Care and

Maintenance

The Series TY-FRL Sprinklers must be

maintained and serviced in accord-

ance with the following instructions:

NOTES

Before closing a fire protection system

main control valve for maintenance

work on the fire protection system that

it controls, permission to shut down the

affected fire protection system must be

obtained from the proper authorities

and all personnel who may be affected

by this action must be notified.

Absence of an escutcheon, which is

used to cover a clearance hole, may

delay the time to sprinkler operation in

a fire situation.

Sprinklers that are found to be leaking

or exhibiting visible signs of corrosion

must be replaced.

Automatic sprinklers must never be

painted, plated, coated or otherwise

altered after leaving the factory. Modi-

fied or over-heated sprinklers must be

replaced.

Care must be exercised to avoid dam-

age to the sprinklers - before, during,

and after installation. Sprinklers dam-

aged by dropping, striking, wrench

twist/slippage, or the like, must be re-

placed.

The owner is responsible for the in-

spection, testing, and maintenance of

their fire protection system and de-

vices in compliance with this docu-

ment, as well as with the applicable

standards of the National Fire Protec-

tion Association (e.g., NFPA 25), in

addition to the standards of any other

authorities having jurisdiction. The in-

stalling contractor or sprinkler manu-

facturer should be contacted relative

to any questions.

It is recommended that automatic

sprinkler systems be inspected,

tested, and maintained by a qualified

Inspection Service in accordance with

local requirements and/or national

codes.

TFP130 Page 5 of 6

FIGURE 4

SERIES TY-FRL (TY1221) RECESSED PENDENT SPRINKLER ASSEMBLY

WITH TWO-PIECE 1/2 INCH TOTAL ADJUSTMENT

STYLE 20 RECESSED ESCUTCHEON

2.8 K-FACTOR, 1/2 INCH NPT

(12,7±3,2 mm)

CLOSURE

MOUNTING

SPRINKLER

SURFACE

FITTING

FACE OF

1/2±1/8"

(73,0 mm) 1/4" (6,4 mm)

TY-FRL

(57,2 mm)

2-1/4" DIA.

1-1/2" (38,1 mm)

1-3/4" (44,5 mm)

(3,2 mm)

MOUNTING

PLATE

1/8"

2-7/8" DIA. 1/2" (12,7 mm)

FIGURE 5

SERIES TY-FRL (TY3221) RECESSED PENDENT SPRINKLER ASSEMBLY

WITH TWO-PIECE 1/2 INCH TOTAL ADJUSTMENT

STYLE 20 RECESSED ESCUTCHEON

5.6 K-FACTOR, 1/2 INCH NPT

(12,7±3,2 mm)

CLOSURE

MOUNTING

SPRINKLER

SURFACE

FITTING

FACE OF

1/2±1/8"

(73,0 mm) 1/4" (6,4 mm)

TY-FRL

(57,2 mm)

2-1/4" DIA.

1-1/2" (38,1 mm)

1-3/4" (44,5 mm)

(3,2 mm)

MOUNTING

PLATE

1/8"

2-7/8" DIA. 1/2" (12,7 mm)

FIGURE 6

W-TYPE 9 SPRINKLER

WRENCH

FIGURE 7

W-TYPE 12 RECESSED

SPRINKLER WRENCH

WRENCH

RECESS

WREN

RECESS

PUSH WRENCH UP TO

ENSURE ENGAGEMENT

WITH SPRINKLER

WREN

HIN

AREA

Limited

Warranty

Products manufactured by Tyco Fire

Products are warranted solely to the

original Buyer for ten (10) years

against defects in material and work-

manship when paid for and properly

installed and maintained under normal

use and service. This warranty will ex-

pire ten (10) years from date of ship-

ment by Tyco Fire Products. No war-

ranty is given for products or

components manufactured by compa-

nies not affiliated by ownership with

Tyco Fire Products or for products and

components which have been subject

to misuse, improper installation, corro-

sion, or which have not been installed,

maintained, modified or repaired in ac-

cordance with applicable Standards of

the National Fire Protection Associa-

tion, and/or the standards of any other

Authorities Having Jurisdiction. Mate-

rials found by Tyco Fire Products to be

defective shall be either repaired or

replaced, at Tyco Fire Products’ sole

option. Tyco Fire Products neither as-

sumes, nor authorizes any person to

assume for it, any other obligation in

connection with the sale of products or

parts of products. Tyco Fire Products

shall not be responsible for sprinkler

system design errors or inaccurate or

incomplete information supplied by

Buyer or Buyer’s representatives.

IN NO EVENT SHALL TYCO FIRE

PRODUCTS BE LIABLE, IN CON-

TRACT, TORT, STRICT LIABILITY OR

UNDER ANY OTHER LEGAL THE-

ORY, FOR INCIDENTAL, INDIRECT,

SPECIAL OR CONSEQUENTIAL

DAMAGES, INCLUDING BUT NOT

LIMITED TO LABOR CHARGES, RE-

GARDLESS OF WHETHER TYCO

FIRE PRODUCTS WAS INFORMED

ABOUT THE POSSIBILITY OF SUCH

DAMAGES,ANDINNOEVENT

SHALL TYCO FIRE PRODUCTS’ LI-

ABILITY EXCEED AN AMOUNT

EQUAL TO THE SALES PRICE.

THE FOREGOING WARRANTY IS

MADE IN LIEU OF ANY AND ALL

OTHER WARRANTIES EXPRESS OR

IMPLIED, INCLUDING WARRANTIES

OF MERCHANTABILITY AND FIT-

NESS FOR A PARTICULAR PUR-

POSE.

Ordering

Procedure

When placing an order, indicate the full

product name. Refer to the Price List

for complete listing of Part Numbers.

Contact your local distributor for avail-

ability.

Sprinkler Assemblies with NPT

Thread Connections:

Specify: (Specify Model/SIN), Quick

Response, (specify K-factor), (specify

temperature rating), Series TY-FRL

(specify Pendent or Upright) Sprinkler

with (specify type of finish), P/N (spec-

ify from Table B).

Recessed Escutcheon:

Specify: Style 20 Recessed Escutch-

eon with (specify finish), P/N (specify).

1/2" (15 mm)

Style 20

Chrome Plated . . . . . . . . . P/N 56-705-9-010

1/2" (15 mm)

Style 20

White Color

Coated . . . . . . . . . . . . . . . . P/N 56-705-4-010

1/2" (15 mm)

Style 20

Brass Plated . . . . . . . . . . . P/N 56-705-2-010

Sprinkler Wrench:

Specify: W-Type 9 Sprinkler Wrench,

P/N 56-000-1-849.

Specify: W-Type 12 Sprinkler Wrench,

P/N 56-798-1-001.

Page6of6 TFP130

P/N 58 — XXX — X — XXX

TEMPERATURE

RATING

8.0K UPRIGHT (3/4"NPT)

172

174

SPRINKLER

TABLE B

PART NUMBER SELECTION

SERIES TY-FRL PENDENT AND UPRIGHT SPRINKLERS

8.0K PENDENT (3/4"NPT)

165°F/74°C

212°F/100°C212

165

NATURAL BRASS

MODEL/SIN

CHROME PLATED974 5.6K UPRIGHT (1/2"NPT)

982 5.6K PENDENT (1/2"NPT)

973 2.8K UPRIGHT (1/2"NPT)

981 2.8K PENDENT (1/2"NPT)

TY1121

TY1221

TY3121

TY3221

TY4121

TY4221

TYCO FIRE PRODUCTS, 451 North Cannon Avenue, Lansdale, Pennsylvania 19446

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Tyco Bewässerungssystem Handbücher

Tyco

Tyco CHEC-8.0 Bedienungsanleitung

Tyco

Tyco EC-25 Bedienungsanleitung

Tyco

Tyco TY-FRL Series Bedienungsanleitung

Tyco

Tyco TY-B Series Bedienungsanleitung

Tyco

Tyco RFII Series Bedienungsanleitung

Tyco

Tyco Rapidresponse LFII Series Bedienungs- und Wartungsanleitung

Tyco

Tyco RFII-C Series Bedienungsanleitung

Tyco

Tyco TY-B Series Bedienungsanleitung

Tyco

Tyco LD Bedienungsanleitung

Tyco

Tyco TFP PH5 Betriebsanleitung

Tyco

Tyco ESFR-22 Bedienungsanleitung

Tyco

Tyco ESFR-17 Bedienungsanleitung

Tyco

Tyco TY-FRL Series Bedienungsanleitung

Tyco

Tyco TY-B Series Bedienungsanleitung

Tyco

Tyco ESFR-25 Bedienungsanleitung

Tyco

Tyco TY7158 Bedienungsanleitung

Tyco

Tyco TY-FRL Series Bedienungsanleitung

Tyco

Tyco ESFR-17 Bedienungsanleitung

Tyco

Tyco TY5332 Bedienungsanleitung

Tyco

Tyco RFII-MRI Series Bedienungsanleitung

Tyco

Tyco ELOC Bedienungsanleitung

Tyco

Tyco DS-1 Series Bedienungsanleitung

Tyco

Tyco TY-B Series Bedienungsanleitung

Tyco

Tyco WP8360 Bedienungsanleitung

Beliebte Bewässerungssystem Handbücher anderer Marken

Hunter

Hunter Institutional Series Bedienungsanleitung

Cellfast

Cellfast 52-305 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Galaxy SGQR Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL A Bedienungsanleitung

Oral Care Technologies

Oral Care Technologies Hydro Floss Bedienungsanleitung

Reliable

Reliable F1-300 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Gem F892 Bedienungsanleitung

Netafim

Netafim NETBEAT Bedienungsanleitung

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Bedienungsanleitung

Reliable

Reliable F4FR Bedienungsanleitung

OpenSprinkler

OpenSprinkler OSPi Bedienungsanleitung

EINHELL

EINHELL GE-WW 5537 E Bedienungsanleitung

Valley

Valley Bender160 Bedienungsanleitung

Reliable

Reliable F1FR42 Series Bedienungsanleitung

Reliable

Reliable F1FR-300 Bedienungsanleitung

Toro

Toro 730 Series Kurzanleitung

Eden

Eden 97063-EDAMZ Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 Bedienungsanleitung
