TypeS POWERGEN 500 Bedienungsanleitung

User Manual

GASLESS LITHIUM GENERATOR & BATTERY CHARGER

WP ITM. AC530021

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

6.54” x 10.55” x 8.86” (16.6 x 26.8 x 22.5 cm)

15.2 lbs (6.9kg)

Lithium iron phosphate (LiFePO4)

512Wh (16V 32Ah / 12V 42Ah)

>1000 Cycles to 80% capacity

Charge every 3-6 months

BMS, low battery protection

12V - 39VDC 90W max.

110VAC 60Hz, 7.2A (800W)

12V, up to 10A (120W max.)

5V 3A / 9V 3A / 12V 5A / 15V 5A / 20V 5A (100W max.)

5V 3A / 9V 2A / 12V 1.5A (18W max.)

6V 5A max., 12V 5A max

32° - 104°F (0° - 40°C)

-4°F - 113°F (-20°C - 45°C)

< 7 hours (by included AC/DC adapter)

Product Dimensions:

Product Weight:

Battery Type:

Pack Capacity:

Life Cycles:

Shelf Life:

Management System:

Input Charging port:

AC Inverter

(output, pure sine wave):

12V Socket (cigarette, output):

USB-C Port (output):

USB-A Port (output, QC3.0):

6V /12V DC Port (output):

Operating Temperature:

Storage Temperature:

Charging Time:

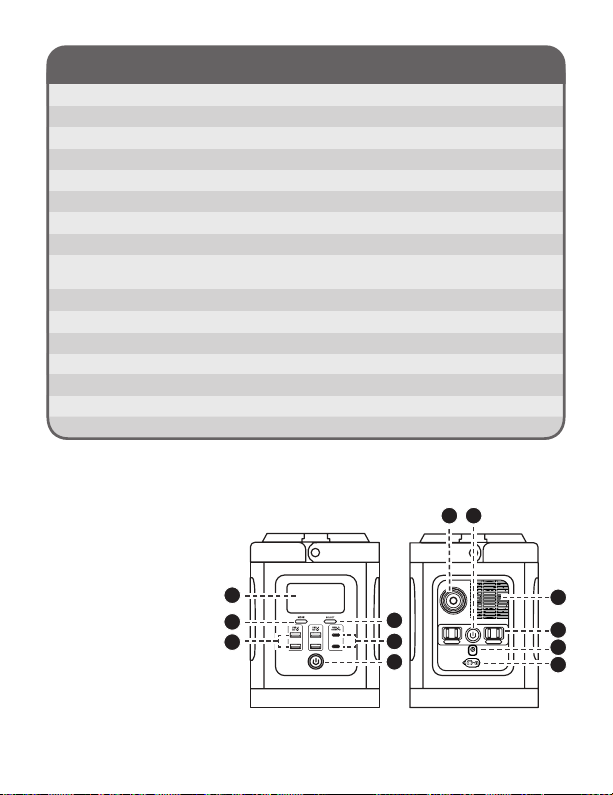

TECHNICAL SPECIFICATIONS:

FEATURE OVERVIEW :

1. LCD Display

2. MODE Button

3. 4 x USB-A Output Ports

4. SELECT Button

5. 2 x USB-C Output Ports

6. Power Button & LCD

Display Screen ON/OFF

& LED Power Indicator

7. 12V Socket

8. AC Power Button

(Press for ON/OFF) &

AC Power Indicator

9. Ventilation Fan

10. 2 x AC Output Sockets

11. Charging Input Port

12. Output Port for 6V/12V

Battery Charging

(Not for vehicle jump starting)

7 8

1. LCD Display

Precisely monitor charge / discharge rates, battery status, load information and

temperature & safety alerts.

2. MODE Button

Toggle between power IN, power OUT or CAR modes.

3. SELECT Button

Selection button in CAR mode.

4. USB-A Output Port (x4)

Charges a wide range of devices at 2X the speed for Quick Charge 3.0

compatible devices. If your device does not support Quick Charge 3.0

standard, the device will be charged at its normal speed.

5. USB-C Output Port (x2)

Provides 100W maximum output for your MacBook Pro, notebook, iPad Pro,

Android phones and any devices that charge through a USB-C port.

*MacBook PRO and iPad PRO are trademarks of Apple Inc.

6. Power Button & LCD Display Screen ON / OFF & LED Power Indicator

Press the Power Button once to turn on the POWERGEN 500. Press again to turn off

the POWERGEN 500. When POWERGEN 500 is turned on, the LED power indicator

turns BLUE and the LCD display is on. The LCD display will enter into sleep mode

 afterbeinginidleforveminutes.PressthePowerButtononcetoturnitonagain.When

 POWERGEN500isbeingcharged,theLEDpowerindicatorturnsGREENandashes.

7. 12V Socket

Provides 10A maximum charge for items such as portable fridge & freezer and

other devices that require power from a 12V car port.

8. AC Power Button (Press for ON / OFF) & AC Power Indicator

To enable AC power output, press the AC Power Button once, the AC Power Indicator

will turn BLUE. When the AC Power is not in use, press the AC Power Button once

again to turn it o, unplug the power cord from the AC outlet.

9. Ventilation Fan

The Ventilation Fan prevents device from overheating. The fan will turn on

automatically when device’s temperature exceeds the optimal range.

10. AC Output Socket (x2)

Provides 800W maximum AC power for 100V-120V devices such as laptops,

electric drills, medical devices, LCD TV and mini refrigerators.

11. Charging Input Port

Charging Input Port for the included AC/DC adapter, car charger cable and

solar charging cable for the solar panels (sold separately).

12. Output Port for 6V/12V Battery Charging

Charges and maintains 6V and 12V Lead-acid, AGM and Li-ion batteries for

vehicles, boats, and lawn mowers. It is NOT for vehicle jump starting. Car battery

charging function will be activated once the cable is connected to car battery terminals.

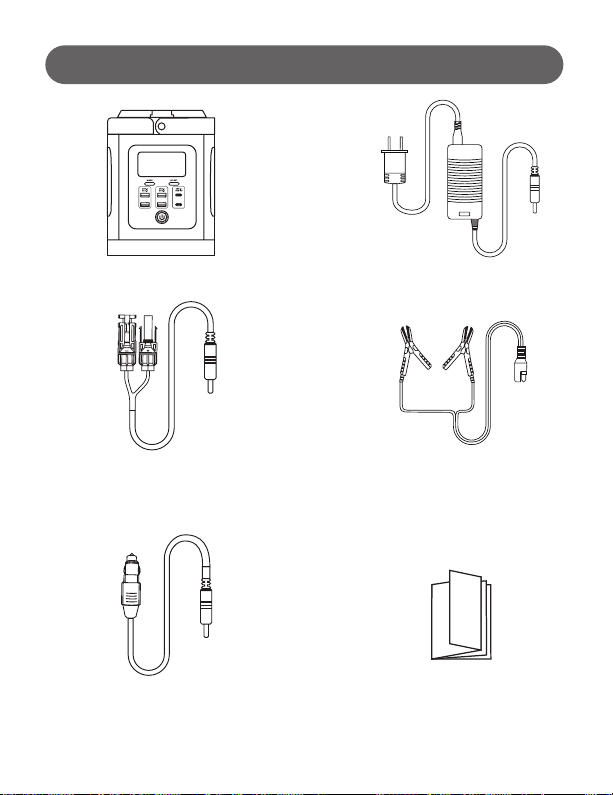

PACKAGE CONTENTS

POWERGEN 500

Solar Charging Cable

(MC4 to DC5525 Input)

Car Charger Cable (Input)

AC/DC Adapter

(Input)

Car Battery Clamps (Output)

* Please connect the car battery clamps to

the car battery terminals and plug the SAE

connector to the output port for 6V/12V

battery charging in order to activate the car

battery charging function.

User Manual &

Warranty Card

* For recharging the POWERGEN 500, please refer to page 9 for details.

CHARGE TIMERUN TIME

PUSH

IN CAROUT

STD LI-ION 6V 12V 1A 5A

hr min

A. Run Time / Charge Time

Run Time shows minute-level accuracy of the amount of discharge time left in

POWERGEN 500 based on the current output level. Charge Time shows

minute-level accuracy of battery recharging time based on the power input.

B. Low Battery Indicator

 Popsupandasheswhenthebatterycapacityfallsbelow10%andtotaloutput

power exceeds 40W. If AC output exceeds 200W, the AC output will turn off

immediately. When the battery capacity falls below 2%, Low Battery Indicator

 popsupandashesandtheACoutputwillbeturnedoffimmediately.Whenthis

happens, please recharge your POWERGEN 500 immediately.

C. Battery Percentage and Battery Level Indicator

Shows current battery percentage and charging status. The LED power

 indicatorasheswhilecharginginprogress.

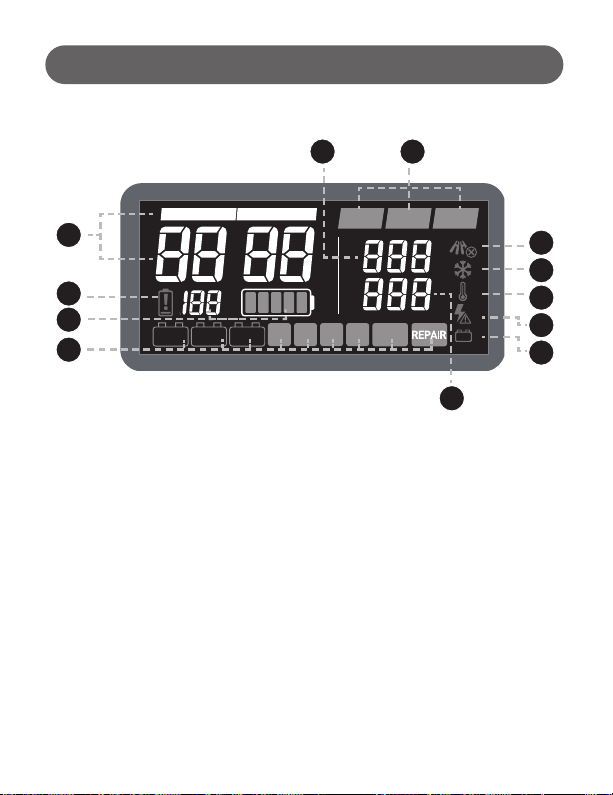

LCD DISPLAY

AGM

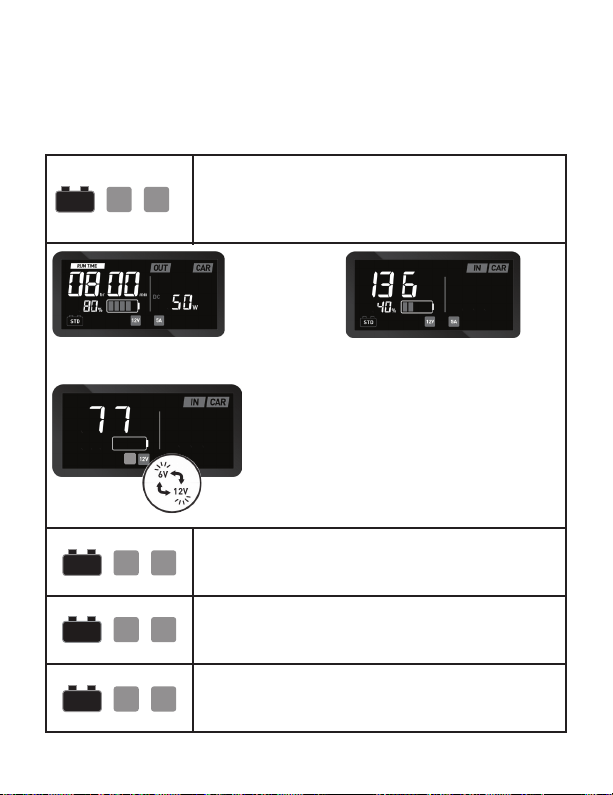

D. CAR Modes (Car Battery Charging Modes)

When car battery clamps are connected to battery terminals and the SAE

connector is plugged into Output Port for 6V/12V Battery Charging, the CAR

icon pops up automatically on the display. Press SELECT button once to

run through the charging modes below.

DIFFERENT TYPES OF BATTERIES CAN BE SELECTED MANUALLY ONLY.

For charging 12V Lead-acid batteries rated at 1A

For charging 12V Lead-acid batteries rated at 5A

For charging 12V AGM batteries rated at 5A

For charging 6V Lead-acid batteries rated at 5A

STD 12V 5A

12V 5A

STD 6V 5A

STD 12V 1A

12V Lead-acid battery being charged at rated 5A Voltage of Lead-acid battery is measured at 13.6V

 If6Vor12Vashesalternativelyitmeansthattheconnectedbatteryis

either a discharged 12V battery (down to roughly 7.6-10.5V) or a fully

charged 6V battery. The charger is trying to determine which kind of battery

has been connected. After 1-2 minutes the charger will determine whether

the battery is a 6V or 12V battery and it will either perform a maintenance

charge for a 6V battery or start charging for a 12V battery.

Test Mode

NOTE: If you are sure the connected battery is a 12V battery, press and hold

the SELECT button for 3 seconds to change to 12V Charging Mode.

PLEASE ENSURE 12V BATTERY IS SELECTED FOR 12V CHARGING

MODE TO AVOID ANY DAMAGE TO THE PRODUCT AND/OR CAR

BATTERY CONNECTED IF USED IMPROPERLY.

AGM

For charging 12V Li-ion batteries rated at 5A

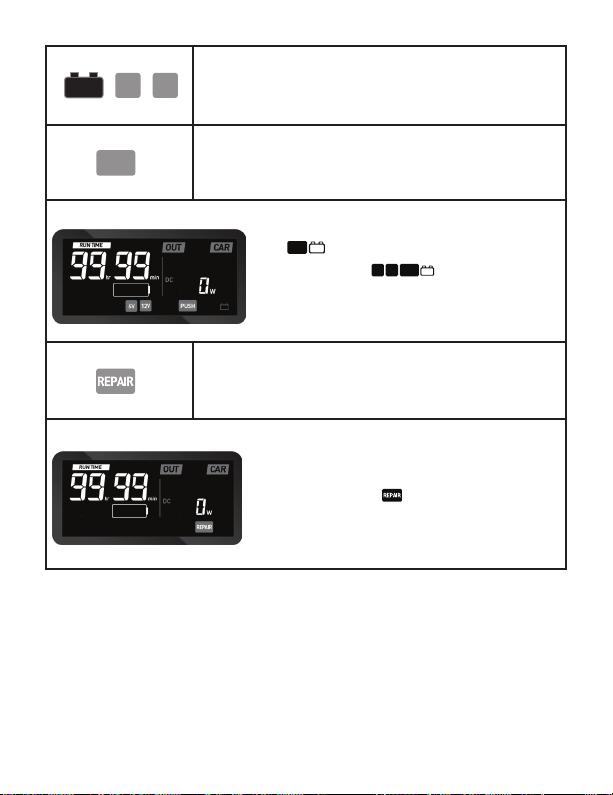

PUSH mode

PUSH Mode

REPAIR mode

PUSH

LI-ION 12V 5A

Push Mode is designed for charging battery with voltage in between 0.5V

to3.75V.popupandashwhenbatteryisconnectedandlow

voltage is detected. You need to press and hold the SELECT button for 3

secondstoenterPushMode,lightupandashatthesame

time. Press and hold the SELECT button for 3 seconds to start, the battery

will be charged with maximum current of 0.5A until the voltage is over

3.75V and it will enter the selected charge mode for charging onwards.

12V Repair Mode is designed for 12V LEAD-ACID BATTERIES ONLY.

Itisabatteryrecoverymodeforrepairing&restoringdamaged,stratied

and sulphated batteries. The lights up and charging starts. The

recovery process will take one to four hours and the battery will be charged

in 12V 5A mode if recovery is successful.

PUSH

6V 12V

REPAIR Mode

E. Output / Input / Car Battery Charging Mode

Shows the status of power output, power input or car battery charging modes.

Press button to switch modes.

CAR mode will be shown once 6V/12V car battery

is connected.

F. Current AC Output

Shows current AC power output level in watts.

G. Current DC Input / Output

Shows current DC power input / output level in watts.

H. Reverse Polarity Indicator

In car battery charging mode, if the battery clamps are wrongly connected with

the vehicle’s battery terminals, the Reverse Polarity Indicator icon will pop up on

the LCD display in RED. Please disconnect the clamps from the car battery and

reconnect the clamps to the appropriate battery terminals on the vehicle.

I. Low Temperature Indicator

Indicates the battery temperature of POWERGEN 500 is too low (charging

below 32°F or discharging below -4°F). All inputs and outputs will stop

functioning at this state. Please bring the POWERGEN 500 to a warmer location

and wait for the battery temperature to be within the working range

32° - 104°F (0° - 40°C) before restarting the POWERGEN 500.

J. Overheat Indicator

Indicates the battery temperature of POWERGEN 500 is too high (charging

higher than 113°F or discharging higher than 158°F). All inputs and outputs will

stop functioning at this state. Please bring the POWERGEN 500 to a cool

location and wait for the battery temperature to be within the working range

32° - 104°F (0° - 40°C) before restarting the POWERGEN 500.

K. Overload Indicator

 PopsupandasheswhenthepowerpulledfromtheACoutletsreaches820W

or total output reaches 1020W. When the AC outlets reach 850W or total output

reaches 1050W for 2 seconds, the AC outlets will turn off immediately. Remove

the device causing the overload and reset the AC button to resume operation.

Other ports will continue to work.

When the power output from DC, AC sockets, the car power outlets and car

battery charger exceed the maximum power output of the battery, the overload

 indicatorwillpopupandashfor5seconds.ThePOWERGEN500willshut

down automatically. Remove the device(s) causing the overload and restart the

POWERGEN 500 to resume operation.

L. Low Car Battery Voltage

 IconpopsupandasheswhenthePOWERGEN500detectsthevehicle’s 

battery voltage (0.5-3.75V) is too low when connected.

MODE

Press once to switch

“OUT”,“IN”,“CAR ” mode

OUT IN CAR

AC Input:

Car Input (by 12V Car Outlet):

Solar Input:

Daisy-Chain Input (for charging only):

AC/DC Adapter (90W Max)

< 7 hrs

0-100% Charges less than 7 hours

Car Charger (90W Max)

< 7 hrs

0-100% Charges less than

7 hours

HOW TO RECHARGE POWERGEN 500

(AC/DC Adapter included)

(Car Charger Cable included)

(The included car charger cable can also be used as a Daisy-Chain charging cable to

provide the charging function for additional POWERGEN units.)

Solar Panel Sold Separately

Solar Charging Cable included

AC input (90W Max) Daisy-Chain input for additional

POWERGEN (60W Max)

MC4 Connector

IMPORTANT SAFETY

INSTRUCTIONS

WARNING - When using this product, basic precautions should always be followed, including the following:

a) Read all the instructions before using the product.

b) To reduce the risk of injury, close supervision is necessary when the product is used near

children. Children should not operate this device unless under strict supervision by a person

responsible for their safety.

c)Donotputngersorhandsintotheproduct.

d)Donotuseanyattachmentthatisnotsoldbymanufacturerwhichmayresultinariskofre,

electric shock, or injury to persons.

e) To reduce risk of damage to the electric plug and cord, pull the plug rather than the cord when

disconnecting the product.

f) Donotuseabatterypackorappliancethatisdamagedormodied.Damagedormodied 

  batteriesmayexhibitunpredictablebehaviourresultinginre,explosionorriskofinjury.

g) Do not operate the product with a damaged cord or plug, or a damaged output cable.

h)Donotdisassembletheproduct;takeittoaqualiedservicepersonwhenserviceor 

  repairisrequired.Incorrectreassemblymayresultinariskofreorelectricshock.

i) To reduce the risk of electric shock, unplug the product from the outlet before attempting

any instructed servicing.

j) WARNING - RISK OF EXPLOSIVE GASES.

1) WORKING IN VICINITY OF A LEAD ACID BATTERY IS DANGEROUS. BATTERIES

GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS

REASON, IT IS OF THE UTMOST IMPORTANCE THAT YOU FOLLOW THE INSTRUCTIONS

EACH TIME YOU USE THE POWERGEN 500.

2) To reduce risk of battery explosion, follow these instructions and those published by battery

manufacturer and manufacturer of any equipment you intend to use in vicinity of the battery.

Review cautionary marking on these products and on engine.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TypeS Akkuladegerät Handbücher

TypeS

TypeS AC57881 Bedienungsanleitung

Beliebte Akkuladegerät Handbücher anderer Marken

AA Portable Power Corp

AA Portable Power Corp Universal Smart Charger Bedienungsanleitung

Enelion

Enelion Vertica Bedienungsanleitung

RCA

RCA CHU6 Bedienungsanleitung

ANSMANN

ANSMANN ALCT 6/24-10 Bedienungsanleitung

Hitachi

Hitachi UC 18YRSL Fehlerbehebungshandbuch

Olympus

Olympus B-20 LPC Bedienungsanleitung

Exibel

Exibel ZH1708143 Bedienungsanleitung

Lenmar

Lenmar Mach 1 Bedienungsanleitung

CTEK

CTEK MXS 5.0 Bedienungsanleitung

ABB

ABB HT842379 Bedienungsanleitung

Nitecore

Nitecore Superb Charger SC4 Bedienungsanleitung

Renogy

Renogy RBC2125DS-21W Bedienungsanleitung

Braun

Braun BWC02M Bedienungsanleitung

CTEK

CTEK MXS 3.6 Bedienungsanleitung

Black & Decker

Black & Decker BDV090 Bedienungsanleitung

Trinity

Trinity DPD Bedienungsanleitung

Hulkman

Hulkman Sigma 1 Bedienungsanleitung

IKEA

IKEA koppla Bedienungsanleitung
