TYROLIT Hydrostress FSD 1049 Bedienungsanleitung

10993834 EN / 28.11.2012

Operating Instructions

Floor Saw FSD1049









Index 001

Page 2 Floor Saw FSD1049

Congratulations!

You have decided to urchase a tried and tested TYROLIT-Hydrostress unit and have thus

acquired a highly so histicated and reliable state-of-the-art unit. The exclusive use of only

TYROLIT Hydrostress s are arts ensures quality and interchangeability. If maintenance work is

neglected or carried out inex ertly we will be unable to honour our warranty obligations. Any

re air work must be carried out by trained ersonnel only.

Should you need more details concerning your TYROLIT Hydrostress unit in order to kee it in

erfect condition, lease contact our after-sales service for further information.

We ho e that you enjoy untroubled and fault-free working with your TYROLIT unit.

TYROLIT Hydrostress

Co yright © TYROLIT Hydrostress

TYROLIT Hydrostress AG

Witzbergstrasse 18

CH-8330 Pfäffikon

Switzerland

Tel. 0041 (0) 44 952 18 18

Fax 0041 (0) 44 952 18 00

TYROLIT Hydrostress AG

Floor Saw FSD1049 Page 3

1Safety

These instructions are just one art of the documentation which is su lied together with the

floor saw. These instructions go together with the "Safety Manual / System Desc

ri tion for Floor

Saws" to form a com lete set of documentation.

DANGER

Failure to com ly with the safety instructions in the "Safety Manual / System Descri tion" may

result in serious injury or death.

►Please ensure that the "Safety Manual / System Descri tion for Floor saws" has been read

and understood in full.

TYROLIT Hydrostress AG

Page 4 Floor Saw FSD1049

2Design

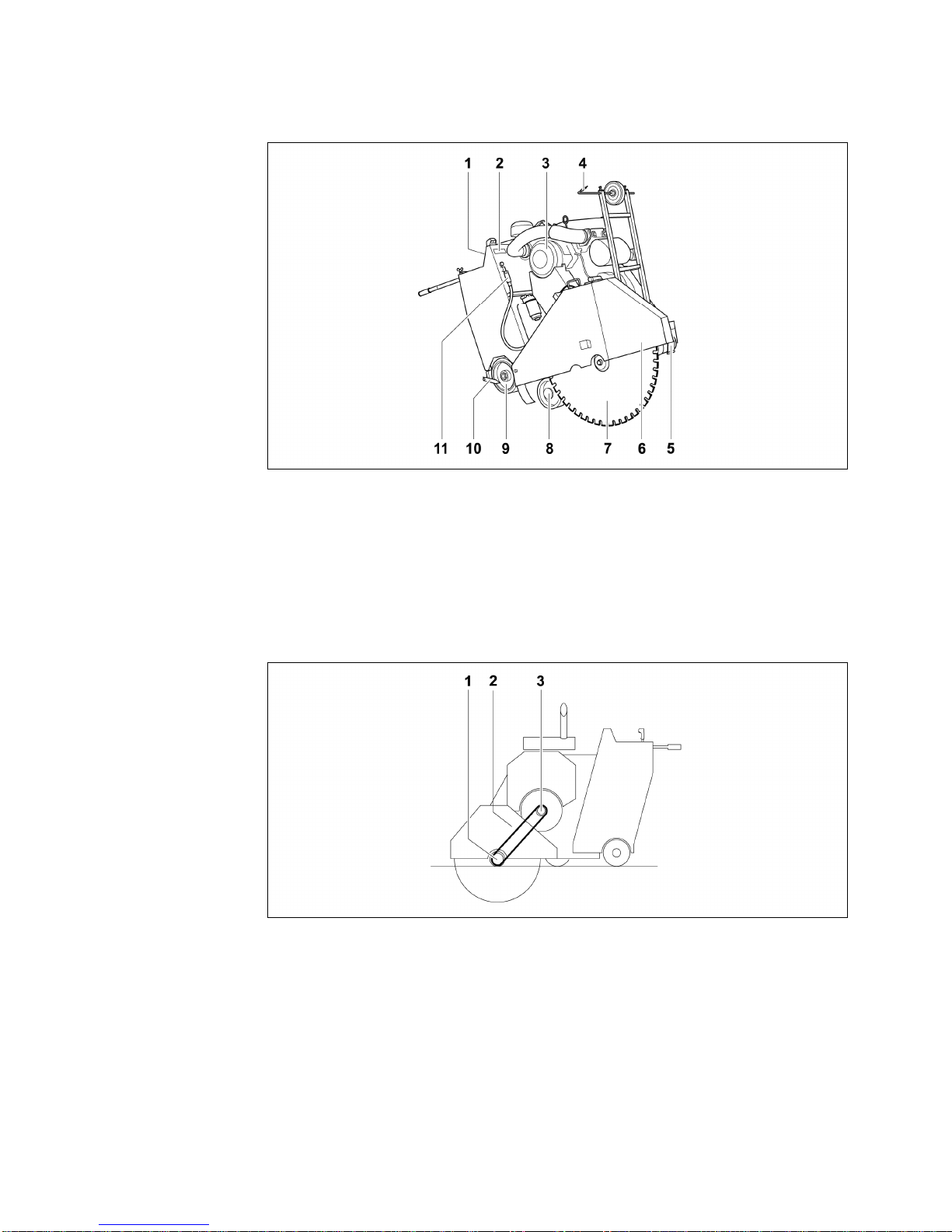

Com onents

1 O erating console

2 Name late

3 Main motor

4 Front cut guide

5 Shaft cover

6 Blade guard

7 Saw blade

8 Rocker wheel

9 Drive wheel

10 Rear cut guide

11 Water feed

2.1 Saw blade drive

Saw blade drive (schematic)

1 Blade drive shaft

2 Drive belt

3 Main motor drive shaft

TYROLIT Hydrostress AG

Floor Saw FSD1049 Page 5

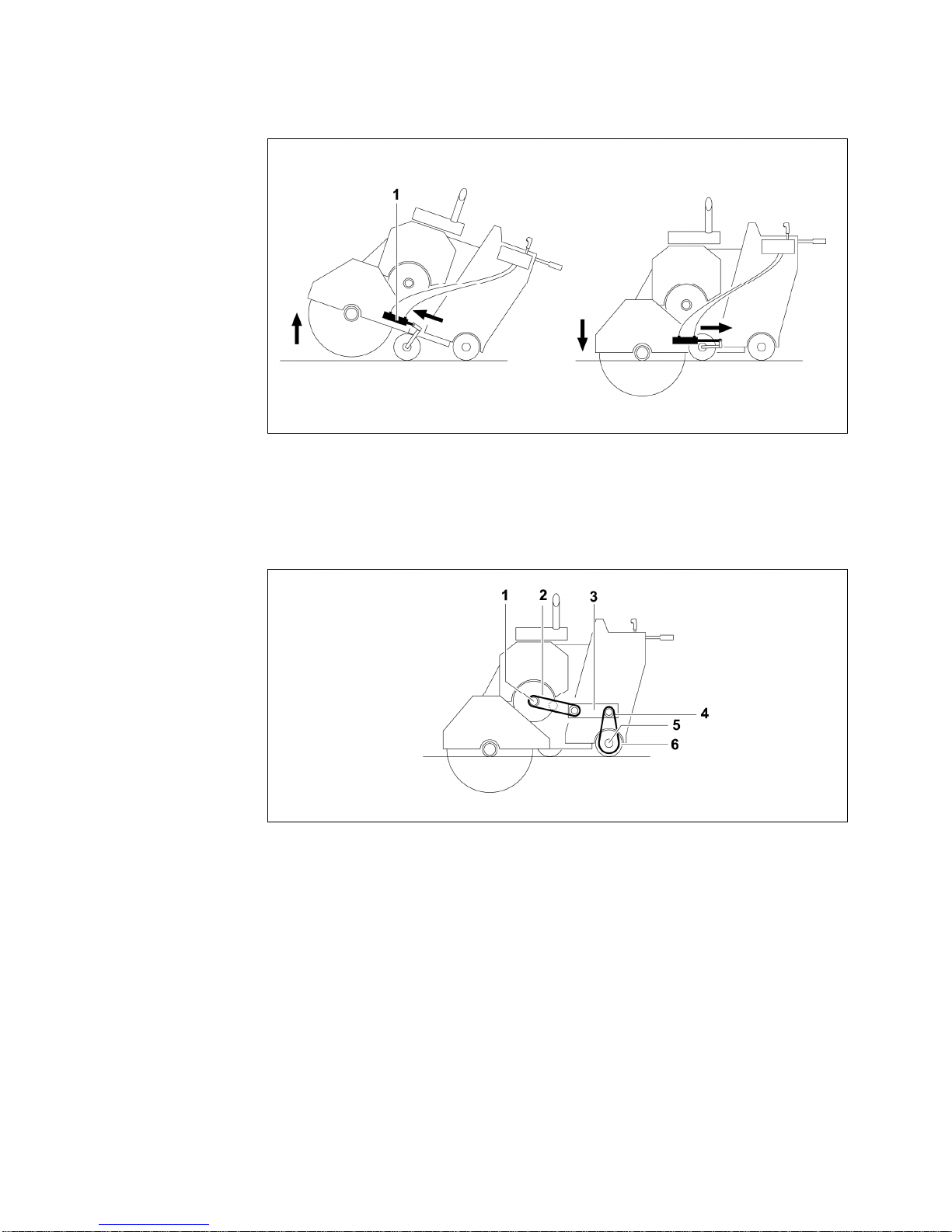

2.2 Lift drive

Lift drive (schematic)

1 Hydraulic cylinder

2. Travel drive

Travel drive (schematic)

1 Drive shaft (main motor)

2 Hydrostat drive belt

3 Hydrostatic motors

4 Wheel drive shaft

5 Drive chain

6 Drive wheel

TYROLIT Hydrostress AG

Page 6 Floor Saw FSD1049

Transport

DANGER

Inexpert transport may result in death or serious injury.

►Floor saws must only be trans orted with the main motor switched off.

►Only trans ort vehicles, lifting tools and load sus ension devices with sufficient load-

bearing ca acity must be used.

►Floor saws must only be hitched by the hitching oints rovided.

►A oint an ex ert marshaller.

►When trans orting by crane do not stand underneath sus ended load.

►Always have the floor saw in your line of vision while it is being trans orted.

.1 Hitching points

Hitching oints

1 Crane hitching device

TYROLIT Hydrostress AG

Floor Saw FSD1049 Page 7

4Initial start-up

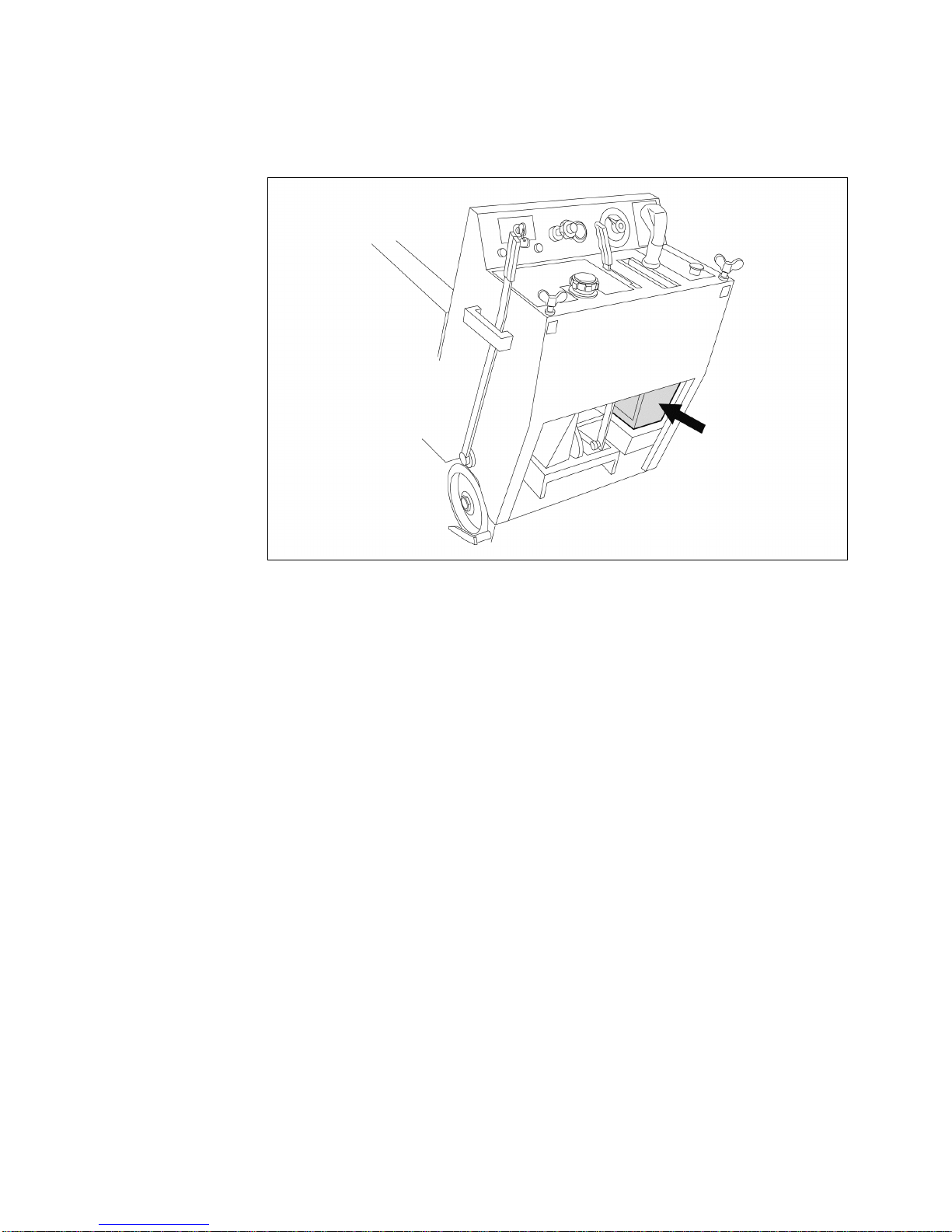

4.1 Fitting battery

►Fit battery (for ty e see Technical Data).

TYROLIT Hydrostress AG

Page 8 Floor Saw FSD1049

5Assembly / Set-up

5.1 Mounting grip

►

5.2 Mounting saw blade

1. A ly hand brake

TYROLIT Hydrostress AG

Floor Saw FSD1049 Page 9

DANGER

Parts that fly off (segments, concrete splinters, saw blade, etc.) may cause serious injury

or even death.

►Floor saws must only be o erated with a blade guard.

►When assembling the saw blade on the right-hand side use the anchoring screw with the

left-hand thread.

When assembling the saw blade on the left-hand side, use the anchoring screw with the

right-hand thread.

►Note the direction or rotation arrows on the saw blade.

1 Anchoring screw

*Note the direction of rotation

TYROLIT Hydrostress AG

Page 10 Floor Saw FSD1049

C: To revent the saw blade rotating while being tightened, carefully lace the saw blade on the floor.

5. Mounting saw blade on the other side

5. .1 Disassemble the blade guard

►
