QUICK START GUIDE

Outdoor Collection

30607 Rev_A

QUICK START GUIDE

u-line.com

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over five decades of premium modular

ice making, refrigeration, and wine preservation experience. U-Line continues to be the American leader, delivering versatility

and flexibility for multiple applications including residential, light commercial, outdoor and marine use. U-Line’s complete

product collection includes Wine Captain® Models, Beverage Centers, Clear Ice Machines, Nugget Ice Machines, Crescent Ice

Makers, Glass & Solid Door Refrigerators, Drawer Models, Freezers, Combo® Models, and more.

U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired innovations

and attention to even the smallest details. We are known and respected for our unwavering dedication to product design,

quality and selection. U-Line is headquartered in Milwaukee, Wisconsin and has shipped product to five continents for over

two decades and is proud to have the opportunity to ship to you.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,

and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.800.779.2547.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

F: +1.414.354.7905

Email: sales@u-line.com

u-line.com

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.800.779.2547

F: +1.414.354.5696

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

CONNECT WITH US

Designed, engineered and assembled in WI, USA

QUICK START GUIDE

u-line.com

This product is eligible for an additional one-year warranty at no charge when you register your product on

u-line.com. See complete warranty for details.

plus

eligible

warrantywarranty

Safety and Warning 4

Environmental Requirements 5

Electrical 5

Water Hookup 6

Drain 9

Door Swing 10

Door Adjustments 11

General Installation 17

Control Operation 18

First Use 22

Ice 23

Cleaning 26

Warranty 30

This Quick Start Guide covers the basics of installation and general use of your product.

CONTENTS

For more details, see the complete User Guide & Service Manual on u-line.com.

QUICK START GUIDE

u-line.com

Safety and Warning

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning or Caution based on the risk type:

DANGER

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

WARNING

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

CAUTION

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property or equipment damage.

DANGER

Your product may contain R600a (Isobutane)

which is a flammable hydrocarbon. To confirm,

check serial tag inside of unit. It is safe for

regular use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specifications” section included in the

User Guide. Do not damage the refrigerant

circuit.

WARNING

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to

incorrect parts or improper service.

CALIFORNIA PROPOSITION 65

This product contains chemicals known to the

state of California to cause cancer and birth

defects or other reproductive harm.

www.P65warnings.CA.gov

QUICK START GUIDE

u-line.com

Environmental Requirements

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

QUICK START GUIDE

u-line.com

Water Hookup

PREPARE PLUMBING

The water valve uses a standard 1/4" (6.35 mm)

compression fitting. U-Line recommends using accessory

water hook up kit – part # 80-54674-00. The kit includes a

10' (3 m) braided flexible water supply line and a brass

hose fitting.

CAUTION

Plumbing installation must observe all state and

local codes. All water and drain connections

MUST BE made by a licensed/qualified plumbing

contractor. Failure to follow recommendations

and instructions may result in damage and/or

harm.

Water Supply Connection

When connecting the water supply, please note the

following:

• Before installing the unit and connecting to the cold

water supply, review the local plumbing codes.

• The water pressure should be between 20 and 120 psi

(138 and 827 kPa).

• The water line MUST have a shut-off valve in the

supply line.

• The water line should be looped into 2 coils. This will

allow the unit to be removed for cleaning and servicing.

Make certain that the tubing is not pinched or damaged

during installation.

WARNING

Connect to potable water supply only.

CAUTION

Do not use any plastic water supply line. The line

is under pressure at all times. Plastic may crack

or rupture with age and cause damage to your

home.

Do not use tape or joint compound when

attaching a braided flexible water supply line

that includes a rubber gasket. The gasket

provides an adequate seal – other materials

could cause blockage of the valve.

Failure to follow recommendations and

instructions may result in damage and/or harm,

flooding or void the product warranty.

Use new hose set. Do not reuse old hose set.

CAUTION

Turn off water supply and disconnect electrical

supply to unit prior to installation.

Use caution when handling back panel. The

edges could be sharp.

CRESCENT ICE MAKERS

1. Turn off water supply and disconnect electrical supply

to product prior to attempting installation.

2. Remove the back panel.

QUICK START GUIDE

u-line.com

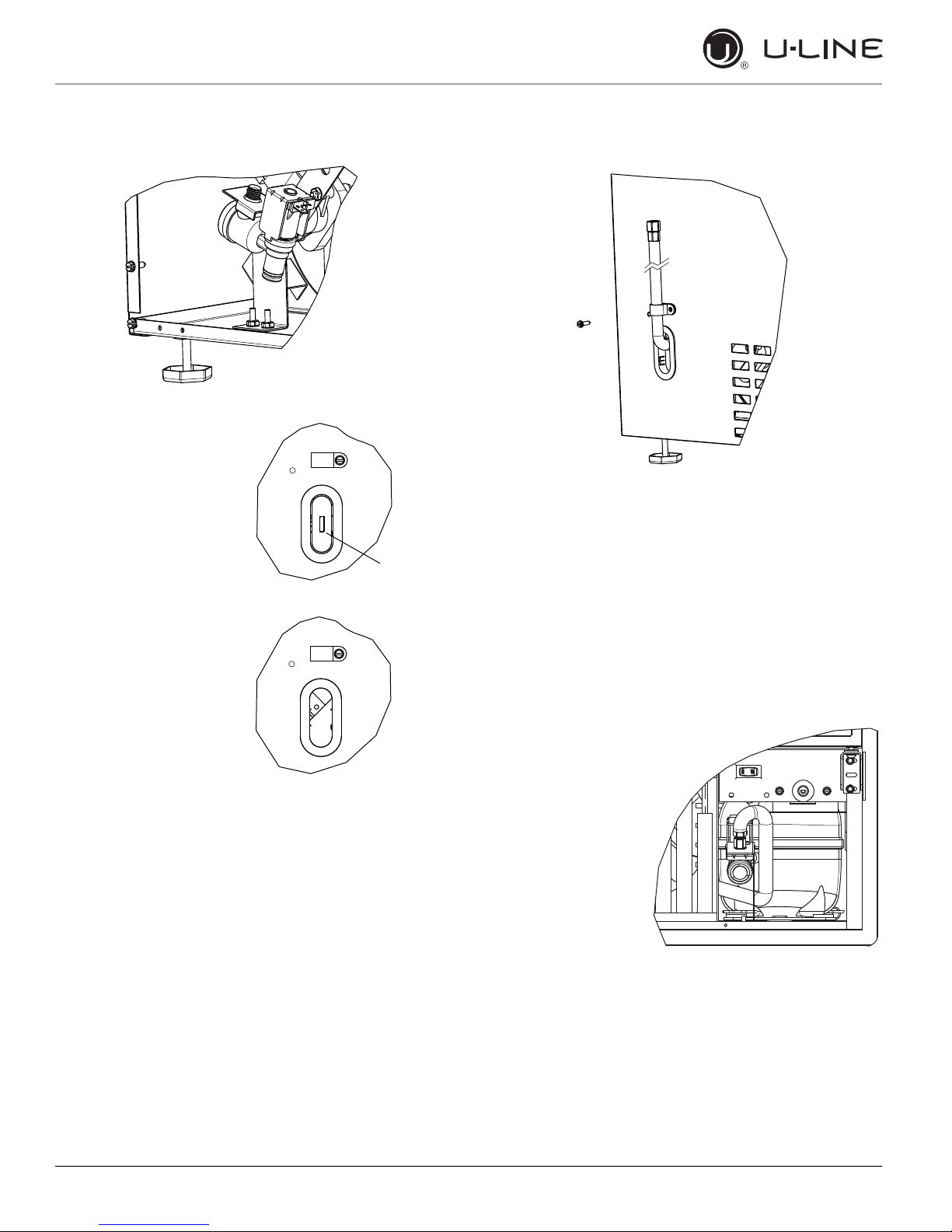

3. Locate water valve inlet.

4. Break away filler feature

in bushing with flat

screwdriver.

5. Thread water line

through back panel hole

(with bushing).

6. Locate water valve inlet

and connect to valve.

7. Turn on water supply

and check for leaks.

8. Reinstall back panel.

9. Install retaining clip.

CLEAR ICE MACHINES

1. Turn off water supply and disconnect electrical supply

to product prior to attempting installation.

2. Remove the grille/access panel in the front and the

back panel.

3. Locate water

valve in the front

of the unit and

thread water

supply line

through.

Route the water

supply line

through the unit

so it does not

come into contact with any internal components

other than the solenoid valve. Normal operation

creates some vibration. A water supply line

contacting an internal component or cabinet wall

can cause excessive noise during operation or

damage to the line.

Remove

ZLWKɠDW

screwdrive

QUICK START GUIDE

u-line.com

4. On the back panel,

break away filler feature

in bushing with flat

screwdriver.

5. Thread water line

through back panel hole

(with bushing) and

connect to cold water

supply line.

6. Turn on water supply and check for leaks.

7. Reinstall back panel and grille/front access panel.

8. Install retaining

clip.

NUGGET ICE MACHINES

1. Turn off water supply and disconnect electrical supply

to product prior to attempting installation.

2. Remove the back panel.

3. Thread water line through back panel hole (with

bushing).

4. Locate water valve inlet and connect to valve.

5. Turn on water supply and check for leaks.

6. Reinstall back panel.

Remove

ZLWKɠDW

screwdrive

QUICK START GUIDE

u-line.com

Drain

CLEAR ICE AND NUGGET ICE MACHINES ONLY

Model numbers including “CL” or “NB” do not include a

factory installed drain pump.

Model numbers including “CP” or “NP” include a factory

installed drain pump.

DRAIN CONNECTION

CAUTION

If your U-Line unit did not come with a factory

installed drain pump you must use a gravity

style drain connection. For assistance in

determining if your unit has a pump please

contact U-Line. The floor drain must be large

enough to accommodate drainage from all

attached drains. Follow these guidelines when

installing drain lines to prevent water from

flowing back into the ice maker storage bin and/

or potentially flowing onto the floor, which may

result in personal injury or property damage.

Drain can NOT be located directly below the unit.

Unit has a solid base that will not allow the unit

to drain below itself.

There is a possibility that hose connections may

have loosened during shipment.

Verify all connections and fittings are free from

leaks.

GRAVITY DRAIN

A gravity drain may be used if:

Drain line has at least a 1" drop per 48" (approximately

2 cm drop per 100 cm) of run.

Drain line does not create traps and is vented per local

code.

1. Cut the pre-installed drain tube to length.

2. Connect to your local plumbing per the local code.

3. If necessary, insulate drain line to prevent

condensation.

CAUTION

Failure to connect water supply or drain line

connections properly can result in personal

injury and property damage. Gravity drain

connections must be routed downward from the

rest of the unit at the rate of 1/4" per foot (1 cm

per 50 cm).

Normal

Proper Drain

With Trap

Poor Drainage, Water Will Back Up

With Trap and Vent

Proper Drain

QUICK START GUIDE

u-line.com

FACTORY INSTALLED DRAIN PUMP

If your drain line will run up to a stand pipe, disposal or

spigot assembly, or does not otherwise meet the

requirements for a gravity drain, you may have ordered a

pre-installed U-Line P60 drain pump.

If you need to install a P60 drain pump into your unit, see

DRAIN PUMP section in the User Manual.

See below for typical installations requiring a drain pump.

The maximum lift for the P60 drain pump is

10 feet. This must be done as close to the rear of

the unit as possible.

Cold

Water

Hot

Water

Waste

6KXW2ɞ

Valve

Stand Pipe

P60 Pump Required

Air Gap

(Optional Hook-Up)

Cold

Water

Hot

Water

Waste

6KXW2ɞ

Valve

Disposal Assembly

P60 Pump Required

Waste

Cold

Water

6KXW2ɞ

Valve

Hot

Water

Air Gap

(Optional Hook-Up)

Y-Branch Tailpiece

P60 Pump Required

Door Swing

Units have a zero clearance for the door to open 90°,

when installed adjacent to cabinets.

Stainless Steel models require 2-1/8" (54 mm) door

clearance to accommodate the handle if installed next to a

wall.

Wall

90°

Door Swing

2-1/8" Min.

(54 mm)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere U-Line Gefrierschrank Handbücher

U-Line

U-Line UHFZ124 Installationshandbuch

U-Line

U-Line UHFZ124 Installationshandbuch

U-Line

U-Line 75F Bedienungsanleitung

U-Line

U-Line UCBF432-SS11A Bedienungsanleitung

U-Line

U-Line U-3090WCWCOL-00 Bedienungsanleitung

U-Line

U-Line UCFZ553-SS71A Bedienungsanleitung

U-Line

U-Line 3024FZR Bedienungsanleitung

U-Line

U-Line 3060FZR Bedienungsanleitung

U-Line

U-Line U-CLR1215INT-00B Installationshandbuch

U-Line

U-Line UONB115 Installationshandbuch

U-Line

U-Line UCBF659-SS12A Bedienungsanleitung

U-Line

U-Line 75F Bedienungsanleitung

U-Line

U-Line UHFZ124 Installationshandbuch

U-Line

U-Line UOFZ124-SS01B Installationshandbuch

U-Line

U-Line UHFZ124-SS01B Installationshandbuch

U-Line

U-Line U-1224FZRSOD-00A Installationshandbuch

U-Line

U-Line UOFZ124 Installationshandbuch

U-Line

U-Line UCFZ527-SS31A Bedienungsanleitung

U-Line

U-Line UHFZ124 Installationshandbuch

U-Line

U-Line UOFZ124-S01B Installationshandbuch

U-Line

U-Line UOFZ124-SS01B Installationshandbuch

U-Line

U-Line 3060RDC Installationshandbuch

U-Line

U-Line UHFZ124 Installationshandbuch

U-Line

U-Line UHFZ124IS01B Installationshandbuch

Beliebte Gefrierschrank Handbücher anderer Marken

Siemens

Siemens GU..D SERIES Bedienungsanleitung

Omcan

Omcan FR-CN-0155 Bedienungsanleitung

Beko

Beko FNE290E24W Bedienungsanleitung

Electrolux

Electrolux ARCTIS G 8 60 50-6I Bedienungsanleitung

Electrolux

Electrolux EUF2042AOX Bedienungsanleitung

Dometic

Dometic CoolFreeze CFX95DZ Bedienungsanleitung

Electrolux

Electrolux EUF7000W1 Bedienungsanleitung

Polar Electro

Polar Electro CT330 Bedienungsanleitung

MPM

MPM MPM-145-SK Series Bedienungsanleitung

SAF

SAF PRESTOTIG 200AC/DC Kurzanleitung

Zanussi

Zanussi ZFT11407WA Bedienungsanleitung

AEG

AEG A63190GT Bedienungsanleitung

AEG

AEG A81000TNW0 Bedienungsanleitung

Matsui

Matsui MUC50S15E Bedienungsanleitung

NEFF

NEFF G4344X8 Bedienungsanleitung

Frigidaire

Frigidaire FV 1246 H Bedienungsanleitung

Frigidaire

Frigidaire FFC13K1AW Bedienungsanleitung

Electrolux

Electrolux EU 2400C Bedienungsanleitung
