U-Line 5 Class UHBV515 Installationshandbuch

USER GUIDE & SERVICE MANUAL

5 Class ●UHBV515 ●15” Beverage Center

USER GUIDE

u-line.com

Contents

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Intro

Installation

Integrated Panel Dimensions

USER GUIDE

Introduction

u-line.com

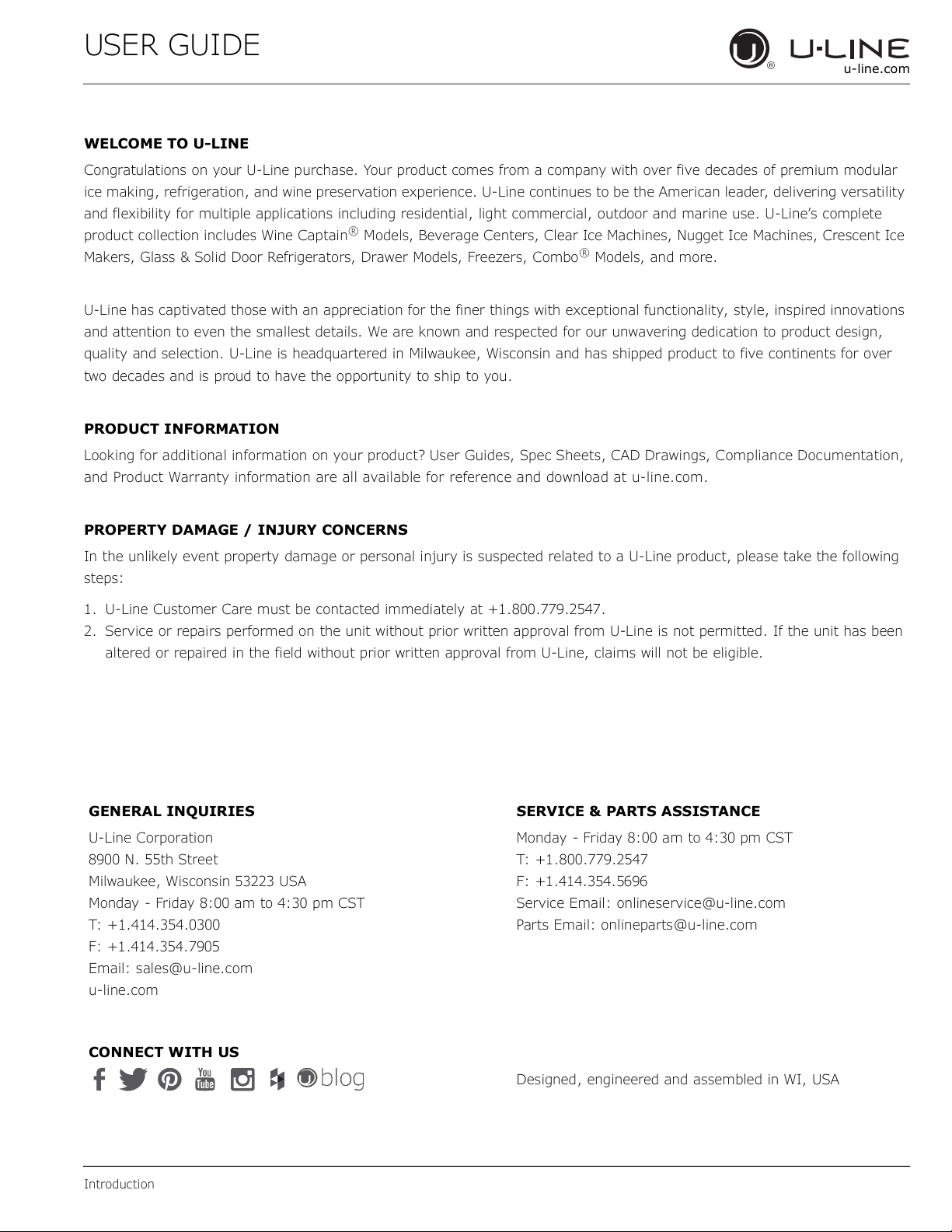

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over five decades of premium modular

ice making, refrigeration, and wine preservation experience. U-Line continues to be the American leader, delivering versatility

and flexibility for multiple applications including residential, light commercial, outdoor and marine use. U-Line’s complete

product collection includes Wine Captain® Models, Beverage Centers, Clear Ice Machines, Nugget Ice Machines, Crescent Ice

Makers, Glass & Solid Door Refrigerators, Drawer Models, Freezers, Combo® Models, and more.

U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired innovations

and attention to even the smallest details. We are known and respected for our unwavering dedication to product design,

quality and selection. U-Line is headquartered in Milwaukee, Wisconsin and has shipped product to five continents for over

two decades and is proud to have the opportunity to ship to you.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,

and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.800.779.2547.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

F: +1.414.354.7905

Email: sales@u-line.com

u-line.com

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.800.779.2547

F: +1.414.354.5696

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

CONNECT WITH US

Designed, engineered and assembled in WI, USA

USER GUIDE

Integrated Panel Dimensions

u-line.com

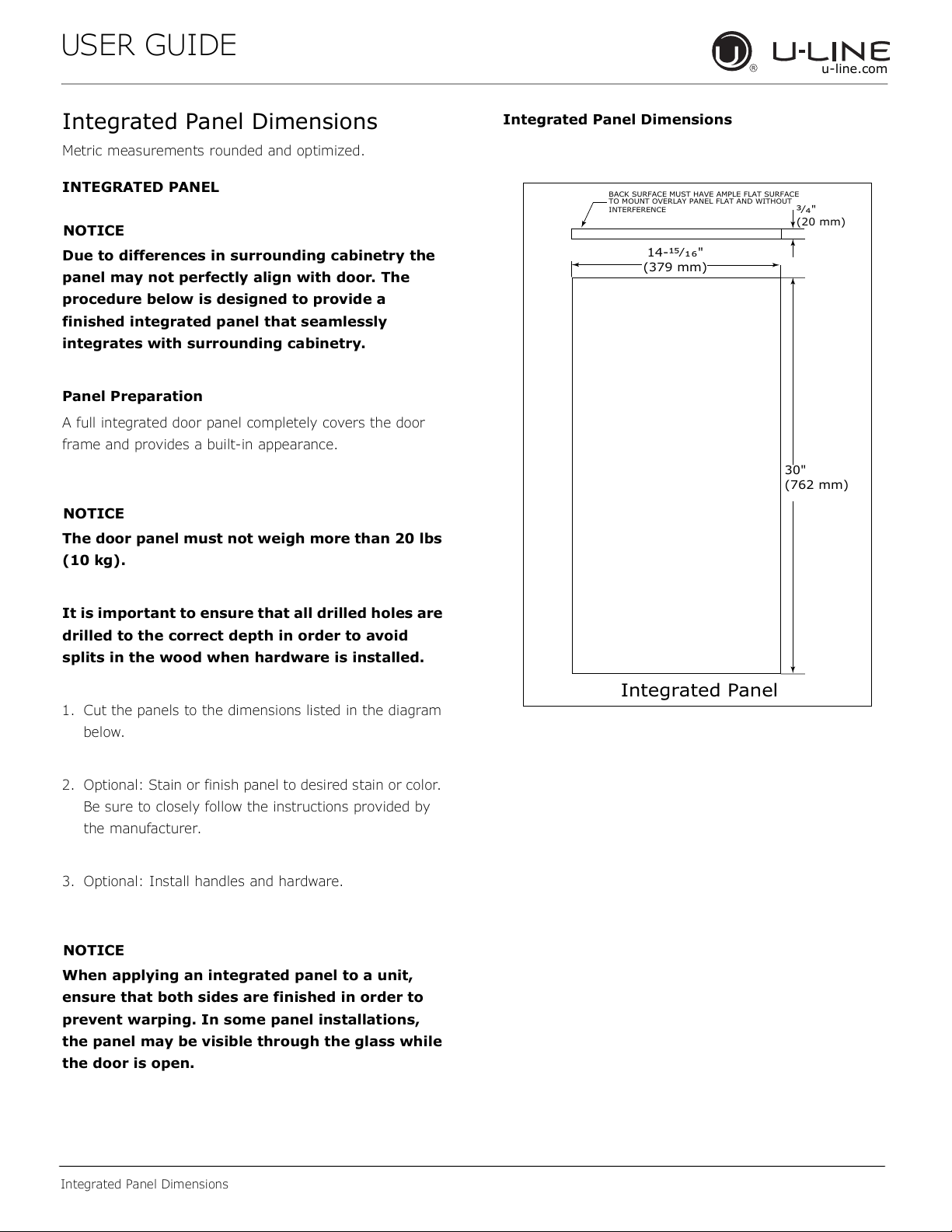

Integrated Panel Dimensions

Metric measurements rounded and optimized.

INTEGRATED PANEL

NOTICE

Due to differences in surrounding cabinetry the

panel may not perfectly align with door. The

procedure below is designed to provide a

finished integrated panel that seamlessly

integrates with surrounding cabinetry.

Panel Preparation

A full integrated door panel completely covers the door

frame and provides a built-in appearance.

NOTICE

The door panel must not weigh more than 20 lbs

(10 kg).

It is important to ensure that all drilled holes are

drilled to the correct depth in order to avoid

splits in the wood when hardware is installed.

1. Cut the panels to the dimensions listed in the diagram

below.

2. Optional: Stain or finish panel to desired stain or color.

Be sure to closely follow the instructions provided by

the manufacturer.

3. Optional: Install handles and hardware.

NOTICE

When applying an integrated panel to a unit,

ensure that both sides are finished in order to

prevent warping. In some panel installations,

the panel may be visible through the glass while

the door is open.

Integrated Panel Dimensions

BACK SURFACE MUST HAVE AMPLE FLAT SURFACE

TO MOUNT OVERLAY PANEL FLAT AND WITHOUT

INTERFERENCE

Ώȟȯ"

(20 mm)

Integrated Panel

14-΍ΑȟȬȱ"

(379 mm)

30"

(762 mm)

USER GUIDE

Integrated Panel Dimensions

u-line.com

HANDLELESS INTEGRATED DOOR PANEL

The following procedure is designed to provide a finished,

handleless solid panel for an 15" (381 mm) door that

seamlessly integrates with its surrounding cabinetry.

NOTE: Many cabinet manufacturers provide a ready

solution for a handleless, integrated design that can be

easily applied to your model. Consult your cabinet

manufacturer for applicable design and installation details.

The cabinet manufacturer’s solution to this design and

integration detail will often result in an integrated panel

solution wherein the size of the panel may result in a

height dimension taller than what we specify. This can be

achieved provided the additional height is positioned

above the appliance door.

NOTICE

The integrated panel aligns with the surrounding

cabinetry and, due to differences in cabinetry,

may not align perfectly with the door.

The appliance will need up to 34-1/2" (876 mm)

to the underside of the counter to leave room for

leveling adjustments.

A single prepared panel with insert must not

weigh more than 20 lbs (10 kg).

Integrated Panel Preparation

1. Cut the main panel to the dimensions below. For

details, see the drawings on the next page.

2. Create the top design for the handleless feature and

the 1/8" (3 mm) notch for the insert(s) indicated on

the Top Detail drawing, on the next page.

3. Prepare the insert(s) that will back up the handleless

design. Wooden Insert – Cut 1/8" (3 mm) thick

wooden insert(s) to the dimensions below.

4. Optional: Stain or finish panel and wooden insert to

desired stain or color. Be sure to closely follow the

instructions provided by the manufacturer.

NOTICE

If finishing panel or wooden insert, all sides

must be finished to prevent warping.

5. Attach the insert to the panel. Wood glue or equivalent

adhesive should be used to attach insert to panel.

Main panel width Main panel height

14-15/16" (379 mm) 28-13/16" (732 mm)

Wooden insert width Wooden insert height

14-15/16" (379 mm) 3-1/2" (89 mm)

Top Design

and Insert Notch

Wooden Insert

Main Panel

Integrated Panel

Attach Wooden Insert

USER GUIDE

Integrated Panel Dimensions

u-line.com

Handleless Integrated Panel Dimensions

ΏȟΚ" (20 mm)

28-΍ΏȟΗΜ"

(732 mm)

2-Ώȟȯ"

(70 mm)

2-Ώȟȯ"

(70 mm)

R ΑȟΞ"

(R 16 mm)

΍ȟΞ" (3 mm)

΍ȟΚ" (6 mm)

Wooden Insert

Notch Depth: ΍/Ξ" (3 mm)

2-ΏȟΞ"

(60 mm)

ΓȟΞ" (22 mm)

Ref.

Top Detail

Insert Notch

Top Design

΍ȟΞ" (3 mm)

3-΍ȟΘ"

(89 mm)

14-΍ΑȟΗȱ" (379 mm)

Wooden Insert Dimensions

14-΍ΑȟΗȱ"

(379 mm)

USER GUIDE

Integrated Panel Dimensions

u-line.com

3-5/16" (89 mm)

4-5/16" (114 mm)

U-Line

Unit

U-Line

Unit

Integrated Panel

Integrated Panel/Integrated Frame

Front Side

3-5/16" (89 mm)

4-5/16" (114 mm)

Floor

Cabinet

> 3-5/16"

(> 89 mm)

3-5/16" (89 mm)

1" (25 mm)**

U-Line

Unit

Extended Integrated Panel/Extended Integrated Frame

Floor

Cabinet

3-5/16" (89 mm)

1" (25 mm)**

U-Line

Unit

Integrated Panel

3. Optional: Install handles and hardware

NOTICE

The door panel must not weigh more than 20 lbs

(10 kg).

It is important to ensure that all drilled holes are

drilled to the correct depth in order to avoid

splits in the wood when hardware is installed.

Appliance will need up to 34-1/2" (876 mm) to

the underside of the counter to leave room for

leveling adjustments.

When applying an integrated panel to a unit,

ensure that both sides are finished in order to

prevent warping. In some installations, the panel

may be visible through the glass while the door is

open.

EXTENDED INTEGRATED PANEL

NOTICE

Due to differences in surrounding cabinetry the

panel may not perfectly align with door. The

procedure below is designed to provide a

finished panel that seamlessly integrates with

surrounding cabinetry.

Panel Preparation

An extended integrated panel can be used to maintain

alignment with an adjacent extended cabinet height or a

reduced toe-kick/grille application.

1. Cut the panels to the dimensions listed in the

appropriate diagram on the next page.

2. Optional: Stain or finish panel to desired stain or color.

Be sure to closely follow the instructions provided by

the manufacturer.

* Panel can extend beyond the door frame.

** A minimum of 1" (25 mm) from the floor

is required for proper ventilation.

USER GUIDE

Integrated Panel Dimensions

u-line.com

Extended Integrated Panel Dimensions Integrated Grille

If you would like to cover the grille with an integrated

panel, purchase U-Line’s adjustable grille accessories.

15” - Sales Accessory: ULAGRILLE15

Complete instructions, including dimensions of the

integrated grille panel, are included with the accessory.

* A minimum of 1" (25 mm) is required from the

floor to the bottom of the extended integrated

panel/frame for proper ventilation.

BACK SURFACE MUST HAVE AMPLE FLAT SURFACE

TO MOUNT OVERLAY PANEL FLAT AND WITHOUT

INTERFERENCE

Ώȟȯ"

(20 mm)

Integrated Panel

14-΍ΑȟȬȱ"

(379 mm)

30"

(762 mm)
