U-Line Echelon 2075DWRRSS Bedienungsanleitung

INTRODUCTION

Congratulations on your purchase of your U-Line drawer unit. A pioneer in

the field for more than 40 years, U-Line is the world’s number one man-

ufacturer of built-in, under-counter ice making and specialty refrigeration

products. U-Line dedicates 100% of its research and development to

these products. The result: U-Line technology leads the market with inno-

vation, design, depth of product line and performance.

U-Line also backs customers with a strong dealer network.

U-Line’s commitment to quality even extends to environmentally safe

packaging. U-Line products are making life more convenient in homes,

businesses, and hotels around the world.

PLEASE READ all instructions completely before attempting

to install or operate the unit.

The icons 2075DWRR refrigerator unit, CO2075DWR

refrigerator/ice maker combination and 2075DWRWC Wine

Captain

drawer units are used throughout this manual to help you identify the

specifics to your U-Line product. Once you have your unit installed, we suggest

you keep this manual in a safe place for future reference. Should any prob-

lems occur, refer to the TROUBLESHOOTING section of this manual. This

information will help you quickly identify a problem and get it remedied. In the

event you require assistance, please contact the dealer where you purchased

your unit.

PLEASE RECORD YOUR MODEL’S INFORMATION

Whenever you call to request information or service, you will need to

know your model number and serial number. You can find this informa-

tion on the serial plate located on the inside wall of your unit and on the

product registration card.

PRODUCT REGISTRATION CARD

The package containing this manual also includes your product registra-

tion information. Warranty coverage begins at the time your unit was

purchased.

NOTE

Complete and mail the Product Registration Card as soon as

possible to validate the registration date. You may also reg-

ister the product online at www.U-LineService.com.

If you do not return your Product Registration Card, U-Line will use the

date of sale to the U-Line distributor as the first date of

warranty for your unit. Please also record the purchase date of your U-

Line unit and your dealer’s name, address and telephone number.

Model Number: ______________________________________

Serial Number: ______________________________________

Purchase Date: ______________________________________

Dealer Name: ______________________________________

Dealer Address: ______________________________________

Dealer Telephone: ______________________________________

Keep this manual and the sales receipt together in a safe place for further

reference.

User’s Manual

TABLE OF CONTENTS

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

LEVELING THE UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

CONNECTING THE WATER SUPPLY . . . . . . . . . . . . . . . . . . . . . .11

BUILT-IN INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

CUSTOM DRAWER PANELS . . . . . . . . . . . . . . . . . . . . . . . . . .14

INITIAL START-UP AND ADJUSTING THE

TEMPERATURE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

TEMPERATURE CONTROLLER . . . . . . . . . . . . . . . . . . . . .23

TEMPERATURE CONTROLLER . . . . . . . . . . . . . . . . . . . . .24

TEMPERATURE CONTROLLER . . . . . . . . . . . . . . . . . . . . .26

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

ICE MAKER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

CLEANING & MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . .38

STAINLESS STEEL MODELS . . . . . . . . . . . . . . . . . . . . . . . . .38

STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . .43

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . .44

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . .45

IF SERVICE IS REQUIRED . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

User’s Manual

SAFETY PRECAUTIONS

Do not attempt to install or operate your unit until you have read the safe-

ty precautions in this manual. Safety items throughout this manual are

labeled with a Danger, Warning or Caution based on the risk type.

DEFINITIONS

This is the safety alert symbol. It is used to alert you to poten-

tial personal injury hazards. Obey all safety messages that fol-

low this symbol to avoid possible injury or death.

DANGER indicates an imminently hazardous situation which,

if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which,

if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if

not avoided, may result in minor or moderate injury.

CAUTION

CAUTION used without the safety alert symbol indicates a

potentially hazardous situation which, if not avoided, may

result in property damage.

Indicates installation, operation or mainenance information

which is important but not hazard related.

CAUTION

!WARNING

DANGER

! !

GENERAL PRECAUTIONS

RISK OF CHILD ENTRAPMENT. Before you throw away your

old refrigerator or freezer, take off the doors and leave

shelves in place so that children may not easily climb inside.

•Never attempt to repair or perform maintenance on the

unit until the electricity has been disconnected.

•Altering, cutting of power cord, removal of power cord,

removal of power plug, or direct wiring can cause serious

injury, fire and/or loss of property and/or life and will void

the warranty.

•The anti-tip kit must be installed on this unit before it is

used. Never use the drawers as steps or a shelf to sup-

port more than the drawers’ content.

CAUTION

•Do not lift unit by drawer’s handle.

•Use care when moving the unit. Some edges are sharp and

may cause personal injury. Wear gloves when moving or

repositioning the unit.

•Allow unit temperature to stabilize for 24 hours before use.

•Failure to clean the condenser every three months can

cause the unit to malfunction. This could void the warranty.

•Never install the unit behind closed doors. Be sure front

grille is free of obstruction. Obstructing free air flow can

cause the unit to malfunction, and may void the warranty.

CAUTION

•Use only genuine U-Line replacement parts. Imitation parts

can damage the unit, and may void the warranty.

!WARNING

DANGER

! !

User’s Manual

INSTALLATION

SITE PREPARATION

Your U-Line drawer unit must be installed under a counter or in a wall.

These units are designed so they can be installed next to a wall. The

crisper in the and the caddy in the can be accessed from

either side.

1. Position the unit on a flat, level surface, capable of supporting the

entire weight of the unit. Remember the unit will be significantly

heavier once it is fully loaded.

2. This unit requires grounded and polarized 115 VAC, 60Hz, 15A cir-

cuit (normal household current).

ELECTROCUTION HAZARD!

Electrical Grounding Required. This appliance

is equipped with a three prong (grounding)

polarized plug for your protection against pos-

sible shock hazards.

•NEVER remove the round grounding prong from the plug.

•NEVER use a two-prong grounding adapter.

•NEVER use an extension cord to connect power to the

unit.

Where a two-prong wall receptacle is encountered or a

longer power cord is required, contact a qualified electrician

to have it replaced in accordance with applicable electrical

codes.

DANGER

! !

Your U-Line Drawer unit is designed so it can be installed next to the wall

on either side (Figures 1, 2).

Figure 1 – Right wall installation

The anti-tip kit must be installed on this unit before it is used.

Never use the drawers as steps or a shelf to support more

than the drawers’ content.

3. These units must be installed in a wall or under a counter top to

allow for the installation of the anti-tip kit. The drawer unit can be

installed with an appliance or fixture located in front of it, as long as

there is adequate clearance for the drawer to be opened and

removed when servicing (Figure 3).

U-Line recommends you consider additional clearance in front of the

open drawer for convenience.

!WARNING

DWR001A

User’s Manual

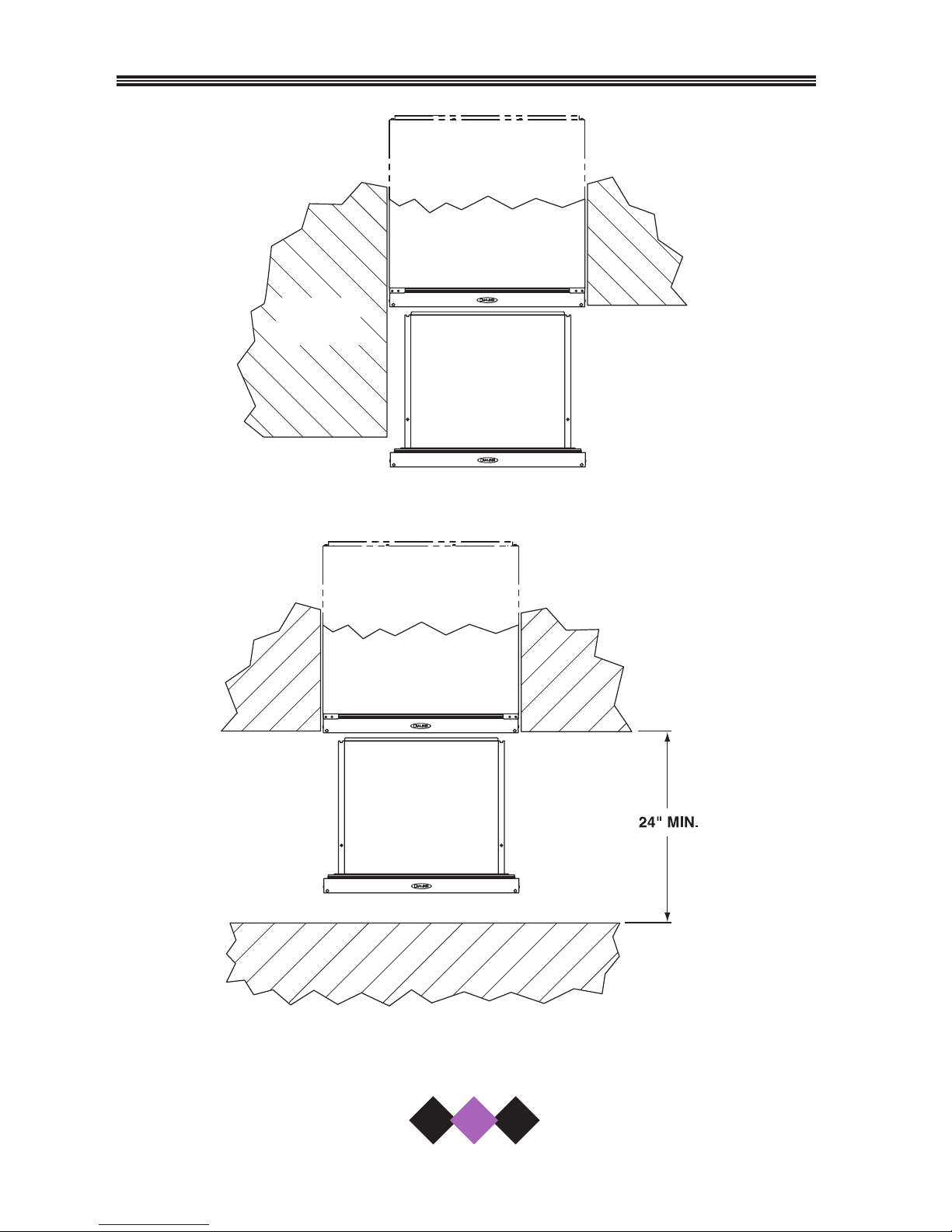

Figure 2 – Left wall installation

Figure 3 – Front Clearance

DWR003A

CAB

DWR002A

4. – Connect the water supply line. See CONNECTING THE

WATER SUPPLY for installation requirements.

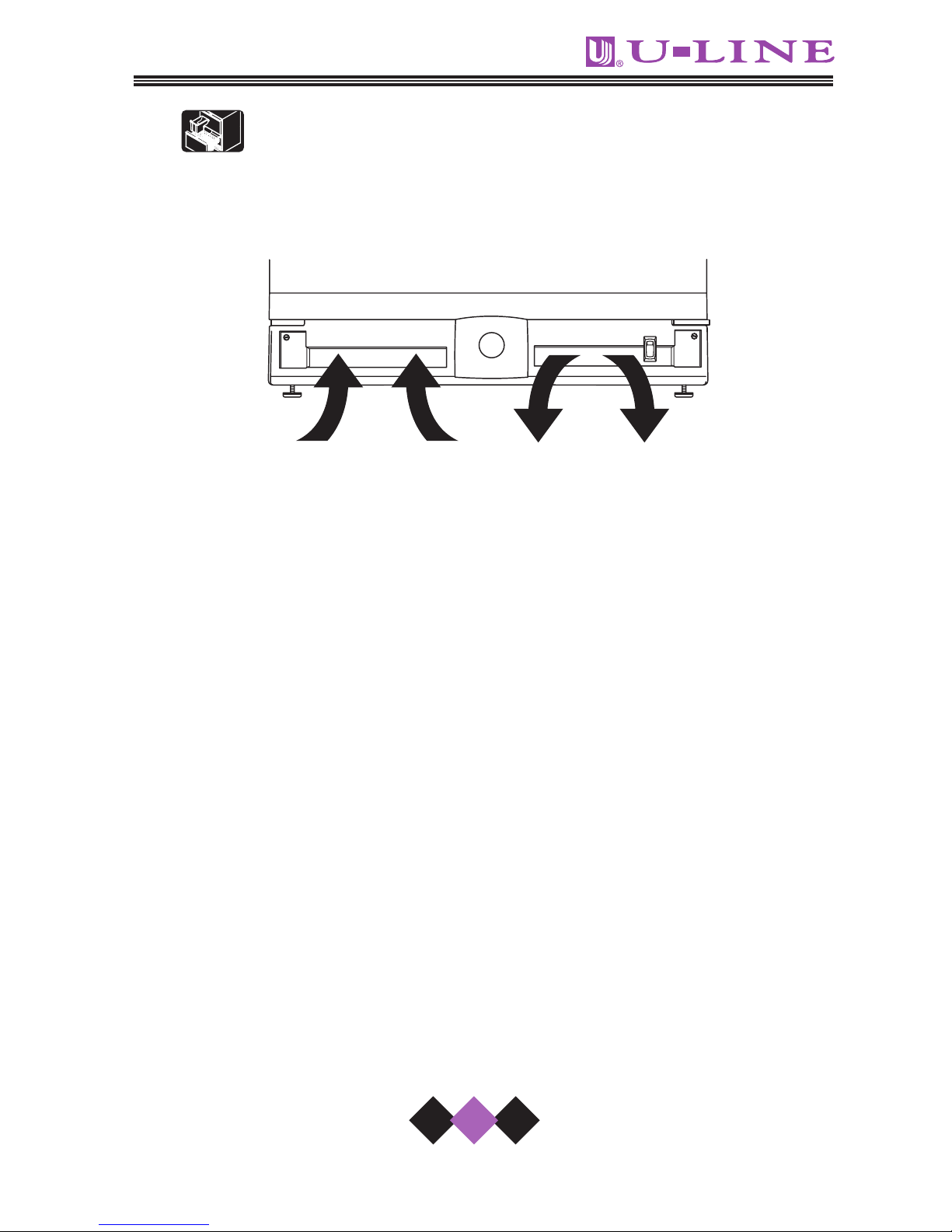

5. Position the unit to allow free air flow through the front grille

(Figure 4).

Figure 4

6. Wipe inside of unit and all inside drawer components with a clean,

water dampened cloth only.

LEVELING THE UNIT

It is important that the unit is level. All Échelon™ Series units are

equipped with adjustable feet for leveling and height adjustment

(Figure 5).

To level the unit:

1. Adjust all four leveling feet evenly so that the top of the cabinet is at

the desired installation height.

2. Using a level of at least two feet in length, measure the level of the

floor where the unit is to be installed. Measure back-to-front and

side-to-side and note the measurements.

3. With the unit on a level surface, adjust the feet, as appropriate, to

compensate for the floor level measurements noted in Step 2.

OFF

DWR004

INTAKE EXHAUST

User’s Manual

4. Place the unit in position where it is to be installed. Re-check cabi-

net height and levelness (Figure 6) and adjust if necessary.

Figure 5

Figure 6

5. - Gently push unit into position to prepare for built-in

installation.

DWR021

LEVEL

TWO PLACES

DWR005

RAISE LOWER
