QUICK START GUIDE

2000 Series •220-240 V / 50 Hz

QUICK START GUIDE

u-line.com

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over five decades and three generations

of premium modular ice making, refrigeration, and wine preservation experience. U-Line continues to be the American

leader, delivering versatility and flexibility for multiple applications including residential, light commercial, outdoor and marine

use. U-Line’s complete global product collection includes modular Wine Cellars, Drinks Cabinets, Clear Ice Machines, Glass &

Solid Door Refrigerators, Drawer Models, and Freezers.

U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired innovations

and attention to even the smallest details. We are known and respected for our unwavering dedication to product design,

quality and selection. U-Line is headquartered in Milwaukee, Wisconsin with a west coast office located in Laguna Beach,

California and European support in Dublin, Ireland. U-Line has shipped product to five continents for over two decades and is

proud to have the opportunity to ship to you.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Quick Reference Guides, CAD Drawings, Compliance

Documentation, and Product Warranty information are all available for reference and download at u-line.com under

Documentation.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.800.779.2547.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.

SERVICE INFORMATION

Answers to Customer Frequently Asked Questions are available at u-line.com under Customer Care or you may contact our

Customer Care group directly, contact information below.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm UTC/GMT - 5

T: +1.414.354.0300

F: +1.414.354.7905

Email: sales@u-line.com

u-line.com

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 5:30 pm UTC/GMT - 5

T: +1.800.779.2547

F: +1.414.354.5696

Service Email: onlineservic[email protected]

Parts Email: onlineparts@u-line.com

CONNECT WITH US

Designed, engineered and assembled in WI, USA

QUICK START GUIDE

u-line.com

Contents

1 Model List

3 Safety and Warning

4 Environmental Requirements

5 Electrical

5 Door Swing

6 General Installation

6 Integrated Panel Installation

8 Control Operation

9 First Use

10 Sabbath Mode

10 Warranty

QUICK START GUIDE

u-line.com

Model List

This guide provides the basics to get you started. Looking for more information? Visit u-line.com to view detailed User Guides

for all U-Line products.

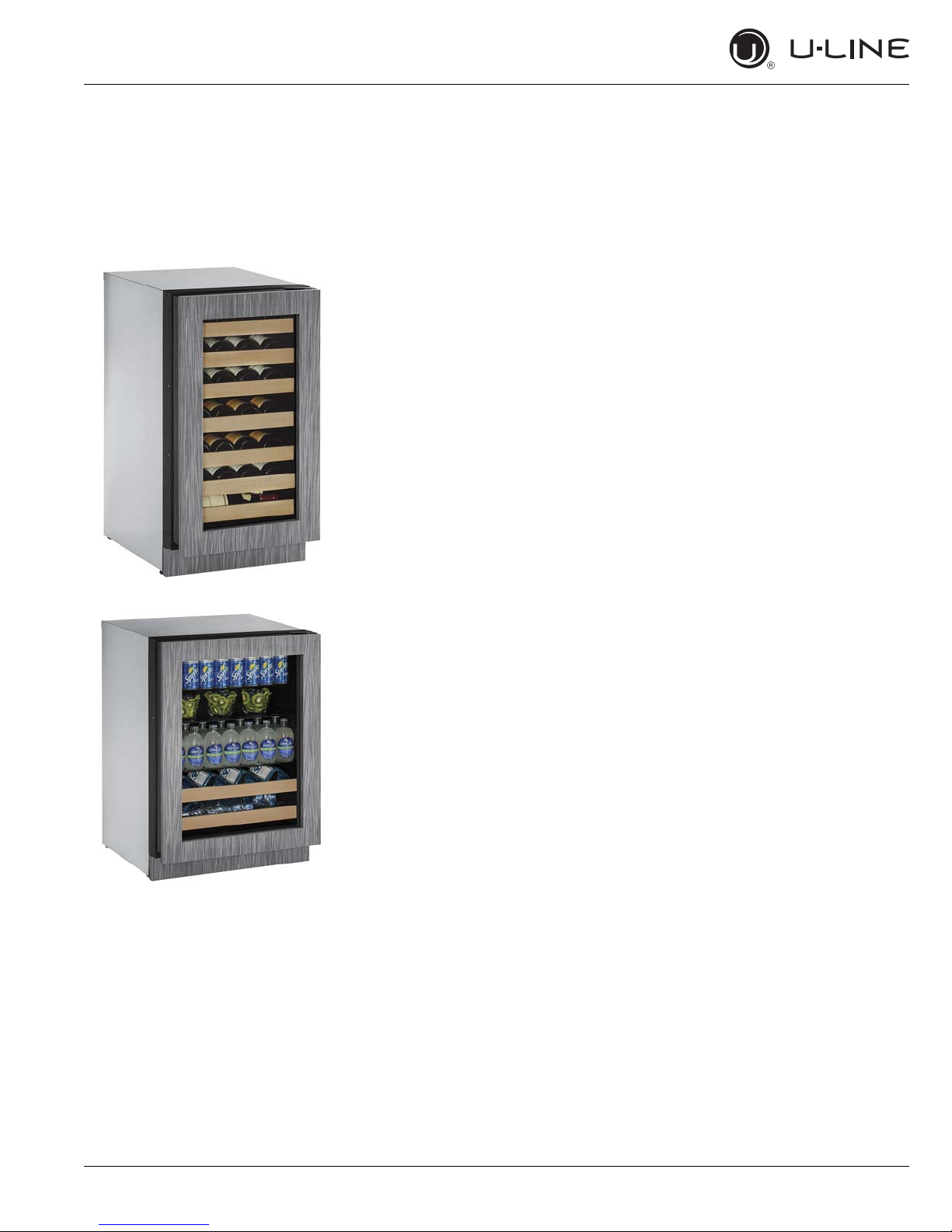

Wine Cellar Models*

U-2245WCINT-00B U-2260ZWCINT-00B

U-2260ZWCINT-60B

Drinks Cabinets*

U-2260DCINT-00B

U-2260DCINT-60B

QUICK START GUIDE

u-line.com

Refrigerator Drinks Cabinets*

U-2245RDCINT-00B U-2260RDCINT-00B

Solid Door Refrigerators*

U-2245RINT-00B U-2260RINT-00B

*Unit shown with wood panel not included with unit.

Visit http://www.u-line.com/product-literature/userguides or

scan this QR code to view all user guides online.

QUICK START GUIDE

u-line.com

Safety and Warning

NOTICE

PLEASE READ all instructions before installing,

operating, or servicing the appliance.

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning or Caution based on the risk type:

DANGER

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

WARNING

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

CAUTION

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property or equipment damage.

GENERAL PRECAUTIONS

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience or knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible

for their safety. Children should be supervised to ensure

that they do not play with this appliance. Cleaning and

user maintenance shall not be performed by children

without supervision.

DANGER

This unit contains R600a (Isobutane) which is a

flammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specifications” section included in the

User Guide. Do not damage the refrigerant

circuit.

DANGER

Do not use electrical appliances inside the food

storage compartment of this appliance.

WARNING

Keep ventilation openings in the appliance

enclosure or in the built in structure clear of

obstruction.

WARNING

Do not store explosive substances such as

aerosol cans with flammable propellant in this

appliance.

WARNING

Requirement for an external switch in the fixed

wiring is specified.

QUICK START GUIDE

u-line.com

CAUTION

Use care when moving and handling the unit.

Use gloves to prevent personal injury from sharp

edges.

If your model requires defrosting, DO NOT use

medical devices or other means to accelerate the

defrosting process. DO NOT use an ice pick or

other sharp instrument to help speed up

defrosting. These instruments can puncture the

inner lining or damage the cooling unit. DO NOT

use any type of heater to defrost. Using a heater

to speed up defrosting can cause personal injury

and damage to the inner lining.

NOTICE

Do not lift unit by door handle.

Never install or operate the unit behind closed

doors. Be sure front grille (plinth strip/base

fascia) is free of obstruction. Obstructing free

airflow can cause the unit to malfunction and

will void the warranty.

Failure to clean the condenser every six months

can cause the unit to malfunction. This could

void the warranty.

Allow unit temperature to stabilize for 24 hours

before use.

Do not block any internal fans.

Use only genuine U-Line replacement parts.

Imitation parts can damage the unit, affect its

operation or performance and may void the

warranty.

This appliance is intended to be used in household and

similar applications such as:

• Staff kitchen areas in shops, office and other working

environments.

• Farm houses and by clients in hotels, motels and other

residential type environments.

• Bed and breakfast type environments.

• Catering and similar non-retail applications.

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

QUICK START GUIDE

u-line.com

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

If the detachable type electric supply cord is damaged, it

must be replaced by an equivalent cord available from the

manufacturer or its service agent.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 230 VAC,

50 Hz, 8A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

Door Swing

For models that are installed adjacent to a wall, 1/4"

(6 mm) clearance is recommended from wall on hinge side

to allow the door to open 90°. Allow for additional space

for any knobs or pulls installed on the integrated panel/

frame.

Units have a zero clearance when installed adjacent to

cabinets.

Wall

90°

Door Swing

Space Required

For any Knobs or Pulls

1/4" (6 mm)

QUICK START GUIDE

u-line.com

General Installation

LEVELING INFORMATION

1. Use a level to confirm

the unit is level. Level

should be placed along

top edge and side

edge as shown.

2. If the unit is not level,

remove grille and

adjust legs as

necessary.

3. Confirm the unit is level after each adjustment and

repeat the previous steps until the unit is level.

INSTALLATION TIP

If the room floor is higher than the floor in the cutout

opening, adjust the rear legs to achieve a total unit rear

height of 1/8" (3 mm) less than the opening’s rear height.

Shorten the unit height in the front by adjusting the front

legs. This allows the unit to be gently tipped into the

opening. Adjust the front legs to level the unit after it is

correctly positioned in the opening.

INSTALLATION

1. Plug in the power/electrical cord.

2. Gently push the unit into position. Be careful not to

entangle the cord.

3. Re-check the leveling, from front to back and side to

side. Make any necessary adjustments. The unit’s top

surface should be approximately 1/8" (3 mm) below

the countertop.

4. Install the anti-tip bracket.

5. Remove the interior packing material and wipe out the

inside of the unit with a clean, water-dampened cloth.

Integrated Panel Installation

1. Fully open door.

2. Starting at corner, pull

gasket away from door.

3. Continue to pull gasket

free from gasket channel.

4. Upon removal, lay gasket down on a flat surface.

Rotate Front and Back Legs to Adjust

QUICK START GUIDE

u-line.com

5. The panel should be aligned with the outside edge

(opposite the hinge) and high enough to align with the

highest point in the door.

NOTICE

Due to differences in floor construction or

surrounding cabinetry, the panel may not sit

flush with the top of the door.

6. Secure integrated

panel to door using

clamps. A robust

tape may also be

used. U-Line

recommends the

use of bar clamps

to secure the panel

to the door. If using

tape, be certain the

tape will not

damage panel finish

upon removal.

7. Using a 7/64"

(3 mm) drill bit, drill

6 pilot holes into

the wood panel 1/2"

(12 mm) deep using

the holes in the

door frame as a guide.

NOTICE

It is important to ensure that all drilled holes are

drilled to the correct depth in order to avoid

splits in the wood when hardwood is installed.

8. Locate 6 of the #6x 1-1/2" (38 mm) screws provided

with your unit.

9. Using a Phillips screwdriver, place one screw into each

of the 6 pilot holes and screw down. Do not overtighten

screws.

10.Ensure the screws sit flush against the bottom of the

channel.

11.Remove clamps from door.

NOTICE

If panel requires additional adjustment after

removing clamps, slightly loosen each screw and

adjust panel as necessary. Tighten screws upon

completion.

12.Starting at the corners, re-install the gasket into the

gasket channel in the frame. Make sure the gasket is

fully seated.

Align Panel

Against

Door Edge

First

Align Top Of Panel With Highest Point Of Door

Wood

Panel

Door/Drawer

Bar

Clamp

Bar

Clamp

Integrated Panel

Andere Handbücher für U-2245RINT-00B

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere U-Line Kühlschrank Handbücher

U-Line

U-Line 2260DC Installationshandbuch

U-Line

U-Line Commercial UCRE515-SG33A Installationshandbuch

U-Line

U-Line UACP115-IS01A Installationshandbuch

U-Line

U-Line Commercial UCBR572-SG01A Installationshandbuch

U-Line

U-Line U-2224RS-00A Installationshandbuch

U-Line

U-Line 2175WC Betriebsanleitung

U-Line

U-Line UCBR552-SG01A Installationshandbuch

U-Line

U-Line Echelon 2275DWRROL Bedienungsanleitung

U-Line

U-Line U-2224DWRS-00A Installationshandbuch

U-Line

U-Line 29 Series Konfigurationshandbuch

U-Line

U-Line UADA24RGLB13B Installationshandbuch

U-Line

U-Line ECHELON 2075 Series Bedienungsanleitung

U-Line

U-Line U2224DWRINT00A Installationshandbuch

U-Line

U-Line U-LINE 29WHTP Bedienungsanleitung

U-Line

U-Line WINE CAPTAIN 2115R Bedienungsanleitung

U-Line

U-Line ADA24RINT00A Installationshandbuch

U-Line

U-Line U-1215RINT-00B Installationshandbuch

U-Line

U-Line HWD524 Bedienungsanleitung

U-Line

U-Line Echelon 2015R Handbuch

U-Line

U-Line U-2218WCINT-00A Installationshandbuch

U-Line

U-Line Echelon 2275DWRROL Bedienungsanleitung

U-Line

U-Line Combo CO29 Bedienungsanleitung

U-Line

U-Line 2175RF Bedienungsanleitung

U-Line

U-Line Echelon 2075DWRRSS Handbuch

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
