U-Line U-3018WCS-00B Bedienungsanleitung

QUICK START GUIDE

Modular 3000 Series •115 V / 60 Hz

QUICK START GUIDE

u-line.com

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over five decades and three generations

of premium modular ice making, refrigeration, and wine preservation experience. U-Line continues to be the American

leader, delivering versatility and flexibility for multiple applications including residential, light commercial, outdoor and marine

use. U-Line’s complete product collection includes modular Wine Captain®Models, Beverage Centers, Clear Ice Machines,

Crescent Ice Makers, Glass & Solid Door Refrigerators, Drawer Models, Freezers, and Combo®Models.

U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired innovations

and attention to even the smallest details. We are known and respected for our unwavering dedication to product design,

quality and selection. U-Line is headquartered in Milwaukee, Wisconsin with a west coast office located in Laguna Beach,

California and European support in Dublin, Ireland. U-Line has shipped product to five continents for over two decades and is

proud to have the opportunity to ship to you.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Quick Reference Guides, CAD Drawings, Compliance

Documentation, and Product Warranty information are all available for reference and download at u-line.com under

Documentation.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.800.779.2547.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.

SERVICE INFORMATION

Answers to Customer Frequently Asked Questions are available at u-line.com under Customer Care or you may contact our

Customer Care group directly, contact information below.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

F: +1.414.354.7905

Email: sales@u-line.com

u-line.com

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 5:30 pm CST

T: +1.800.779.2547

F: +1.414.354.5696

Service Email: onlineservic[email protected]

Parts Email: onlineparts@u-line.com

CONNECT WITH US

Designed, engineered and assembled in WI, USA

QUICK START GUIDE

u-line.com

Contents

1 Model List

3 Safety and Warning

4 Environmental Requirements

4 Electrical

5 Door Swing

6 General Installation

6 Integrated Panel Installation

9 Control Quick Guide

10 First Use

10 Sabbath Mode

11 Warranty

QUICK START GUIDE

u-line.com

Model List

This guide provides the basics to get you started. Looking for more information? Visit u-line.com to view detailed User Guides

for all U-Line products.

Wine Captain®Models*

U-3018WCS-00B

U-3018WCS-13B

U-3018WCS-15B

U-3018WCINT-00B

U-3018WCINT-60B

U-3024ZWCS-00B

U-3024ZWCS-13B

U-3024ZWCS-15B

U-3024ZWCINT-00B

U-3024ZWCINT-60B

U-3036WCWCS-00B

U-3036WCWCS-13B

U-3036WCWCINT-00B

U-3036WCWCINT-60B

Beverage Centers*

U-3024BEVS-00B

U-3024BEVS-13B

U-3024BEVS-15B

U-3024BEVINT-00B

U-3024BEVINT-60B

U-3024BEVINT-61B

U-3036BVWCS-00B

U-3036BVWCS-13B

U-3036BVWCINT-00B

U-3036BVWCINT-60B

Glass Door Refrigerators*

U-3018RGLS-00B

U-3018RGLS-13B

U-3018RGLS-15B

U-3018RGLINT-00B

U-3024RGLS-00B

U-3024RGLS-13B

U-3024RGLS-15B

U-3024RGLINT-00B

U-3036RRGLS-00B

U-3036RRGLS-13B

U-3036RRGLINT-00B

QUICK START GUIDE

u-line.com

Solid Door Refrigerators*

U-3018RS-00B

U-3018RINT-00B

U-3024RS-00B

U-3024RINT-00B

U-3036RRS-00B

U-3036RRINT-00B

Refrigerator Drawers*

U-3024DWRINT-00B

U-3024DWRS-00B

Freezers*

U-3024FZRS-00B

U-3024FZRINT-00B

*Unit shown with wood panel not included with unit.

Visit http://www.u-line.com/product-literature/userguides or

scan this QR code to view all user guides online.

QUICK START GUIDE

u-line.com

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning or Caution based on the risk type:

DANGER

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

WARNING

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

CAUTION

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property or equipment damage.

DANGER

This unit contains R600a (Isobutane) which is a

flammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specifications” section included in the

User Guide. Do not damage the refrigerant

circuit.

WARNING

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to

incorrect parts or improper service.

QUICK START GUIDE

u-line.com

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

QUICK START GUIDE

u-line.com

Door Swing

For Integrated models that are installed adjacent to a wall,

1/4" (6 mm) clearance is recommended from wall on

hinge side to allow the door to open 90°. Allow for

additional space for any knobs or pulls installed on the

integrated panel/frame.

Stainless Steel models that are installed adjacent to a wall

require 2-1/4" (57 mm) door clearance on hinge side to

allow for door handle.

Units have a zero clearance when installed adjacent to

cabinets.

Wall

90°

Door Swing

90°

Door Swing

Space Required

For any Knobs or Pulls

2-1/4" MIN

(57 mm MIN)

Integrated

Stainless

1/4" (6 mm)

QUICK START GUIDE

u-line.com

General Installation

LEVELING INFORMATION

1. Use a level to confirm

the unit is level. Level

should be placed along

top edge and side

edge as shown.

2. If the unit is not level,

remove grille and

adjust legs as

necessary. Use

included tool to adjust

the height of the rear legs.

3. Confirm the unit is level after each adjustment and

repeat the previous steps until the unit is level.

INSTALLATION TIP

If the room floor is higher than the floor in the cutout

opening, adjust the rear legs to achieve a total unit rear

height of 1/8" (3 mm) less than the opening’s rear height.

Shorten the unit height in the front by adjusting the front

legs. This allows the unit to be gently tipped into the

opening. Adjust the front legs to level the unit after it is

correctly positioned in the opening.

INSTALLATION

1. Plug in the power/electrical cord.

2. Gently push the unit into position. Be careful not to

entangle the cord.

3. Re-check the leveling, from front to back and side to

side. Make any necessary adjustments. The unit’s top

surface should be approximately 1/8" (3 mm) below

the countertop.

4. Install the anti-tip bracket.

5. Remove the interior packing material and wipe out the

inside of the unit with a clean, water-dampened cloth.

Integrated Panel Installation

ALL 3000 SERIES EXCEPT DWR

1. Fully open door.

2. Starting at corner, pull

gasket away from door.

3. Continue to pull gasket

free from gasket channel.

4. Upon removal, lay gasket down on a flat surface.

Rotate Clockwise to raise rear leg.

Rotate Counter-Clockwise to lower leg.

Rotate Front Legs to Adjust

QUICK START GUIDE

u-line.com

5. The panel should be aligned with the outside edge

(opposite the hinge) and high enough to align with the

highest point in the door.

NOTICE

Due to differences in floor construction or

surrounding cabinetry, the panel may not sit

flush with the top of the door.

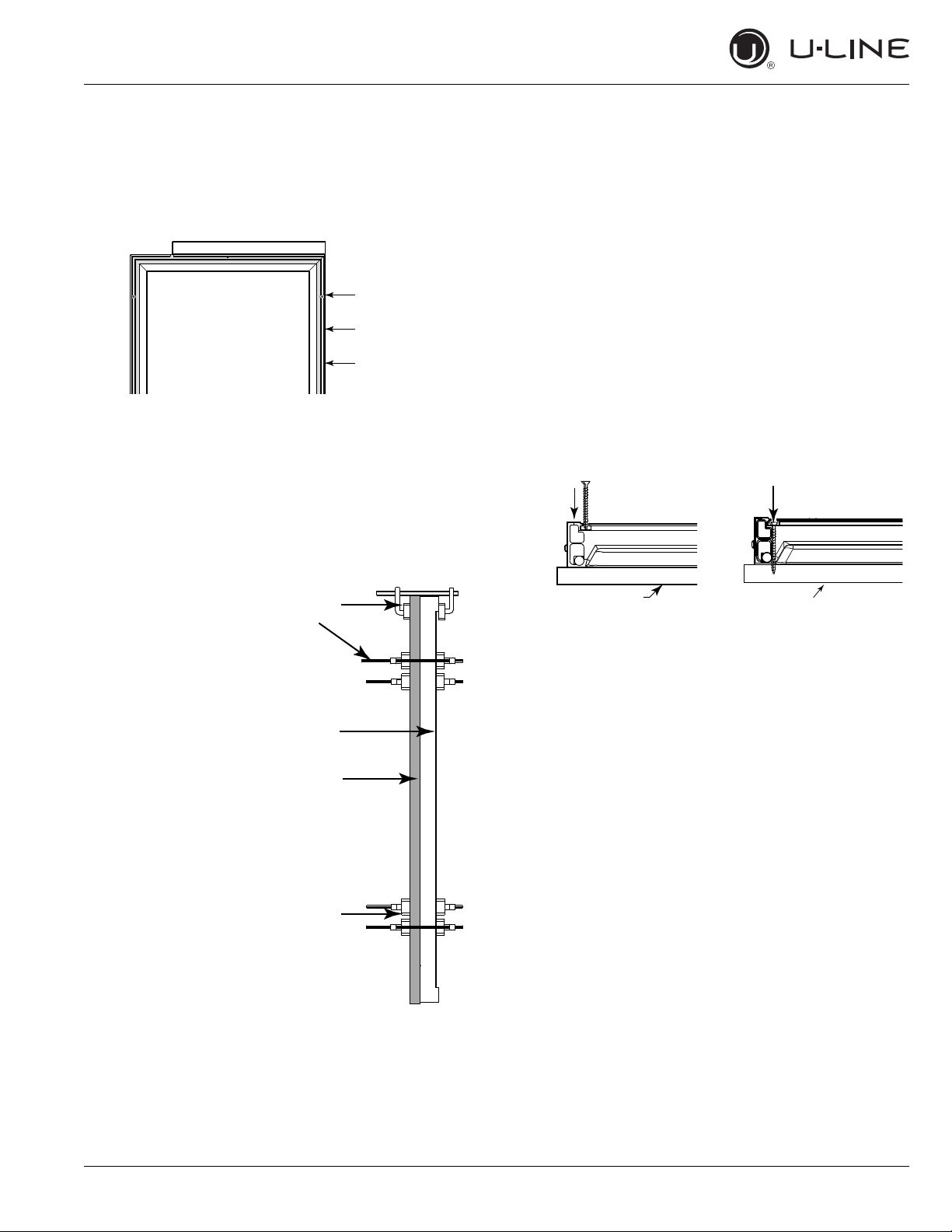

6. Secure integrated

panel to door using

clamps. A robust

tape may also be

used. U-Line

recommends the

use of bar clamps

to secure the panel

to the door. If using

tape, be certain the

tape will not

damage panel finish

upon removal.

7. Using a 7/64"

(3 mm) drill bit, drill

6 pilot holes into

the wood panel 1/2"

(12 mm) deep using

the holes in the

door frame as a

guide.

NOTICE

It is important to ensure that all drilled holes are

drilled to the correct depth in order to avoid

splits in the wood when hardwood is installed.

8. Locate 6 of the #6x 1-1/2" (38 mm) screws provided

with your unit.

9. Using a Phillips screwdriver, place one screw into each

of the 6 pilot holes and screw down. Do not overtighten

screws.

10.Ensure the screws sit flush against the bottom of the

channel.

11.Remove clamps from door.

NOTICE

If panel requires additional adjustment after

removing clamps, slightly loosen each screw and

adjust panel as necessary. Tighten screws upon

completion.

12.Starting at the corners, re-install the gasket into the

gasket channel in the frame. Make sure the gasket is

fully seated.

Align Panel

Against

Door Edge

First

Align Top Of Panel With Highest Point Of Door

Wood

Panel

Door/Drawer

Bar

Clamp

Bar

Clamp

Integrated Panel

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere U-Line Kühlschrank Handbücher

U-Line

U-Line Echelon Series Bedienungsanleitung

U-Line

U-Line Echelon CO2075FF Bedienungsanleitung

U-Line

U-Line UHWC124 Installationshandbuch

U-Line

U-Line UARI121WS01A Bedienungsanleitung

U-Line

U-Line 1000 SERIES Bedienungsanleitung

U-Line

U-Line U-29R Bedienungsanleitung

U-Line

U-Line WINE CAPTAIN 2115R Bedienungsanleitung

U-Line

U-Line Echelon 2075RF Bedienungsanleitung

U-Line

U-Line CLRCO2075 Betriebsanleitung

U-Line

U-Line UARI121WS01A Installationshandbuch

U-Line

U-Line U-2218R-00B Installationshandbuch

U-Line

U-Line 1215R Bedienungsanleitung

U-Line

U-Line WINE CAPTAIN 2275DWRCS Betriebsanleitung

U-Line

U-Line UMRI121-BS02A Installationshandbuch

U-Line

U-Line Echelon Combo C2275DWR Bedienungsanleitung

U-Line

U-Line U-2224RINT-00A Installationshandbuch

U-Line

U-Line 2000 SERIES Bedienungsanleitung

U-Line

U-Line U-ss01a Bedienungsanleitung

U-Line

U-Line 2000 SERIES Bedienungsanleitung

U-Line

U-Line 2175WC Bedienungsanleitung

U-Line

U-Line U-2224RGLS-00A Installationshandbuch

U-Line

U-Line 2175WC Bedienungsanleitung

U-Line

U-Line WINE CAPTAIN 2275DWRCOL Bedienungsanleitung

U-Line

U-Line 3000 SERIES Installationshandbuch

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
