Ubee DDW3600 Bedienungsanleitung

Ubee TI D3.0 WLCM

Model Number: DDW3600

User Manual

Rev. 1.0

November 12, 2009

◆Important Safety Warnings

"Installation" should include bonding the screen of the coaxial cable to the earth at the building

entrance per ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93,

Grounding of Outer Conductive Shield of a Coaxial Cable.

◆Installation

Follow the procedures below to install the hardware. Figure 0 illustrates the connection

relationship.

1. Connect one end of the coaxial cable (not included) to the CABLE port on the modem, and

connect the other end to the cable wall outlet. Be sure not to bend or over tighten the cables as

this may strain the connector and cause damage. If you plan to connect the modem and

television to the same wall outlet, you must use a cable line splitter (not included).

2. Connect one end of the Ethernet cable to the ETHERNET port on the modem, and connect

the other end to the Ethernet port on the PC.

3. Connect one end of the Phone line cable to the VoIP port on the modem, and connect the

other end to the phone port of the phone set.

4. Connect one end of the DC power adapter to the POWER port on the modem, and connect

the other end to an electric outlet on the wall.

◆Connectors on the rear panel of the Modem

This list of connectors describes where to connect the cables and power adapter when

installing the cable modem.

1. POWER: This is where you plug the included power adapter. Remember to use only the

power adapter that came with the Cable Modem.

2. GigE: This is where you plug the Ethernet cable. The other end connects to the Ethernet

port on the PC or NIC.

3. RESET button: This is what you can reset the setting to factory default by pressing button

on more than 10 seconds.

4. CABLE Connector: This is where you connect the coaxial cable (not included) that leads to

the cable splitter (not included) or the cable wall outlet.

5. USB: This is where you plug the USB cable. The other end connects to the USB port on the

PC.

Figure 1 illustrates the connection relationship

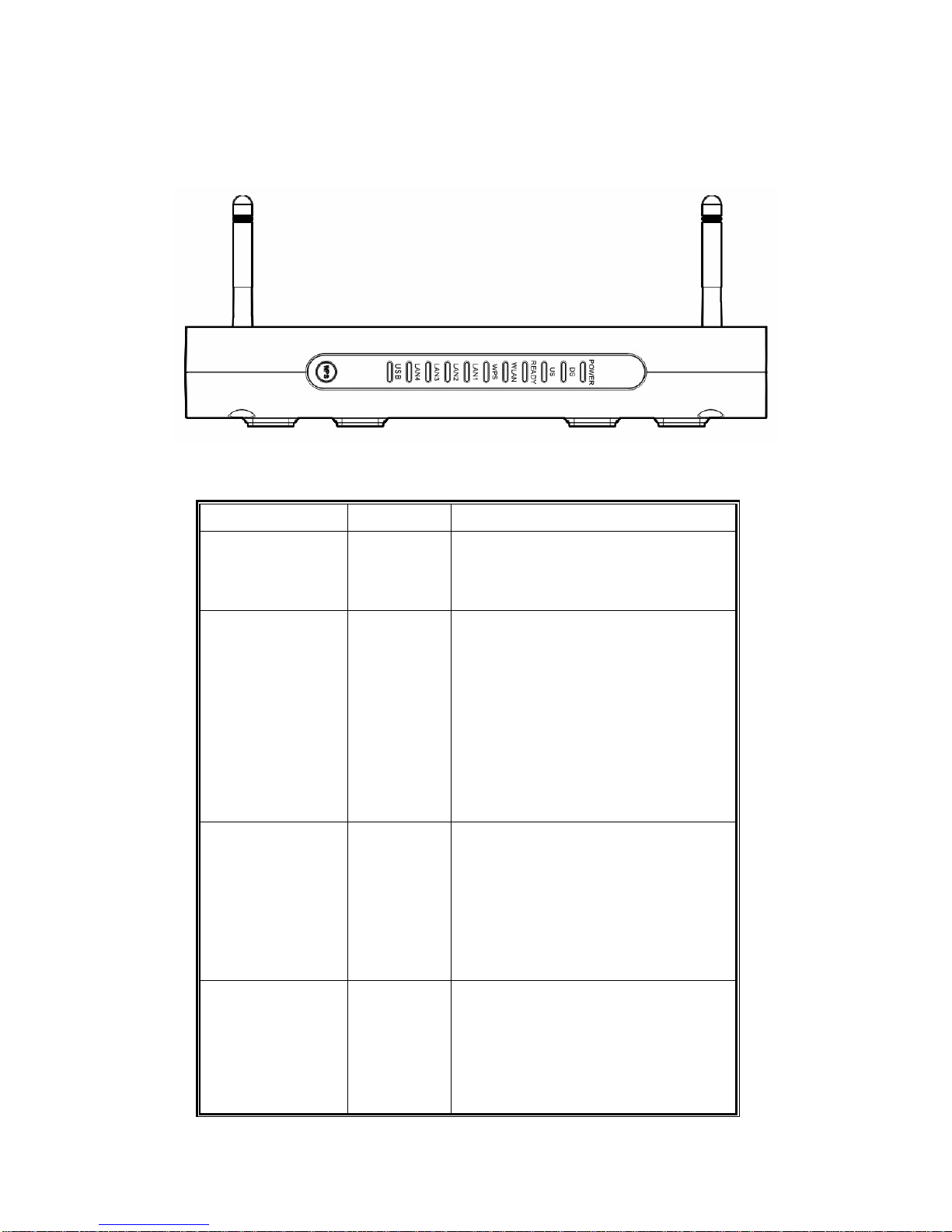

◆LEDs on the front panel of the Modem

Please see the LED descriptions below.

LED Color DESCRIPTION

Power Green

Indicates that the cable modem has

successfully completed internal power-on

tests. LED flashes if power-on fails.

Green/Orange Indicates that data is being received from

the cable network. Orange indicates more

than one Channel is bonded. Green

indicates that one Channel is bonded. Prior

to registration, DS would flash slowly to

indicate it’s looking for DS channel.

Post-registration (READY LED is lit), DS

would flash when traffic is being passed.

US Green/Orange Indicates that data is being transmitted from

the cable modem to the cable network.

Orange indicates more than one Channel is

bonded. Green indicates that one Channel

is bonded. LED flash when traffic is being

passed.

Ready Green LED flashes slowly when performing

upstream ranging. LED flashes quickly

when acquiring IPAddress and

Configuration File. LED must remain off if

device receives disable configuration file.

LED must be solid once registered with

network.

WLAN Green Indicates connectivity in the WiFi port LED

flashes when traffic is being passed.

WPS Green TBD

LAN1 to LAN4 Green/Orange

Indicates connectivity between the Ethernet

port on the cable modem and the PC’s

Ethernet port. LED flashes when traffic is

being passed. Green indicates GbE.

Orange indicates that 10/100/1000 is

enabled.

USB

Green Indicates connectivity in the USB port LED

flashes when traffic is being passed.

◆Specification

Operating Environment: 40 degree C max.

DOCSIS RF Requirement Specification

Table 3. DOCSIS RF Specification

US-DOCSIS 2.0 Upstream Output

Parameter Value

Frequency 5 to 42MHz (edge to edge)

Level range (one channel) TDMA;

+8 to +54 dBmV (32QAM, 64QAM)

+8 to +55 dBmV (8QAM, 16QAM)

+8 to +58 dBmV (QPSK)

S-CDMA:

+8 to +53 dBmV (all modulation)

Modulation Type QPSK, 8QAM, 16QAM, 32QAM, 64QAM, 128QAM and 256QAM

Modulation Rate (nominal) TDMA: 160, 320, 640, 1280, 2560 and 5120 kHz

S-CDMA: 1280, 2560, and 5120 kHz

Bandwidth TDMA: 200, 400, 800, 1600, 3200 and 6400 kHz

S-CDMA: 1600, 3200 and 6400 kHz

Output Impedance 75 ohms

Output Return Loss > 6 dB (5 – 42 MHz)

Connector F connector

US-DOCSIS 2.0 Downstream Output

Parameter Value

Center Frequency 91to 857 MHz (+/- 30 kHz)

Level Range (one channel) -15 dBmV to +15 dBmV

Modulation Type 64QAM, 256QAM and 1024QAM (Three Demodulators)

Symbol Rate (nominal) 5.056941 Msym/s ( 64QAM) and

5.360537 Msym/s (256QAM)

Bandwidth 6 MHz

Total Input Power < 30 dBmV (40-900 MHz)

Input Load Impedance 75 ohms

Input Return Loss > 6 dB (88-860 MHz)

Connector F connector

DOCSIS 3.0 Upstream Output

Parameter Value

Frequency 5 to 42 MHz (edge to edge)

Level range (one channel) TDMA/ATDMA;

+17 to +57 dBmV (32QAM, 64QAM)

+17 to + 58 dBmV (8QAM, 16QAM)

+17 to +61 dBmV (QPSK)

S-CDMA:

+17 to +56 dBmV (all modulation)

Modulation Type QPSK, 8QAM, 16QAM, 32QAM, 64QAM, 128QAM and 256QAM

Modulation Rate (nominal) TDMA: 160, 320, 640, 1280, 2560 and 5120 kHz

S-CDMA: 1280, 2560, and 5120 kHz

Bandwidth TDMA: 200, 400, 800, 1600, 3200 and 6400 kHz

SCDMA Codes per Sub

Frame 1 to 128

S-CDMA: 1600, 3200 and 6400 kHz

Output Impedance 75 ohms

Output Return Loss > 6 dB (5 – 42 MHz)

Connector F connector

US-DOCSIS 3.0 Downstream Output

Parameter Value

Center Frequency 88 to 1002 MHz (+/- 30 kHz)

Level Range (one channel) -15 dBmV to +15 dBmV

Modulation Type 64QAM, 256QAM

Symbol Rate (nominal) 5.056941 Msym/s ( 64QAM) and

5.360537 Msym/s (256QAM)

Bandwidth 6 MHz (Alpha = 0.18 @ 64QAM & 0.12 @ 256QAM)

Capture Bandwidth Supporting four channel bounding on continuous 64MHz CBW

Total Input Power < 36 dBmV

Input Load Impedance 75 ohms

Input Return Loss > 6 dB (88-1002 MHz)

Connector F connector

WLAN RF Requirement Specification

a) frequency rage：

2.412GHz to 2.462GHz

b）EUT frequency list：

the following frequency is point to centre frequency

1.There are 11 channel at 802.11 b/g/ n model HT20

Channel

ID Frequency

(MHz) FCC(USA)

1 2412 O

2 2417 O

3 2422 O

4 2427 O

5 2432 O

6 2437 O

7 2442 O

8 2447 O

9 2452 O

10 2457 O

11 2462 O

There are 7 channel at 802.11 b/g/ n model HT40

Channel

ID Frequency

(MHz) FCC(USA)

3 2422 O

4 2427 O

5 2432 O

6 2437 O

7 2442 O

8 2447 O

9 2452 O

c）modulation：

Standard Data Rate

(Mbps) modul. coding

DSSS-CCK 1 BPSK

DSSS-CCK 2 QPSK

DSSS-CCK 5.5 CCK

11b DSSS-CCK 11 CCK

OFDM 6 BPSK

9 QPSK

OFDM 12 QPSK

OFDM 18 QPSK

OFDM 24 16QAM

OFDM 36 16QAM

OFDM 48 64QAM

11g OFDM 54 64QAM 3/4

MCS8 13 BPSK 1/2

MCS9 29 QPSK 1/2

MCS10 39 QPSK 3/4

MCS11 52 16QAM 1/2

MCS12 78 16QAM 3/4

MCS13 104 64QAM 2/3

MCS14 117 64QAM 3/4

11n 20MHz 2 streams MCS15 130 64QAM 5/6

MCS8 27 BPSK 1/211n 40MHz 2 streams

MCS9 54 QPSK 1/2

MCS10 81 QPSK 3/4

MCS11 108 16QAM 1/2

MCS12 162 16QAM 3/4

MCS13 216 64QAM 2/3

MCS14 243 64QAM 3/4

MCS15 270 64QAM 5/6

Test Channels Rates

Mbps Conditions Mode Antenna Limits

Tx power

802.11g 1,6,11 6 @target power 20dBm 0&2

802.11g 1,6,11 36 @target power 20dBm 0&2

802.11g 1,6,11 48 @target power 19dBm 0&2

802.11b 1,6,11 @target power 19dBm 0&2

802.11n 1,6,11 MCS0/8 @target power 20dBm HT20/40 0&2

802.11n 1,6,11 MCS4/12 @target power 20dBm HT20/40 0&2

802.11n 1,6,11 MCS5/13 @target power 18dBm HT20/40 0&2

802.11n 1,6,11 MCS6/14 @target power 14dBm HT20/40 0&2

802.11n 1,6,11 MCS7/15 @target power 12dBm HT20/40 0&2

+/-2dB(ex

pect the

band

edge

power)

Test Channels Rates

Mbps Conditions Mode Antenna Limits

Tx Spectral Mask

802.11g 6 @+/-9MHz offset 0&2 0dBr

802.11g 6 @+/-11MHz offset 0&2 -20dBr

802.11g 6 @+/-20MHz offset 0&2 -28dBr

802.11g 6 @+/-30MHz offset 0&2 -40dBr

802.11n 6 @+/-9MHz offset HT20 0&2 0dBr

802.11n 6 @+/-11MHz offset HT20 0&2 -20dBr

802.11n 6 @+/-20MHz offset HT20 0&2 -28dBr

802.11n 6 @+/-30MHz offset HT20 0&2 -45dBr

802.11n 6 @+/-19MHz offset HT40 0&2 0dBr

802.11n 6 @+/-21MHz offset HT40 0&2 -20dBr

802.11n 6 @+/-40MHz offset HT40 0&2 -28dBr

802.11n 6 @+/-60MHz offset HT40 0&2 -45dBr

Channel Accuracy

802.11g

/n 6

@2437MHz center

frequency( 25±3℃) 0&2 +/-25ppm

Packet Error Rate (PER)

802.11g 1,6,11 @date rate=6,36,48,54

Mbps 0&2 <10%

802.11n 1,6,11 @date rate=MCS0/8,

MCS5/13, MCS6/14 &

MCS7/15 HT20 0&2 <10%

802.11n 1,6,11

PER<10% @date

rate=MCS0/8,

MCS5/13, MCS6/14 &

MCS7/15

HT40 0&2 <10%

Receiver Sensitivity Test

802.11g 1,6,11 @10% PER/1000 Byte

Pack size/48,54Mbps 0&2 <-70dBm

802.11n 1,6,11 @10% PER/1000 Byte

Pack size/ MCS6/14 &

MCS7/15 HT20 0&2 <-68dBm

802.11n 1,6,11 @10% PER/1000 Byte

Pack size/ MCS6/14 &

MCS7/15 HT40 0&2 <-63dBm

◆ Safety Notices

1. When this device is placed upright with the aid of the stand, the stand must be fixed at a 90

degree angle to the cable modem；otherwise the device will have the risk of tipping over.

2. "Installation" should include bonding the screen of the coaxial cable to the earth at the

building entrance perANSI/NFPA 70, the National Electrical Code (NEC), in particular
