Ubiquiti AirFiber X Bedienungsanleitung

2.4 GHz, 24 dBi Slant 45

Antenna for airFiber®

Model: AF-2G24-S45

Introduction

Thank you for purchasing the Ubiquiti Networks® 2.4 GHz,

24dBi Slant 45 Antenna for airFiber®. This Quick Start Guide is

designed to guide you through installation and also includes

warranty terms.

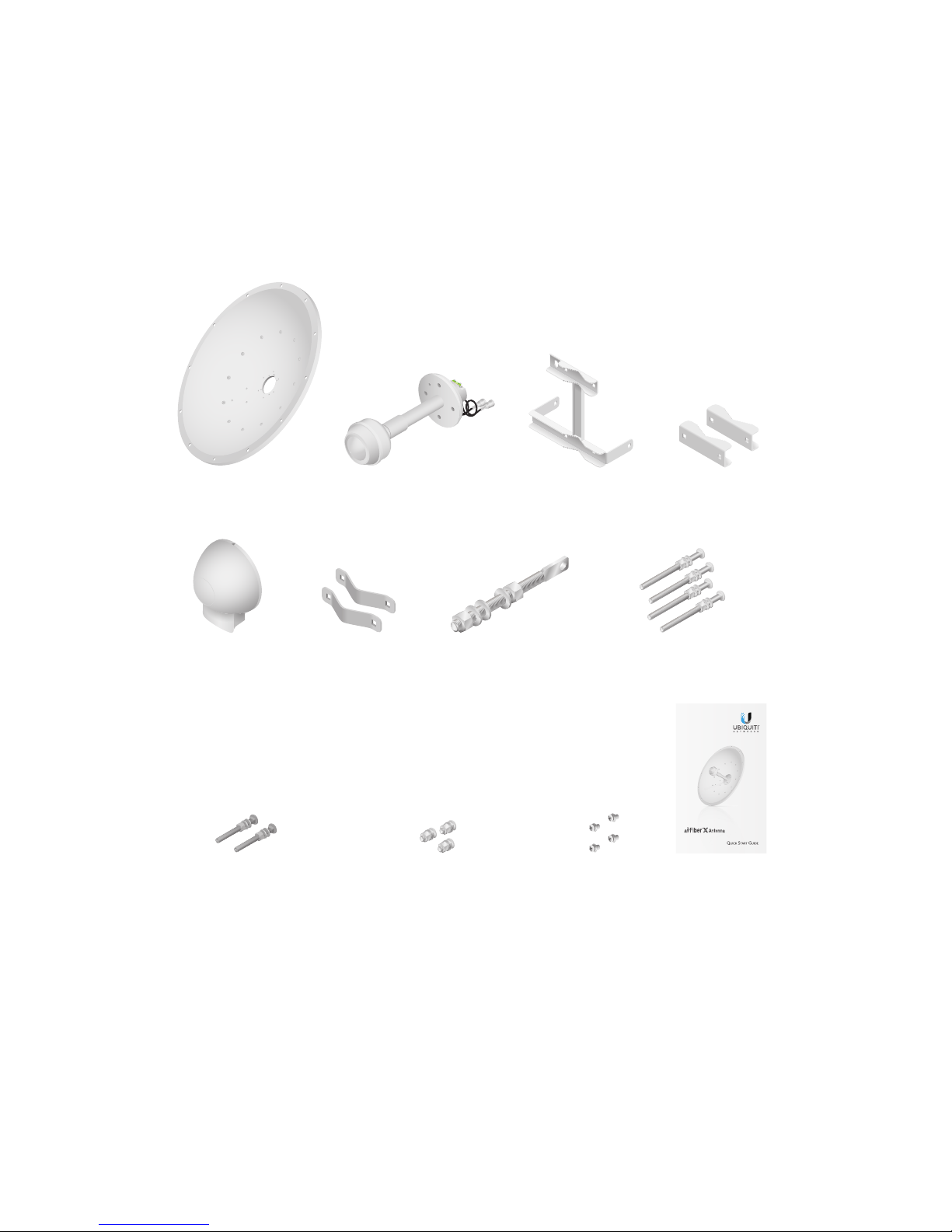

Package Contents

Dish Reflector Antenna Feed Mounting Bracket Pole Clamps

(Qty. 2)

Protective

Shroud

Stabilizer Brackets

(Qty. 2)

Elevation Rod M10x150 Carriage Bolts

(Qty. 4)

2.4 GHz, 24 dBi Slant 45

Antenna for airFiber®

Model: AF-2G24-S45

M10x100 Bolts

(Qty. 2)

M10x25 Carriage Bolts

(Qty. 3)

M4 Bolts

(Qty. 4)

Quick Start

Guide

Products may be different from pictures and are subject to change without notice.

cable and earth grounding must be used as conditions of product warranty. TOUGHCable™is

designed for outdoor installations. It is the professional installer’s responsibility to follow local

country regulations, including operation within legal frequency channels, output power, and

Dynamic Frequency Selection (DFS) requirements.

Installation Requirements

• airFiber AF-2X radio (sold separately)

• Phillips screwdriver

• 16 mm wrench

• 24 mm wrench

• Mounting point:

• At least 1 m below the highest point on the structure

• For tower installations, at least 3 m below the top of

the tower

Hardware Overview

Fully Assembled Back View

Elevation Rod

Mounting Bracket

Pole Clamp

Stabilizer Brackets

Protective Shroud

Hardware Installation

IMPORTANT: Handle the Dish Reflector with care.

Deformations to its shape may degrade performance.

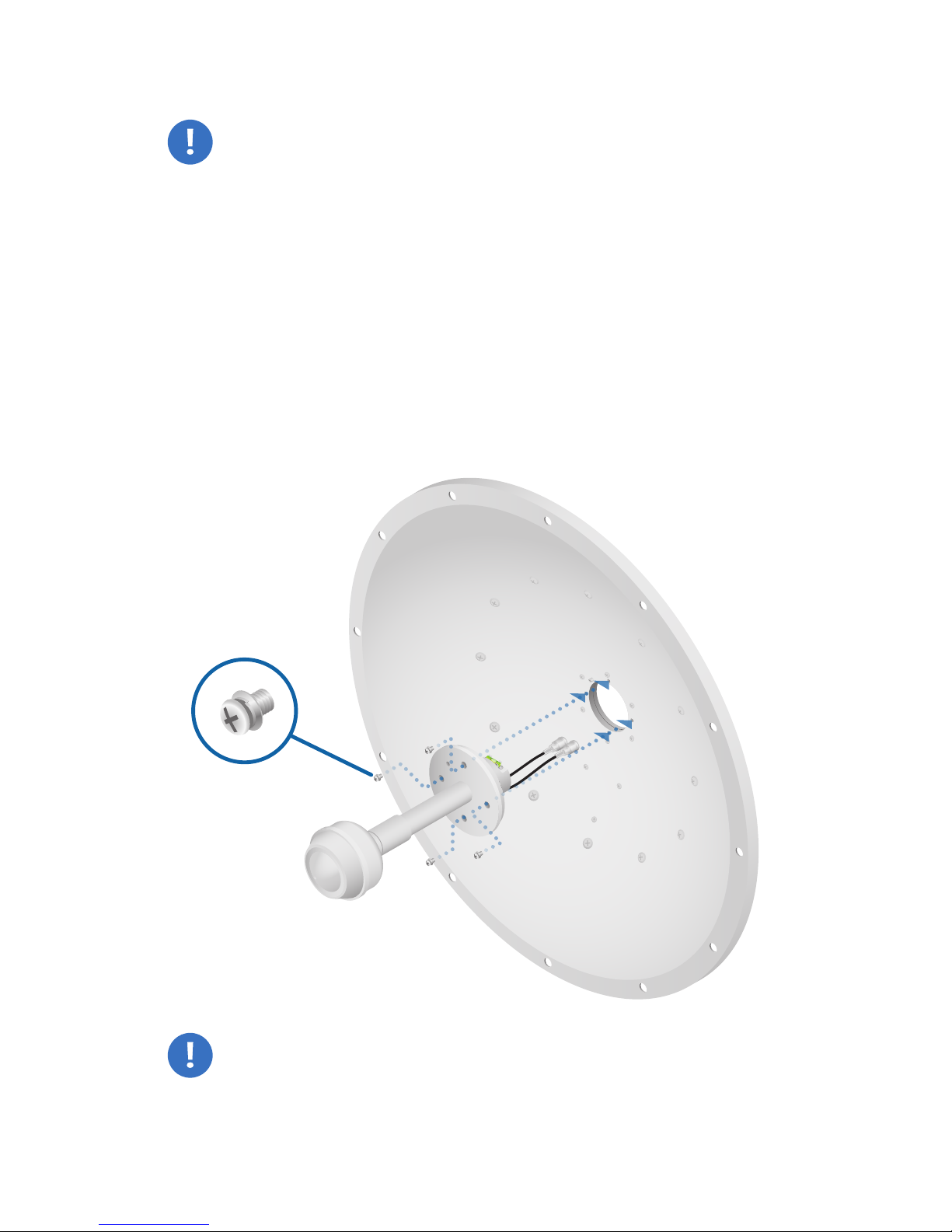

1. The Dish Reflector and Antenna Feed are keyed so the

Antenna Feed can only be installed in a single orientation.

Attach the Antenna Feed to the Dish Reflector in the

following steps:

a. Line up the alignment pin on the Dish Reflector with the

hole on the Antenna Feed.

b. Fasten the Antenna Feed to the Dish Reflector using the

four M4 Bolts.

c. Tighten the four M4 Bolts.

M4 Bolts

IMPORTANT: Do not handle the antenna by the Antenna

Feed once the feed is connected.

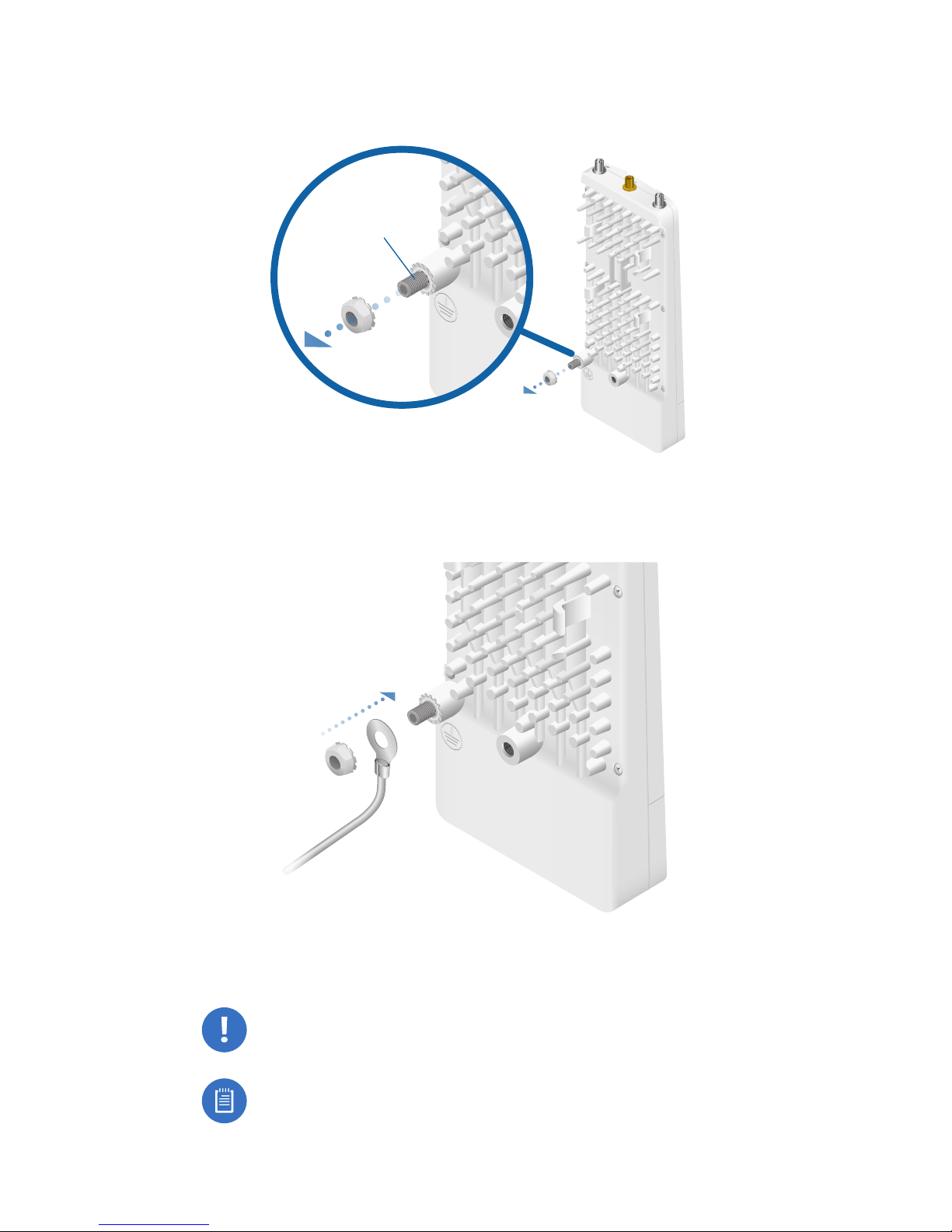

2. Remove the nut from the ground bonding point located on

the back of the airFiber radio.

Ground

Bonding Point

3. Attach a ground wire (min. 10 AWG or 5 mm2) to the lug

and replace the nut to secure the wire.

4. At the installation site, secure the other end of the ground

wire to a grounded mast, pole, tower, or grounding bar.

WARNING: Failure to properly ground your

airFiber radio will void your warranty.

Note: The ground wire should be as short as

possible and no longer than one meter in length.

5. Attach the airFiber radio to the Dish Reflector.

a. Align the mounting tabs on the back of the radio with

the mounting bracket located below the Antenna Feed.

b. Slide the radio down to lock it into place.

*640-00190-03*

640-00190-03

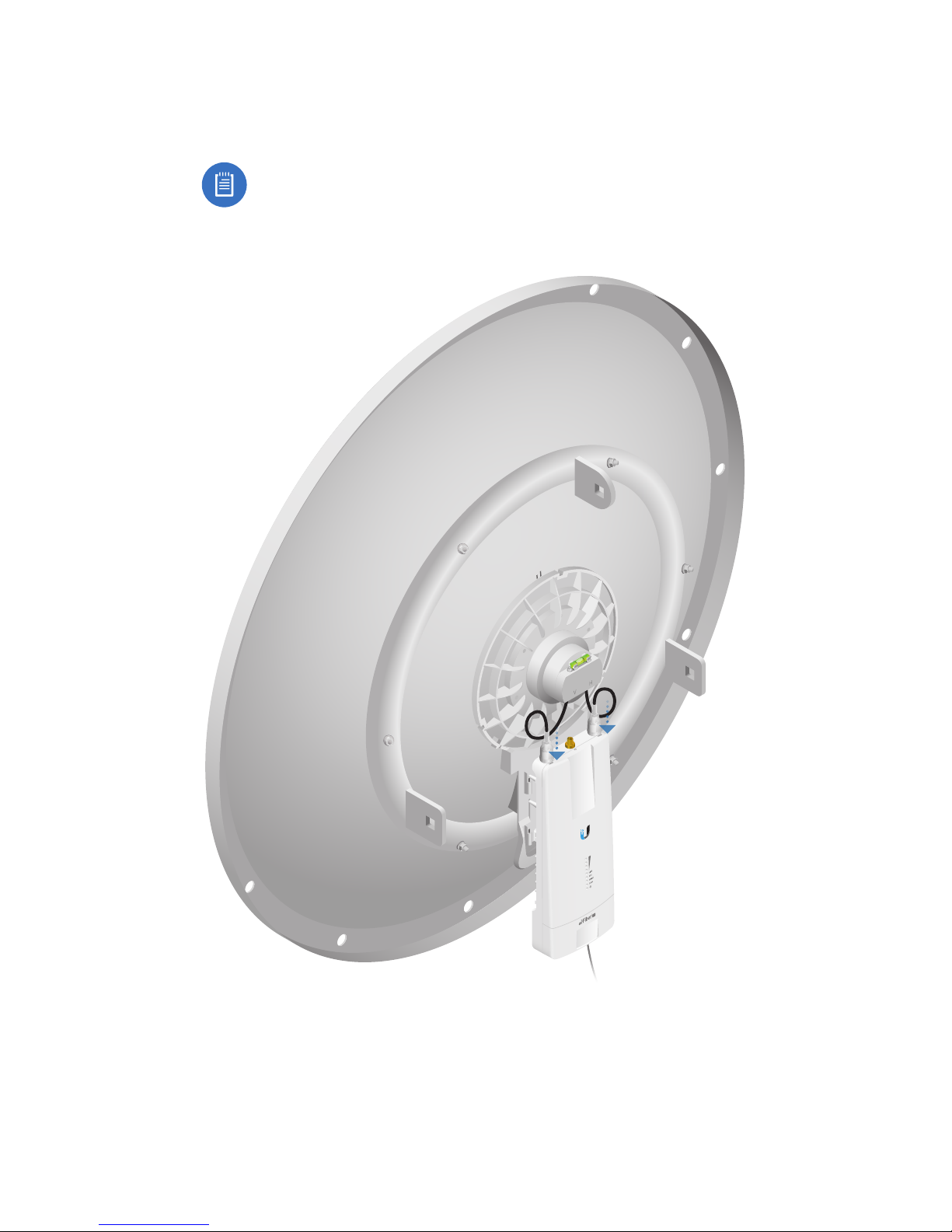

6. Attach the RF cables from the Antenna Feed to the

RF connectors labeled Chain 0 and Chain 1 on the

airFiberradio.

Note: When positioning the RF cables, create

smooth loops to avoid sharp kinks that may

damage the cables.

7. Attach the GPS antenna (included with the airFiber radio) to

the RF connector labeled GPS.

8. Attach the Protective Shroud.

a. Align the arrow on the top of the shroud with the short

hash mark on the Dish Reflector.

b. Rotate the shroud clockwise until it aligns with the long

hash mark to lock into place.

9. The Elevation Rod includes washers and nuts. Remove one

washer, one spring lock washer, and one nut. Use them to

secure the Elevation Rod when assembling.

10. Attach the Elevation Rod to the Mounting Bracket.

a. Insert the Elevation Rod into the Mounting Bracket.

b. Secure the Elevation Rod with the washer, spring lock

washer, and nut.

Note: Each Carriage Bolt includes a washer, spring lock

washer, and nut. Remove these and use them to secure

the bolts in the following steps.

11. Insert the four M10x150 Carriage Bolts into the Mounting

Bracket.

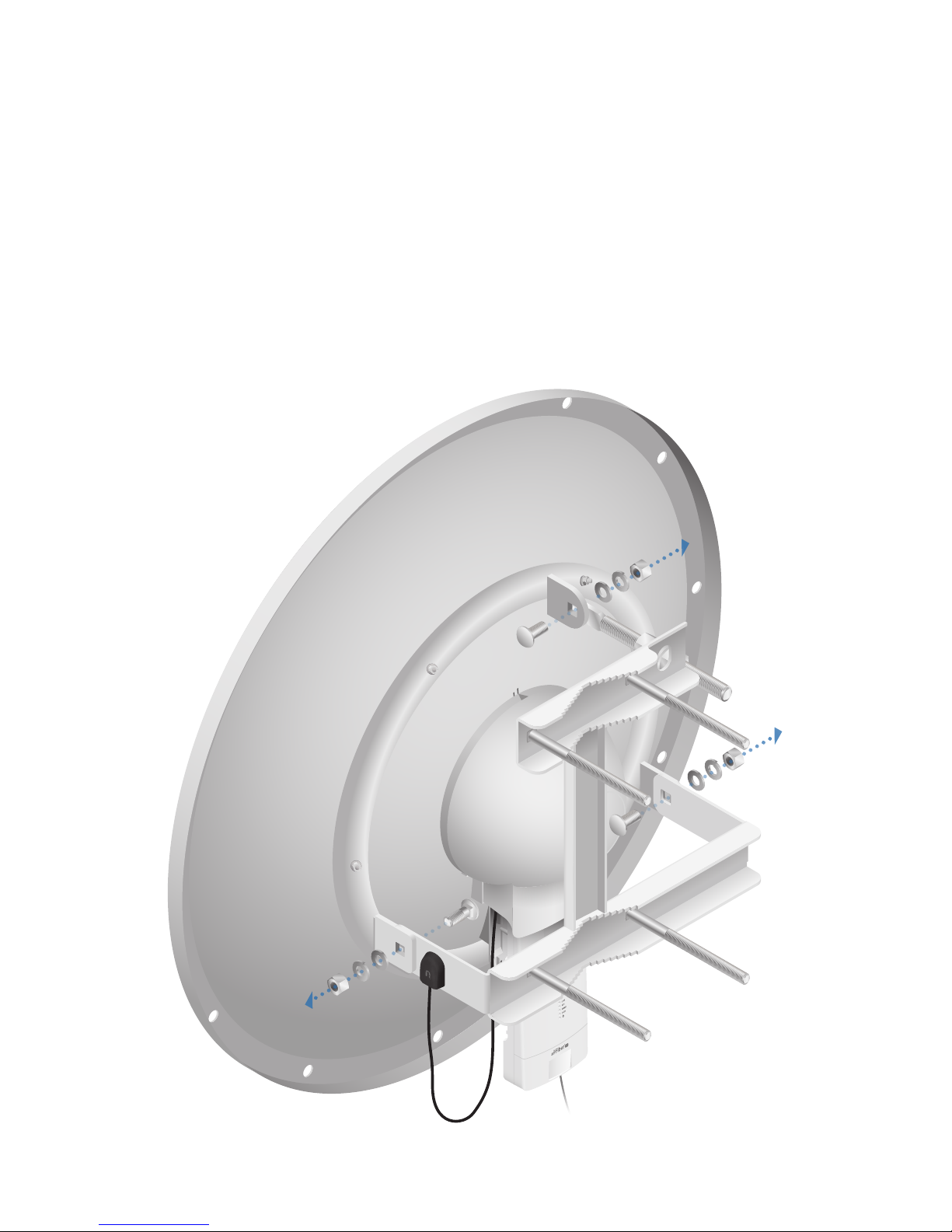

12. Attach the Dish Reflector to the Mounting Bracket.

a. Insert one M10x25 Carriage Bolt into the Dish Reflector

and Elevation Rod.

b. Insert two M10x25 Carriage Bolts into the Dish Reflector

and lower section of the Mounting Bracket.

c. Secure each M10x25 Carriage Bolt with one washer, one

spring lock washer, and one nut.

d. Place the magnetic GPS antenna on the Mounting

Bracket (this is temporary; you will place the GPS

antenna on the GPS antenna mount later).
