Heating Control H1
Manual
Revision 1.0 English, as of 10/2021
ubisys heating control H1, commissioning and operating instructions © 2021 ubisys technologies GmbH, Düs-
seldorf, Germany. All rights reserved. Reproduction and copies (also in extracts) only with the consent of ubisys
technologies GmbH.
We assume no liability for errors in content. Changes in the sense of technical progress can be made without
prior notice.
3Heating Control H1
Content
Content
Chapter 1 | General
1.1 Notes on this manual
1.2 Function and design of the H1
1.3 Technical details
Chapter 2 | Commissioning
2.1 Mounting
2.2 Initial commissioning (with and without
gateway)
2.3 Date and time setting
Chapter 3 | Set Room Temperature
3.1 How do I set the desired room
temperature?
3.2 Switch off the heating – and
switch on again
3.3 Set temperature offset
Chapter 4 | Schedules
4.1 What are schedules and how
do I create/change them?
4.2 How do I pause a schedule (vacation
mode)?
4.3 Delete all schedules
Chapter 5 | More Functions and In-
formation
5.1 Cancel operation/exit menu
5.2 Updates
5.3 Calibrate the H1
5.4 Changing the batteries
5.5 Finding/Binding
5.6 Unmounting
5.7 Factory reset
5.8 Overview of the symbols on the display
and their meaning
5.9 Maintenance
5.10 Disposal
5.11 Contact
4
5
5
7
8
9
9
13
15
16
18
19
20
21
27
28
29
30
30
30
31
32
34
35
37
41
41
42
4Heating Control H1
Chapter 1
General
5Heating Control H1
Chapter 1 | General
1.1 Notes on this manual
Read these instructions carefully before commissioning the H1 heating control. Keep the instructions for future
reference. The online version can be found at www.ubisys.de.
Images of the ubisys app
The illustrations in this manual correspond to the screens of the Apple iOS app (iPhone 11 Pro, iOS 13.7).
Depending on which app you are using, slight deviations with regard to display or operation are possible. This
applies to different iOS versions on an Apple iPad or devices with Google Android operating system.
1.2 Function and design of the H1
The H1 heating control is a smart, battery-powered radiator thermostat with integrated temperature sensor for
radiator heating systems and is used for efficient room temperature control in private and commercial facilities.
The H1 communicates wirelessly using the international radio standard Zigbee. Temperature control is perfor-
med manually on the device or via app (e.g. ubisys Smart Home App).
For operation via the ubisys Smart Home App, you need the ubisys Gateway G1. When using a Zigbee-capable
gateway from another manufacturer, a corresponding app must be used. The power supply is provided by two
lithium batteries (type AA with 1.5 V, Energizer L91, Ultimate Lithium – or comparable).
Note: If you want to control the H1 via the app of another manufacturer, you need a corresponding Zigbee-
capable gateway of this manufacturer. Deviations may then occur with regard to setup and functionality.
Zigbee wireless technology
The H1 communicates by means of the international radio standard Zigbee. To ensure a smooth communication
between the H1 and the gateway, the devices must be in direct radio range. Zigbee components join together
to form a mesh-like radio network. Components that are not within direct radio range of each other can access
other components as intermediate stations (routers) to transmit their data packets to the addressee. All compo-
nents that are permanently connected to the mains have router functionality permanently integrated.
If the direct radio link between gateway and H1 is not available in your facility (e.g. due to interfering factors
such as walls, doors, etc.), you may have to integrate additional Zigbee components that are permanently
connected to the mains into your system. Suitable for this purpose are e.g.: ubisys Router R0 or Develco Smart
Plug Mini. These and further devices with router function are available on www.smarthome-store.de. For more
information about Zigbee, please visit our website www.ubisys.de.
6Heating Control H1
Chapter 1 | General

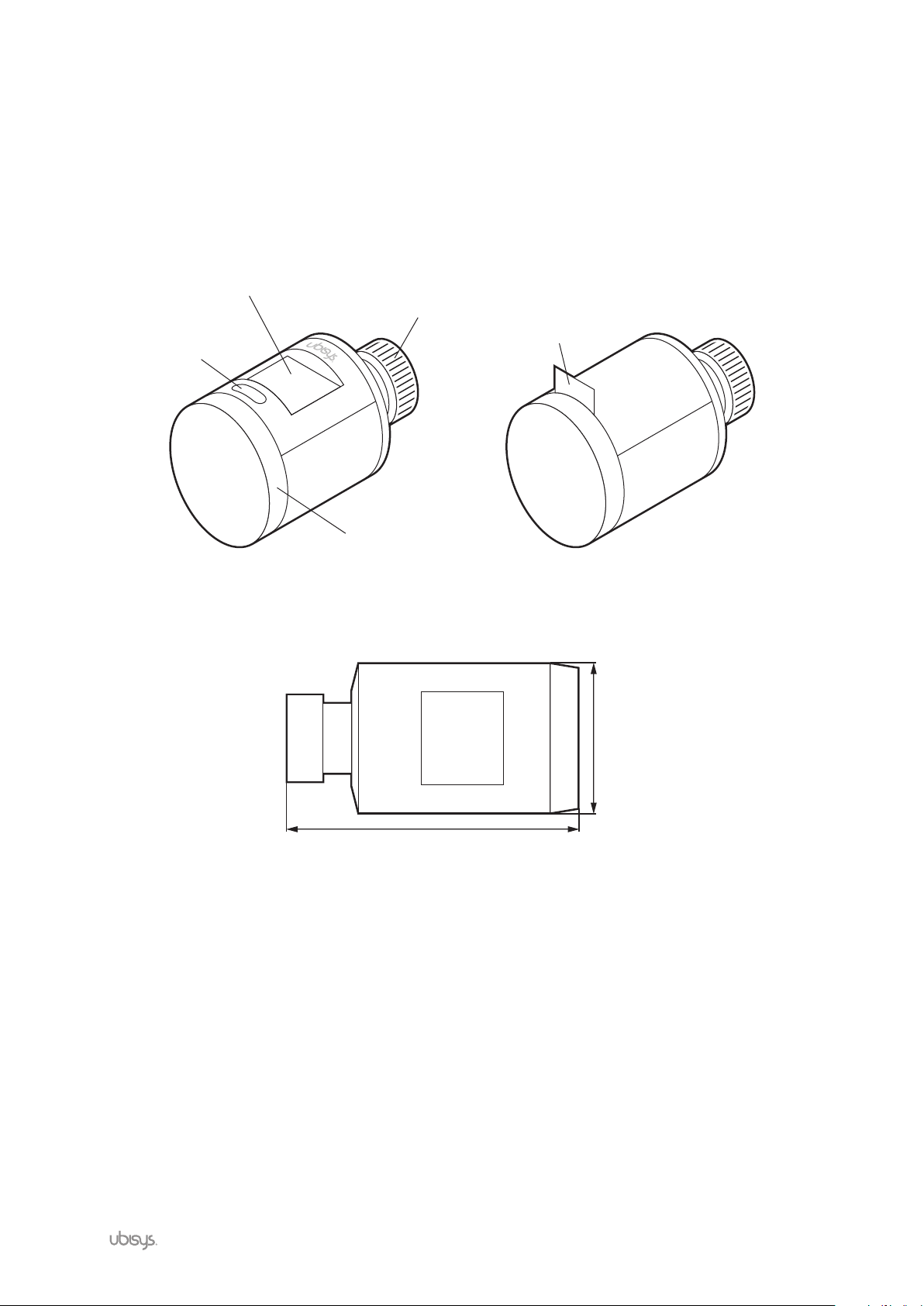

Design H1
Display
Button
Mounting ring
Rotary dial
Battery protection foil
Display
Button
Schraubring
Drehrad
Batterie-Schutzfolie
100 mm
55 mm
7Heating Control H1
Chapter 1 | General
Display
Soll-Temperatur
Ist-Temperatur
Tag, Uhrzeit
Qualität der
Zigbee-
Funkverbindung Batteriestand
Status Zeitplan-
Einstellungen
Target temperature
Current temperature
Day, Time
Quality of the
Zigbee radio
connection Battery level
Status schedule
settings
1.3 Technical details
Permissible flow temperature up to 90 °C
Threaded connection
(to radiator valve)
M30 x 1.5
Setting force 100 N
Adjusting stroke 5.5 mm
Wireless interface frequency 2.4 GHz
Wireless interface protocol Zigbee 3.0
Protection class IP30, Protection class III
Energy supply Batteries 2 x 1.5 V, Type AA, Energizer L91, Ultimate
Lithium – or similar
Battery life up to 4 Jahre
Power consumption standby 90 μW
Power consumption maximum Aktivemax 450 mW
Dimensions 55 x 100 mm
Display size
(active area)
1,68“
(W: 33,02 x H: 26,96 mm)
Weight (with batteries) 250 g
8Heating Control H1
Chapter 2
Commissioning
9Heating Control H1
Chapter 2 | Commissioning
2.1 Mounting
1. Unmount your currently installed radiator thermostat.
2. To do this, turn the mounting ring (A) counterclockwise until the
thermostat head comes off the valve (you may need pliers for this).
Note: Don‘t worry, water can‘t leak out in the process.
3. Turn the mounting ring (A) of the H1 onto the radiator valve until it
is properly tightened. Do not use a tool for this.
Note: The H1 is suitable for all commercially available valves with
an M30 x 1.5 connection*).
*) If the H1 does not fit, you will find a list of radiator valve adapters at www.ubisys.de.
Note: To unmount the H1, please use the „Unmount“ function (Chapter 5.6).
2.2 Initial commissioning (with and without gateway)
Note: If you wish to use the H1 heating controller as stand-alone solution, you only need to follow steps 4-11.
To be able to use the full range of functions and also control the device via app, you need a Zigbee-
capable gateway, such as the ubisys G1.
This is followed by the commissioning in combination with the ubisys G1 and the ubisys Smart Home App. Be-
fore you start this, you should have commissioned the ubisys G1. If you want to operate the H1 using a gateway
and accompanying app of another manufacturer, please follow the corresponding instructions of that manufac-
turer.
10Heating Control H1
Chapter 2 | Commissioning
Initial commissioning in combination with the ubisys G1 and the ubisys Smart Home App:
1. Open the ubisys Smart Home App.
2. Tap on Configuration -> Basic Configuration -> Open for new
devices.
3. The Zigbee network is now open for about 4 minutes and your H1
heating controller can join the network.
Display
Button
Schraubring
Drehrad
Batterie-Schutzfolie
100 mm
55 mm
4. Remove the battery protection foil from your H1. The device will
now be supplied with power.
0°C
2021.09.3000:00
5. After the battery protection foil has been removed, the device auto-
matically starts up and the ubisys logo appears on the display.
