Ultra electronics MAGICARD 300plus Bedienungsanleitung
Ultra Electronics Card Systems Quick Start Guide
MAGICARD Color Printer Page 1
MAGICARD 300 Color Printer
MAGICARD 300
MAGICARD 300plus
MAGICARD Sprinter
(inc. Mag Encoding options)
Quick Start Guide
Printer/Software Setup
Iss. 03 Dec 97
3461-22-02
Stock No. M9003-728
Quick Start Guide Ultra Electronics Card Systems
Page 2MAGICARD Color Printer
Setting up your MAGICARD Color Printer
takes just three easy steps:
1. Unpack and install the printer
APreparing a Location for the Printer
BRemoving the Printer from the Box
CChecking the Package Contents
DInstall the Dye Film
ELoad the Plastic Cards
FConnect the Printer to a Power Supply
GTest the Printer Operation
HInstall the Parallel Interface Cable and Ultra Secure Key
2. Load the supplied WINDOWS Driver software.
Ix Install the WINDOWS Driver (WINDOWS 3.x)
Iy Install the WINDOWS Driver (WINDOWS 95)
JPrinter Setup
3. Verify computer-to-printer operation.
KVerifying Computer to Printer Communication in WINDOWS
LIn Case of Difficulty.
MImportant Cleaning procedures.
N LED Error Codes
Note: The Ultra WEB site at http://www.ultra.co.uk contains comprehensive technical support information
including the latest downloadable software, WINDOWS Drivers, Technical Bulletins etc
Conventions
Throughout this guide, the following conventions are used to identify important
information.
WARNING - Warning messages indicate where personal injury could result from not
following the correct procedures.
CAUTION - Caution messages indicate where damage to equipment could result
from not following the correct procedures.
NOTE - Notes convey important information that is identified within the text.
Ultra Electronics Card Systems Quick Start Guide
MAGICARD Color Printer Page 3
Quick Start Guide Ultra Electronics Card Systems
Page 4MAGICARD Color Printer
•A clean, level surface.
•Adequate space for:
- opening the Card Collection Door
- opening the Top Cover
- cable access at the rear.
- allowance for air circulation.
•An adequately ventilated room.
Preparing a Location
for the Printer
Location Requirements for your printer:
A
Ultra Electronics Card Systems Quick Start Guide
MAGICARD Color Printer Page 5
•An adequate power supply.
•Ambient temperature +10 to +30 deg C.
•Relative Humidity 20/70% RH.
•Protection from direct sunlight and
chemicals.
•Protection from abrupt temperature
changes.
Top Cover
Card Collection
Door
Quick Start Guide Ultra Electronics Card Systems
Page 6MAGICARD Color Printer
Carefully open the box and remove any
accessories.
Open the front door and remove the
metal shipping clip from the chassis.
Place on a smooth, level table and
remove the polyethylene container.
Removing the Printer
from the Box
B
1
B
3
2
Ultra Electronics Card Systems Quick Start Guide
MAGICARD Color Printer Page 7
The MagiCard Color Printer
A Roll of Dye Film and a Take-up Core
(Only supplied as standard with certain Models)
The Card Cassette
A Power Cord with Molded Plug for your
Country
Checking the
Package Contents
Locate each item as listed below:
CC
1
3
2
4
Quick Start Guide Ultra Electronics Card Systems
Page 8MAGICARD Color Printer

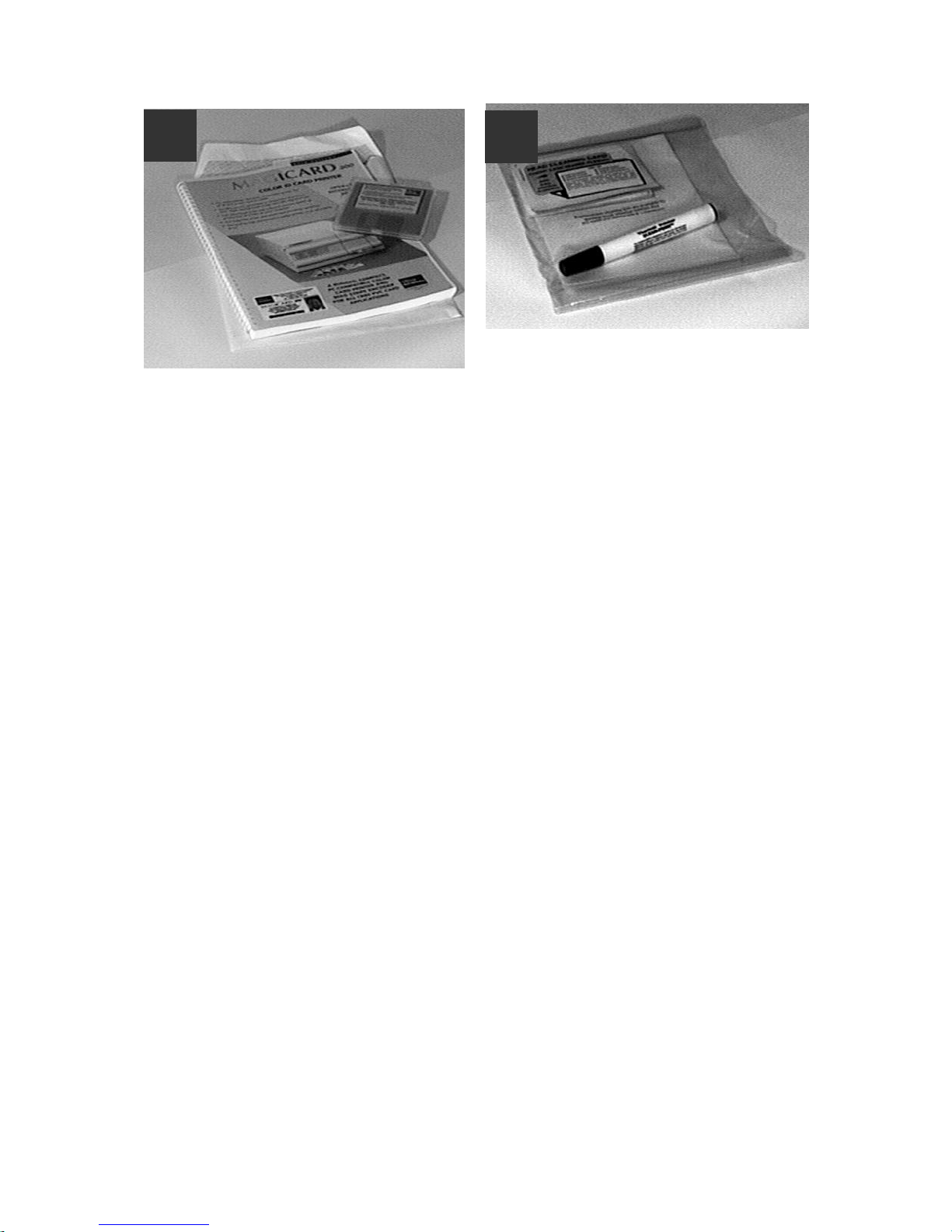

Envelope containing this Quick Start
Guide and the PrintMAGIC WINDOWS
Driver 3.5" floppy disk.
Envelope containing 5 Cleaning Cards
and 1 Thermal Printhead Cleaning Pen.
56
Ultra Electronics Card Systems Quick Start Guide
MAGICARD Color Printer Page 9
Open the Printer Cover by lifting the
"Dzus" fastener ring and turning a
quarter turn anti-clockwise. Remove the
Dye Film carrier.
Replace the Film Carrier
Open the Dye Film package. Fit the dye
film on the lower boss, observing the
correct orientation of the dye film.
Fit the empty take-up core on the upper
boss, observing the correct orientation
of the notches on the Take-up Core.
Install the
Dye Film
D
1
3
2
Quick Start Guide Ultra Electronics Card Systems
Page 10 MAGICARD Color Printer
Manually turn the Spur Gear until the
slots on the core engage with the lugs.
Pull about 6" of dye film off the roll of dye
film, observing that it should be coming
off the top of the roll, as per the label
illustrations.
Turn the 'Dzus' Fastener 1/4 turn
clockwise to lock in place. Lay the ring
flat against the panel
45
6
