ULTRA-LINK UL-DVD300 Bedienungsanleitung

Safety Information

Important Safeguards

unit on an unstable surface as it may fall and break ,

as this may cause overheating

-Do not place items such as newspapers, tablecloths or curtains

UL-DVD300

System setup

6. Troubleshooting

Operating Instructions

Disposal

Front Panel

Rear Panel

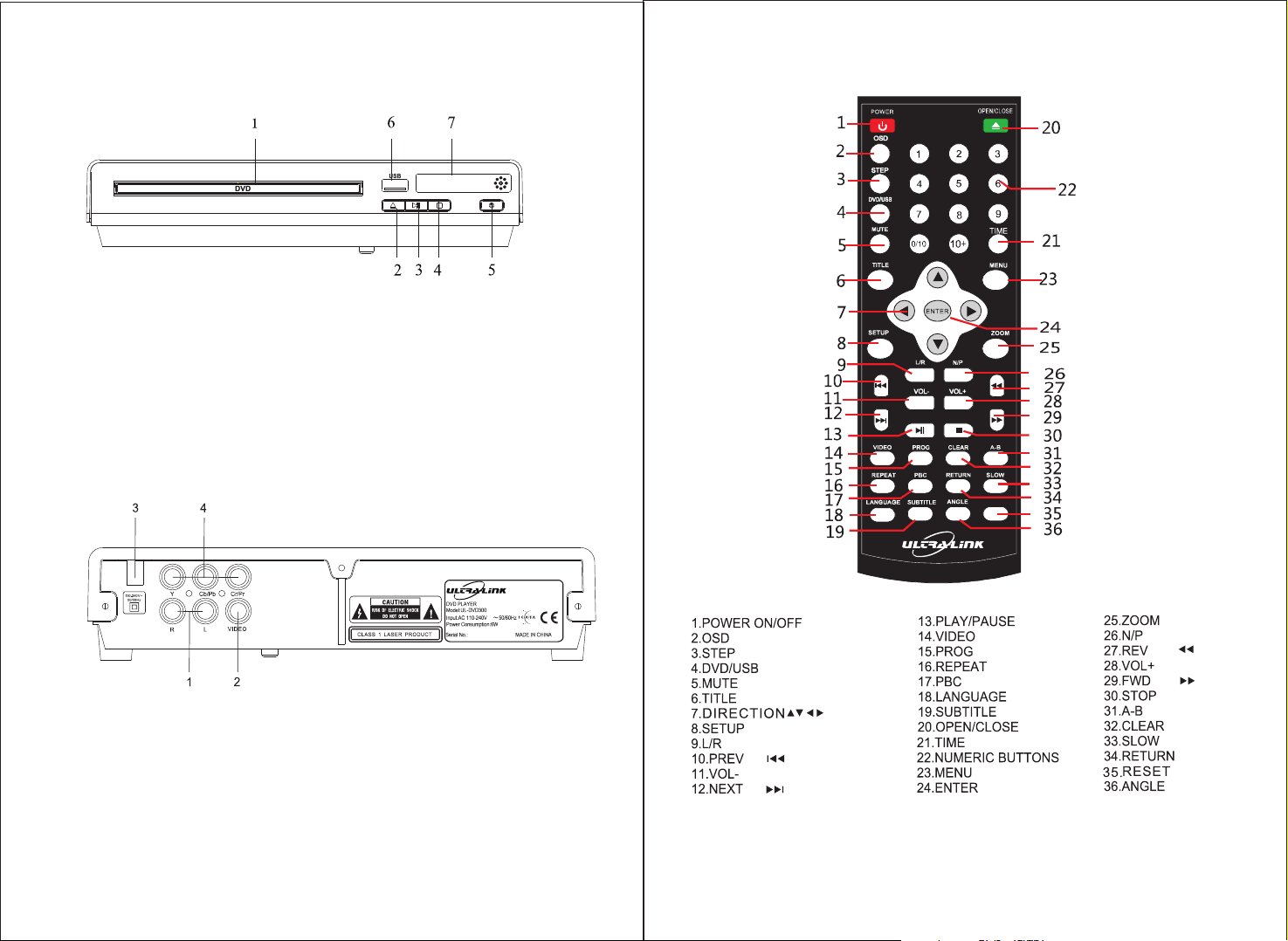

Front Panel and Rear Panel Illustration

Remote Control

RESET

1.CD TRAY 5.POWER

2.OPEN/CLOSE 6.USB

3.PLAY/PAUSE 7.LED DISPLAY

4.STOP

1.L/R OUTPUT

2.VIDEO OUTPUT

3.POWER SUPPLY JACK

4.Y/Cb/Cr output

Press this button to open or close the disc tray.

Press these buttons to enter the required title/track/chapter.

Press this button to return to the main menu.

Press this button to confirm a selection.

Press this button to clear input selections.

35. RESET: Reset the primary interface.

To insert the batteries, remove the back cover of the remote control, insert two AAA

batteries then replace the cover.

Avoid exposing the remote high temperatures and shaking. Do not let it fall.control to

Press this button to select the menu language. there is no object in between them.

17. PBC: Press this button for playback control. at

to select the option.

Please note:

Menu Operation

Press the SETUP button on the remote control to display the Setup (Main) Menu.

1. Once the Setup Menu is on display, use the LEFT and RIGHT buttons to select an

option then press ENTER to enter the sub-menu.

Press the UP and DOWN buttons to select the desired setting then press ENTER to

confirm your selection.

2. To exit the Setup Menu, press the SETUP button again.

Please note: The items in gray cannot be changed.

OSD Language

Version

Display Setup Page

This unit is suitable for the following TV systems: AUTO, NTSC and PAL.

AUTO: The TV system will automatically switch according to the disc that is playing.

NTSC: This system is used in USA, Taiwan, Japan, etc.

PAL: This system is used in South Africa, Europe, etc.

If the Screen Saver option is set to On and the unit is switched on

without a disc playing, then a moving picture will appear on the

screen. After about 20 minutes, the unit will go into Standby mode.

You can press any key on the remote control to activate the unit.

If the Last Memory option is set to On and the unit is switched off,

the last position on the DVD will be memorized.

These are your initial settings and will only work if the disc supports

(will default to the disc value if not supported).

these functions

4:3/LB: Use this aspect ratio when the unit is connected to a normal TV set.

Black bars will appear on the top and bottom of the screen.

4:3/PS: Use this aspect ratio when the unit is connected to a normal TV set.

The wide screen image will be shown on the full screen but some parts will

be cut off.

Appears when the DVD has multi-angles.

Video Out

CVBS: Video output when connecting to video terminals.

YUV: Set video output in analogue component video format when connecting to

Y/U/V terminals.

Display

Audio

Speaker

Parental

OSD Language

Subtitle

Audio

Version

Language

Display

Audio

Speaker

Parental

Language

Audio Setup Page

Lt/Rt: When you select this option, the left and right surround sounds are synchronously

outputted to the left and right channels.

Stereo: When you select this option, the left and right surround sounds are respectively

outputted to the left and right channels.

If you are watching a dynamic sounding movie at night, select this mode

to reduce the treble and bass while still maintaining the finer detailed

sounds. In this way you will not disturb the family and close neighbours,

and still retain the sound quality.

Speaker Setup Page

the content being played.

You can only change the level when the Password Setup is set

to Off.

You can set your own password. Kindly note that the initial

factory password is 0000. If you forget your own password,

you can use 0000 as a general password.

LPCM Output

On LPCM output, can choose the different frequency 48K or 96K.

Display

Speaker

Parental

Language

Channel Output

Dynamic

Dual mono

LPCM Output

Audio Display

Parental

Language

Audio

Speaker

Channel Output

Display

Language

Audio

Speaker

Parental

Change

Rating level

Default Reset

10 11

Operating Instructions

and 12 small pictures will appear

UP/DOWN/LEFT/RIGHT

Use UP/DOWN/LEFT/RIGHT/ENTER keys to operate the Instruction Menu.

The Instruction Menu is as follows:

Press to change the picture transform mode.

Press to enter picture preview mode.

Press to view the previous picture. Press to view the next picture.

: Press to rotate the image 90 degrees anti-clockwise.

Press to rotate the image 90 degrees clockwise.

Press to select a zoom mode.

Press to move the image in zoom mode.

To play an MP3 Disc:

there will be a menu on the TV. Press

for some MP3 discs, you

You can also use the to select a tracknumber buttons

Multi-File Operation Method: Press RETURN to go back to the File Menu then press UP/DOWN to

select the file and press ENTER.

then use the UP/DOWN direction buttons to select an option.

devices are display the screen menu

of the device.

Troubleshooting

There is a disc inserted but

there are no tracks.

The disc is inserted upside down;

the disc is dirty; the disc is badly

cracked.

clean the

disc; replace the disc.

Connect the audio wire again; check

if the TV is in AV mode; check if the

amplifier is in normal working condition

the TV or

amplifier is not in normal working

condition.

There is no sound.

There is no picture. the video wire again;

The picture has no colour.

The batteries do not have enough

power; the remote control is not

pointed correctly at the remote sensor;

the remote sensor is dirty.

Change the battery; point the remote

control directly at the remote sensor;

clean the surface of the remote sensor.

Turn the power off and on again. If the

player still does not work, please contact

the Service Centre.

player's life, please only restart it after 30 seconds once it has

been switched off.

2. To avoid possible damage, please unplug the player during storms or when it will not

be used for an extended period of time.

4.The largest capacity for USB is 16G

To play a JPEG/Kodak Picture CD Disc:

Mirror image vertically.

Mirror image horizontally.

In File Play mode, the screen will display the total

track number and the current playing track. Use the number buttons to select a track or use

USB Openration

your required mode.

shift to the required track and press

Please note:
