Uniden FP104 Bedienungsanleitung

FP104

Operating Guide

SPECIAL

EDITION

PHONE

Loud Adjustable

Earpiece Volume

FP104

Precautions

Important Safety Instructions . . . . . . . . . 1

Caring for Your Telephone . . . . . . . . . . 1

Important Notes . . . . . . . . . . . . . . . . . . 2

Introduction

Welcome . . . . . . . . . . . . . . . . . . . . . . . 3

Features . . . . . . . . . . . . . . . . . . . . . . . 3

Included In Your Package . . . . . . . . . . . 4

Installing and Adjusting your Phone

Installation . . . . . . . . . . . . . . . . . . . . . . 5

Wall Mounting . . . . . . . . . . . . . . . . . . . 6

Controls And Functions . . . . . . . . . . . . 7

Using Your FP104

Adjusting the Ringer Volume . . . . . . . . . 8

Adjusting the Ringer Tone . . . . . . . . . . . 8

Adjusting the Handset Volume . . . . . . . . 8

Placing a Telephone Call . . . . . . . . . . . . 9

Receiving a Telephone Call . . . . . . . . . 9

Accessing the Call Waiting Service . . . . 9

Placing a Call on Mute . . . . . . . . . . . . 10

Redial . . . . . . . . . . . . . . . . . . . . . . . . 10

Placing a Call on Hold . . . . . . . . . . . . 10

Memory Dial Numbers . . . . . . . . . . . . 10

Storing One-Touch Memories . . . . . . . . 11

Pause . . . . . . . . . . . . . . . . . . . . . . . . 11

Memory Storage Card . . . . . . . . . . . . . 11

Dialing Numbers from Memory . . . . . . 11

Troubleshooting . . . . . . . . . . . . . . . . . 12

Specifications . . . . . . . . . . . . . . . . . . . 13

Warranty . . . . . . . . . . . . . . . . . . . . . . 14

CONTENTS

CONTENTSOF YOUR OWNERS MANUAL

When using your telephone equipment, these basic safety precautions

should always be followed to reduced the risk of fire, electrical shock,

and injury to persons:

1. Read and understand all instructions.

2. Do not use the telephone during an electrical storm to reduce the

risk of electric shock.

3. Unplug this product from the wall outlet before cleaning, and

use a dry cloth, without liquid or aerosol cleaners.

4. Do not use this product near water; for example, near a bathtub,

washbowl, kitchen sink or laundry tub, in a wet basement or

near a swimming pool.

5. Do not place this product on an unstable cart, stand or table. The

telephone may fall, causing serious damage to the unit.

6. Do not allow anything to rest on the telephone cord. Do not

locate this product where the cord will be damaged by persons

walking on it.

7. Never push objects of any kind into this product through cabinet

slots, as they may touch dangerous voltage points or short out

parts that could result in a risk of fire or electric shock. These

slots and openings are provided for ventilation. Never spill liquid

of any kind on the product.

8. To reduce the risk of electric shock, do not disassemble this

product. Take it to qualified service personnel when service or

repair work is required. Opening or removing covers may expose

you to dangerous voltages or other risks. Incorrect reassembly can

cause electric shock when the appliance is subsequently used.

IMPORTANT SAFETY INSTRUCTIONS

The exclamation point within an equilateral triangle is

intended to alert the user of the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

PRECAUTIONSFOR YOUR PHONE

• Clean your telephone using a soft damp cloth.

• Do Not use solvents, detergents, sprays, abrasive pads, scouring

powder or other products that may damage your telephone.

• Do Not place the telephone in direct sunlight.

• Do Not use in extreme humidity.

Caution

You must not connect your phone to any of the following:

• Coin operated systems

• Party-line systems

• Most electronic key phone systems

We have designed your telephone to conform to local regulations,

and you can connect it to most telephone lines. However, each

device that you connect draws power from the phone line. We refer

to the power drawn as the device’s Ringer Equivalence Number

(REN or RN). This number is shown on the bottom of your

telephone. If you are using more than one phone or other device on

the line, add up all the REN’s. If the total is more than three (3)

your phones may not ring.

Please read before use and save these instructions

IMPORTANT NOTES

CARING FOR YOUR TELEPHONE

PRECAUTIONS

This unit is not waterproof. To reduce the risk of fire,

electrical shock or damage, DO NOT expose this product to

rain, water or any liquid or moisture.

Congratulations on the purchase of your Uniden FP104 Telephone.

The FP104 has been designed and engineered to exacting standards

for reliability, long life and outstanding performance.

To obtain the full benefit from your new telephone, please read this

Operating Guide thoroughly. For your future reference, please fill in

the panel below and attach your Purchase Receipt/Sales docket.

• Enhanced Handset Volume • Loud Ringing Tone

• Large Keypad Prints • 5 One Touch Memories

• Adjustable Handset Volume • Adjustable Ringer Tones

• Music on Hold • Mute

• Hearing Aid Compatible • Last Number Redial

• Hold & Mute Indicators • Bright Incoming Call Indicator

• Pause Button • Flash Button

• Wall Mountable • Advanced Build Quality

FEATURES

WELCOME

INTRODUCTION

TO YOUR NEW PHONE

Serial No.......................................................... Date of Purchase.........................

(found on the bottom of the phone)

Name and address of dealer .................................................................................

...............................................................................................................................

FP104

Operating Guide

SPECIAL

EDITION

PHONE

SPECIAL

EDIT

Loud Adjustable

Earpiece Volume

FP104

INTRODUCTION

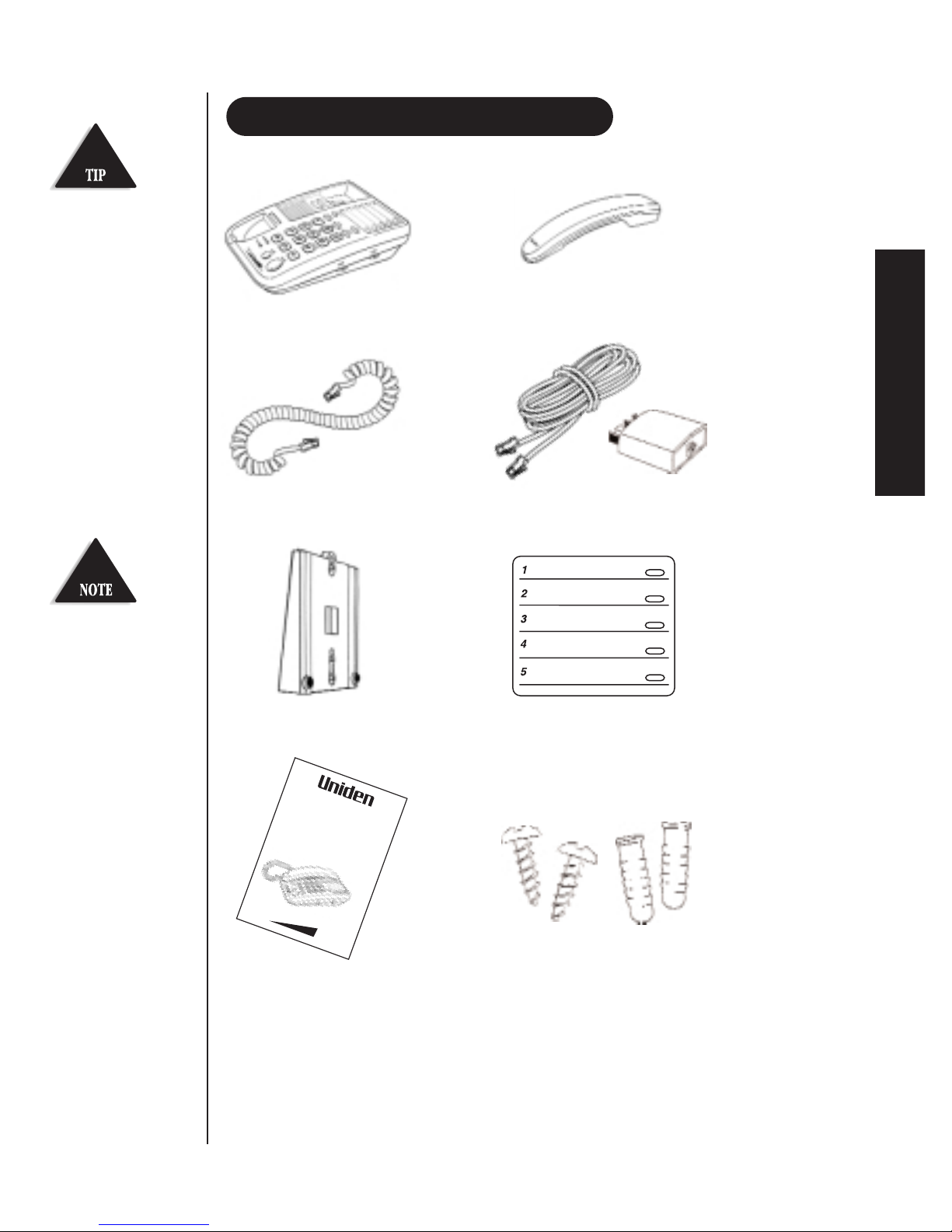

INCLUDED IN YOUR PACKAGE

Base Unit

Wall Mounting

Bracket

Handset

Memory

Storage Card

●This Owner’s Manual

●Registration Card

Curly Cord Telephone Line Cord

(

Plug included in Australian models only)

Operating Guide 2 x Wall Mounting

Screws and Wall Plugs

To get the most

from your phone,

please read this

owner’s manual

thoroughly. Be sure

to complete and

mail the product

registration form.

If any of these items

are missing or

damaged, contact

your place of

purchase.

1. Plug one end of the

Handset Cord (curly) into

the Handset and the other

end into the jack on the

side of the telephone.

2. Plug one end of the line

cord (straight) into the

telephone line jack on

the back of the telephone

and the other end into the wall outlet.

●Never install telephone wiring during a lightning storm.

●Never touch uninsulated telephone wires or terminals

unless the telephone line has been disconnected.

●Use caution when installing or modifying telephone

lines.

Note: Most phone equipment available now uses modular jacks.

Phone cords are fitted with a molded plastic connector

which plugs into this type of jack. If you do not have a

modular phone jack, contact your local telephone company

for information about their installation.

INSTALLATION

INSTALLING

YOUR PHONE

WALL MOUNTING

You can mount your phone directly on a wall. Before mounting

your phone, consider the following:

• Select a location away from electrical cables, pipes or other items

behind the mounting location that could cause a hazard when

inserting screws into the wall.

• Make sure the wall material is capable of

supporting the weight of the telephone.

1. Use the screws (supplied) with anchoring devices

suitable for the wall material where the

telephone will be placed.

2. Gently pull and turn the Handset

Retainer Tab 180˚ and release.

3. Fit the Wall Mounting Bracket to

the Bottom of the telephone as

shown.

4. Place the Base Unit on the screws

and push down until it’s firmly

seated.

5. Follow steps in Telephone

Installation as shown on previous

page.

Be careful not to

insert the mounting

screws

into possible

electrical hazards

such as cables,

wiring, or pipes.

INSTALLING YOUR PHONE

CONTROLS & FUNCTIONS

Memory

Button

Ring Tone

Selector

Handset

Retainer

Pause

Button

Mute

Indicator

Hold

Indicator

Ring/Incoming

Call Indicator

Hold Button

Handset

Volume Control

Ringer

Volume Control

Redial

Button

Mute

Button

Flash

Button 5 One-Touch

Memories

KEYPAD

On-Hook/

Off-Hook Switch

Telephone

Line Jack
