P6-S08GL PoE Switch
-1-
Package Contents
Check the following contents of your package:
PoE Switch x 1
User’s Manual x 1
Power Cord x 1
Accessories(hanging ears*2, Rubber Feet*4, screw*8)
If any part is lost and damaged, please contact your local agent immediately.
1. Introduction
Thank you for choosing UNIPOE PoE Switch. The PM6008GSNL provides 8-10/100/1000Mbps RJ45 port, all
ports support MDI/MDIX function. Among them 1-4 ports have PSE function, using 4 twisted-pair cable to
the terminal equipment of power supply at the same time, the output power up to 60W, complies with
IEEE802.3 af/at standard, can automatically detect identification standard of electrical equipment and
through the cable power supply to them.
The LCD not only can display the PoE work status, accurate judgment port of load, can also help customer
and engineer timely discover and solve the network failure, improve work efficiency and quality.
2. Hardware Description
2.1 Front Panel
The Front Panel of the PoE Ethernet Switch Consists of Ethernet Ports. The LCD Display and LED indicators
are also located on the panel.
-2-

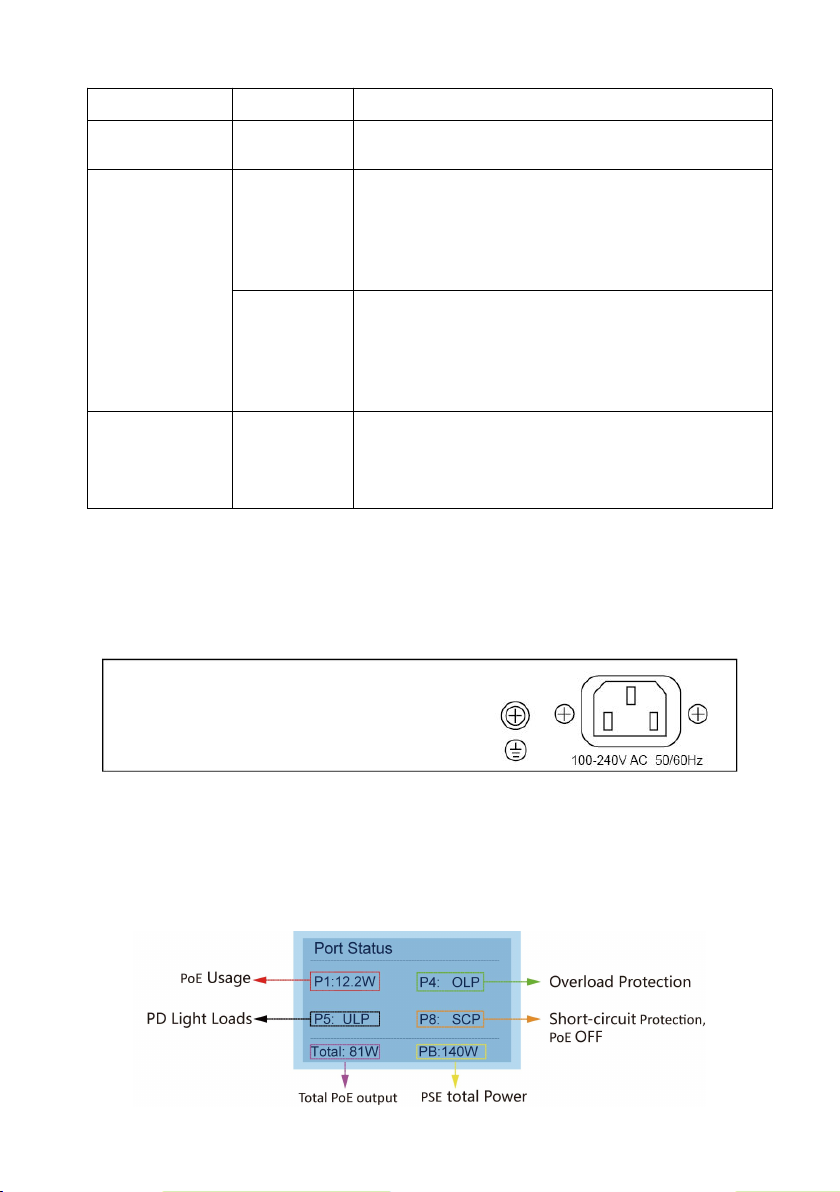

LED indicator
LED
Color
Function
PWR
Green
Off: No Power supply.
Light: Indicates the switch has power.
LNK/ACT
Orange
Off: No device is connected to the corresponding port
Light: Indicates the link through that port is successfully
established at 10/100Mbps.
Blink: Indicates that the Switch is actively sending or
receiving data over that port.
Green
Off: No device is connected to the corresponding port.
Light: Indicates the link through that port is
successfully established at 1000Mbps.
Blink: Indicates that the Switch is actively sending or
receiving data over that port.
PoE
Orange
Off: No PoE powered device (PD) connected.
Light: There is a PoE PD connected to be port, which
supply power successfully.
Blink: Indicates port abnormal power supply.
2.2. Rear Panel
The rear panel of the PoE Switch indicates an AC inlet power socket, which accepts input power from
100 to 240V AC, 50/60HZ.
2.3. LCD Features
The PM6008GSNL PoE Switch is with the function of the LCD display and PoE Ethernet switch. The LCD can
display the working condition of PoE port not only, still can accurately show the state of each port, such as:
Output power, Overload, Short circuit, Light load, Low voltage, Over voltage,High temperature, and so on...
-3-
3. Installation the Switch
This part describes how to install your Ethernet Switch and make connections to it. Please follow the
following instructions in avoid of incorrect installation causing device damage and security threat.
Before cleaning the switch, unplug the power plug of the switch first. Do not clean the switch with wet
cloth or liquid;
Do not place the switch near water or any damp area. Prevent water or moisture from entering the
switch chassis;
Do not place the switch on an unstable case or desk. The switch might be damaged severely in case of a
fall;
Ensure proper ventilation of the equipment room and keep the ventilation vents of the switch free of
obstruction;
Make sure that the operating voltage is the same one labeled on the switch;
Do not open the chassis while the switch is operating or when electrical hazards are present to avoid
electrical shocks.
3.1. Desktop Installation
Install the Switch on a desktop, please attach these cushioning rubber feet provided on the bottom at each
corner of the Switch in case of the external vibration. Allow adequate space for ventilation between the
device and the objects around it.
-4-
3.2. Rack-mountable Installation
The switch is rack-mountable and can be installed on an EIA-19 inch equipment rack. To do this, first, please
install the mounting brackets on the switch’s side panels (one on each side), secure them with the included
screws, and then use the screws provided with the equipment rack to mount the switch on the 19 inch rack.
3.3 Turn on the switch
Please plug the power supply into the switch, the internal power system of the switch can Auto-regulate the
working power according to the actual input power. When the switch is power on, the power indicator will
be light on the front panel of the switch shines.
Note: Please confirm the voltage is correct before power on, otherwise the switch will be damaged.
(There is a power supply socket on the back panel of the PoE Ethernet switch. The power input is:
100V-240Vac, 50/60Hz.)
-5-
Specifications
Model
PM6008GSNL
Standard
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3x,
IEEE802.3af, IEEE802.3at
Network
Media(Cable)
10BASE-T: UTP category 3,4,5 cable (≤100m)
100BASE-TX: UTP category 5 cable (≤100m)
1000BASE-T: UTP category 5e cable (≤100m)
LCD Display
Support
MAC Address Table
8K, Auto-learning, Auto-aging
Transfer mode
Store-and-Forward
Frame Forward Rate
10Base-T: 14881pps/Port
100Base-TX: 148810pps/Port
1000Base-T: 1488095pps/Port
Switching Capacity
16G
Dimensions (L*W*H)
280 *179 *44.5 mm
Fan
Fanless
Power Input
AC: 100~240V, 50/60Hz
Power output
55VDC /3.6A
PoE Port
Port1~4
PoE Power on RJ45
Twisted-pair polarity: 1/2(-),3/6(+);and4/5(+),7/8(-)
PoE Power Output
Voltage: 55V DC Power: 60W(Max)
PoE Power Budget
180W
Temperature
Operating Temperature: 0°C ~ 40 °C (32 °F ~104°F )
Storage Temperature: -40 °C ~ 70 °C (-40 °F ~158°F )
Humidity
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
