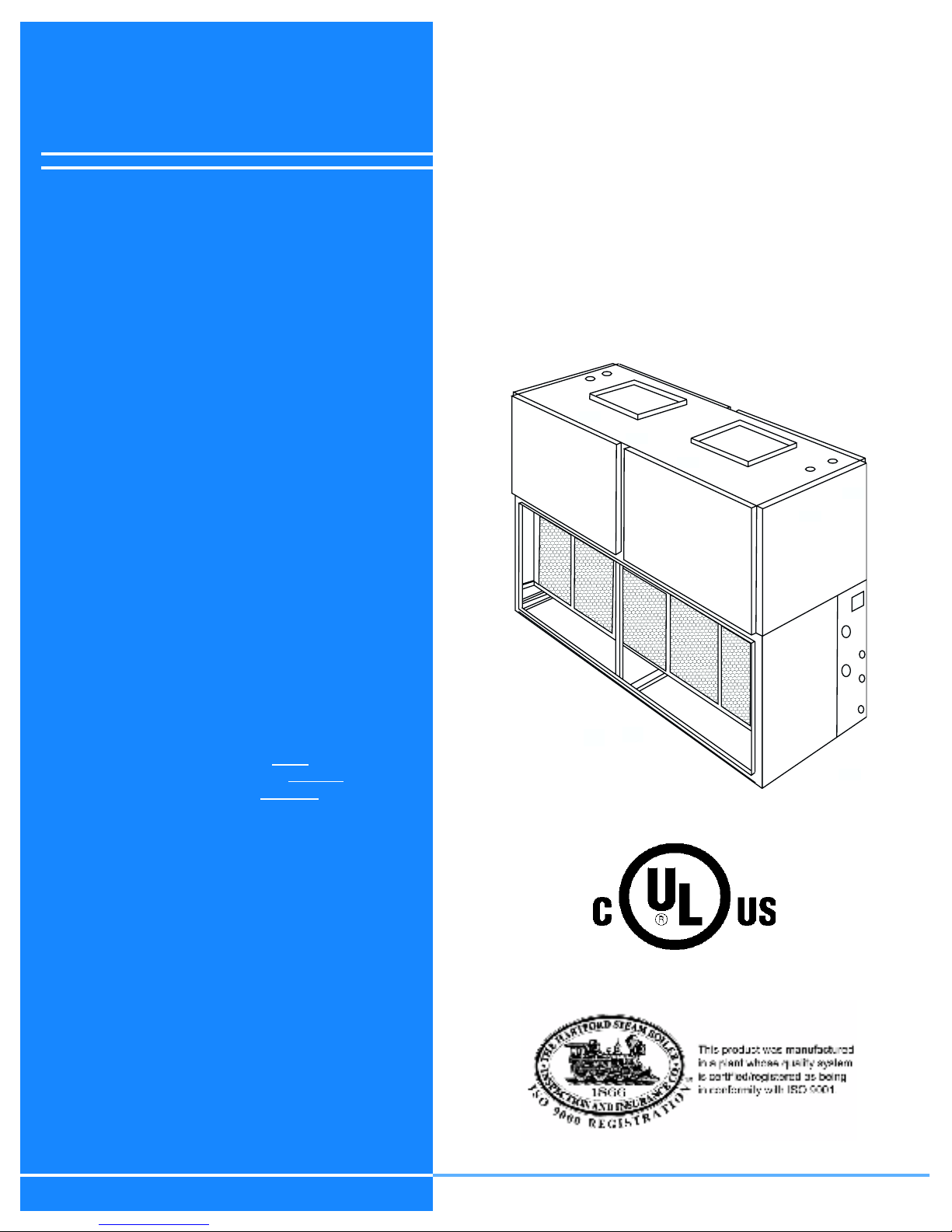

INSTALLATION

MANUAL

CAUTION: READ ALL SAFETY GUIDES BEFORE YOU

BEGIN TO INSTALL YOUR UNIT.

SAVE THIS MANUAL

SPLIT-SYSTEM HEAT PUMPS

INDOOR UNITS

MODELS: FEH180 & 240 ONLY

035-16626-000-E-0103

035-16626-000-D-0502

2UnitaryProductsGroup

TABLE OF CONTENTS

GENERAL ......................................3

RENEWALPARTS ...............................3

INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

INSTALLATION..................................4

LIMITATIONS ...............................4

RIGGING ..................................4

LOCATION .................................4

CLEARANCES ..............................4

VERTICAL/HORIZONTALINSTALLATION ........8

DUCT CONNECTIONS ......................10

REFRIGERANTMAINS ......................11

INSTALLINGREFRIGERANTMAINS ...........11

DRAINCONNECTION .......................11

SUPPLYAIRBLOWERADJUSTMENT..........12

POWERANDCONTROLWIRING..............14

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

INDOORCOIL .............................17

FILTERS..................................17

DRAINPAN ...............................17

LUBRICATION .............................17

BELTS ...................................17

LIST OF FIGURES

Fig.# Pg.#

1 PRODUCT NOMENCLATURE . . . . . . . . . . . . . . . . . . . 3

2 UNIT SUSPENSION MOUNTING FEH180

(HORIZONTAL APPLICATIONS) . . . . . . . . . . . . . . . . . 6

3 UNIT SUSPENSION MOUNTING FEH240

(HORIZONTAL APPLICATIONS) . . . . . . . . . . . . . . . . . 7

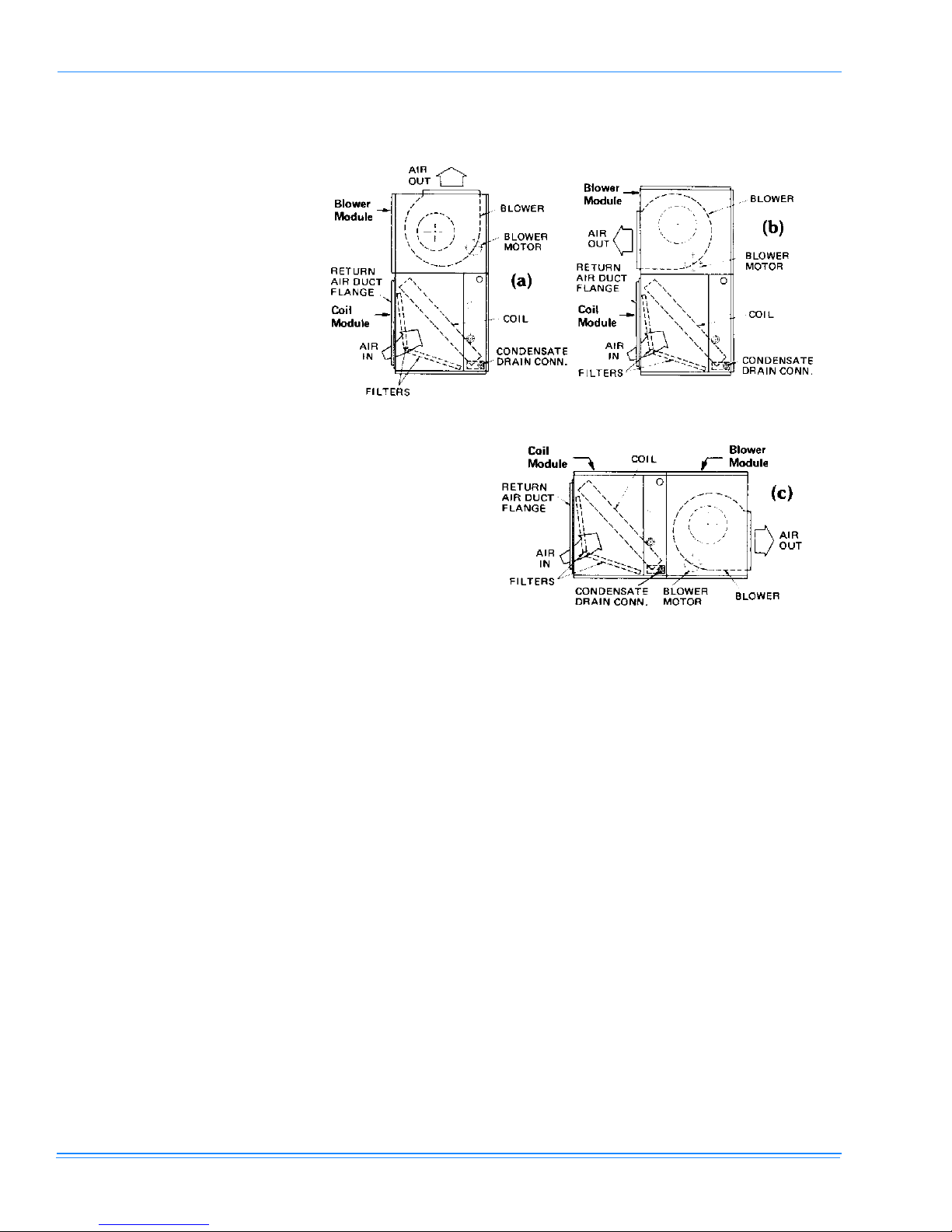

4 VERTICAL AND HORIZONTAL APPLICATIONS . . . . 8

5 ELECTRIC HEAT ACCESSORY . . . . . . . . . . . . . . . . . 9

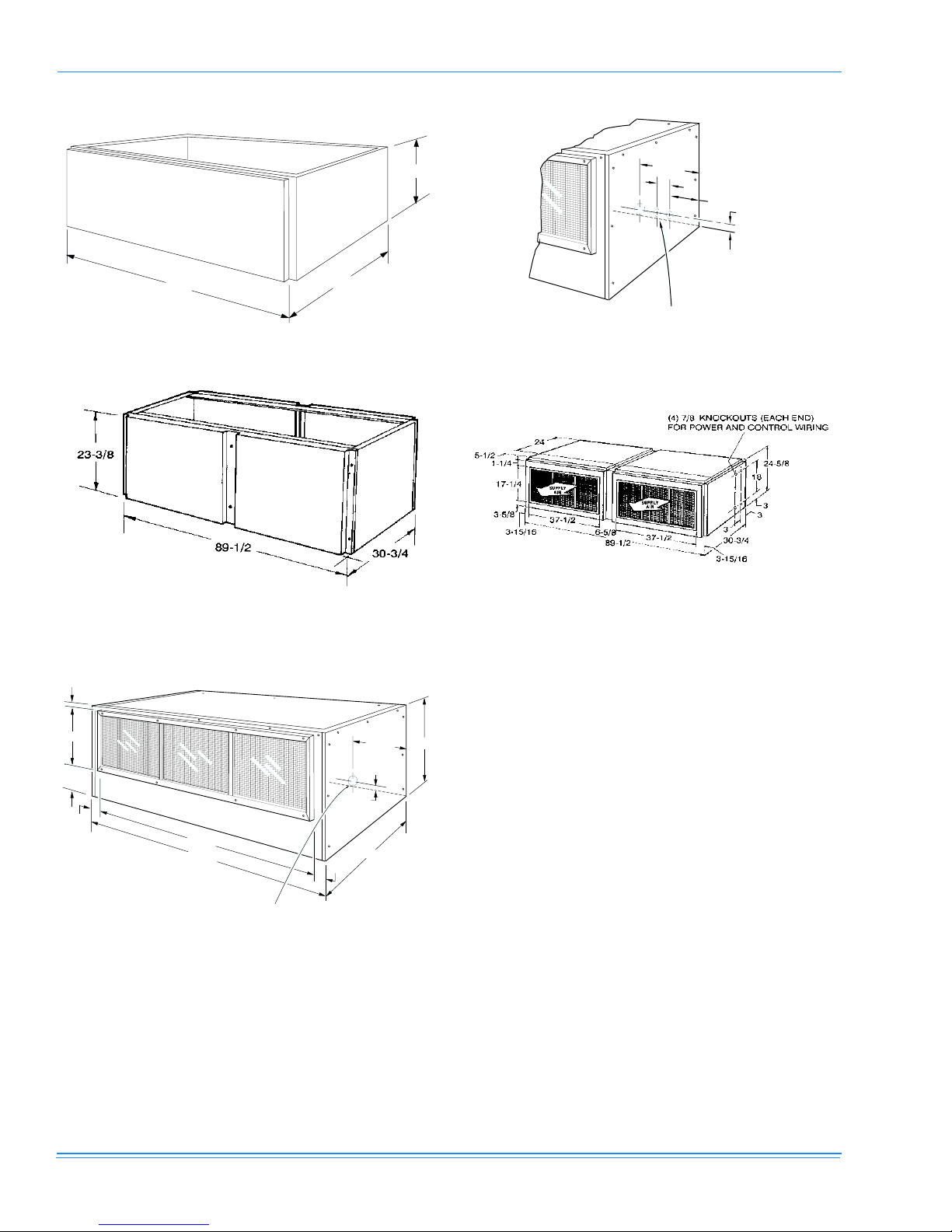

6 RETURNAIRGRILLEFEH180 ..................9

7 RETURNAIRGRILLEFEH240 ..................9

8 BASE ACCESSORY FEH180 . . . . . . . . . . . . . . . . . . . 10

Fig.# Pg.#

9 BASE ACCESSORY FEH240 . . . . . . . . . . . . . . . . . . 10

10 SUPPLYAIRPLENUMFEH180 ................10

11 SUPPLY AIR PLENUM KNOCKOUTS FEH180 . . . . 10

12 SUPPLYAIRPLENUMFEH240 ................10

13 RECOMMENDEDDRAINPIPING...............12

14 TYPICAL MOTOR MOUNTING ASSEMBLY . . . . . . . 13

15 HOLE LOCATIONS FOR PRESSURE DROP

READINGS.................................13

16 CFMVSPRESSUREDROP ...................13

17 UNITDIMENSIONSFEH180...................18

18 UNITDIMENSIONSFEH240...................19

LIST OF TABLES

Tbl.# Pg.#

1 PHYSICALDATA .............................5

2 UNIT APPLICATION DATA . . . . . . . . . . . . . . . . . . . . . 5

3 FEH180 UNIT SUSPENSION WEIGHTS (LBS) . . . . . . 6

4 FEH240 UNIT SUSPENSION WEIGHTS (LBS) . . . . . . 7

5 ELECTRIC HEATER DIMENSIONS FEH180 & 240 . . 9

6 SUPPLY AIR BLOWER MOTOR PULLEY

ADJUSTMENT ..............................12

7 SUPPLY AIR PREFORMANCE FEH180 . . . . . . . . . . 14

8 SUPPLY AIR PERFORMANCE FEH240 . . . . . . . . . . 14

9 ELECTRICAL RATINGS INDOOR UNIT - HEAT PUMP

ONLY .....................................15

10 ELECTRICAL RATINGS INDOOR UNIT - HEAT PUMP

WITHELECTRICHEAT .......................16

11 TYPICALFIELDWIRING ......................17

12 FEH180/240 MINIMUM CLEARANCES . . . . . . . . . . . 18

035-16626-000-E-0103

Unitary Products Group 3

GENERAL

Every unit includes a well-insulated cabinet, copper

tube/aluminum fin coil with interlaced circuiting

arrangement, 1" throwaway filters, centrifugal blower

with a fixed pitch sheave, and a blower motor with vari-

able pitch sheave. (FEH240 doesn’t ship with Motor &

Drive - field installation required).

They also include 2 filter driers, 2 expansion valves

and distributors that are only used during the cooling

cycle plus a check valve to provide the proper flow of

refrigerant through the unit during both the cooling and

heating cycles...

The controls include 208/230/460 volt transformer,

blower motor contactor and relay, and a low voltage

terminal block.

The units are shipped in the vertical position ready for

field installation. For horizontal installation, the blower

module can be repositioned in the field as shown on

Page 8 for maximum flexibility.

RENEWAL PARTS

Refer to the Source One Parts Manual for a complete

listing of replacement parts on this equipment.

All forms referenced in this instruction may be ordered

from:

Standard Register

2101 West Tecumseh Road

Norman, Oklahoma 73069

Toll Free Fax (877) 379-7920

This instruction covers the installation of the indoor

unit. For information on the installation and operation

of the matching outdoor unit, refer to PN 035-16192-

001.

Installer should pay particular attention to the words:

NOTE,CAUTION and WARNING. Notes are intended

to clarify or make the installation easier. Cautions are

given to prevent equipment damage. Warnings are

given to alert the installer that personal injury and/or

equipment damage may result if the installation proce-

dure is not handled properly.

INSPECTION

As soon as a unit is received, it should be inspected for

possible damage during transit. If damage is evident,

the extent of the damage should be noted on the car-

rier’s freight bill. A separate request for inspection by

the carrier’s agent should be made in writing.

Improper installation may create a condition

where the operation of the product could

cause personal injury or property damage.

This product must be installed in strict compli-

ance with the enclosed installation instruc-

tions and any applicable local, state, and

national codes including but not limited to,

building, electrical and mechanical codes.

FIGURE 1 - PRODUCT NOMENCLATURE

F 1 EH18 0 A 3 3

P R O D U C T C A T E G O R Y

F = S p l i t - S y s t e m H e a t P u m p

n d o o r U n i t

P R O D U C T D E N T F E R

E H = n d o o r U n i t

P R O D U C T G E N E R A T O N

1 = 1 s t G e n e r a t i o n N O M N A L C O O L N G

C A P A C T Y

1 8 0 = 1 5 T o n

2 4 0 = 2 0 T o n

F A C T O R Y N S T A L L E D H E A T

A = N o t A p p l i c a b l e

V O L T A G E C O D E

3 3 = 2 0 8 / 2 3 0 / 4 6 0 - 3 - 6 0

035-16626-000-E-0103

4UnitaryProductsGroup

INSTALLATION

LIMITATIONS

Theses units must be installed in accordance with all

national and local safety codes. If no local codes

apply, installation must conform with the appropriate

national code. Units are designed to meet National

Safety Code Standards. If components are to be

added to a unit to meet local codes, they are to be

installed at the dealer’s and/or the customer’s expense.

See Table 2 for application data.

RIGGING

Be careful when moving the unit. Do not remove any

packaging until the unit is near its final location.

The packaging consists of a bottom wooden skid that

can be lifted with a fork truck from any direction, a plas-

tic bag that covers the entire unit, and strapping that

secures the plastic bag to the bottom skid.

These units can be rigged with slings under the bottom

skid.

Before rigging any unit, determine its weight from Table

LOCATION

These indoor units are not designed for outdoor instal-

lation. They must be located within the building struc-

ture, either inside or outside the conditioned space.

The units should be located as close to the outdoor

units as practical and positioned to minimize bends in

the refrigerant piping.

Units being installed vertically or horizontally can be set

directly on a floor or platform, or they can be supported

by metal or wooden beams.

Units being installed horizontally can be suspended

from above. Units being installed horizontally can be

suspended from above by using a field installed Hori-

zontal Suspension Kit PN# 1HH0451. Refer to Figures

2 and 3 for their location and the individual load on

each hanger rod.

CLEARANCES

The clearances listed on unit dimensions drawing

(Pages 18 and 19) are required for the proper service

and operation of the unit.

Spreader bars should be used to prevent

slings from crushing the unit panels and

frame.

Be careful when attaching the hanger rods.

Use a washer with a back-up nut on each rod

and tighten down against the cabinet so they

will not be allowed to turn or slip.

035-16626-000-E-0103

Unitary Products Group 5

TABLE 1: PHYSICAL DATA

DESCRIPTION UNIT MODEL

FEH180 FEH240

Coil

Rows Deep X Rows High 3X32 3X32

Finned Length - inches 54.5 83

Face Area - square feet 12.11 18.44

Tube (Copper) OD - inches 3/8 3/8

Fins (Aluminum) per inch 13 13

Centrifugal Blower (Forward Curve) - Qty Diameter X Width - inches 18 X 18 - 1 15 X 12 - 2

Blower Motor1HP 3 ---

RPM 1750 ---

Filters (Throwaway)

Quantity per unit 68

Size (in) 20 X 20 X 1 20 X 22 X 1

Total Face Area - square feet 16.7 24.1

Unit Weight (lbs) Shipping 425 830

Operating 435 720

Accessory Operating Weight (Lbs.)

Motor & Drive 3HP --- 90

5HP --- 120

Electric Heat

10 KW 63 ---

20 KW 66 126

30 KW 71 129

40 KW --- 132

50 KW 80 137

Supply Air Plenum 114 150

Return Air Grille 20 15

Base 100 120

1. Refer to “Blower Motor and Drive Data” table for more information.

TABLE 2: UNIT APPLICATION DATA

APPLICATION

LIMITATIONS MIN. MAX.

Voltage Variation (208/230-3-60)1187 253

Voltage Variation (460-3-60)1414 506

Ambient Air on Outdoor Coil (Cooling Cycle) - °F 45 115

Ambient Air on Indoor Coil (Cooling Cycle) - °F 68 86

Ambient Air on Outdoor Coil (Heating Cycle) - °F 0270

Ambient Air on Indoor Coil (Heating Cycle) - °F 60 80

1. Rated in accordance with ARI Standard 110, utilization range “A”.

2. Below 0ºF the control circuit will lock out the compressor and allow the electric heat accessory to cycle at its stand by capacity.

035-16626-000-E-0103

6UnitaryProductsGroup

(See Table 3 for Suspension Weights).

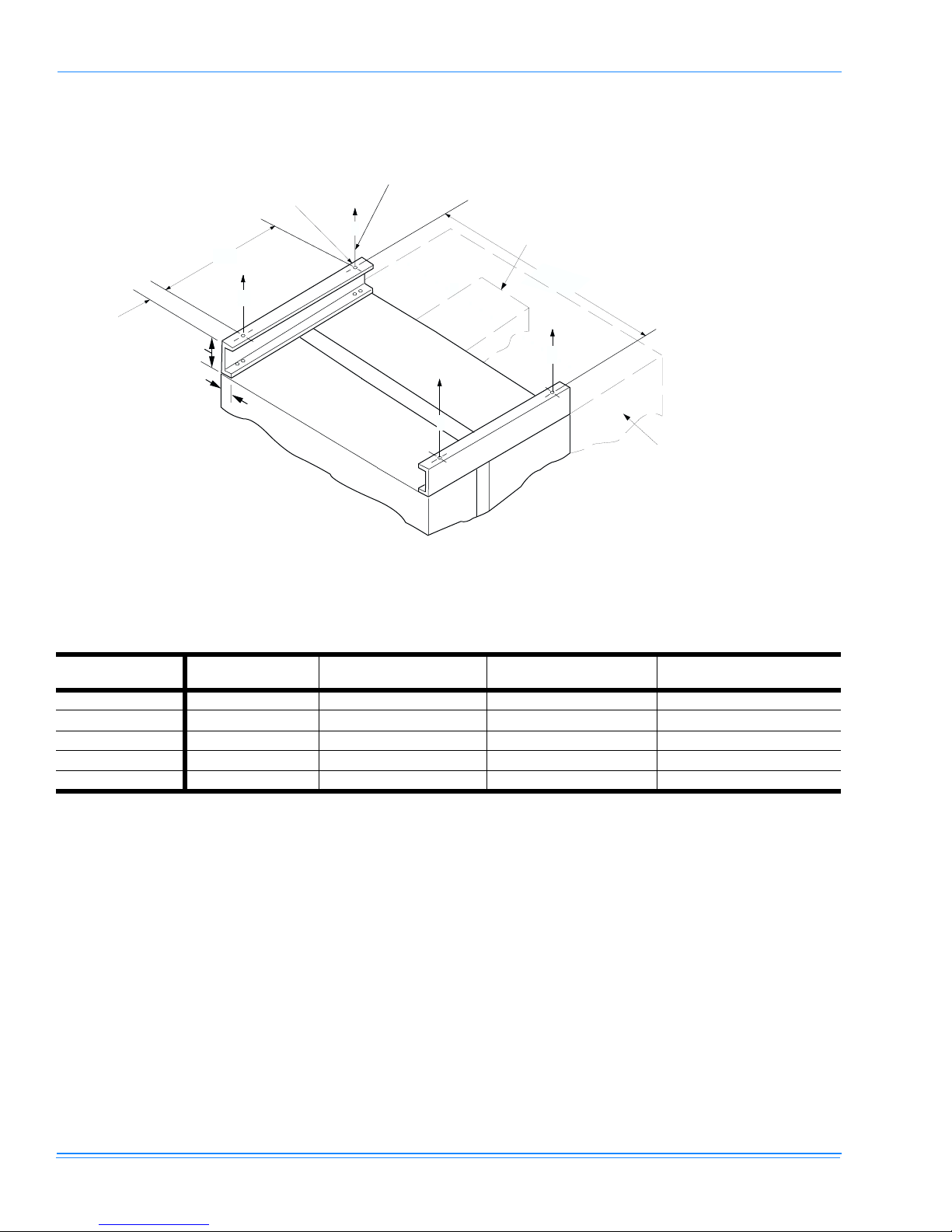

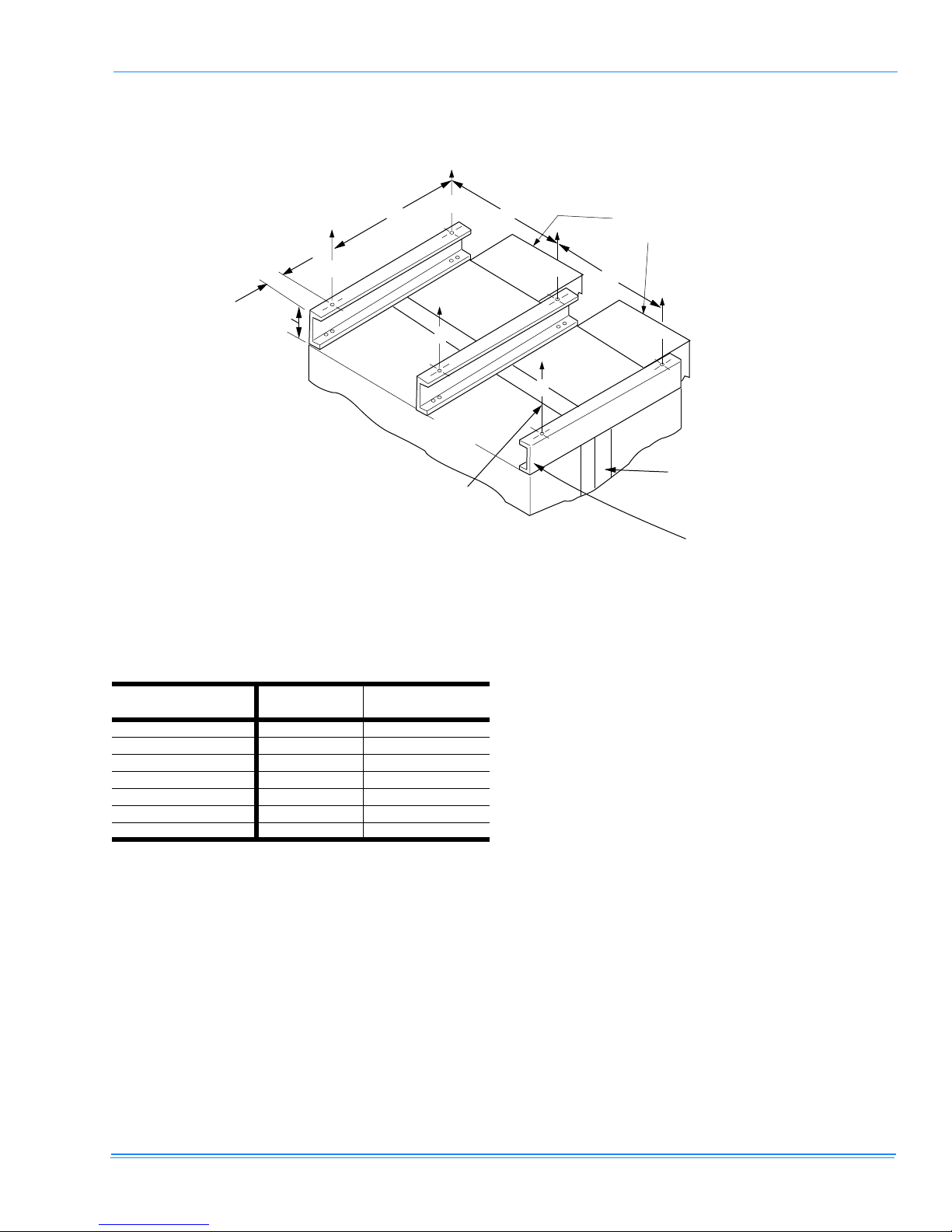

FIGURE 2 - UNIT SUSPENSION MOUNTING FEH180 (Horizontal Applications)

1-1/2 COIL

SECTION

BLOWER

SECTION

SUSPENSION

CHANNEL

HANGER RODS

(FIELD SUPPLIED)

ELECTRIC HEATER

ACCESSORY (40 Lb.)

SUPPLY AIR PLENUM

ACCESSORY (100 Lb.

)

58-11/16"

55"

TABLE 3: FEH180 UNIT SUSPENSION WEIGHTS (LBS)

SUSP'N. POINT W/ 3 HP MOTOR W/ HEATER ACCESS W/ PLENUM ACCESS W/ HEATER & PLENUM

ACCESS

A95 95 85 85

B120 120 100 100

C95 115 165 185

D115 140 185 205

Total Wt. 425 470 535 575

035-16626-000-E-0103

Unitary Products Group 7

FIGURE 3 - UNIT SUSPENSION MOUNTING FEH240 (Horizontal Applications)

43-3/4"

EVAP. COIL

SECTION

BLOWER

SECTION

HEATING COIL

SUSPENSION

CHANNEL

43-3/4"

5" A

55"

HANGER RODS

(FIELD SUPPLIED)

ELECTRIC HEAT

ACCESS (40l s. each)

TABLE 4: FEH240 UNIT SUSPENSION WEIGHTS

(LBS)

SUSPENSION

POINT W/ 5HP

MOTOR1

1. Motor location at suspension point “F”.

W/ HEATER

ACCESS

A142 142

B132 132

C152 152

D162 189

E132 158

F127 154

Total Weight 847 927

035-16626-000-E-0103

8UnitaryProductsGroup

VERTICAL/HORIZONTAL INSTALLATION

These indoor units are shipped for vertical installation

with vertical air discharge as shown in Figure 4 on

page 8.

FIGURE 4 - VERTICAL AND HORIZONTAL APPLICATIONS

MODELS 180 & 240

This unit has two distinct modules

...ablowermoduleandacoil

module. Although the unit is

always shipped in the vertical

position with a vertical air dis-

charge as shown in (a), the

blower module can be reposi-

tioned in the field as shown in

illustrations (b) and (c) for maxi-

mum flexibility.

•TheSupply Air Plenum,Return Air Grille and Base

accessories can be applied on arrangement (a).

•TheReturn Air Grille and Base accessories can be

applied on arrangement (b).

•TheSupply Air Plenum,Return Air Grille and

Suspension accessories can be applied on

arrangement (c).

HORIZONTAL POSITION

VERTICAL POSITION

035-16626-000-E-0103

Unitary Products Group 9

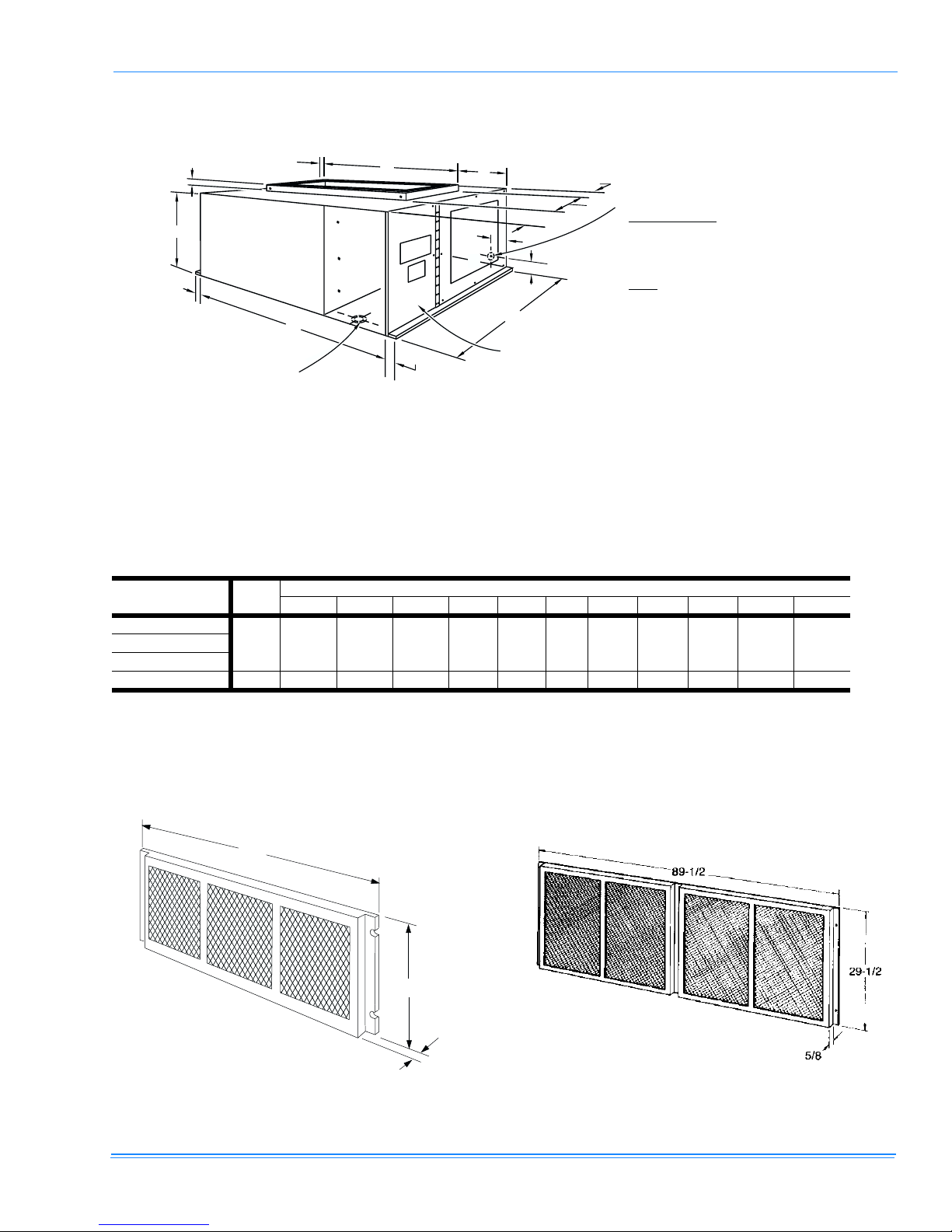

FIGURE 5 - ELECTRIC HEAT ACCESSORY

HEATER

ELEMENT

CHAMBER

3/4

1DLE

ACCESS OPENING FOR POWER SUPPLY WIRING

1/2

IRING HARNESS LOCATION

his o ening in the bottom of the heater

control box is used for the wiring harness

hat connects the heater accessory to the

basic unit. It is rovided with a squeeze

connector for securing the wiring harness,

and its location corres onds to the loca-

ion of the 1-23/32 inch knockout in the to

anel of the basic unit.

CONTROL BOX

ACCESS PANEL

10KW THRU 30KW - Add a 1-1/4 inch conduit fitting

to the 1-23/32 inch hole for wire sizes u through

#1 AWG. Remove the knockout ring and add a

1-1/2 inch conduit fitting to the 1-31/32 inch hole

for wire sizes u through #0 AWG.

50 KW - Add a 1-1/4 inch conduit fitting to the

1-23/32 inch hole for wire sizes u through #1\

AWG. Remove the knockout ring and add a

two-inches conduit fitting to the 2-1/2" hole

for wire sizes u through #000 AWG.

Used on FEH180 only.

TABLE 5: ELECTRIC HEATER DIMENSIONS FEH180 & 240

Heater

Model1Nom.

Heater Dimensions (inches)

ABCDEFGHKLM

2HB04501025, 46 10

27-1/4 25-1/4 14-1/4 1 4 1/2 5-1/2 1-1/2 1-1/2 22-1/4 19-1/42HB04502025, 46 20

2HB04503025, 46 30

2HB04505025, 46 50 29-7/8 26-3/8 21-3/4 2-3/8 5-1/4 3/4 6-3/4 2-1/4 2-1/2 22-1/4 19-1/4

1. 2HC04501025, 46 and 2HC04502025, and 46 are used on the FEH240 units only. The dimensions are the same as

shown above for the 2HB heaters. The 2HB heaters are installed on the drive side of the FEH240 and the 2HC heaters

are installed on the opposite side.

(See Table 5 for Dimensions.)

FIGURE 6 - RETURN AIR GRILLE FEH180

60-3/4

FIGURE 7 - RETURN AIR GRILLE FEH240

035-16626-000-E-0103

10 UnitaryProductsGroup

DUCT CONNECTIONS

All ducts should be designed and installed in accor-

dance with all national and/or local codes.

Ducts should be sized no smaller than the duct flanges

on the unit or the electric heater (if used). Refer to the

unit dimensions (Figures 17 and 18) and heater detail

(Figure 5) for these sizes. Refer to PN 035-16602-001

for installation instructions on the electric heater.

Use flexible fiber glass or plastic cloth collars or other

nonflammable material at the unit duct connections to

minimize the transmission of noise and vibration.

Insulate all ductwork running through the uncondi-

tioned areas to prevent moisture condensation and to

provide more economical operation.

FIGURE 8 - BASE ACCESSORY FEH180

FIGURE 9 - BASE ACCESSORY FEH240

FIGURE 10 - SUPPLY AIR PLENUM FEH 1801

1. Electric Heaters are NOT UL approved for installation

within a SUPPLY AIR PLENUM.

31-5/8

60-3/4

BASE

1 9 - 7 / 8

6 - 1 / 8

2 - 1 / 2

5 5 - 3 / 4

6 0 - 3 / 4

1 - 1 / 8

3 1

1 - 3 / 4

1 9 - 1 / 2 2 7

2 - 1 / 2 K N O C K O U T F O R P O W E R W I R I N G

W H E N E L E C T R I C H E A T E R I S U S E D

FIGURE 11 - SUPPLY AIR PLENUM Knockouts

FEH180

FIGURE 12 - SUPPLY AIR PLENUM FEH2401

1. Shipped knocked down for field assembly.

1 - 1 / 2

1 1 - 1 / 2

K N O C K O U T S F O R P O W E R & C O N T R O L W I R I N G

1 9 - 1 / 2

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Unitary products group Wärmepumpe Handbücher

Unitary products group

Unitary products group GY8S*DH Bedienungsanleitung

Unitary products group

Unitary products group SUNLINE 2000 BP 072 Bedienungsanleitung

Unitary products group

Unitary products group SUNLINE 2000 BCH 036 Bedienungsanleitung

Unitary products group

Unitary products group AHT8-UH Bedienungsanleitung

Unitary products group

Unitary products group YMB Series Bedienungsanleitung

Unitary products group

Unitary products group RP007 Series Handbuch

Unitary products group

Unitary products group BAUZ Series Bedienungsanleitung

Unitary products group

Unitary products group FF-07 Bedienungsanleitung

Unitary products group

Unitary products group FF-10 Bedienungsanleitung

Unitary products group

Unitary products group HF-25 - 25 Ton Bedienungsanleitung

Unitary products group

Unitary products group EF-07 Bedienungsanleitung

Unitary products group

Unitary products group FA120 Bedienungsanleitung

Unitary products group

Unitary products group BECB 090 Bedienungsanleitung

Unitary products group

Unitary products group EA120 Bedienungsanleitung

Unitary products group

Unitary products group BCB Series Kurzanleitung

Beliebte Wärmepumpe Handbücher anderer Marken

MICROWELL

MICROWELL HP 1000 GREEN Bedienungsanleitung

Sanyo

Sanyo SAP120FCH Bedienungsanleitung

Daikin

Daikin EHYHBH05AA Bedienungsanleitung

Panasonic

Panasonic WH-SDF03E3E5 Leitfaden

Bryant

Bryant 544B Bedienungsanleitung

Airxcel

Airxcel 45000 Series Handbuch

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Bedienungsanleitung

Dimplex

Dimplex LI 16I-TUR Benutzerhandbuch

Carrier

Carrier WSHP Open v3 Kurzanleitung zur Einrichtung

TGM

TGM CTV14CN018A Bedienungsanleitung

Carrier

Carrier 38MGQ Series Bedienungsanleitung

Kokido

Kokido K2O K880BX/EU Fehlerbehebungshandbuch

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Kurzanleitung

Carrier

Carrier 48EZN Bedienungsanleitung

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Betriebsanleitung

Ariston

Ariston NIMBUS Bedienungsanleitung

Weishaupt

Weishaupt WWP L 7 Benutzerhandbuch

GE Zoneline AZ85H09EAC Bedienungsanleitung
