HT580 User Reference Guide Unitech Electronic CO. LTD

Unitech Part Number: 400412 1

Unitech

HT580 User Reference Guide

Version 1.0

HT580 User Reference Guide Unitech Electronic CO. LTD

Unitech Part Number: 400412 2

NOTICE

1. Li-Ion Battery Pack

This unit is equipped with a Li-Ion battery pack. Due to storage, your

HT580’s battery may not be fully charged when you first receive it. As a

precaution, please ensure the battery is at full capacity when first starting

to use the terminal.

2. USB Driver Installation

The HT580’s USB driver is located on the CD included in the package. To

activate USB, please install the driver first.

HT580 User Reference Guide Unitech Electronic CO. LTD

Unitech Part Number: 400412 3

Content

Chapter 1: Introduction

1.1 Overview…………………………………………………………………………………4

1.2 Support………………………………………………………………………………….4

1.3 Features…………………………………………………………………………………5

1.4 Technical Specifications……………………………..………………………………5

1.5 Product Illustration……………………………………………………………………6

1.6 Battery Storage & Safety Precautions……………………………………………..7

1.7 Communication Cradle……………………………………………………………….8

1.8 HT580 Communication with the Host……………………………………………...9

1.9 Interface Port…………………………………………………………………………...9

1.10 Pin Assignment……………………………………………………………………….9

1.11 Keypad…………………………………………………………………………………10

1.12 Barcode Scanning Spectrum………………………………………………………10

Chapter 2: Operating the HT580

2.1 Setting System………………………………………………………………………….11

2.1.1 DATE & TIME………………………………………………………………………....11

2.1.2 DEVICE………………………………………………………………………………...11

2.1.3 MODEM INIT…………………………………………………………………………..12

2.1.4 SUPERVISOR…………………………………………………………………………12

2.2 FORMCACHING………………………………………………………………………...12

2.3 RUN APG580…………………………………………………………………………….12

HT580 User Reference Guide Unitech Electronic CO. LTD

Unitech Part Number: 400412 4

Chapter 1 - Introduction

1.1 Overview

Thank you for choosing the HT580 from Unitech Electronic Co. Ltd. This Portable Data

Collection Terminal is one of the most user-friendly handheld terminals on the market -

perfect for small retailers.

Developed under the C language, the HT580’s proprietary Operating System is capable of

running, and helping you develop, application programs specifically designed by you for

your own unique business.

Weighing only 150g (5.3 oz), the light weight of the HT580 is ideal for the long work days

typical in a retail environment. Despite it’s light weight, the HT580 is unusually robust -

capable of sustaining 1.2 meter (four foot) drops to a concrete floor.

With all this, we believe the HT580 will more than satisfy your own unique retail

requirements. The HT580 standard package includes the HT580 terminal, communication

cradle, adaptor, USB & RS232 Y cable, holster, and strap. Additionally, two alternative

types of communication/charging cradles - RS232 and Modem - are offered as options.

1.2 Support

Unitech has professional support teams around the world to answer your questions or any

related technical issues. Should equipment problems occur, please contact one of our

regional service centers for a quick response. Our six regional service centers and their

contact information can be found on the websites provided below.

UTC (China) http://www.ute.com.cn

APAC (Taipei, Taiwan) http://www.unitech-adc.com

UTJ (Japan) http://www.unitech-japan.co.jp

UTA (North and South America) http://www.unitech-adc.com

UTI (Netherlands, UK) http://www.unitech-

europe.nl

HT580 User Reference Guide Unitech Electronic CO. LTD

Unitech Part Number: 400412 5

1.3 Features

HT580 includes the following features:

Operation System: Proprietary

Memory: 512KB

Display: 128 x 64 pixel

Keypad: 18-key keypad

Data Capture: CCD

Communication: Bluetooth / RS232 / USB

1.4 Technical Specifications

Model HT580

Dimensions 123mm x 55mm x 25mm (4.8” x 2.2” x 1.0”)

Weight 150g (5.3 oz)

Drop Specification 1.2M (4 foot) free drop to concrete floor

Display 128 x 64 pixels; 16 x 8 characters or 12 x 4 characters

Battery One 3.7V 600mAH Li-ion battery

Environmental Sealing IP42

Operation Temperature 0°~50°C (32°~122°F)

Storage Temperature -20°~70°C (-4°~158°F)

Humidity 20% to 85% RH; not condensed

Electrostatic Discharge (ESD) 4 KV contact discharge

8 KV air discharge

Back-Lit Display Yes

Keypads 18 alphanumeric keys including one scan trigger

CPU ST UPSD3354DV

Operating System Proprietary (C Language)

Memory 512KB Flash ROM

Application Development EZ Job

Communication RS232 / USB1.1 / Bluetooth / Modem

Battery Life Up to 8 hours

Symbologies China Postal Code, Codabar, Code 32, Code 39, Code 93,

Code 128, Interleaved 2 of 5, MSI, UPC/EAN

Buzzer Yes, over 75 dB

One LED Reading – green color

HT580 User Reference Guide Unitech Electronic CO. LTD

Unitech Part Number: 400412 6

1.5 Product Illustrations

This section is designed to familiarize you with the HT580 and its cradle. For detailed explanations

on some of the functions, please refer to subsequent chapters.

Figure 0-1:HT580 Front View

Figure 0-2: HT580 Back View

Figure 0-3 HT580 Top View

Figure 0-4: HT580 Bottom View

Figure 0-5: HT580 Battery Position

Figure 0-6: HT580 charging/communication

cradle, featuring 2 types of communication:

RS232 and modem

Figure 0-7: Modem cradle Back View

Figure 0-8: RS232 Cradle Back View

HT580 User Reference Guide Unitech Electronic CO. LTD

Unitech Part Number: 400412

Figure 0-9: HT580 communication/charging cable (Unitech part number:

)

Figure 0-10:

HT580 Li-Ion Battery (Unitech part number: )

1.6 Battery Storage and Safety Precautions

Batteries should be stored at normal room temperature. Avoid placing them in any situation where

explosion or damage could possibly occur. The Li-Ion batteries may lose their charge if not used for

several months due to back up and internal resistance. If this happens, we suggest recharging prior to

use.

Remove Main Battery

To remove the main battery, press down on the release button while pushing out the cover on the unit.

We suggest that the battery not be removed, if possible.

Charging

When starting to operate the HT580, the main battery must be fully charged before the first use. The

HT580 is equipped with a 3.7V 600m.A.h Lithium-Ion battery. It takes 8 hours to fully charge the main

battery when empty. We suggest users recharge the battery regularly after long hours of use.

This icon shown in the menu is to indicate the current battery capacity status.

There are 2 ways to charge the main battery:

1. Mount the unit in the cradle and connect power adaptor between the back of the cradle and any

power outlet.

2. Or, use the standard USB cable and connect it to your PC’s USB port.

Bottom

Top

HT580 User Reference Guide Unitech Electronic CO. LTD

Unitech Part Number: 400412

1.7 Communication Cradle

The HT580’s battery can be charged by placing the HT580 into its charging/communication cradle - part

number: 5000-601557 (RS232) /5000-601558 (Modem)

Positioning Terminal Into Cradle

.1. Proper Position

2. Improper Position

The picture to the right shows the proper

way to insert your terminal while using the

cradle to transmit data or to charge.

Please note that the connector in the

bottom of the cradle may be damaged if you

use excessive force to insert the terminal.

The picture to the right shows the improper

way to insert the terminal into the cradle.

Do not insert the terminal into the cradle

incorrectly. It will not function properly and

damage can occur.

Front View

Back View

HT580 User Reference Guide Unitech Electronic CO. LTD

Unitech Part Number: 400412

Communication Cradle LED Icons

This LED light (Red) shows the power status of the cradle itself. When the light is on it indicates

the cradle is charging. To determine if the terminal is fully charged, it may be necessary to check

the terminal LCD.

This LED light (Green) shows transmission status of the cradle itself. When the light is on, it

indicates that data is in transmission

1.8 HT580 Communication with the Host

1.9 Interface Port

The HT580 communicates via the RS232 communication port located on the bottom of the unit. You can

connect the HT580 directly via the communication cable to your PC’s RS232 port for data transfer, or

connect via the cradle.

1.10 Pin Assignment

Pin Name Pin Name

1 US-POWER

7 DSR

2 GND 8 GND

3 DC-IN 9 DTR

4 USB DP 10 TXD

5 CTS 11 RXD

6 RTS 12 USB DP

USB 1.1 or RS232

connection through cable

RS23

/Modem Cradle Communication

HT580 User Reference Guide Unitech Electronic CO. LTD

Unitech Part Number: 400412

1.11 Keypad

The keypad of HT580 consists of 18 rubber keys and one power key; the keyboard is configured into three

different modes: Numeric mode, Command mode, and Alphabetic mode.

The keyboard is configured in Numeric mode by default, Command mode when the light green CMD key is

selected, or Alphabetic mode when the blue ALPHA key is selected.

Keypad Description

[ ]

To power on the unit press the power key.

The power key is on top right corner of the cover.

[ESC]

Returns you back to the previous menu.

[MENU]

Press

[MENU]

to scroll items you require.

[SCAN]

Press

[SCAN]

to trigger scanning function or to perform

as the

[ENTER]

key while in [

SETTING

] mode.

[C]

Press

[C]

to delete.

[ENTER]

Press

[ENTER]

to save changes or to go to the next page.

[ALPHA]

Press

[ALPHA]

to switch to Alphabet.

Any alphabetical character (printed in blue) can be activated with the ALPHA key.

[CMD]

Press

[CMD]

to perform delimiters such as “#”, “$” etc.

Any delimiter (printed in green) can be activated with the CMD key.

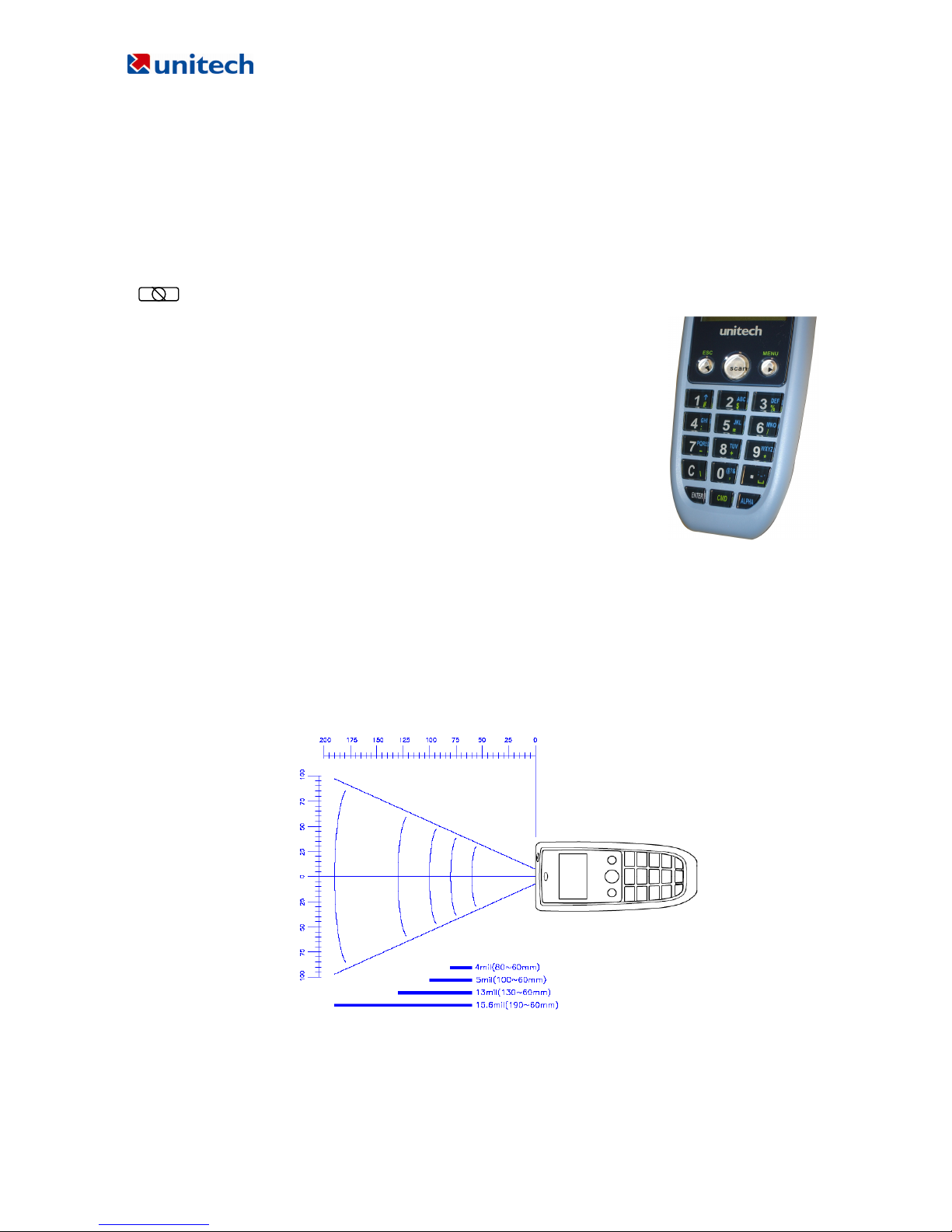

1.12 Barcode Scanning Spectrum
