OPERATOR MANUAL
FIRST EDITION
3/2017
Professional-Grade Trimmer
Maintenance
To avoid damaging the trimmer, never immerse it in water or other liquids.
Do not use abrasive cleaners on the trimmer.
Do not use the trimmer without the safety shield installed properly.
NOTE
1. Please use a dry cloth to wipe the surface of the trimmer. Do not pour water
directly onto the machine.
2. All moveable parts must be lubricated and oiled periodically. Before
lubricating, these parts should be cleaned from paper dust and oil deposits.
3. If the blade has become dull, please contact your dealer to replace or sharpen
it. The blade should only be replaced or sharpened by a trained professional.
4. Please regularly inspect the effectiveness of the blade friction mechanism.
If the blade is easily dropping down after being raised, remove the plastic cap
and use a wrench to tighten the screws on both sides. (See diagram below.)

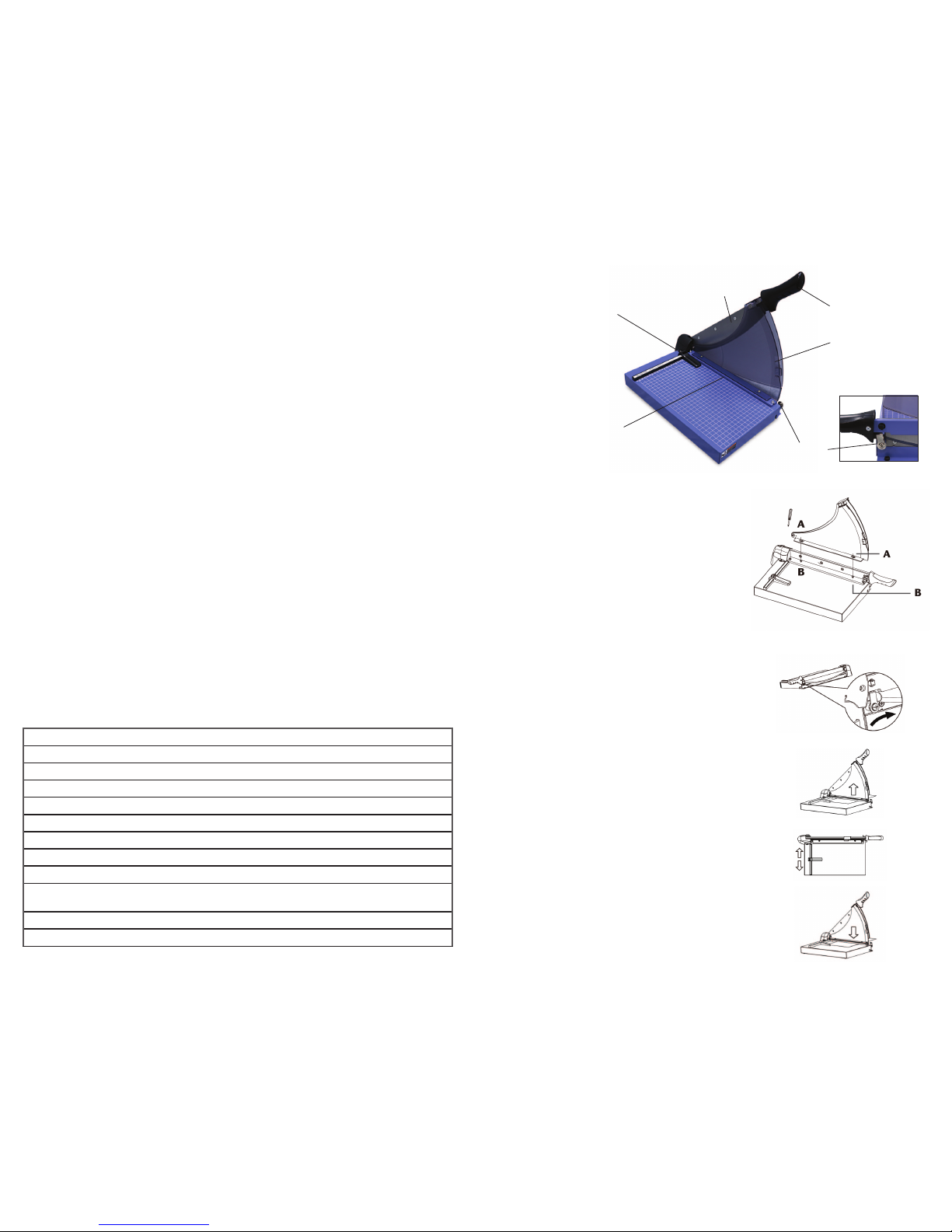

Parts Identication
Assembling the Safety Shield
1. Hold the blade handle and carefully release
the blade lock.
2. Raise the blade to its full upright position.
This will open the clamping bar. When the
blade is in the full upright position, you will
hear a “lock” sound. The handle will not drop
down until you push it. NOTE: Failure to raise
the blade fully will reduce the sheet capacity.
3. Insert paper and adjust the side guide to the
desired location.
4. Lower the blade in a slow, steady motion
to cut the paper. The paper stack will be
clamped automatically.
Raise the blade fully to unclamp and (re)move
the paper stack.
Safety Precautions
Before using the trimmer, please read and follow these instructions, and keep them
handy for future reference.
1. Read all instructions before operating.
2. This product is not intended for use by children. Keep product out of reach of
children and pets.
3. This trimmer is designed to cut only paper. Do not use it to cut other objects.
4. Keep hands and loose items, i.e. jewelry, clothing, neckties, etc. away from the
blade to avoid personal injury and/or damage to the trimmer.
5. Do not attempt to dislodge jammed debris with a pointed object, as personal
injury or damage to the trimmer may occur.
6. Always use the trimmer on a at, level, sturdy surface.
7. Do not hang or wall-mount the trimmer.
8. This product is intended for indoor use only.
To avoid damage to the trimmer:
Remove paper clips and staples from items before trimming.
Never lubricate the cutting blade.
Do not expose the trimmer to water or other liquids.
To avoid possible severe personal injury:
Never use the trimmer without the safety shield in place.
Never carry the trimmer by the blade or blade handle.
Always ensure the blade lock is secure when the trimmer is not in use.
Adjustable locking side guide
Blade
Blade handle
Safety shield
Blade lock
Paper Length Up to 14” (360mm) Up to 18” (460mm)
Paper Stack Height Up to 5/32” (4mm) Up to 5/32” (4mm)
Sheet Capacity Up to 40 sheets 20# (75gsm) Up to 40 sheets 20# (75gsm)
Blade Type Guillotine Guillotine
Paper Clamp Automatic Automatic
Blade Guard ABS Plastic Shield ABS Plastic Shield
Blade Lock Yes Yes
Back Gauge Scale Inch/mm Inch/mm
Table Size 10.5” W x 14” D (267 x 356mm) 15” W x 21.5” D (381 x 546mm)
Dimensions 11.6” W x 24.8” D x 21” H
(294 x 630 x 530mm)
15.5” W x 28.7” D x 24.6” H
(394 x 730 x 625mm)
Weight 11 lbs (5kg) 18 lbs (8.2kg)
Base Steel Steel
Please use caution when assembling the
safety shield. Wearing leather gloves is
recommended.
1. Align the two holes in the safety shield (A)
to the holes in the clamping bar (B).
2. Attach the safety shield with the screws
(included). Be sure it is securely attached
prior to use.
Clamping bar
Operation
Specications United T14P United T18P
