Universal Remote Control BENDER Bedienungsanleitung

REMOTE CONTROL

BENDER

OWNERS MANUAL

Receiver

Location of Controls

Bender Front

Remote Control

Indicators &

IR Transmitter/Receiver

Bender Back

IR Probe

DC Power

Accessory

DC 12 V, AC 120V/230V or 240V

Adaptor x1

Infrared Extender X 1

Caution:

This equipment has been tested and found to comply with CE regulation.

These regulations are designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with this manual, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

situation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more

of the following measures:

Reorient or relocate the receiving antenna

Increase the distance between the interfered equipment and the receiver

Connect the interfered equipment into an outlet on a circuit

which is different from that the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Important Safety Precautions

‧To prevent fire or shock hazard, do not submerge or expose this

products to water

‧To avoid electric shock, do not open this units. The Bender contains

no user serviceable parts. Doing so will void the warranty

‧Use only the power adaptor provided with the Bender

‧Do not overload wall outlets or extension cords.

‧If you are experiencing difficulty with this products, do not attempt

to service it yourself. Please call your vendor for assistance.

Product Description

The Bender Infrared Remote Control Extender enables you to

extend the range and angles of your present Infrared Remote

Control

Unlike ordinary remote controls which are only effective in close

range." line of sight" use, The Bender can receive the IR signal

from your remote controller and retransmit it via an IR probe to

any devices. Such method can extend the angle and distance of

original IR signal.

Applications

The Remote operation of electronics products that utilize IR

(Infrared) remote control technology such as:

‧Satellite Receivers

‧Televisions

‧VCR's (Video Cassette Recorders)

‧CD's (Compact Disc)

‧DVD's (Digital Video Disc)

‧LDP's (Laser Disc Players)

‧Cable Converter Boxes

‧Audio / Hi-Fi Stereo Systems

‧Any (IR) Remote Controlled Devices

"Operation is subject to the following two conditions: (1) this device may

not cause interference, and (2) this device must accept any interference,

including interference that may cause undesired operation of the device."

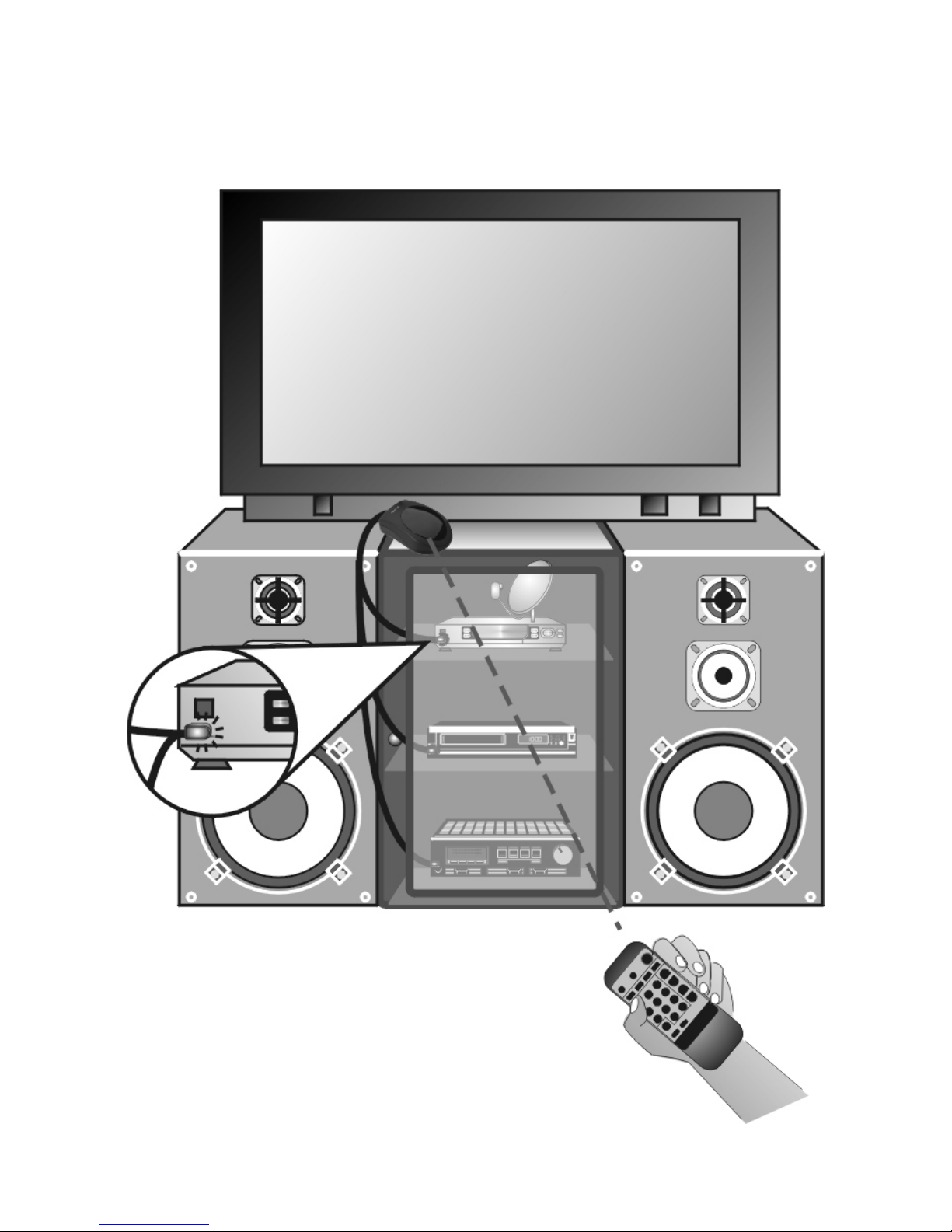

Application Diagram

Bending of the IR Signal

Installation & Operation Guide

Picture 1

Power

Adaptor

Make sure the IR probe is sticked toward

IR sensor receiving Window with proper position

(about within 0.5M and working angles +/- 15°).

Working with extender probe

Picture 2

Picture 4

Keep Vertical

Power

Adaptor

Remote Control

Working Angle not

more than +/- 15°

Distance Not less than 0.3M and not more than 5M

Working Angle not more than +/- 15°

Care and Maintenance

‧Keep the Bender dry. If it gets wet, wipe it dry immediately.

‧Use and store the Bender only in normal temperature

environments. Extreme temperature can shorten the life of

electronic devices

‧Handle the Bender gently and carefully. Dropping it can

damage the circuit board and can cause it to work improperly.

‧Keep the Bender away from dust and dirt, which can cause

premature wear of parts.

‧Wipe the Bender with a damp cloth occasionally to keep it

looking new. Do not use harsh chemicals, cleaning solvents, or

strong detergents.

Specifications

Operating Voltage ...............................…...…...120 VAC,60Hz /

230 or 240 VAC, 50Hz/

DC 12V, 100mA(Min.)

Power Consumption ……..................…....................1 Watts Max.

Effective operating range......................….......................5M(Min.)

Infrared Receiver range: Tuning Frequency.....................38 KHz

Extender Probe………………… 1.5m, 2.5m and 3.5m in length
