Universal Remote Control, Inc.

www.universalremote.com

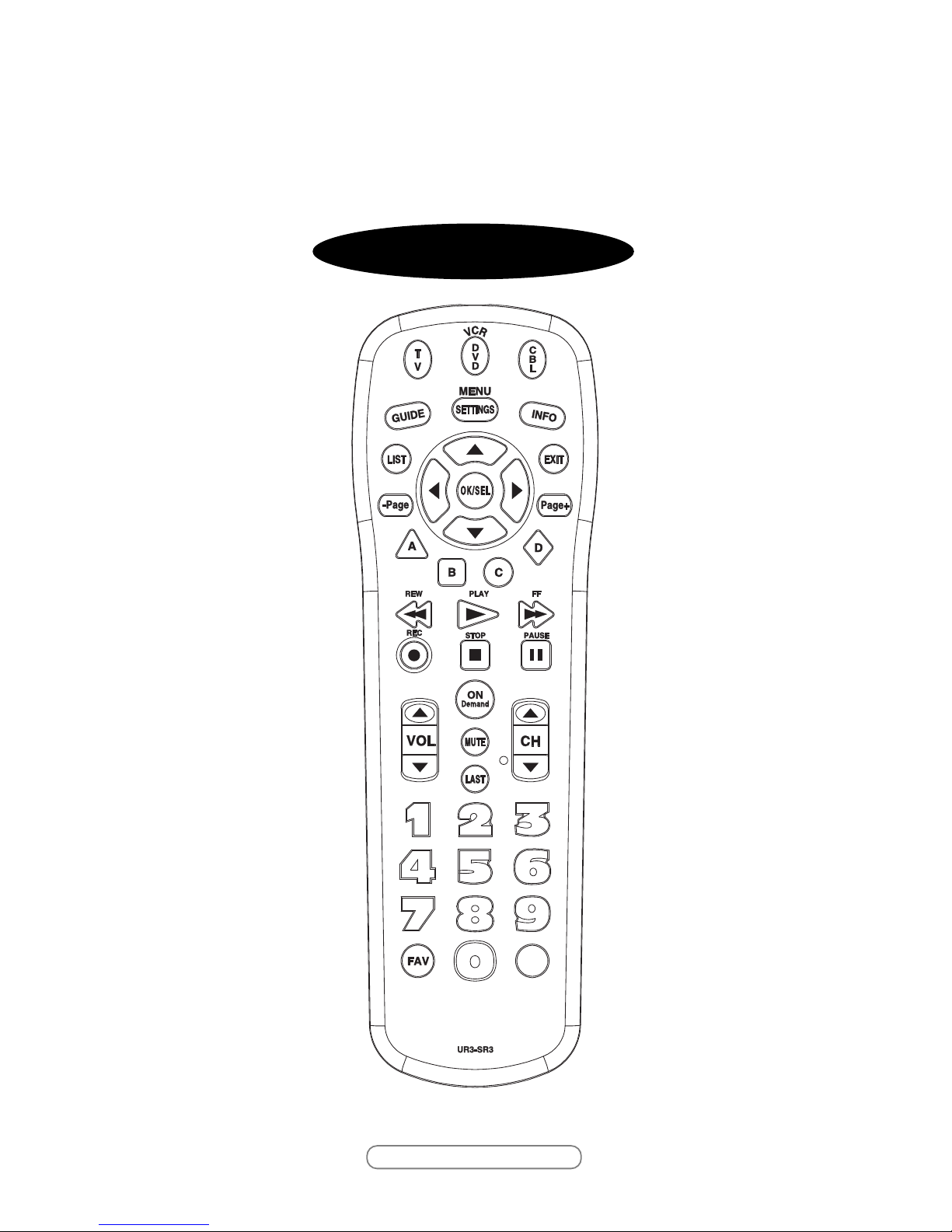

UR3-SR3

Operating Manual

For Easy Clicker

This remote control is designed to operate most Digital

and Analog Cable Boxes, as well as TVs, and a VCR or

DVD player.

Introduction

Install two

AAA alkaline batteries

as shown here

Before you program or operate the remote control, you

must install two new AAA alkaline batteries.

STEP1 Remove the battery compartment cover from the

back of your remote control.

STEP2 Check battery polarity carefully, and install the

batteries as shown in the illustration below.

STEP3 Replace the battery compartment cover.

Replacing Batteries

Button Functions

Programming the Remote Control.

A. Quick Set-Up Method

STEP1

Turn on the equipment you want to program. To

program your TV, turn on the TV.

STEP2

Point the remote at the component and press and

hold the [DEVICE] key for 4 seconds until the Device

*Note : In this section, when you are instructed to press a

[DEVICE] button, that means you should press either

the CBL, TV, or DVD button, depending on which

device you are programming the remote to operate.

LED blinks off and turns back on. Continue holding

the [DEVICE] key and press the number keys, one

at a time, starting with 1, then2, 3...0. Stop pressing

the number keys when the device turns off.

STEP3

Release the [DEVICE] key to save the code. The

Device LED will blink twice to confirm the code is

stored.

Repeat the steps above for all components(CBL, TV, DVD).

B. Manual Pr

B. Manual Programming

ogramming

The remote control can be programmed by entering a three-

digit code number that corresponds to particular brands and

models of equipment. The three-digit code numbers are

listed in the code tables sections of this instruction manual.

STEP1 Turn on the equipment that you want the remote

control to operate Cable Box, TV and DVD(VCR).

STEP2 Press the [DEVICE] button and the [OK/SEL]

button simultaneously for 10 seconds. The

corresponding device LED will turn on indicating

that it is ready to be programmed. The LED will

remain on for 20 seconds. The next step must be

entered while the LED is on.

STEP3 Point the remote control toward the equipment

and enter the three-digit code number assigned

to your brand from the code tables. If there are

more than one three-digit number listed for your

brand, try one code number at a time until your

equipment turns off.

*Note : You can verify that you have selected the correct

code by pressing the [MUTE] button. The

equipment should turn on or off.

STEP4 Store the three-digit code by pressing the same

[DEVICE] button once again. The device LED will

blink twice to confirm that the code has been

stored.

*Note : Try all the functions on the remote control. If any

of the functions do not operate as they should,

repeat the instructions from Step 2 using the next

three-digit code number from the same brand list.

C. Auto Sear

C. Auto Search Method

ch Method

If none of the three digit code numbers assigned to your

brand of equipment works, or the code table does not list your

brand, you can use the Auto Search Method to find the

correct three-digit code number for your equipment by

following steps:

STEP1 Turn on the equipment that you want the remote

control to operate (Cable Box, TV, VCR, or DVD).

STEP2 Press the [DEVICE] button and the [OK/SEL]

button simultaneously for 10 seconds. The device

LED will turn on indicating that it is ready to be

programmed. The LED will remain on for 20

seconds. The next step must be entered while

the LED is on.

STEP3

Press the [CH+] or [CH-] button one at a time or

keep it pressed. The remote will emit a series of

Power ON/OFF code signals. Release the [CH+] or

[CH-] button as soon as the equipment turns off.

*Note : You can verify that you selected the correct code

by pressing the [MUTE] button. The equipment

should turn On or Off.

STEP4 Press the same [DEVICE] button to store the

code. The Device LED will blink twice to confirm

that the code has been stored.

D. T

To find the Thr

o find the Three-Digit Code that W

ee-Digit Code that Was

Programmed using the Auto Sear

ogrammed using the Auto Search

Method

STEP1 Press the appropriate [DEVICE] button and the

[OK/SEL] button simultaneously for 10 seconds.

The device LED will turn on for 20 seconds.

The next step must be performed while the

LED is on.

STEP2 Press the [INFO] button. The device LED will blink

a number of times indicating the number of each

digit for the code. Each digit is separated by a

one second interval of the LED being off.

Example : One blink, then three blinks, then eight blinks

indicates the code number 138.

*Note : Ten blinks indicates the number 0.

Programming a Second TV to the DVD Button

ogramming a Second TV to the DVD Button

STEP1 Press the [DVD] button and the [OK/SEL] button

simultaneously for 10 seconds. The DVD LED will

turn on for 20 seconds. The next step must be

performed while the LED is on.

STEP2 Press the [TV] button.

STEP3 Point the remote control toward the TV and enter the

three-digit code for your TV from the TV codes table.

STEP4 Store the three-digit code by pressing the [DVD]

button. The device LED will blink twice to confirm

that the code has been stored.

F. Pr

. Programming for Advanced Functions.

ogramming for Advanced Functions.

In the CABLE device mode, the A,B,C,D and blank macro

buttons can be programmed to act as a 'Macro' or

Favorite Channel button. This allows you to program up to

five 2-digit channels, four 3-digit channels or three 4-digit

channels that can be accessed with on button press.

*Note : The A,B,C and D buttons are not programmable

if you have a Digital Cable Box made by Pace,

Pioneer or Scientific-Atlanta.

STEP1 Press the [CBL] button to select the CBL mode.

STEP2 Press the [MACRO] button and [OK/SEL] button

simultaneously for 10 seconds. The [CBL] button

will turn on for 20 seconds.

STEP3 Enter the the 2, 3 or 4-digit code for the channel you

want programmed first (for example, 007) using the

Number Pad, then press the [STOP] button. Then

enter the code for the next channel (for example,

050), then press the [STOP] button. Repeat this

process for the third channel. The [CBL] button will

blink once for each channel entered.

STEP4 Press the [CH] button to store the channels

that were selected. The [CBL] button will blink

twice to confirm the storage of commands.

To access the programmed channels, press the [MACRO]

button once. This will bring up the first channel. Press

once again and it will bring up the second channel.

Press again and it will bring up the third channel.

To erase the Macro programming and return to the

original function:

STEP1 Press the [CBL] button to select the CABLE mode.

STEP2 Press a [MACRO] button and the [OK/SEL] button

simultaneously for 10 seconds. The CBL device

LED will turn on for 20 seconds. The next step

must be performed while the LED is on.

STEP3 Press the [CH+] button to erase the functions stored

in the button. The CBL device LED will blink twice to

confirm that the memory button has been erased.

G. Assigning the V

Assigning the Volume and Mute keys to

olume and Mute keys to

a Dif

a Differ

ferent Device

ent Device

By default, the VOL+, VOL- and MUTE keys operate

through your TV. If you would like those keys to operate

those functions on a different device, follow these steps.

STEP1 Press the [OK/SEL] button and [CBL] button

simultaneously for 10 seconds. The device LED

will turn on for 20 seconds. The next step must

be performed while the LED is on.

STEP2 Press the [VOL +] button. The device LED will

blink.

STEP3 Press the [DEVICE] button corresponding to the

device that you would like the volume and mute

buttons to control. The device LED will blink

twice to confirm the programming.

Example : If you wish to have the volume and mute keys

operate your Cable Box, press the [CBL]

button in Step3.

H. Assigning the Channel keys to a

Assigning the Channel keys to a

Dif

Differ

ferent Device

ent Device

By default, the CH+, CH-, NUMERIC and LAST keys

operate through your Cable Box. If you would like those

keys to operate those functions on a different device,

follow these steps.

STEP1 Press the [OK/SEL] button and [CBL] button

simultaneously for 10 seconds. The device LED

will turn on for 20 seconds. The next step must

be performed while the LED is on.

STEP2 Press the [VOL -] button. The device LED will

blink.

STEP3 Press the [TV] button. The device LED will blink

twice to confirm the programming.

*Note : If you wish to have the channel keys operate your

Cable Box, press the [CBL] button instead of the

[TV] button in Step 3.

Assigning the VCR/DV

Assigning the VCR/DVD

–

VOD keys to

contr

control your VCR or DVD

ol your VCR or DVD

By default, the REW, Play, FF, Record, Stop and Pause keys

operate VOD (Video On Demand) through your Cable Box.

If you would like those keys to operate those functions on

your DVD or VCR, press the PLAY button for 10 seconds

until the DVD/VCR button lights. To return to your Cable

Box control, press the PLAY key again for 10 seconds until

the CBL button lights.

J. Low Batter

Low Battery W

y War

arning

ning

When the battery is low (2.3V-2.0V) and needs to be

replaced with fresh batteries, device LED will blink 2 times

in sequence whenever a [DEVICE] button is pressed to

turn on equipment.

K. Memor

Memory Lock System.

y Lock System.

This remote control is designed to retain programmed

memory for 10 years — even after batteries are removed

from the remote control.

Quick Set-up Code Tables

Quick Number Manufacturer/Brand

CBL

DVD

0 PACE

1 SCIENTIFIC ATLANTA/CISCO, PACE,

SAMSUNG

2 MOTOROLA

3 AMINO

4 AT&T

5 CISCO

6 DIRECTV

7 MOXI

8 TIVO

9 HUMAX

0 SANYO

1 SONY

2 SAMSUNG

3LG

4 TOSHIBA

5 PANASONIC

6 PHILIPS

7 HITACHI

8 SHARP

9 VIZIO

0 HITACHI

1 SONY

2 PHILIPS

3 SAMSUNG

4 PHILIPS MAGNAVOX

5 PANASONIC

6LG

7 JVC

8 DENON

9 PIONEER

Quick Number Manufacturer/Brand

Andere Handbücher für Easy Clicker UR3-SR3

Inhaltsverzeichnis

Andere Universal Remote Control Fernbedienung Handbücher

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Bedienungsanleitung

Universal Remote Control

Universal Remote Control MX-980 Bedienungsanleitung

Universal Remote Control

Universal Remote Control UR-S475TVE Bedienungsanleitung

Universal Remote Control

Universal Remote Control UR2-CBL-CV01 Bedienungsanleitung

Universal Remote Control

Universal Remote Control CLIKR-5 UR5L-8520L Bedienungsanleitung

Universal Remote Control

Universal Remote Control Easy Clicker UR3-SR3-DTA Bedienungsanleitung

Universal Remote Control

Universal Remote Control MX600 Bedienungsanleitung

Universal Remote Control

Universal Remote Control PHAZR-5 UR5U-9000L Bedienungsanleitung

Universal Remote Control

Universal Remote Control Complete Control KP-900 Bedienungsanleitung

Universal Remote Control

Universal Remote Control Complete Control MRF-260 Bedienungsanleitung

Universal Remote Control

Universal Remote Control Easy Clicker UR3L-SR4 Bedienungsanleitung

Universal Remote Control

Universal Remote Control UR4U-MDVR-CHD2 - MOTOROLA AND SCIENTIFIC ATLANTA... Bedienungsanleitung

Universal Remote Control

Universal Remote Control R7 - SPECS SHEET Bedienungsanleitung

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Bedienungsanleitung

Universal Remote Control

Universal Remote Control UR4U-MDVR2 Bedienungsanleitung

Universal Remote Control

Universal Remote Control UR4U-MDVR2 Bedienungsanleitung

Universal Remote Control

Universal Remote Control Easy Clicker UR3-SR2 Bedienungsanleitung

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8780L Bedienungsanleitung

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Bedienungsanleitung

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Bedienungsanleitung

Universal Remote Control

Universal Remote Control UR-J2000TVE Bedienungsanleitung

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8800L Bedienungsanleitung

Universal Remote Control

Universal Remote Control URC-A6 Bedienungsanleitung

Universal Remote Control

Universal Remote Control ONE FOR ALL 3050CODES Bedienungsanleitung

Beliebte Fernbedienung Handbücher anderer Marken

Panasonic

Panasonic EUR7622KB0 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen Beo4 Bedienungsanleitung

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Bedienungsanleitung

Multiplex

Multiplex PROFI TX 9 Bedienungsanleitung

One Remote

One Remote RMB4 Bedienungsanleitung

FUTABA

FUTABA 9ZAP - PART2 Bedienungsanleitung

HR Matic

HR Matic HR MULTI 3 Bedienungsanleitung

Yamaha

Yamaha ACC-GNRST-30-20 Bedienungsanleitung

EisSound

EisSound KBSOUND Bedienungsanleitung

Marantz

Marantz RC101 Bedienungsanleitung

Conrad

Conrad FS20 TC6 Bedienungsanleitung

Anritsu

Anritsu MP1777A Bedienungsanleitung

Niles

Niles WVC100 Fehlerbehebungshandbuch

RCA

RCA RCU1300 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen BEO6 Bedienungsanleitung

GE 94901 Bedienungsanleitung

Onbon

Onbon YQ1-75 Bedienungsanleitung

FUTABA

FUTABA R7108SB Montageanleitung
