URC ZR-1N Bedienungsanleitung
G
Order Number
: GETEC-C1-11-239
FCC Part 15 subpart C
Test Report Number
: GETEC-E3-11-122
Page 1 / 1
EUT Type: Zigbee Repeater
FCC ID.: OZ5URCZR1N
APPENDIX H
:USER’S MANUAL

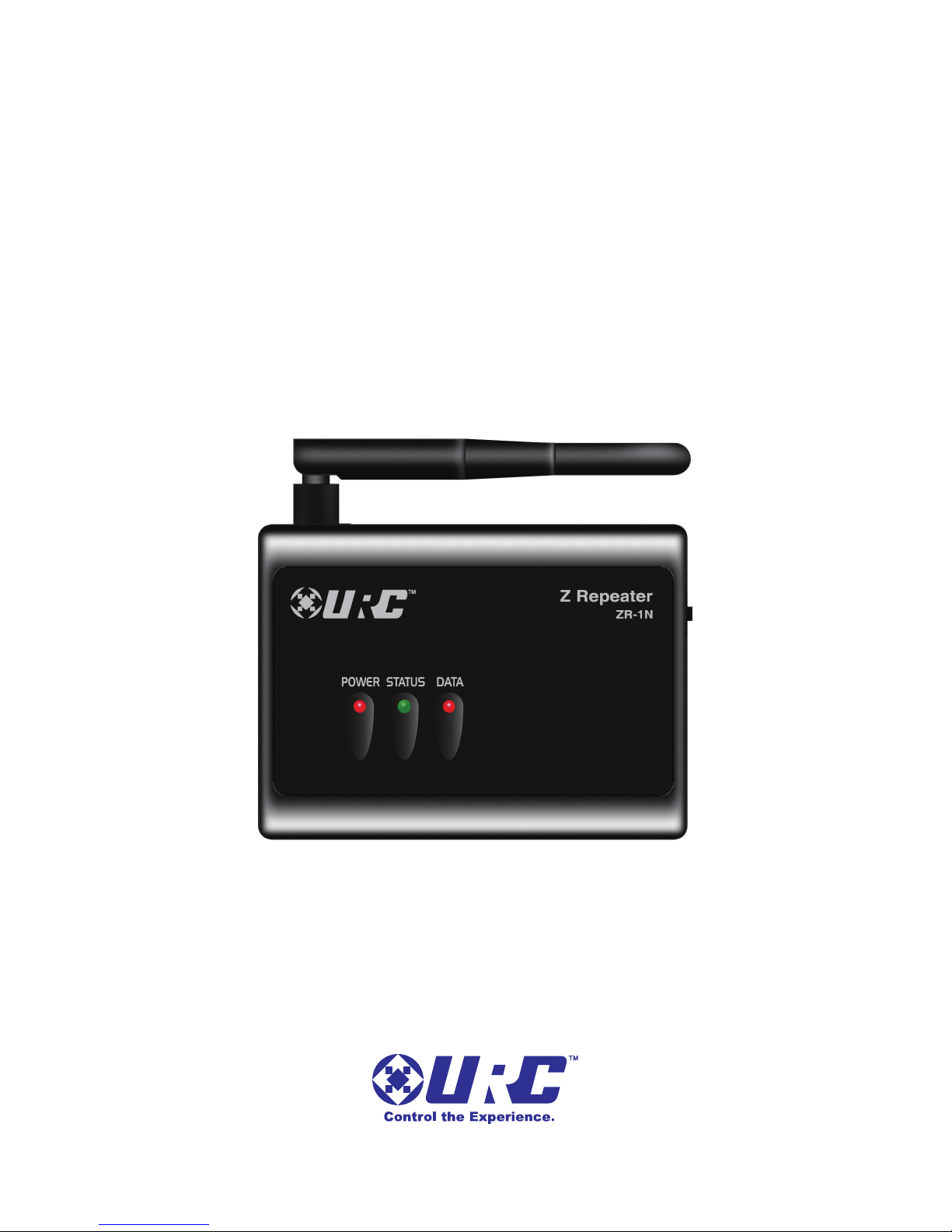

ZR-1N Z Repeater
Owner’s Manual
ZR-1N Z Repeater Owner’s Manual ©2010 Universal Remote Control, Inc.
The information in this manual is copyright protected. No part of this manual
may be copied or reproduced in any form without prior written consent
from Universal Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPER-
ATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN
THIS MANUAL.
The information in this manual may be subject to change without prior notice.
URC - Control the Experience is a registered trademark of Universal Remote
Control, Inc.
All other brand or product names are trademarks or registered trademarks
of their respective companies or organizations.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
TABLE OFCONTENTS
Introduction 1
Features and Benefits 1
Parts Guide 1
ZR-1N Front and Side Panel Descriptions 2
Specifications 3
USA Limited Warranty Statement 3
Federal Communication Commission
Interference Statement 5
Regulatory Information to the user 6
Declaration of Conformity 7
Page 1
ZR-1N Z REPEATER
Introduction
Congratulations on your purchase of the ZR-1N Z Repeater! The ZR-1N
is used to extend the operational range between Total Control products
such as the TRC-780 and the MRX-10. Once joined to the MRX-10 it
will wirelessly relay communication between an TRC-780 and another
ZR-1N repeater.
Features and Benefits
Wirelessly extends the range between Total Control products. Extend the
operational range between a TRC-780 remote and a MRX-10 Advanced
Network System Controller. Control lighting, music and more from through-
out the home.
Parts Guide
The ZR-1N Z Repeater includes:
1 - ZR-1N Z Repeater 1 - AC Power Adapter
1 - Wall Mount and 4 Screws 1 - Owner’s Manual
Page 2
ZR-1N Z REPEATER

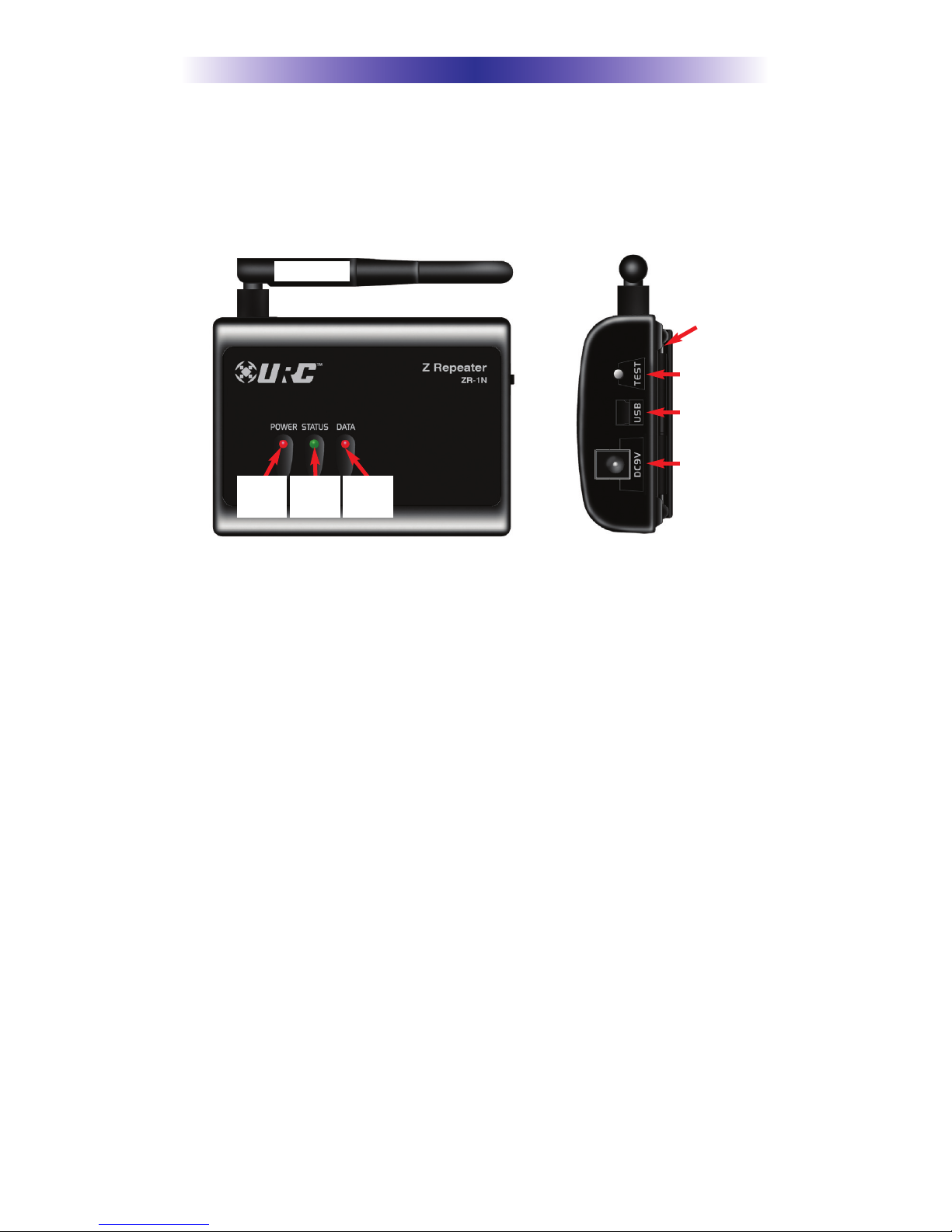

ZR-1N Front and Side Panel Descriptions
The front panel consists of 3 indicator lights which will illuminate
when in use.
Power LED: Indicates that the ZR-1N is powered on when illuminated.
Status LED: The LED will show what the RF signal strength of the
ZR-1N to the MRX-10. By pressing the TEST button on the side of
the unit, it will indicate the signal strength. When the LED is:
. OFF: The ZR-1N is not testing for signal strength, and the
TEST button should be pressed.
. Orange: The signal strength is LOW, and the ZR-1N should be
move to a different location
. Green: The signal strength is GOOD, and the ZR-1N is in a
good location.
Data LED: The LED will flash RED when the unit is transmitting or
receiving data.
Antenna: Omnidirectional antenna. Adjust the antenna for best per-
formance. Usually vertical positioning works well.
DC9V Power: Attach the included 9V DC power supply here.
Mounting Plate: May be attached to a wall or other surface with the
included screws for easy slide on/off mounting.
POWER
LED
STATUS
LED
USB
DC9V
Power
TEST
Mounting
Plate
Antenna
DATA
LED
Page 3
Specifications
RF Frequency: 2.48GHz (Two-way RF)
Effective Range: Typically 50-75 ft, depending on environment
Size: L x D x H = 3.625" x 1.125" x 6.625" (with antenna vertical)
Weight: 3 oz.
Power Supply: 9V DC 300mA
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new con-
dition, is warranted against defects in materials or workmanship as
follows: UNIVERSAL REMOTE CONTROL, INC. warrants this prod-
uct against defects in material or workmanship for a period of one
(1) year and as set forth below. Universal Remote Control will, at its
sole option, repair the product using new or comparable rebuilt
parts, or exchange the product for a comparable new or rebuilt
product. In the event of a defect, these are your exclusive remedies.
This Limited Warranty covers only the hardware components pack-
aged with the Product. It does not cover technical assistance for
hardware or software usage and it does not cover any software
products whether or not contained in the Product; any such soft-
ware is provided "AS IS" unless expressly provided for in any
enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight
prepaid, in its original packaging or packaging affording adequate
protection to Universal Remote Control at the address provided in
the Owner's Manual. It is your responsibility to backup any macro
programming, artwork, software or other materials that may have
been programmed into your unit. It is likely that such data, soft-
ware, or other materials will be lost during service and Universal
Remote Control will not be responsible for any such damage or
loss. A dated purchase receipt, Bill of Sale, Installation Contract or
other verifiable Proof of Purchase is required. For product support
and other important information visit Universal Remote Control's
website: http://www.UniversalRemote.com or call the Customer
Service Center (914) 835-4484.
ZR-1N Z REPEATER
Page 4
This Limited Warranty only covers product issues caused by defects
in material or workmanship during ordinary consumer use. It does
not cover product issues caused by any other reason, including but
not limited to product issues due to commercial use, acts of God,
third-party installation, misuse, limitations of technology, or modifi-
cation of or to any part of the Universal Remote Control product.
This Limited Warranty does not cover Universal Remote Control
products sold as USED, AS IS, REFURBISHED, so-called “B STOCK”
or consumables (such as batteries). This Limited Warranty is invalid
if the factory-applied serial number has been altered or removed
from the product. This Limited Warranty is valid only in the United
States of America. This Limited Warranty specifically excludes
products sold by unauthorized resellers.
LIMITATION OF REMEDIES
UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDI-
TION ON THIS PRODUCT. IN NO EVENT SHALL UNIVERSAL
REMOTE CONTROL BE LIABLE, WHETHER IN CONTRACT OR IN
TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF
THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR
SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REV-
ENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMA-
TION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH
THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCES-
SORIES OR SOFTWARE TO THE FULL EXTENT THESE DAMAGES
MAY BE DISCLAIMED BY LAW.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW,
THERE IS NO OTHER WARRANTY EXPRESSED OR IMPLIED. UNI-
VERSAL REMOTE CONTROL WILL NOT BE HELD RESPONSIBLE
FOR STATEMENTS MADE BY OTHERS CONCERNING THE MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON
THIS PRODUCT. Some states or jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages, or
allow limitations on how long an implied warranty lasts, so the
above limitations or exclusions may not apply to you. This Limited
Warranty gives you specific legal rights and you may have other
rights which vary from state to state or jurisdiction to jurisdiction.
REV020708
ZR-1N Z REPEATER
Page 5
ZR-1N Z REPEATER
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or tele-
vision reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning!
Changes or modifications not expressly approved by the manufacturer could
void the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user's authority to operate the equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Federal Communication Commission (FCC) Radiation Exposure Statement
The device and the antenna for this device must be installed to ensure a
minimum separation distance of 20 cm more from a person's body. Other
operating configurations should be avoided.
Page 6
ZR-1N Z REPEATER
Regulatory Information to the user
CE conformity Notice
Products with “CE” marking comply with the R&TTE Directive
1995/5/EC, EMC Directive 2004/108/EC and Low Voltage
Directive 2006/95/EEC issued by the commission of the European
Community.
1) R&TTE Directive
LVD : EN 60950-1
EMC : ETSI EN 301 489-1,3
RF : ETSI EN 300 220-1,2
: ETSI EN 300
2) EMC Directive
Emission : EN 55022
Immunity : EN 55024
Power : EN-61000-3-2, 3
Use only with EN60950-1 approved as Limited power source and
double insulation( ) marked power adaptor & same ratings
described on the product label (9DVdc, 300mA).
Declaration of Conformity
“Hereby, Universal Remote Control Inc. declares that this ZR-1N is in
compliance with the Essential requirements and other relevant provi-
sions of Directive 1999/5/EC.”
Certification
Type No.(Model No.) ZR-1N
Batch/Serial No. -
Power Rating 9.0V , 300mA
Frequency band 2.48GHz
