Urmet domus IPer Voice Max 1717 Series Bedienungsanleitung

DS1717-036C LBT20181

Mod.

1717

IP 7” TOUCHSCREEN VIDEO DOOR PHONE

Ref. 1717/32 (White)

Ref. 1717/34 (Black)

COMPLETE USER MANUAL

2 DS1717-036C

The information contained in this manual has been carefully collected and checked; however, the

manufacturer may not be held responsible for any errors or omissions. The manufacturer reserves

the right to introduce at any time and without notice improvements or changes in the products and

services described in the manual.

(Note: the Android apps may be subject to changes according to the product version).

This manual may also contain references to or information on products or services not yet

available commercially. Such references or information will not in any way imply that the company

intends to market such products or services.

All the trademarks mentioned in this document are the property of their respective owners.

exclusive purpose of using the 1717/32 or /34 Video Door Phone.

DS1717-036C

The features described in the following booklet refer to version 5.0.0-10_VER_1_42 of the IP 1717/32 and

1717/34 video door phone.

Index

1General description 6

1.1 In a nutshell 6

1.2 How to turn on the screen and access the various functions 6

1.3 How to navigate between applications 8

1.4 How to interpret the reports 9

1.5 How to turn off the screen 10

1.6 How to send a panic alarm 10

1.7 How to block the touchscreen feature 11

1.8 How to control a 1717/32 or /34 Video Door Phone hardware reset 11

2Video Door Phone 12

2.1 How to answer an external call 12

2.1.1 How to answer a call with multiple Video Door Phones, or with an active

"Remote" option 13

2.2 How to answer a call from the switchboard 14

2.3 How to answer an intercom call 15

2.4 How to access Video Door Phone functions 16

2.5 How to use audio messages (Voice "Post-its") 17

2.5.1 How to record an audio message 17

2.5.2 How to listen to an audio message 18

2.6 How to call the switchboard 18

2.7 How to activate an auxiliary function 19

2.8 How to open the entrance door without having been called 19

2.9 How to open the garage/driveway gate without having been called 20

2.10 How to activate the Video Door Phone Voicemail 20

2.11 How to turn off the Video Door Phone Voicemail 20

2.12 How to view voicemail calls 21

2.12.1 How to delete one or more voicemail recordings 21

2.13 How to mute the Video Door Phone ringtone 22

2.14 How to make an intercom call 22

2.15 How to check the call log 24

2.16 How to send a text message 25

2.17 How to search for a name in the address book 26

2.18 How to add new contacts to your address book 27

2.18.1 How to resend a contact request 29

3How to accept contact requests 29

3.1 How to delete contact requests 29

3.2 How to view images from the cameras 30

DS1717-036C

3.3 How to view snapshots 31

3.3.1 How to delete one or more snapshots 31

3.4 How to call the lift 32

4IPerHome Home Automation 33

5Android App 36

5.1 Preloaded Android Apps 38

6MIFARE (Access control Application) 39

6.1 How to change the access code for the administrator 40

6.2 How to create, delete, or replace a key for the administrator 42

6.2.1 How to delete the administrator key 43

6.2.2 How to replace the administrator key 43

6.3 How to manage users 44

6.3.1 How to add a user 44

6.3.2 How to delete a user or a key or change a user data 46

6.4 How to record accesses and exits 48

6.5 How to view a user's log 48

6.6 How to view all logs 50

7Configurations 51

7.1 How to change the Home Page 51

7.2 How to change the display wallpaper 52

7.3 How to change the Video Door Phone language 53

7.4 How to change the time format 53

7.5 How to configure networks 55

7.5.1 Local lan port 55

7.5.2 WiFi network 56

7.6 How to configure the Ipercom system 56

7.7 How to activate the screen saver function 57

7.8 How to display the general settings of the video door phone 58

7.9 How to change video door phone tunes 59

7.10 How to change the audio volume 60

7.11 How to change screen settings 60

7.12 How to change video door phone voicemail settings 62

7.13 How to automatically open the door 63

7.14 How to set the user name for the call forwarding function 64

7.15 How to check network settings 65

7.16 How to enable or disable the Panic icon 66

7.17 How to restart Video Door Phone application 67

7.18 How to see the video door phone application software version 67

8Maintenance 68

8.1 How to clean the Video Door Phone 68

8.2 How to Reboot the Video Door Phone 68

DS1717-036C

8.3 How to carry out User Data Reset 69

8.4 How to reset Video Door Phone factory settings 70

8.5 How to save /restore configuration on SD card 71

8.6 How to configure the Video door phone 72

DS1717-036C

1 General description

1.1 In a nutshell

The Video Door Phone 1717/32 or /34 is an IP touchscreen device of the Ipercom system that can operate as:

advanced IP Video Door Phone,

IPerHome Home Automation Terminal,

MIFARE Access Control,

Android Applications Manager.

The Video Door Phone uses the Android operating system and is able to perform both the specific functions of

Urmet systems and the generic functions of Android devices. To optimise user-friendliness, the Video Door

Phone comes with certain factory-preloaded applications.

1.2 How to turn on the screen and access the various functions

The 1717/32 or /34 IP Video Door Phone screen is normally off and automatically lights up when it receives a

video door phone call (see section 2.1 How to answer an external call).

In this case, a screen page is displayed from which the user can answer the caller and open the entrance

door.

The screen can also be voluntarily turned on by the user, to access one of its many applications. To turn on

the screen simply:

tap the screen at any point, or

press the centre button at the bottom of the Video Door Phone to bring up the Home Page.

The default Home Page is the Video Door Phone application, from which you can access the various video

door phone functions (you can change this setting and choose another application as your Home Page, for

example one of the Home Automation ones).

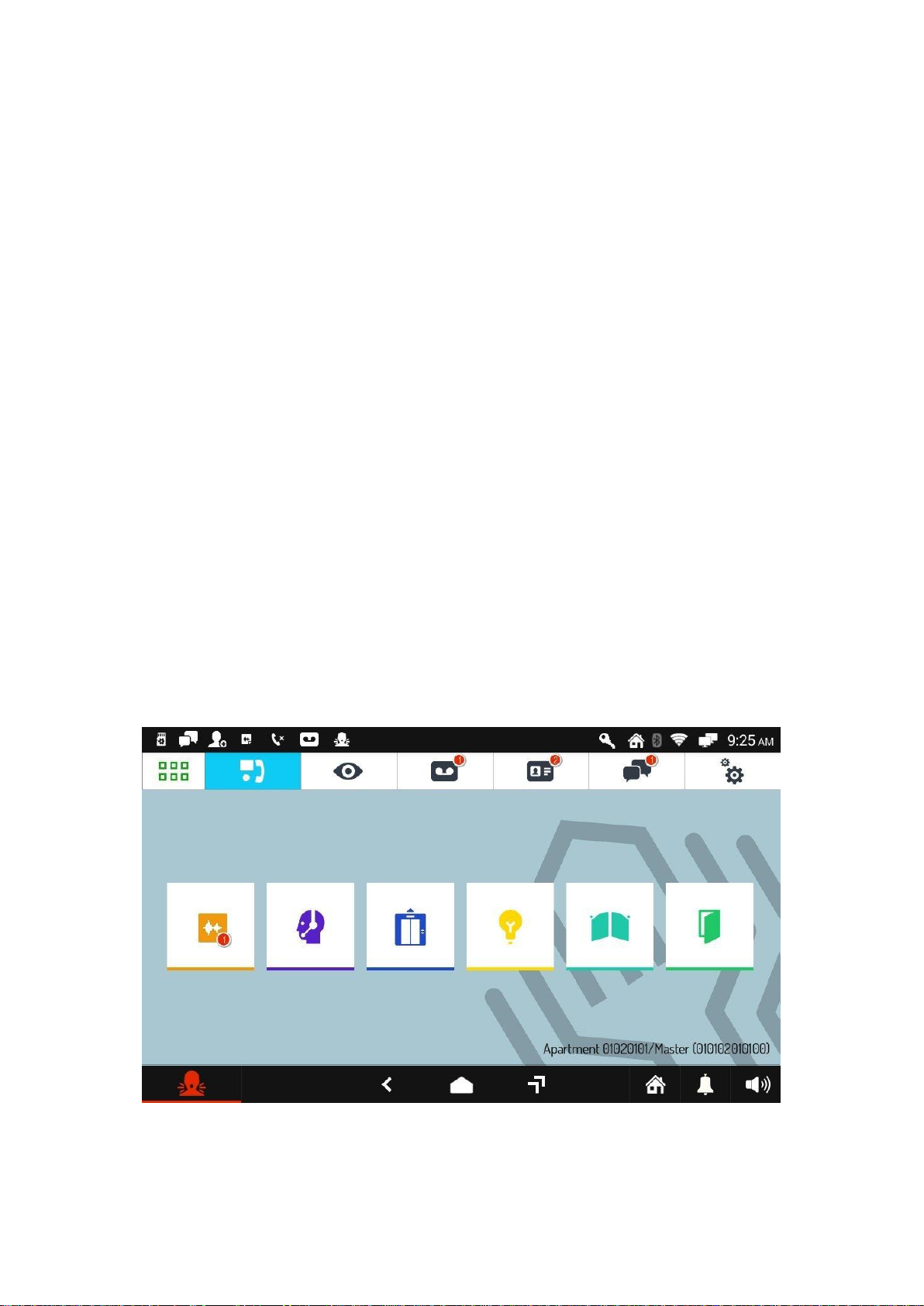

Video Door Phone Home Page (default option)

DS1717-036C

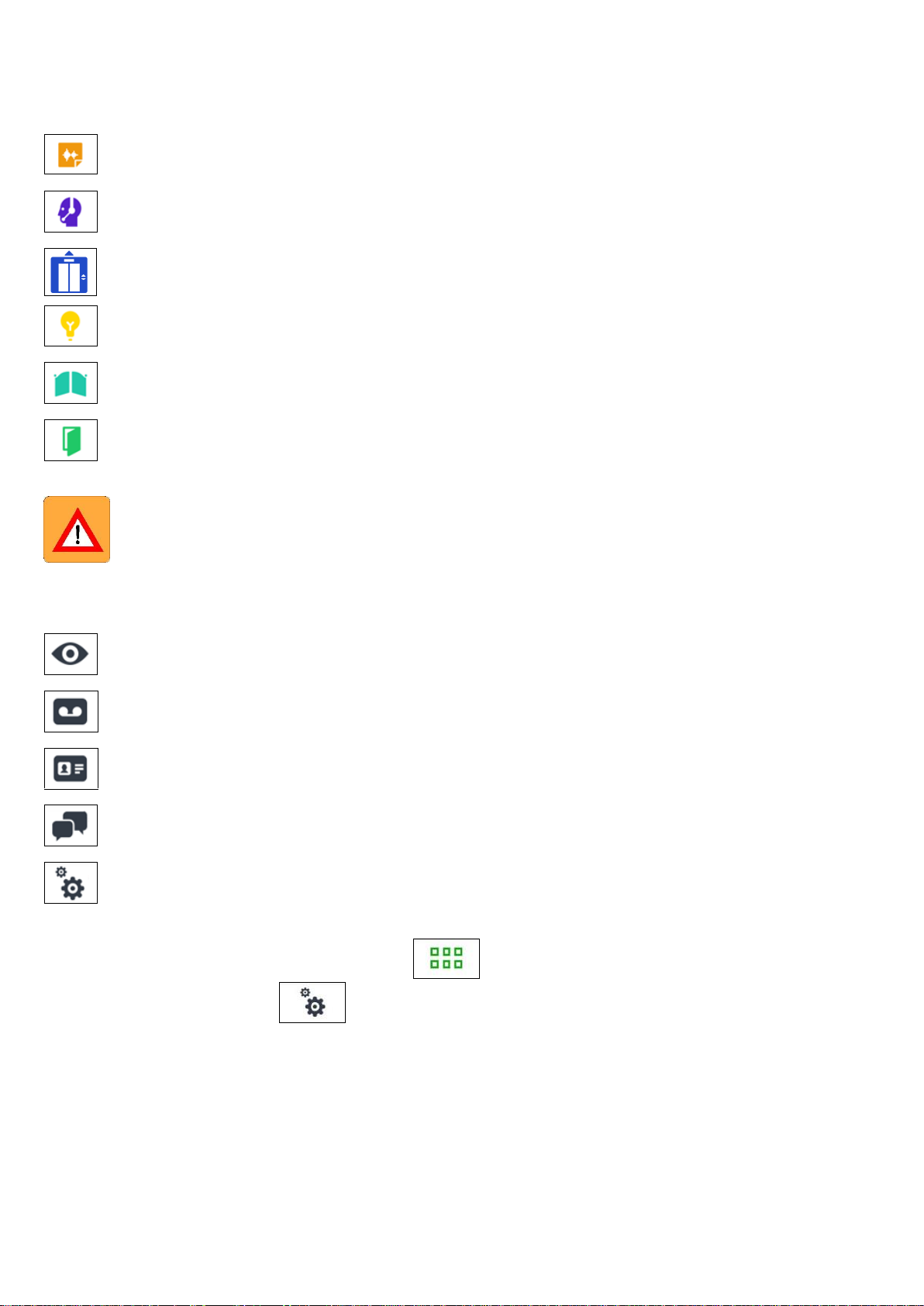

The video door phone functions are the following:

Recording short audio messages (Post.it)

Calling the switchboard (if the Ipercom system is adequately pre-set)

Lift control (if the Ipercom system is adequately pre-set).

Activating an auxiliary function, e.g. turning on the stair lights (if the Ipercom system is adequately

pre-set).

Opening a driveway or garage gate.

Opening the door

WARNING! The functions' availability depends on how the video door phone system has been

designed and built. Some of the functions described below may not be available in your system.

You may want to check with your installer if a specific function is available or can be implemented.

The other navigation icons in the top bar can be used to:

View footage from the cameras present in the system

View recorded audio-video messages (video door phone Voicemail)

Display the address book and the call log

Send text messages (Chat)

Change audio/video screen settings and/or operation language

To change the default application tap the icon , provided in the top left corner, to access the Top

Page, then tap the Set-up icon and finally the Home Page menu.

DS1717-036C

1.3 How to navigate between applications

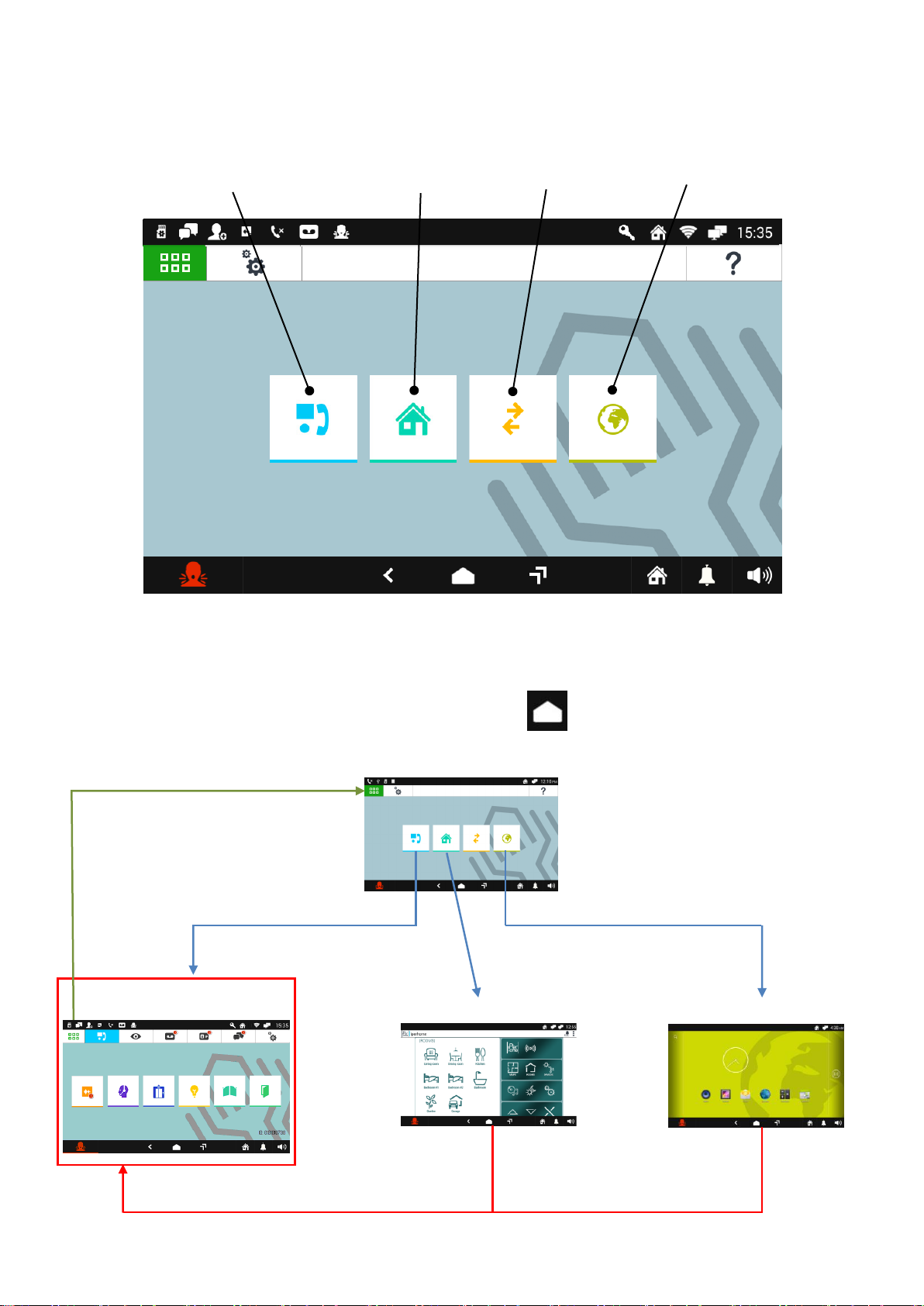

The various applications are accessible from the Top Page, by tapping the special icon.

Top Page

The key ‘’?’’ can be used to scan a QR Code and access with your smartphone a page on the Urmet website,

where you can check the datasheet of the product in question.

To return to the Home Page from any screen page, tap the icon in the middle of the bottom bar.

Android App

MIFARE

IPerHome

Video Door Phone Applications

Video Door Phone

IPerHome

Android App

HOME page

(default)

Top Page

DS1717-036C

The default Home Page is the Video Door Phone application, but can be replaced with one of the

others by using the Configuration menu of the Top Page.

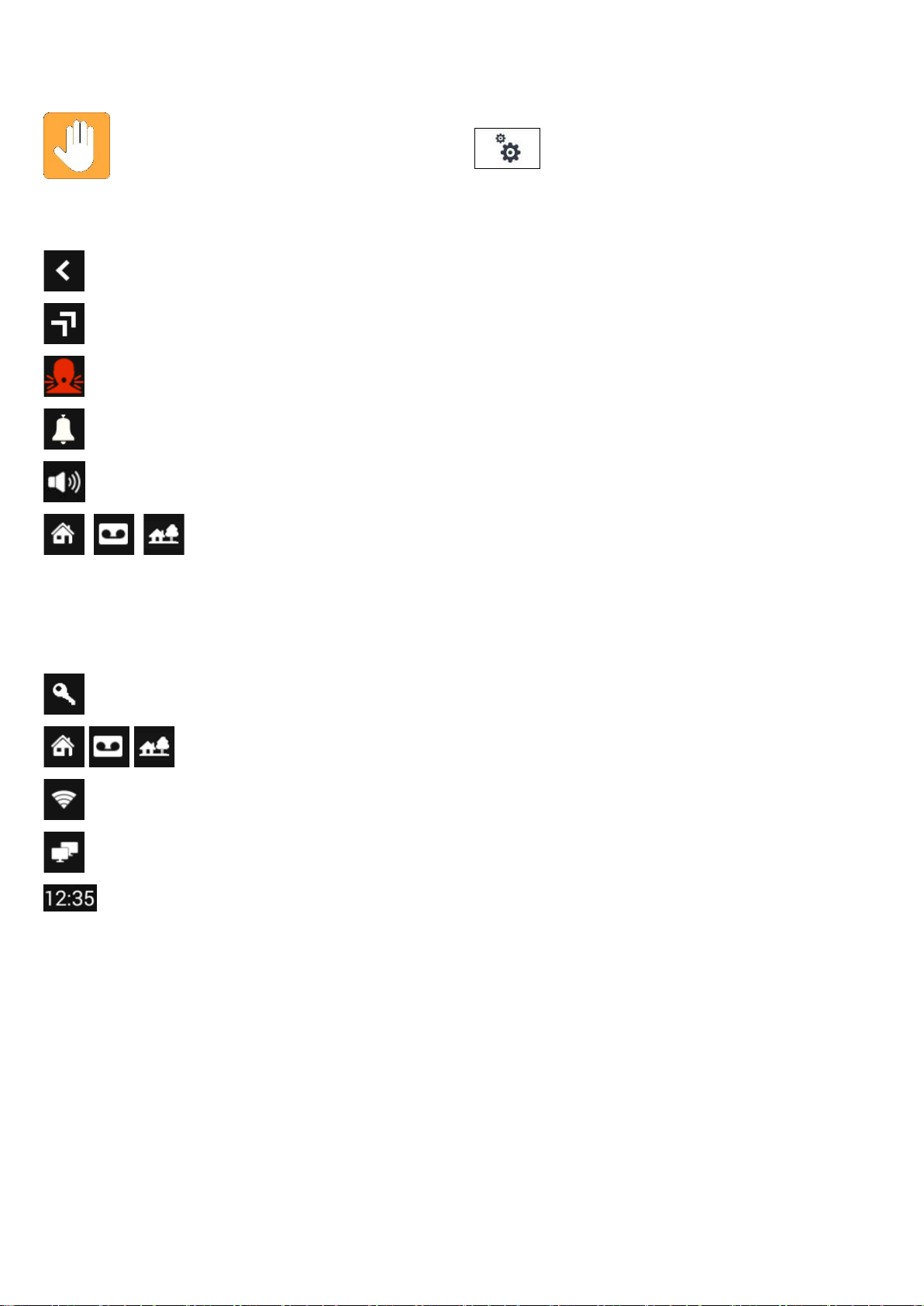

The other navigation icons in the top bar can be used to:

Return to the previous page.

Go to the page that lists the recently opened applications.

Send a panic alarm signal (function enabled if the Ipercom system includes a suitably

configured concierge switchboard service).

Mute the call (Mute) to the Video Door Phone for a user-settable period of time.

Change the call volume.

Set the following device states: In-house / Answering Machine / Remote (only one

active at a time).

1.4 How to interpret the reports

The bar at the top right of the screen shows status information:

Automatic door opening (if this feature is enabled).

In-house / Answering Machine / Remote (only one active at a time).

Active WiFi or second LAN connection (only one active at a time).

LAN connection to Ipercom network.

The icon does not appear in Link Local

Time.

A new notification is indicated by the flashing blue LED on the 1717/32 or /34 Video Door Phone centre button,

by the corresponding menu icon at the top left and the by corresponding entry in the drop-down menu.

DS1717-036C

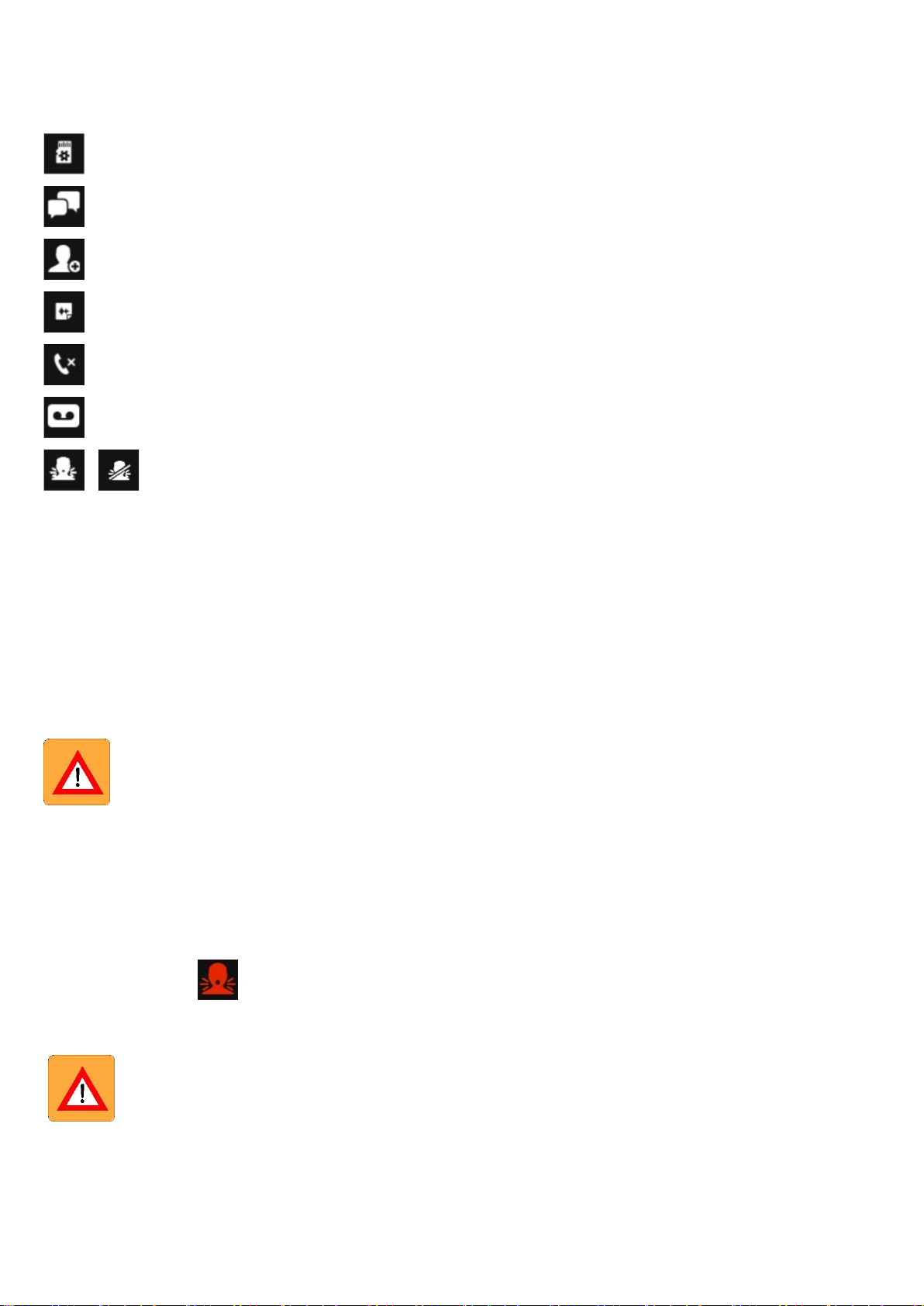

The possible notifications are:

Micro SD Card in.

Presence of an unread text message (Chat).

New contact request.

New Post-it not yet listened to.

Missed Call.

Video message not yet viewed.

Panic Alarm sent/cancelled.

1.5 How to turn off the screen

To turn off the screen press the centre button of the 1717/32 or /34 Video Door Phone.

The screen turns off automatically:

when the user-programmable time-out delay has elapsed (see section 7.11 How to change screen

settings);

at the end of an incoming call, if the screen was previously off.

1.6 How to send a panic alarm

WARNING! The Panic alarm function requires that:

the video door phone system has a switchboard;

the system has been properly set up (for more information, check the Ipercom manual on

www.urmet.com );

there is a switchboard operator on duty;

the switchboard operator has been properly trained on what to do in the event that a panic

alarm is received.

How to send a panic alarm:

Turn on the screen, if off, by tapping it at any point or by pressing the centre button on the 1717/32 or

/34 Video Door Phone.

Tap the icon , always visible in the bottom left corner of the screen, unless it had been disabled or

a switchboard is present in the system (see section 7 Configurations).

In the pop-up page that opens tap the CONFIRM button to control the alarm.

WARNING! Even if unconfirmed, the alarm message will be sent in any case when the timeout

delay expires (after 5 seconds), unless sending is cancelled by tapping the ABORT button.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere urmet domus Gegensprechanlage Handbücher

urmet domus

urmet domus iPer com 1717 Systemhandbuch

urmet domus

urmet domus 1722 Bedienungsanleitung

urmet domus

urmet domus 1760 Installations- und Betriebshandbuch

urmet domus

urmet domus VOG7 1760/31A Installations- und Betriebshandbuch

urmet domus

urmet domus 1717 Installations- und Betriebshandbuch

urmet domus

urmet domus 1760 Bedienungsanleitung

urmet domus

urmet domus 1083 Bedienungsanleitung

urmet domus

urmet domus IPerVoice 1039 Bedienungsanleitung

urmet domus

urmet domus VOG 5 Systemhandbuch

urmet domus

urmet domus 1060 Produktinformationsblatt

urmet domus

urmet domus 6025/401 Bedienungsanleitung

urmet domus

urmet domus IPERCOM 1761 Bedienungsanleitung

urmet domus

urmet domus 1133 Bedienungsanleitung

urmet domus

urmet domus IPerCom Bedienungsanleitung

urmet domus

urmet domus 2VOICE VOG7 1760 Bedienungsanleitung

urmet domus

urmet domus Nexo 1708/1 Bedienungsanleitung

urmet domus

urmet domus 2Voice mikra plus Merkblatt

urmet domus

urmet domus 1083 Bedienungsanleitung

urmet domus

urmet domus 1083/9 Bedienungsanleitung

urmet domus

urmet domus modo 1719 Leitfaden

urmet domus

urmet domus VOG 5W 1760 Betriebsanleitung

urmet domus

urmet domus signo 1140 Bedienungsanleitung

urmet domus

urmet domus IPercom VOG7 1761 Installations- und Betriebshandbuch

urmet domus

urmet domus 2 Voice Sinthesi Steel 1758/83 Bedienungsanleitung

Beliebte Gegensprechanlage Handbücher anderer Marken

Bticino

Bticino LINEA 3000 Bedienungsanleitung

MSI

MSI MSI-140 Bedienungsanleitung

golmar

golmar Stadio Plus Bedienungsanleitung

CyberData

CyberData 011211 series Handbuch

Vidos

Vidos duo M1021 Bedienungsanleitung

Vimar

Vimar ELVOX 7539/E Bedienungsanleitung

SSS Siedle

SSS Siedle BTSV 850-03 Bedienungsanleitung

Dahua

Dahua VTO Series Bedienungsanleitung

Elvox

Elvox 5651 Bedienungsanleitung

Videx

Videx VIDEOKIT Series Bedienungsanleitung

Rocom

Rocom Doortello Business FW T2.05W2.04 Bedienungsanleitung

Viking

Viking E-35-EWP Bedienungsanleitung

Safeguard Supply

Safeguard Supply LRA-EX1000 Bedienungsanleitung

SSS Siedle

SSS Siedle BFCV 850 Series Bedienungsanleitung

GRD

GRD MAX V2 Bedienungsanleitung

Alecto

Alecto ADI-250 Bedienungsanleitung

Aiphone

Aiphone IE-8MD Bedienungsanleitung

Perel

Perel EDB4 Bedienungsanleitung

urmet domus iPer Voice Max 1717 Series Bedienungsanleitung

Beliebte Gegensprechanlage Handbücher anderer Marken
