Urmet domus VOG 5W Systemhandbuch

DS1760-021 LBT21145

Mod.

1760

VIDEO DOOR PHONE 2VOICE HANDS-FREE WiFi

MONITEUR 2VOICE MAIN-LIBRES WiFi

VIDEOINTERFONO 2VOICE MANOS LIBRES WiFi

Sch./Ref. 1760/18

(white / blanc / blanco)

Sch./Ref. 1760/19

(black / noire / negro)

INSTALLATION HANDBOOK

NOTICE D’INSTALLATION

MANUAL DE INSTALACIÓN

FCC. ID.: REA176018

2DS1760-021

ENGLISH

1. DESCRIPTION

The video door phones Ref. 1760/18 and Ref. 1760/19 are dedicated to use in 2Voice video door

phone systems.

The main features are:

࠮ 5’’ (Wide Angle) TFT-LCD colour screen;

࠮ backlit soft-touch buttons (*);

࠮ possibility of activating video door phone functions using gesture commands on the IR sensor (disabled

by default);

࠮ possibility of adjusting the audio/video (speaker volume, brightness, contrastand colour)in OSD menu;

࠮ WVZZPIPSP[`VMJ\Z[VTPZPUN[OLYPUN[VULHJJVYKPUN[V[OLJHSSZV\YJL^P[OHJOVPJLVMÄ]LKPɈLYLU[[`WLZ;

࠮ possibility of adjusting the ring tone volume;

࠮ call forwarding function to smartphones and tablets;

࠮ video door phone answering machine function (up to 32 video messages);

࠮ users book for intercom calls (up to 32 users);

࠮ “Clean screen” function;

࠮ “MUTE” function;

࠮ hands-free or push-to-talk mode:

– Hands-free: press the audio button once to start the conversation and once again to end it;

– Push-to-talk: press the audio button to speak to the door unit, release the button to listen.

(*) When a key is pressed an acoustic signal (beep) is provided. This signal is disabled when “MUTE”

function is activated.

2. DESCRIPTION OF COMPONENTS AND FEATURES

15 1516

1. Function keys:

: driveway gate door opener key

: closing the contact between terminals X1 and X2 (max 50 mA @ 24 V )

: closing the contact between terminals Y1 and Y2 (max 50 mA @ 24 V )

: no function

: auto-on / video switching key

DS1760-021

: special function key

: intercom call key

: left scrolling arrow key

: right scrolling arrow key

: upwards scrolling arrow key

: downwards scrolling arrow key

: switchboard call key

2. Key for activation of secondary functions / display turning on (with green backlighting LED)

3. Raised notches for vision-impaired

4. Pedestrian door opener button (with green / red backlighting LED)

5. Function button (with red backlighting LED)

6. 5” display

7. Microphone

8. IR sensor for gesture commands

9. Micro SD slot

10. (\KPVVUVɈI\[[VU (with green backlighting LED)

11. Speaker

12. Terminals for connecting to the system

13. Jumper for adjustment of power supply type: System BUS or local power supply unit (JP1)

14. Jumper for adjustment of device consumption mode (JP2)

15. Jumper for adjustment of Z line termination (JP3)

16. *VUÄN\YH[PVUKPWZ^P[JOLZ (SW1 / SW2):

– UVVM:>KLÄULZ[OLVWLYH[PUNTVKLVU[OL>P-PVU[OL]PKLVKVVYWOVUL"

– VM:>[VKLÄUL[OLHWHY[TLU[U\TILYPU[OLJVS\TU"

– VM:>[VKLÄUL[OLZ[H[PVUU\TILYPU[OLHWHY[TLU[

SW1 SW2

= =

Refer to the system booklet for how to set the dip switches.

The video door phone is provided with a built-in hearing aid device, which only works during

video calls. Furthermore, the video door phone is equipped with two raised notches, positioned on the

sides next to the buttons and to help vision-impaired users locate the position of the two

buttons by touch.

4DS1760-021

3. INSTALLATION

ATTENTION! For proper operation of the Gesture commands, do not install the device in places

where it may be exposed to direct sunlight, as the IR detector is sensitive to light.

࠮ 0UZ[HSS[OLÅ\ZOTV\U[PUNIV_4VKVY[OLÅ\ZOTV\U[PUNIV_H[[OLOLPNO[PUKPJH[LKPU[OL

following drawing.

;OLÅ\ZOTV\U[PUNIV_4VKJHUILOVYPaVU[HSS`VY]LY[PJHSS`PUZ[HSSLK

࠮ Fix the bracket to the mounting box as indicated.

࠮ Program the dip-switches and connect the system wires to the terminal boards.

࠮ Fix the door phone to the bracket.

࠮ 9LTV]L[OLWYV[LJ[P]LÄSTMYVT[OLKPZWSH`

࠮ Power on the system.

ATTENTION! )HZLKVU[OLJVS\TUHKKYLZZJVUÄN\YLKVU[OL]PKLVKVVYWOVULZ[OLYLTH`ILHKLSH`PU

switching on.

1,50 m

Box Mod. 503

n° 2 M3,5 x 19 mm

provided n° 2 M3,5 x 19 mm

countersunk screws

Box Ø 60 mm

1,50 m

n° 2 screws and screw

anchors included

1,55 m

DS1760-021

3.1. TERMINAL DESCRIPTION

Left terminal board

V- Terminals for local power supply unit Ref. 1760/110

V+

S- Negative for additional chime

S+ Positive for additional chime

Button

Right terminal board

CP Floor call

PANIC Panic alarm

LINE OUT Power supply BUS output

LINE IN Power supply BUS input

3.2. JUMPER AND DIP-SWITCH SW1 NO.1 (DEFAULT)

JP1

JP2

JP3

6DS1760-021

JUMPER (JP3)

The following Jumper allows to adjust the line termination (Z) in case of in-out video door phone connection.

The line termination must be inserted into the last video door phone.

JP3

Termination inserted (default)

Termination not inserted

For position of jumpers JP1 and JP2 and dip-switch SW1 no.1 refer to the next chapter of the following

handbook.

4. VIDEO DOOR PHONE PERFORMANCE ACCORDING TO

CONFIGURATION METHOD

;OL]PKLVKVVYWOVULJHUILJVUÄN\YH[LK^P[OKPɈLYLU[TL[OVKZ+LWLUKPUNVU[OLZLSLJ[LKTL[OVK

limitation will be present on the following performance.

Installation type (*)

Performance Low rise block (Default)

(Power supply from

system BUS with WiFi

always active)

High rise block

(Power supply from

system BUS with

WiFi active after call

forwarding)

Local power

(Power supply from

local power supply unit

Ref. 1760/110)

Jumpers and DIP-

switches

JP1

JP2

SW1 n.1

JP1

JP2

SW1 n.1

JP1

JP2

SW1 n.1

Delay time on

reception of call

forwarding to CallMe

app

No delay 10 seconds No delay

CallMe app auto-on Available Not available Available

Panic alarm signalling

to CallMe App Available Not available Available

DS1760-021

Automatic door

opener timing Not available Available Available

Screen displaying

during intercom

and switchboard calls

Not available Not available Available

Number of video door

phones in riser

Reduction of video door

phone number (*)

Reduction of video

door phone number (*) 127

Display turning on 1 video door phone at a

time in riser

1 video door phone at

a time in riser Unlimited

Display turning on

duration 5 minutes 5 minutes Unlimited

Display timeout time

for inactivity 30 seconds 30 seconds 60 seconds

(*) For the limits of the number of video door entry phone in the riser column, refer to the chapter “Video

door phone installation constraints”.

5. VIDEO DOOR PHONE INSTALLATION CONSTRAINTS

0M [OL JVUÄN\YH[PVU TVKL ¸Low rise block” is used on the1760/18 - / 19 video door phones you

can have a reduction in the number of video door phone in a riser column derived from a column distributor

Ref. 1083/53 or a column interface Ref. 1083/50, with the same maximum distances

Reduction is as follows:

Power supply Cable type Number of video door phones

1083/20A 2Voice Ref. 1083/92 - /94 16

CAT5 UTP (one twisted pair) 8

1083/23 2Voice Ref. 1083/92 - /94 5

CAT5 UTP (one twisted pair) 3

ATTENTION! Any Slave video door phones Ref. 1760/18 - /19 present in the apartments must be powered

^P[O [OL SVJHS WV^LY Z\WWS` \UP[ HUK JVUÄN\YLK in Local power mode.

If the video door phone Ref. 1760/18 or /19 is installed as a spare to replace a video door phone, it must be

WV^LYLK [OYV\NO [OL SVJHS WV^LY Z\WWS` HUK JVUÄN\YLK ^P[O [OL Local power mode of use.

For other types of cables, see the booklet “Limit number of ]PKLVKVVYWOVULZPUYPZLY+:¹

on the Urmet website by scanning the following QR Code.

8DS1760-021

6. CONTACT INSERTION FOR INTERCOM CALLS

In order to make intercom calls, it is necessary to enter contacts in the video door phone book. Up to 32

contacts can be entered.

To enter a new contact, proceed as follows:

࠮ Press the key twice when the video door phone is in stand-by mode to turn on the display and

view the Homepage.

For video door phones powered in High rise block and Low rise block, access to the Homepage is

WLYTP[[LK[VVULKL]PJLH[H[PTLMVYHTH_PT\TVMTPU\[LZ0MH\ZLY[YPLZ[VHJJLZZ[OL/VTLWHNL

when it is already in use on another device, the video door phone will emit a dissuasion tone (4 beeps)

indicating that the page cannot be displayed at the moment.

࠮ The display shows the following screen:

࠮ Press keys , , and to select the following icon .

࠮ When selection has been made press the key [VJVUÄYT

࠮ The display shows the following screen:

࠮ 0U[OLJVUÄN\YH[PVUTLU\WYLZZ[OLRL` until selecting “Contacts”.

࠮ Press the key [VJVUÄYT[OLZLSLJ[PVU

DS1760-021

࠮ To enter an new contact, press the key and select the icon to add a new contact .

࠮ Press the key [VJVUÄYTHUKKPZWSH`[OLMVSSV^PUNZJYLLU!

࠮ ;OLMVSSV^PUNWHYHTL[LYZT\Z[ILKLÄULKMVYLHJOUL^JVU[HJ[!

1. Contact type

Press the key to select the following icon , then press the key to change the contact type.

࠮ External contact: call to a video door phone in another apartment but within the same video

door phone riser

࠮ Internal contact: call to a video door phone in the same apartment

2. Video door phone ID code

Press the key to select the following icon , then press the key to enter the video door phone

ID code.

࠮ For external contacts, permissible codes range from 0 to 126

࠮ For internal contacts, permissible codes range from 0 to 3

 0U[OLJVUÄN\YH[PVUTLU\\UKLY¸System information¹P[PZWVZZPISL[V]PL^[OL0+JVKLVM]PKLV

door phones (for more details see the 7HYHTL[LYJVUÄN\YH[PVUOHUKIVVR available by scanning the

QR-Code at the end of the handbook).

10 DS1760-021

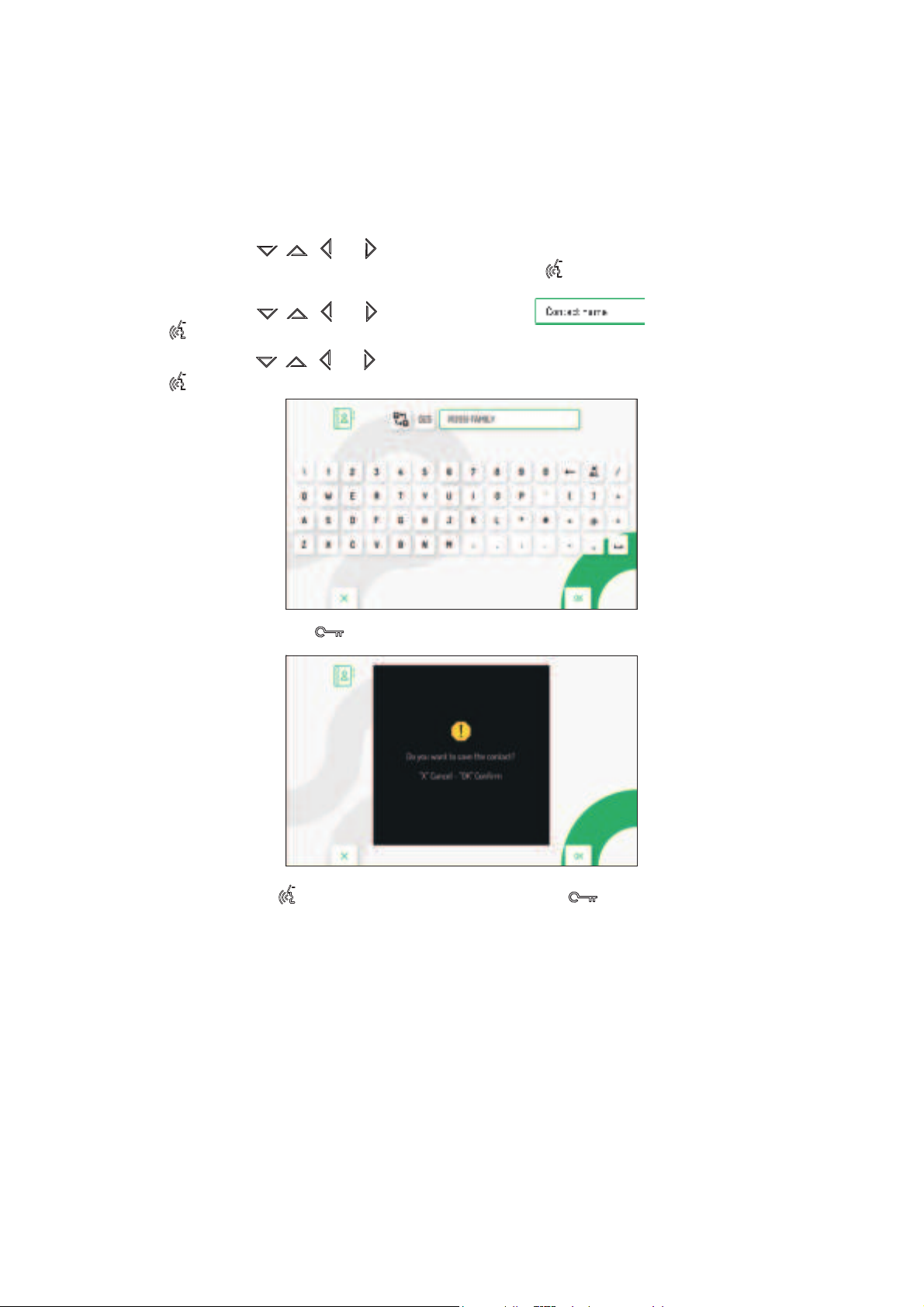

Press the keys , , and to select on the virtual keypad the numbers that make up the video

door phone ID code you want to add to the contacts. Press the key [VJVUÄYT[OLZLSLJ[LKU\TILY

3. Contact name

Press the keys , , and to select the following icon , then press the key

to enter the contact name.

Press the keys , , and to use the virtual keypad and enter the contact name. Press the key

[VJVUÄYT[OLJOHYHJ[LYZ[VILLU[LYLK

࠮ Finally, press the key to quit the contact insertion page, the display shows the following screen

page:

࠮ Press the key to save the contact in the book. Press the key to cancel and return to the

contact page.
