USX-MOUNT XML006-24K Bedienungsanleitung

XML006-24K

INSTRUCTION MANUAL

For 42-80" TV

If you have any questions along the way, just give us a call

1-800-460-0956 or mail to [email protected].

We’re ready to help!

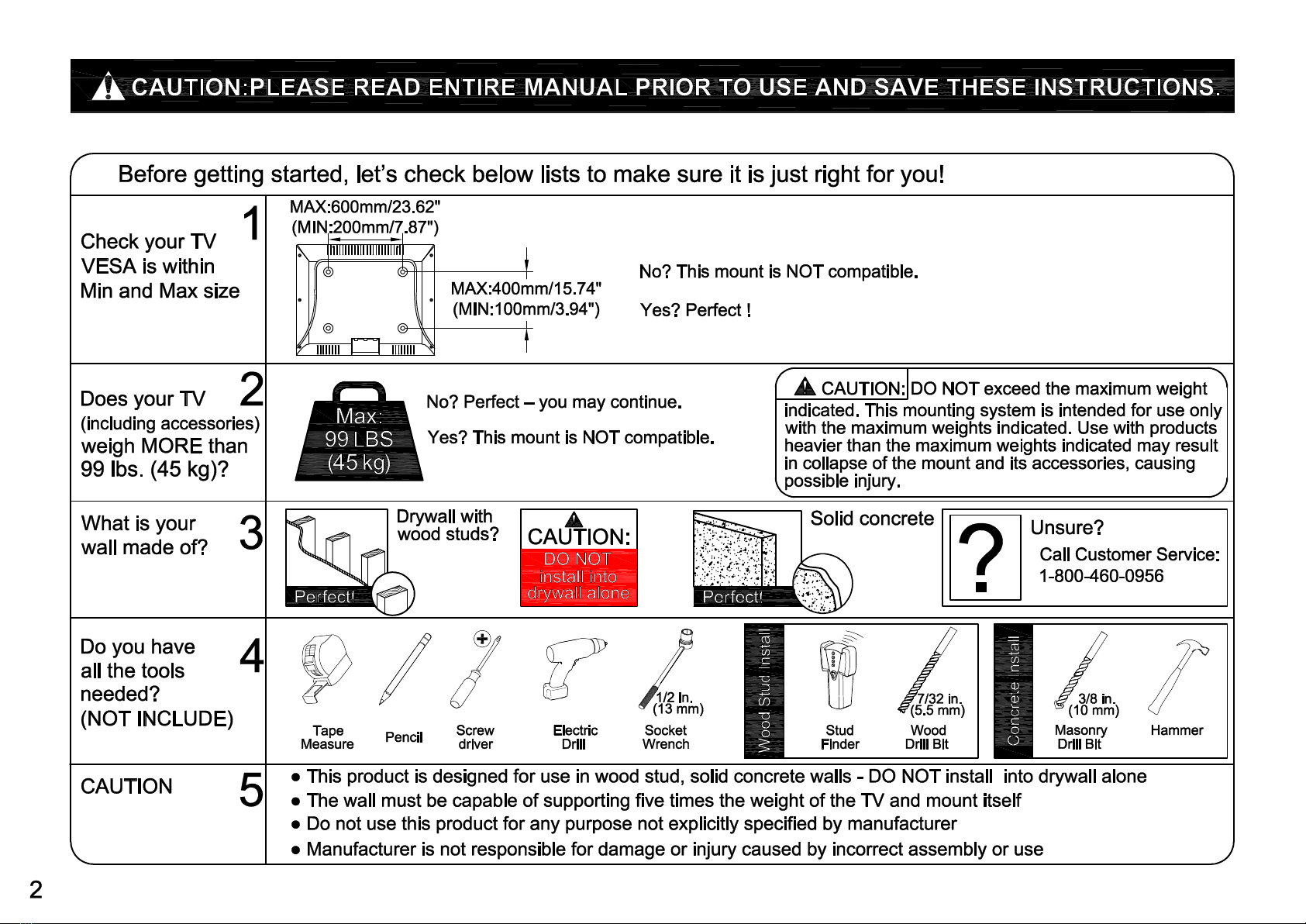

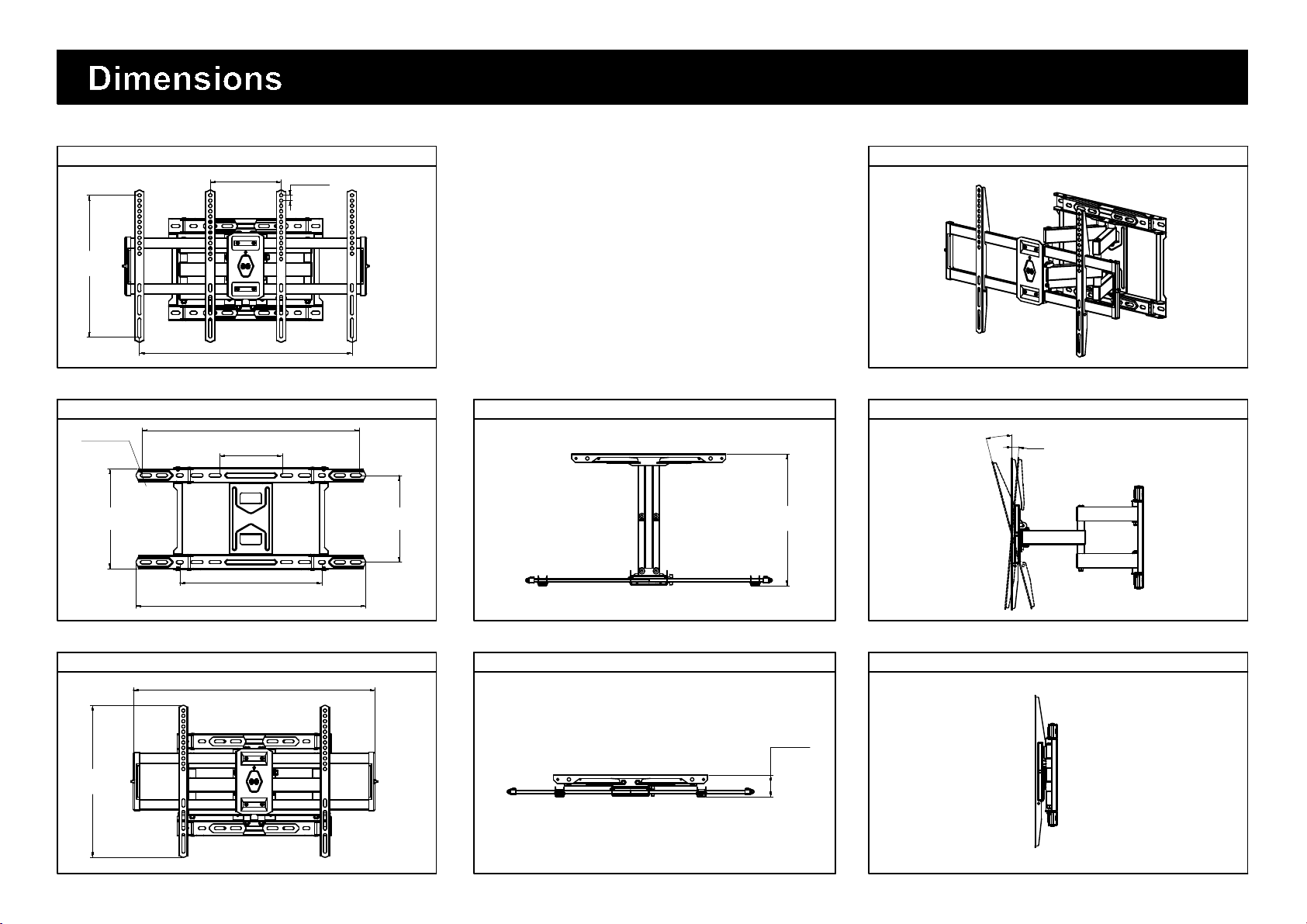

3-D

FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED SIDE VIEW - RETRACTED

TOP VIEW - EXTENDED SIDE VIEW - EXTENDED

372mm

[14.66in]

5°

15°

TV INTERFACE

62mm

[2.45in]

WALL PLATE

177mm

[6.97in]

Ø9mm

[Ø0.35in]

609.6mm

282.7mm

[11.13in]

649.3mm

[25.56in]

245.2mm

[9.65in]

406.4mm

200mm

[7.87in]

15mm

[0.59in]

400mm

[15.74in]

600mm

[23.62in]

683mm

[26.89in]

429mm

[16.90in]

[16in]

[24in]

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts

are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact

Customer Service.

Never use damaged parts!

NOTE: Not all hardware included will be used.

Parts and Hardware for STEP 1

TV Brackets

Spacers

TV Screws

M4x12mm

M6x12mm

M8x25mm

M4x30mm

M6x35mm

M8x50mm

M6x17mm M8x22mm

M4 M6

10mm 2.5mm

Washers

x4 x4

x4 x8

1-1 Select TV Screws

TV back

Bracket Washer

Bracket

Long Screw

Spacer

No, go to PAGE 7 for detailed combination.

Yes, go to PAGE 7 for detailed combination.

TV back

1-2 Need Spacer?

Short Screw

Washer

1-3 Attach the TV Brackets

Tips: If you need to combine M8( c / f ) screw with 2.5mm spacer( j ), you have to remove the inner circle.

Screw and washer

Spacer(s), screw(s) and washer(s)

No!

Centre line

CAUTION: Avoid potential personal injury or property damage!

● Drywall covering the wall, must not exceed 5/8 in. (16 mm)

● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)

● Fits For 16 / 24 in Wood Stud.

● Stud center must be verified

1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using, a thin nail,

or an edge to edge stud finder.

2. Position the wall plate at your desired height and line up the holes with your stud center line. Level

the wall plate and mark the hole locations.

Again, find another wood stud

16 /24"

(406/610mm)

Attach Wall Plate to Wall Wood Stud Option

3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.

IMPORTANT: Pilot holes must be drilled to a depth of 2.5 in. (64 mm). Be sure to drill into the center

of the studs.

4. Install wall plate using four lag bolts and four washers . Tighten the lag bolts only until

they are pulled firmly against the wall plate.

CAUTION: Improper use could reduce the holding power of the lag bolt.

DO NOT over-tighten the lag bolts.

Go to STEP 3 on PAGE 12.

2.5"(64mm)

7/32"

(5.5mm)

3/8"

(10mm) 2.5"(64mm)

CAUTION: Avoid potential personal injury or property damage!

● Mount the wall plate assembly directly onto the concrete surface

● Minimum solid concrete thickness: 8 in. (203 mm)

1. Position the wall plate on the wall at your desired height. Level the wall plate and mark the

hole locations.

2. Drill four pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.

IMPORTANT: Pilot holes must be drilled to a depth of 2.5 in. (64 mm).

Attach Wall Plate to Solid Concrete Wall
