USX-MOUNT XMS008-09 Bedienungsanleitung

XMS008-09

INSTRUCTION MANUAL

For 10-26" TV

If you have any questions along the way, just give us a call

1-800-460-0956 or message to us.We’re ready to help!

CA-B0

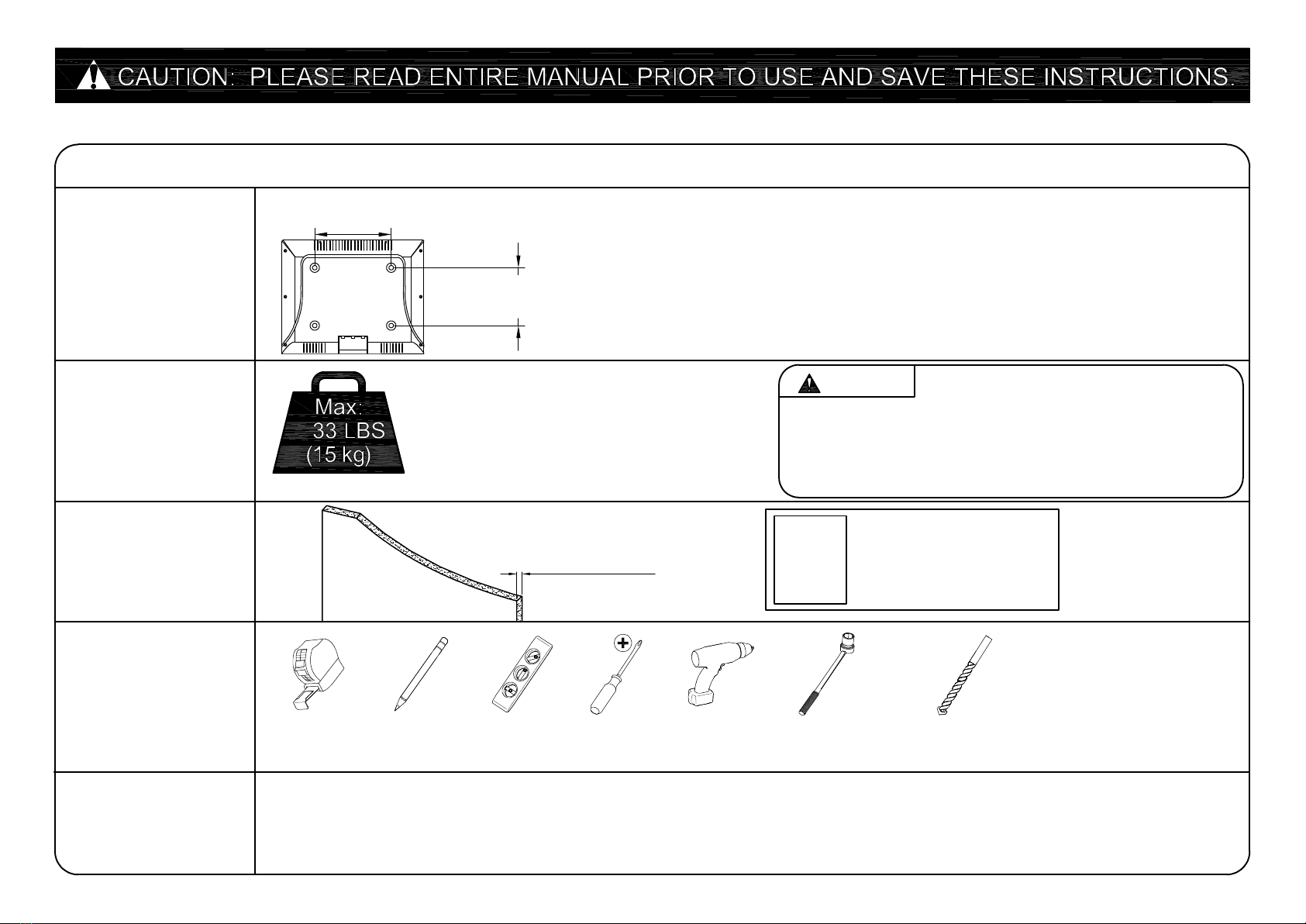

Before getting started, let’s check below lists to make sure it is just right for you!

Does your TV

(including accessories)

weigh MORE than

33 lbs. (15 kg)?

Where can you

install this mount?

Installation Tools

(Not Included)

Tape

Measure

CAUTION

Pencil Level Screw

driver

Electric

Drill

No? Perfect – you may continue.

Yes? This mount is NOT compatible.

CAUTION: DO NOT exceed the maximum weight

indicated. This mounting system is intended for use only

with the maximum weights indicated. Use with products

heavier than the maximum weights indicated may result

in collapse of the mount and its accessories, causing

possible injury.

1/2 in.

(13 mm)

Socket

Wrench

● This product is designed for use in wooden board

● The wall must be capable of supporting five times the weight of the TV and mount itself

● Do not use this product for any purpose not explicitly specified by manufacturer

● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

1/8 in.

(3 mm)

Masonry

Drill Bit

Check your TV

VESA is within

Min and Max size

No? This mount is NOT compatible.

Yes? Perfect !

MAX:100mm/3.94"

(MIN:50mm/1.97")

MAX:100mm/3.94"

(MIN:50mm/1.97")

Unsure?

Call Customer Service:

1-800-460-0956

0.5"(12.7mm) thick or above wooden board

Min. 0.5"(12.7mm)

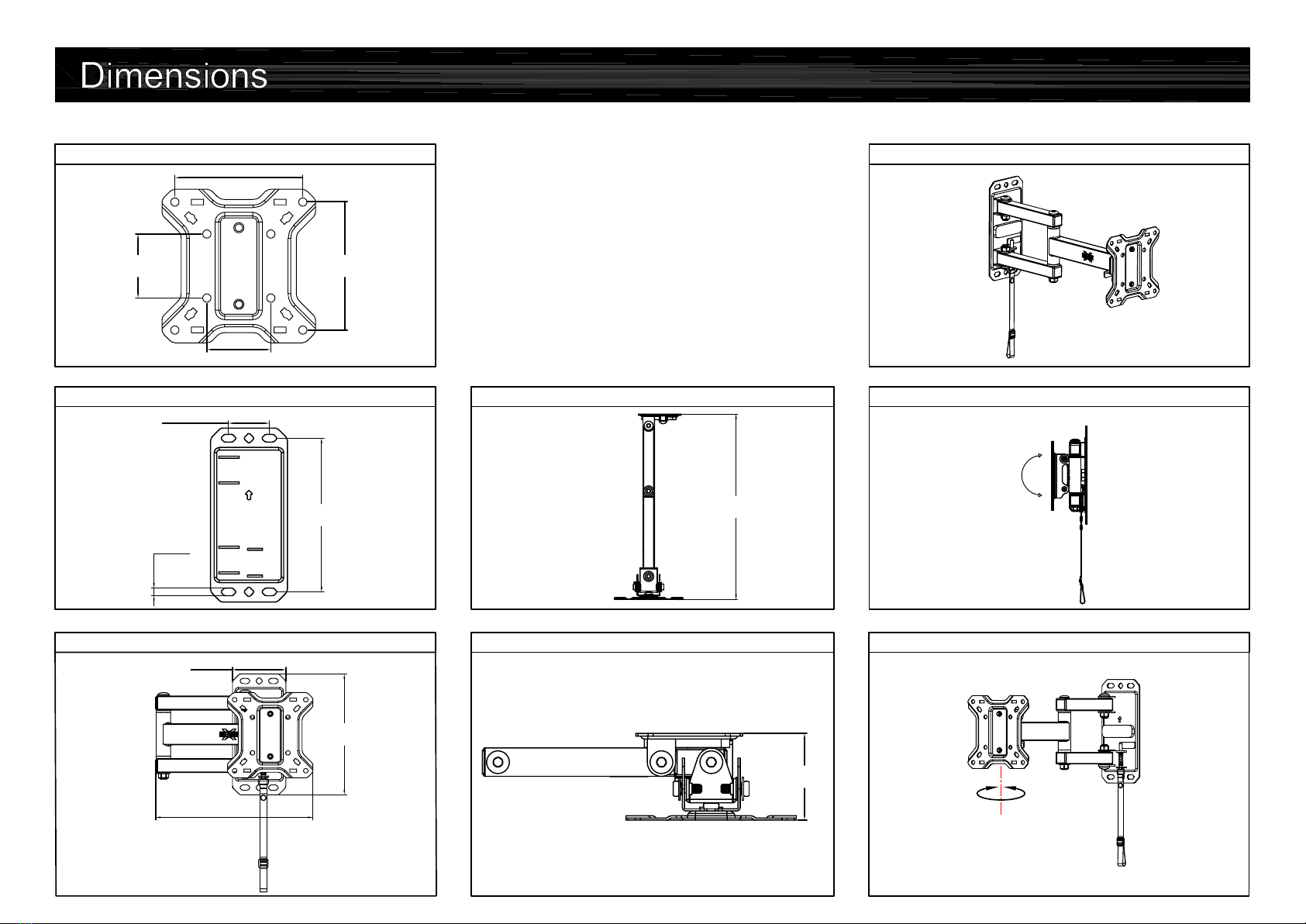

TV INTERFACE 3-D

WALL PLATE

FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED

SIDE VIEW - RETRACTED

+5°

-15°

TOP VIEW - EXTENDED

221mm

[8.70in]

61mm

[2.40in]

150mm

[5.91in]

TOP VIEW - EXTENDED

326mm

[12.83in]

±90°

40mm

[1.57in]

7.5mm

[0.30in]

75mm

[2.95in]

170mm

[6.69in]

100mm

[3.94in]

50mm

100mm

[3.94in]

50mm

[1.97in]

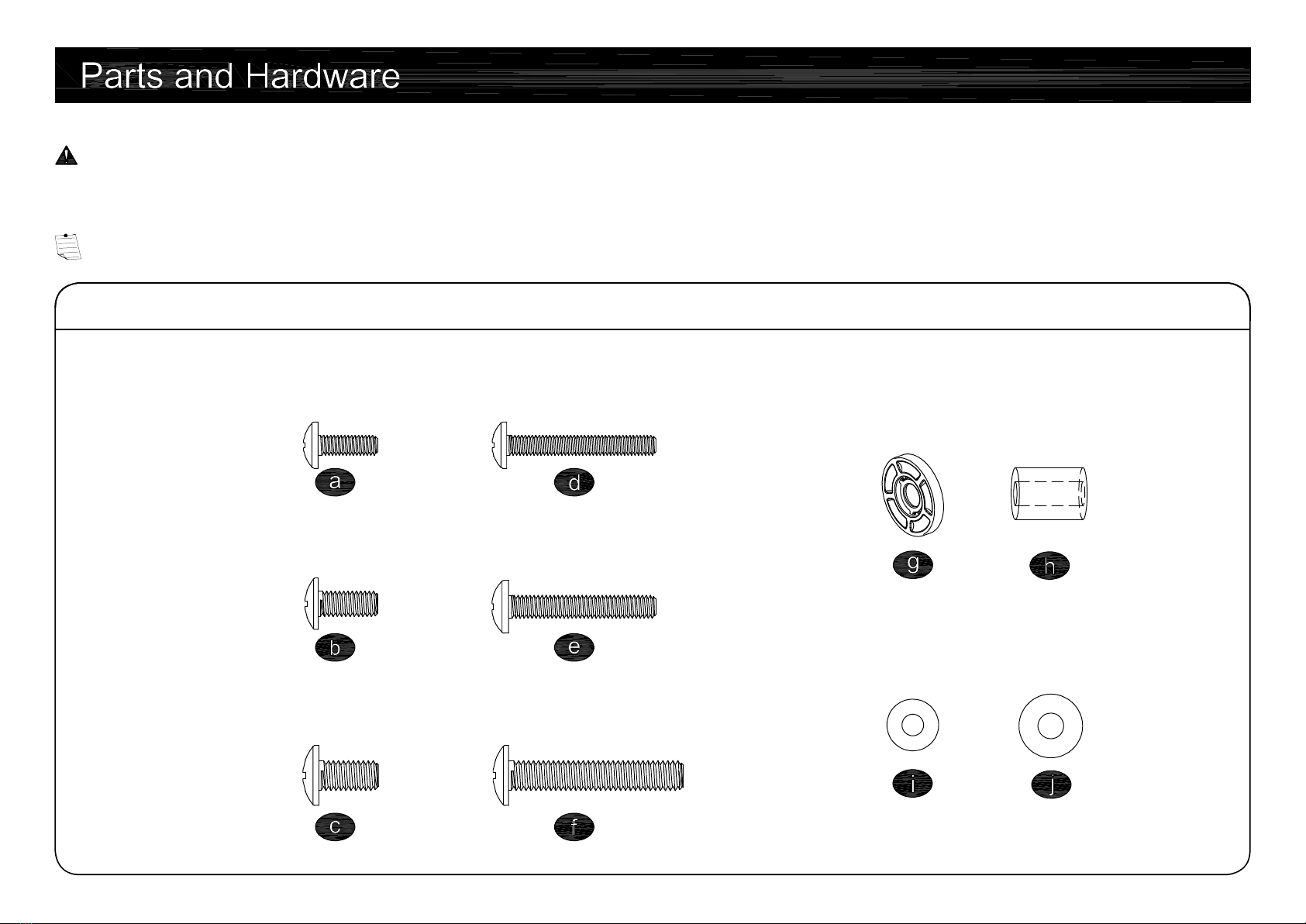

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts

are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact

Customer Service.

Never use damaged parts!

NOTE: Not all hardware included will be used.

Hardware for STEP 1

Spacers

TV Screws

M4x12mm

M6x12mm

M4x30mm

M6x35mm

M6x17mm

M4 M6

2.5mm

Washers

x4 x4

M5x12mm

M5x30mm

Lag Bolt

Allen Key

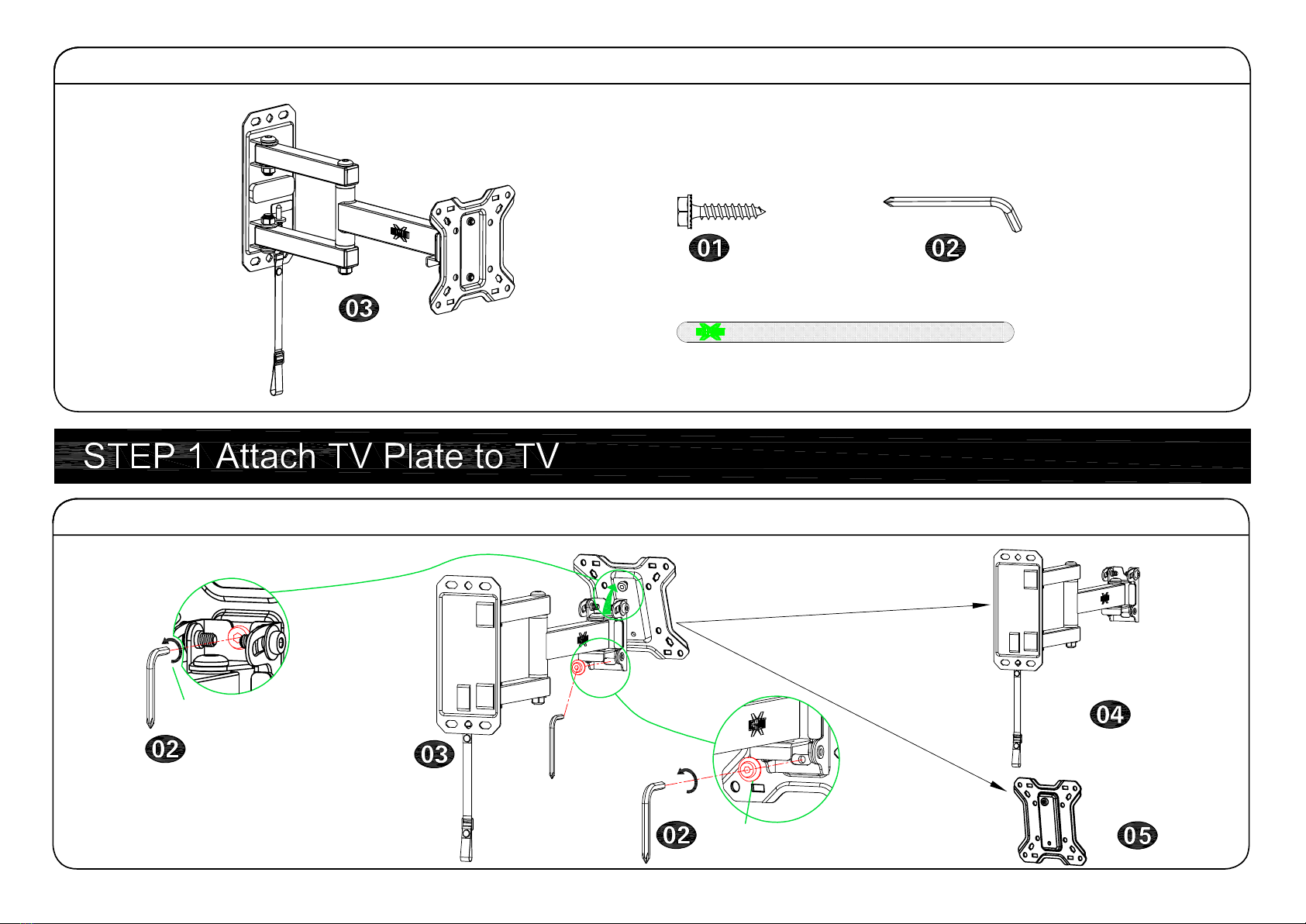

Parts and Hardware for STEP 2

Wall Plate Unit

Velcro x3

1-1 Disassemble this whole mount into Two Pieces by removing bolts ①.(Remember to keep bolts for next step use)

TV Plate

Wall Plate

one turn

①

M6M5

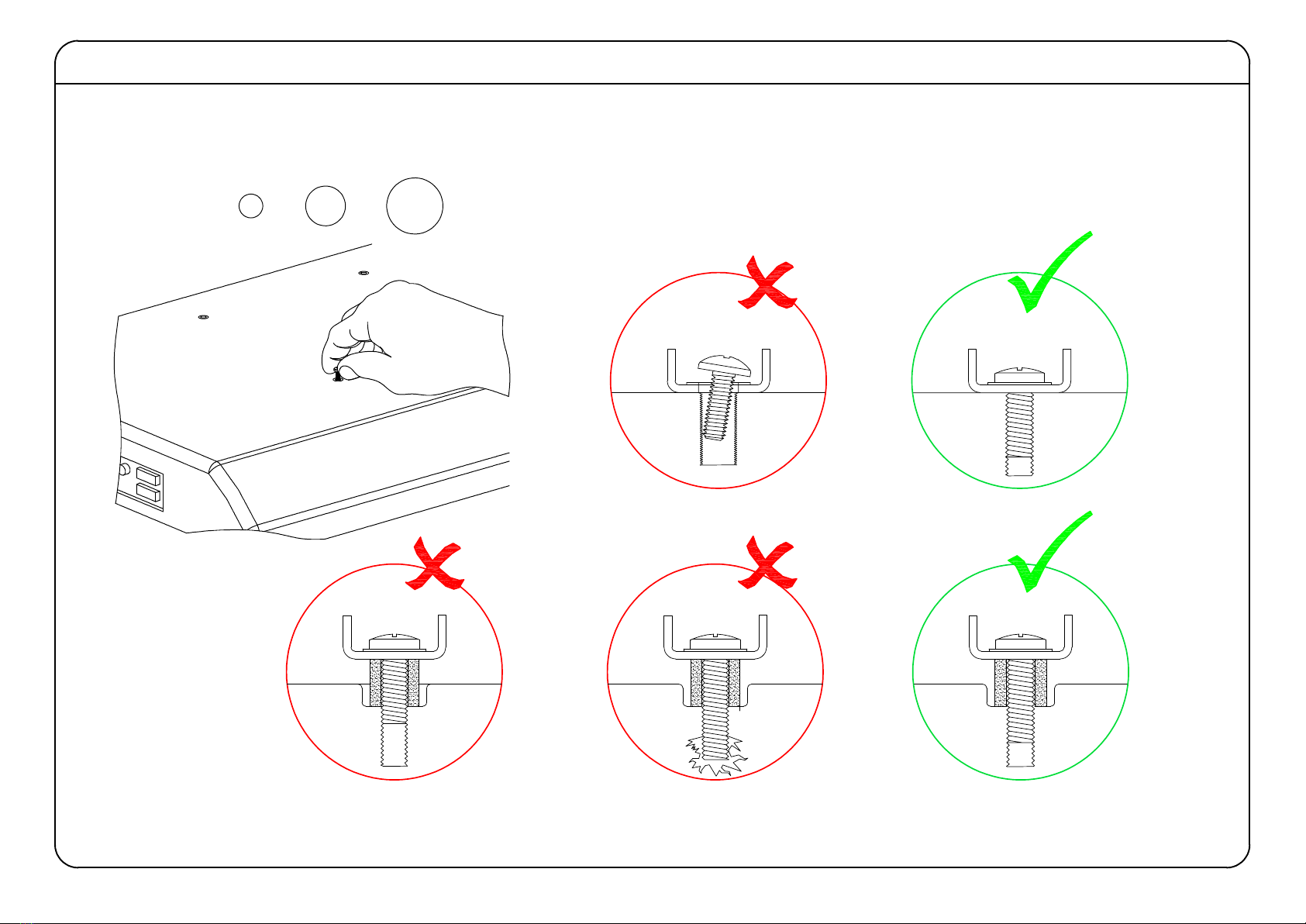

1-2 Select TV Screws

① 50X50

② 75X75

③ 100X100

Tips: If you need to combine M6(c/f) screws with

2.5mm spacers(g), you have to remove the

inner circle of spacers.

Yes, choose suitable screws, washers and spacers.

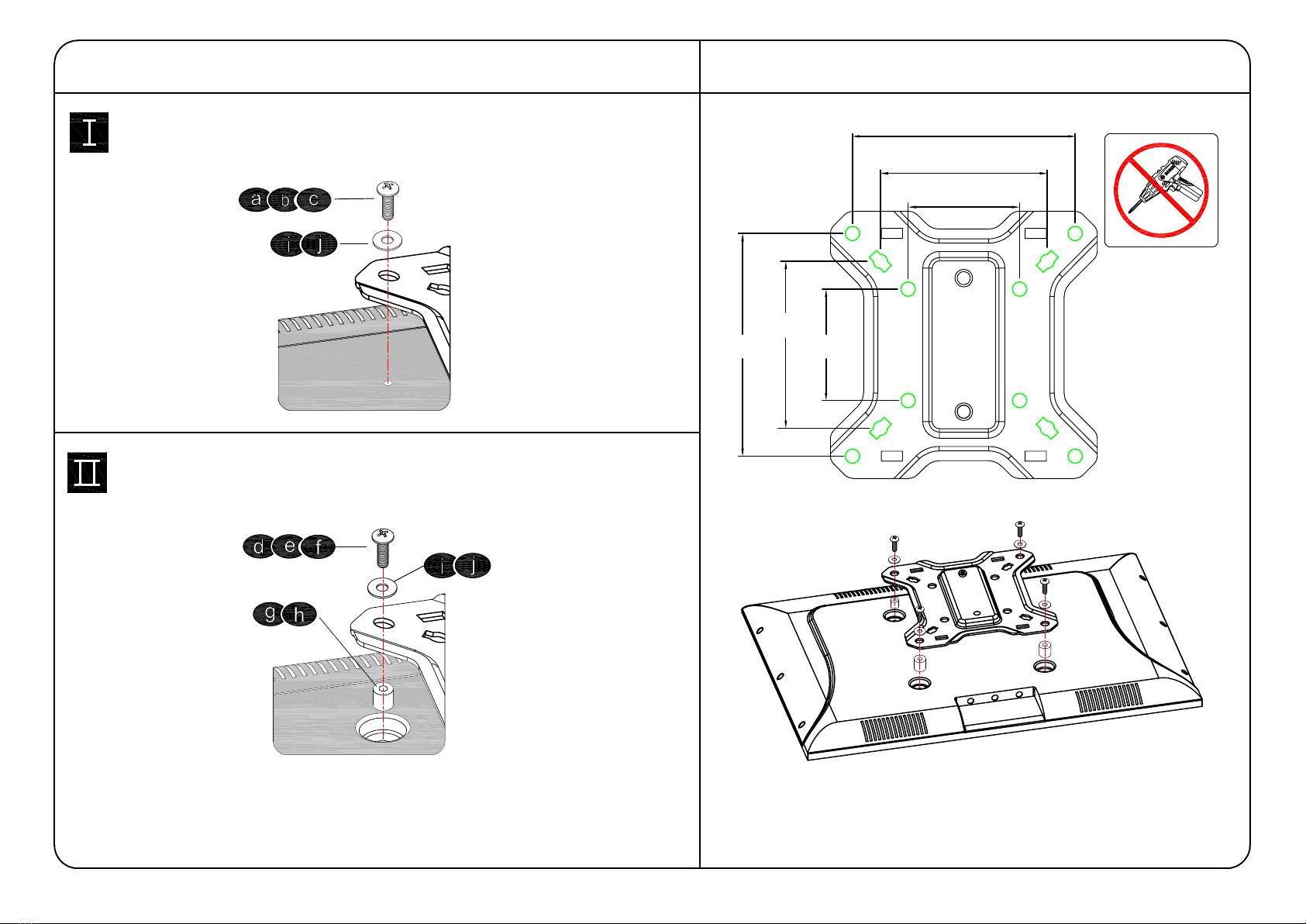

1-4 Attach the TV Plate

No!

No, choose suitable screws and washers.

1-3 Need Spacer?

100mm

50mm

75mm

100mm 50mm

75mm

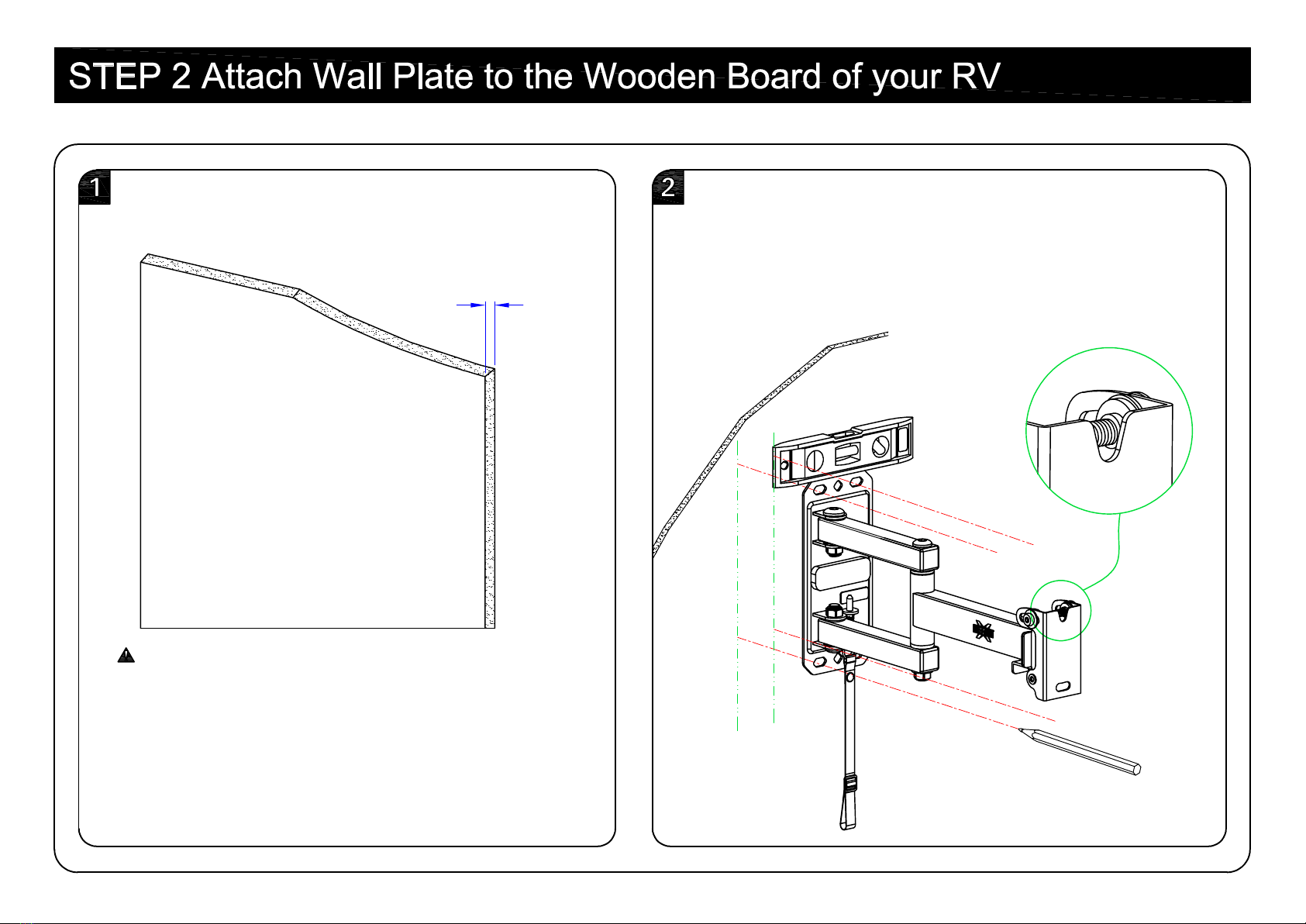

Wooden Board

Min. 0.5"(12.7mm)

Wooden Board

Warning: Please double check the thickness of your RV

wooden board to make sure it is above 0.5”.

Remind: This TV mount is designed for RV use. We only

include the wall mounting hardware for RV wooden

board installation.

If you want to install this mount on wood studs or concrete

wall at home, you may need additional hardware. Which can

be gotten at your local hardware store or fell free to contact

our customer service via message.

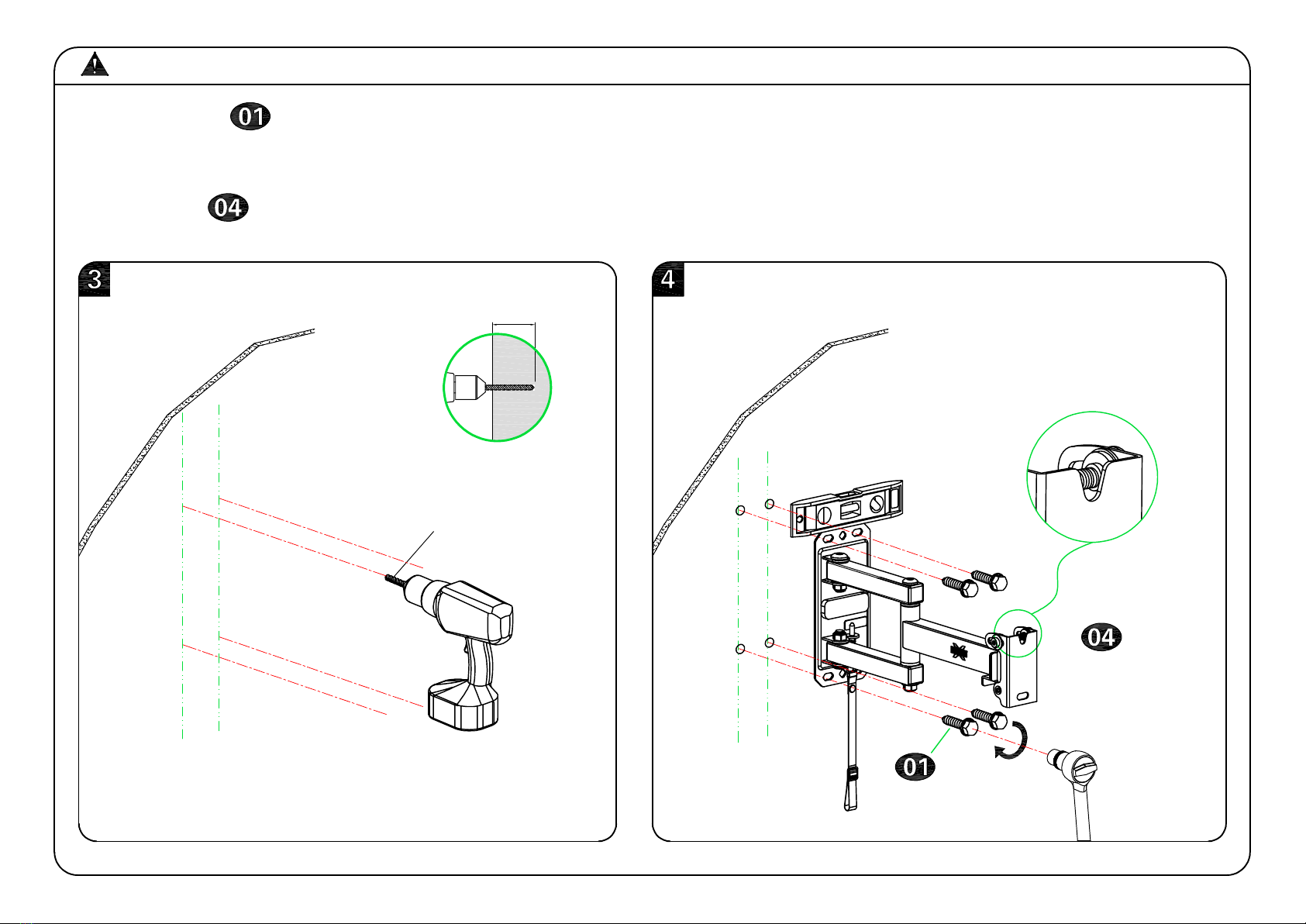

CAUTION: Avoid potential personal injury or property damage!

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate assembly.

Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step.

To prevent the TV falling down, please make sure you install this TV mount in the right up direction as

below figure shown.

1/8"

(3.18mm)

Wall plate

Wooden Board

1.0"(25.4mm)

Wooden Board

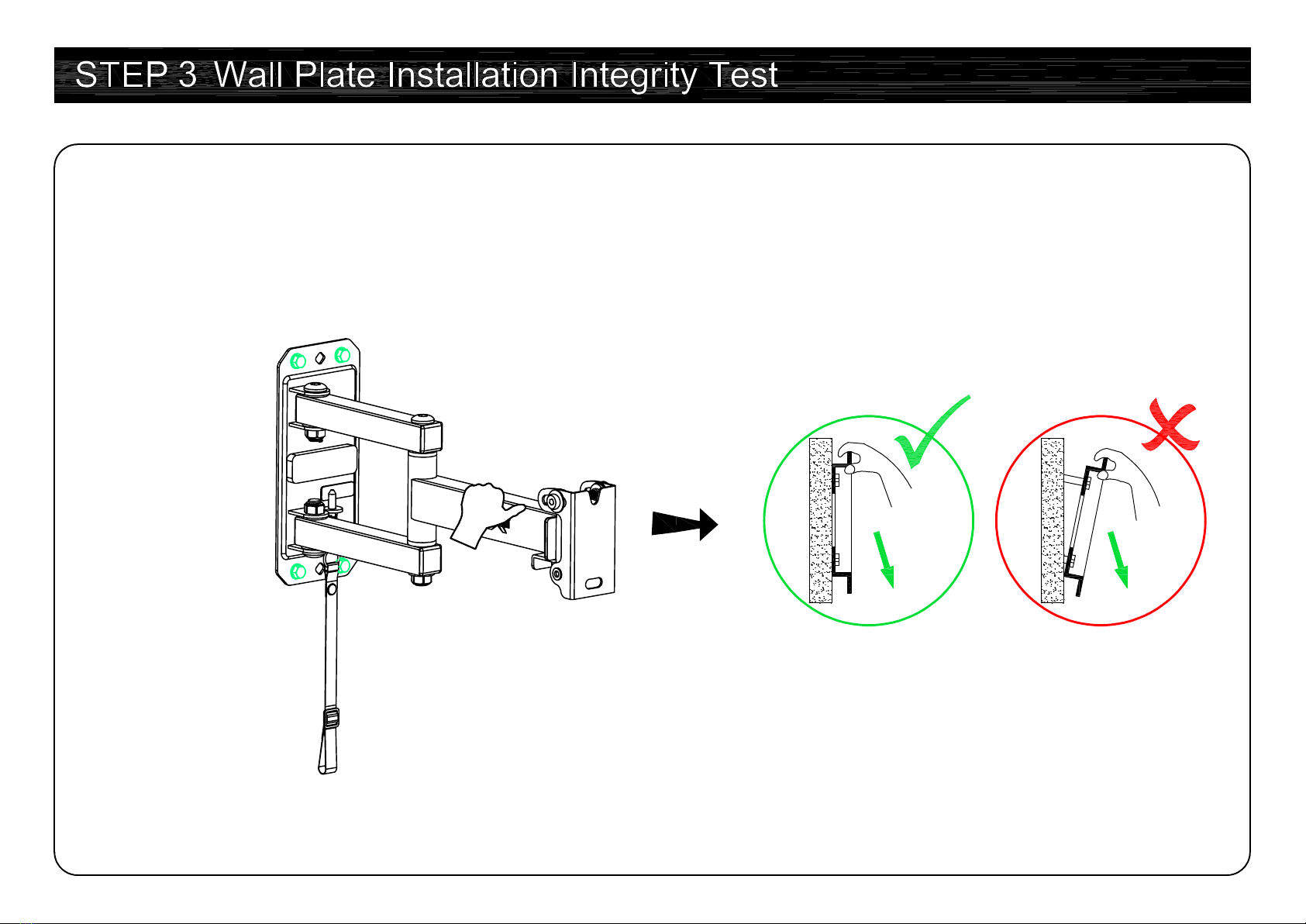

Before hanging TV, please try to pull the mount to make sure that it has been assembled on the wooden

board tightly.
