UTC Fire and Security Interlogix VR4930WDM Montageanleitung

P/N 1062797 • REV B • ISS 01JUL11

VR4930WDM

VR4930WDM-R3

VR4930WDM-6065

VR4930WDM-6065-R3

IFS Fiber Module

Installation & Operation

Instructions

VT4930WDM

VT4930WDM-R3

VT4930WDM-606

VT4930WDM-6065-R3

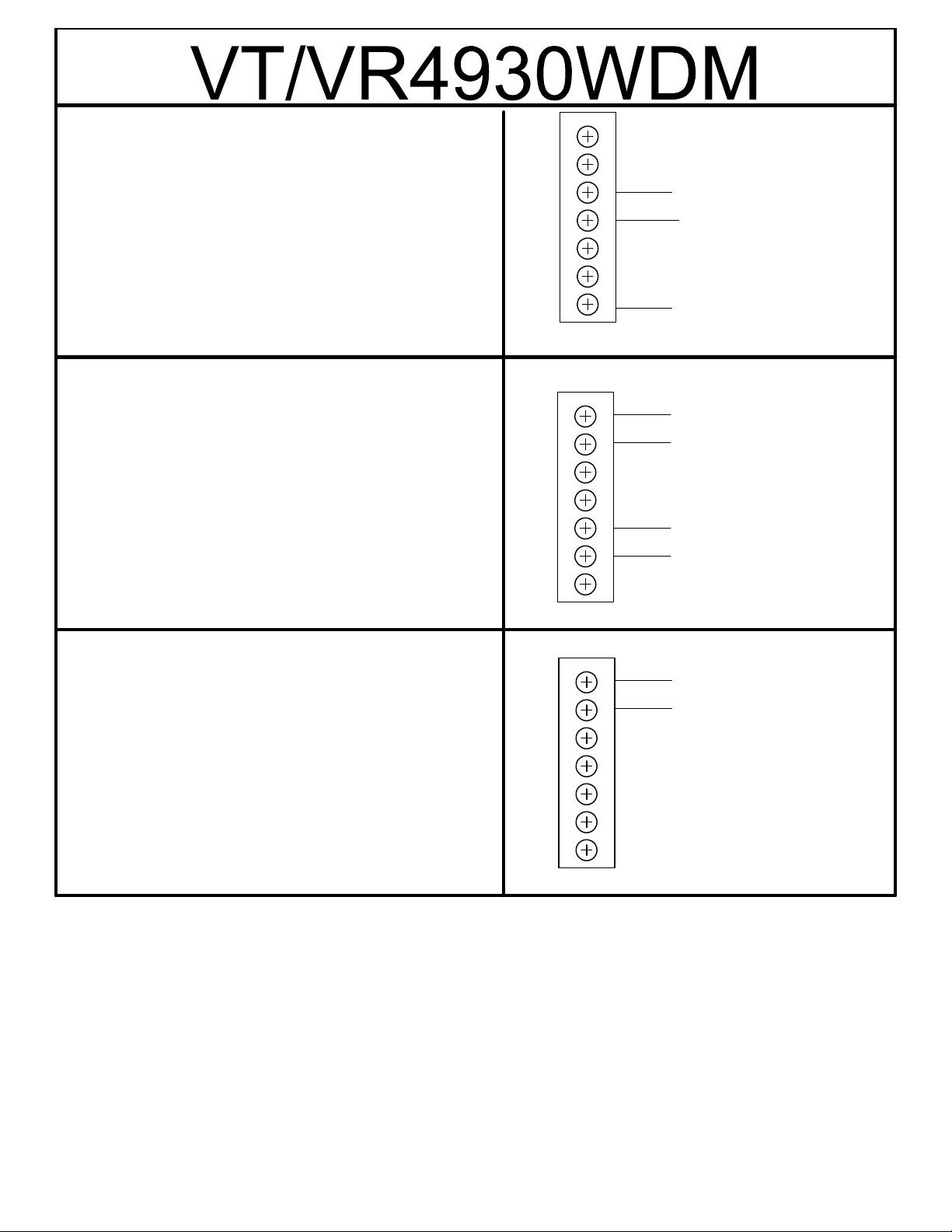

GROUND

DATA INPUT

RS - 232 DATA

RS - 422 / 4-WIRE

RS-485 DATA

+ DATA INPUT

- DATA INPUT

DATA OUT

2-WIRE RS-485 DATA

+ DATA INPUT /

OUTPUT

- DATA INPUT /

OUTPUT

+ DATA OUTPUT

- DATA OUTPUT

Green

Blue

Brown

Simplex single mode

fiber optic cable

Coax cable

Video

Monitor

Video Source

ifs International

Fiber

Systems

Incorporated

VT4930WDM

FM VIDEO TRANSMITTER + DATA TRANSCEIVER

POWER

VIDEO IN

- DATA (IN) - 7

+ DATA (IN) - 6

GROUND- 5

RS232 OUT- 4

- DATA OUT - 3

+ DATA OUT - 2

GROUND - 1

AC - 3

- 2

AC- 1

ON = RS485

OFF = RS422

24 VAC

CENTER

TAPPED

RS485 (RS422)

RS232 IN

RS422

RS232 OUT

FIBER OPTIC CABLE

ifs International

Fiber

Systems

Incorporated

VR4930WDM

FM VIDEO RECEIVER + DATA TRANSCEIVER

POWER

CARRIER

VIDEO IN

- DATA (IN) - 7

+ DATA (IN) - 6

GROUND- 5

RS232 OUT- 4

- DATA OUT - 3

+ DATA OUT - 2

GROUND - 1

AC - 3

- 2

AC- 1

ON = RS485

OFF = RS422

24 VAC

CENTER

TAPPED

RS485 (RS422)

RS232 IN

RS422

RS232 OUT

FIBER OPTIC CABLE

GAIN VIDEO

SYNC

DATA

RECEIVE

DATA

TRANSMIT

VIDEO

DATA

RECEIVE

DATA

TRANSMIT

- Data (In)

+ Data (In)

Ground

- Data Out

+Data Out

Ground

2-wire RS485 or RS422 Data In (Switch selectable)

RS232 Data In

RS232 Data Out

RS422 Data Out

}

ABC

VT4930WDM

Data Transmit

Video In

Data Receive LED illuminates

DPower

ABC

VR4930WDM

Data Transmit

Video Sync

Data Receive LED illuminates

DGain Adjustment

Carrier

Power LED illuminates

NOTE: WITHOUT PROPER FIBER CONNECTION, LED's DO NOT INDICATE

CORRECT OPERATIONAL STATUS OF THE UNIT.

Comprehensive

Lifetime Warranty

(a) Seller warrants to the original End User that products and any

services furnished hereunder will be free from defects in material

and workmanship as of the date of delivery, and will conform to

Seller’s published technical specications. The foregoing shall

apply only to failures to meet said warranties which appear within

that period of time during which the Products are installed in their

original installation for the original End User and operator of such

Products; provided, however, that in the event of product discontin-

uance, warranty support is limited to ve (5) years from the

announcement of discontinuance. Notwithstanding the preceding

sentence, the duration of the warranty period for

products not

manufactured by Seller (e.g., ber optic cabling, test equipment,

power supplies or batteries) shall be the warranty period oered by

the original manufacturer, if any.

(b) The conditions of any tests shall be mutually agreed upon and

Seller shall be notied of, and may be represented at, all tests that

may be made. The warranties and remedies set forth herein are

conditioned upon (a) proper storage, installation, use and mainte-

nance, and conformance with any applicable recommendations of

Seller and (b) Buyer promptly notifying Seller of any defects and,

if required, promptly making the product available for correction.

Seller shall thereupon correct any such failure either at its option,

(i) by repairing any defective or damaged product or parts of the

products, or (ii) by making available any necessary repaired or

replacement products or parts thereof. Any repaired or replacement

part or product shall be warranted for the remaining period of the

original Warranty Period. Seller shall pay, or credit Buyer for, the

cost of freight for all return shipments of products or parts to

Buyer. Where a failure cannot be corrected by Seller's reasonable

eorts, the parties will negotiate an equitable adjustment in price.

(d) The preceding paragraph sets forth the exclusive remedies for

claims based on defect in or failure of products or services,

whether the claim is in contract, indemnity, warranty, tort

(including Seller's negligence), strict liability or otherwise and

however instituted. Upon the expiration of the warranty period,

all such liability shall terminate and BUYER shall have a reason-

able time, within thirty days after the warranty period, to give

written notice of any defects which appeared during the warranty

period. The foregoing warranties are exclusive and in lieu of all

other warranties, whether written, oral, implied or statutory.

NO IMPLIED OR STATUTORY WARRANTY OF

MERCHANTABILITY OR FITNESS FOR PARTICULAR

PURPOSE SHALL APPLY. Seller does not warrant any

products or services of others which BUYER has designated.

NOTE: This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to cor-

rect the interference at his own expense.

FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesirable operation.

Changes or modifications not expressly approved by International Fiber Systems, Inc. could void

the user’s authority to operate the equipment.

CLASS 1 LASER PRODUCT

(For purposes of IEC 60825-1)

Complies with FDA Performance Standard for Laser Products

Title 21

Code of Federal Regulations

Subchapter J

Contacting us

For help installing, operating, maintaining, and troubleshooting this product, refer to this document and any

other documentation provided. If you still have questions, contact us during business hours (Monday through

Friday, excluding holidays, between 5 a.m. and 5 p.m. Pacific Time).

Note: Be ready at the equipment before calling.

Online

Another great resource for assistance with your Interlogix product is our online publication library. To access

the library, go to our website at the following location:

http://www.interlogix.com/transmission1

Sales and support contact information

North

America

Toll-free: 855.286.8889 in the US, including Alaska and Hawaii;

Puerto Rico; Canada.

Outside the toll-free area: 503.885.5700.

E-mail: [email protected]

Europe Select Contact Us at www.utcfssecurityproducts.eu

Australia security[email protected]

1. Many Interlogix documents are provided as PDFs (portable document format). To read these documents, you will

need Adobe Reader, which can be downloaded free from Adobe’s website at www.adobe.com.

Product Disassembly Instructions for WEEE

Per European Directive 2002/95/EC Waste Electrical and

Electronic Equipment

Required Tools:

One number 2 Phillips (crosstip) screwdriver.

One number 2 flat screwdriver.

For the enclosed box version:

1. Locate and remove box cover securement screws. Usually, but not limited to, at least

4 screws.

2. Lift off box top cover.

3. Locate and remove securement screws for printed circuit board.

4. If there are multiple boards to the assembly, continue removing securement screws

until none are left.

5. Lift off printed circuit board.

6. Disassembly of box version of product is complete.

For rack version:

1. Locate and remove securement screws for printed circuit board. Usually, but not

limited to, at least 4 screws.

2. If there are multiple boards to the assembly, continue removing securement screws

until none are left.

3. Lift off printed circuit board(s).

4. Disassembly of rack card version of product is complete.

Trademarks and

patents Interlogix and IFS names and logos are trademarks of

UTC Fire & Security.

Other trade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective products.

Manufacture

UTC Fire & Security Americas Corporation, Inc.

2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification N4131

ACMA compliance Notice! This is a Class A product. In a domestic environment this

product may cause radio interference in which case the user may be

required to take adequate measures.

Canada This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme

NMB-003 du Canada.

European Union

directives 2004/108/EC (EMC directive): Hereby, UTC Fire & Security

declares that this device is in compliance with the essential

requirements and other relevant provisions of Directive

2004/108/EC.

2002/96/EC (WEEE directive): Products marked with this symbol

cannot be disposed of as unsorted municipal waste in the European

Union. For proper recycling, return this product to your local supplier

upon the purchase of equivalent new equipment, or dispose of it at

designated collection points. For more information see:

www.recyclethis.info.

Contact information For contact information, see www.interlogix.com.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere UTC Fire and Security Steuereinheit Handbücher

UTC Fire and Security

UTC Fire and Security interlogix VT14120 Leitfaden

UTC Fire and Security

UTC Fire and Security interlogix VT6010-DRDT Montageanleitung

UTC Fire and Security

UTC Fire and Security KiddeFire Systems ARIES NETLink BACnet Bedienungsanleitung

UTC Fire and Security

UTC Fire and Security interlogix VT7420 Montageanleitung

UTC Fire and Security

UTC Fire and Security Interlogix VR1910 Montageanleitung

UTC Fire and Security

UTC Fire and Security Interlogix NX-535N Bedienungsanleitung

UTC Fire and Security

UTC Fire and Security interlogix VT7220 Montageanleitung

UTC Fire and Security

UTC Fire and Security Interlogix NX-535N-V3 Bedienungsanleitung

UTC Fire and Security

UTC Fire and Security interlogix VT7820 Montageanleitung

UTC Fire and Security

UTC Fire and Security Edwards Signaling E-IDCWS Montageanleitung

UTC Fire and Security

UTC Fire and Security interlogix VT2010 Montageanleitung

UTC Fire and Security

UTC Fire and Security interlogix VAR14120 Montageanleitung

UTC Fire and Security

UTC Fire and Security interlogix VAD7010A Montageanleitung

UTC Fire and Security

UTC Fire and Security interlogix VR1500 Montageanleitung

UTC Fire and Security

UTC Fire and Security interlogix VT4010 Montageanleitung

UTC Fire and Security

UTC Fire and Security Interlogix VR1001 Montageanleitung

UTC Fire and Security

UTC Fire and Security interlogix VT1101M Montageanleitung

UTC Fire and Security

UTC Fire and Security interlogix VR1520WDM Montageanleitung

UTC Fire and Security

UTC Fire and Security interlogix VT9930WDM Montageanleitung

UTC Fire and Security

UTC Fire and Security Interlogix VT7420-2DRDT Montageanleitung

UTC Fire and Security

UTC Fire and Security interlogix TT3010 Montageanleitung

UTC Fire and Security

UTC Fire and Security Fenwal 35-63J Series Bedienungsanleitung

UTC Fire and Security

UTC Fire and Security Interlogix VT72830-R3 Montageanleitung

UTC Fire and Security

UTC Fire and Security FenwalNET 8000-ML Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung

UTC Fire and Security interlogix VR4930WDM Montageanleitung

Beliebte Steuereinheit Handbücher anderer Marken
