Quick Start Guide

has everything you

need to get your

Vonage phone service

working with the

UTStarcom F1000 WiFi

handheld phone. Take a look

at the equipment, follow the

simple instructions and you'll be

talking in no time at all.

F1000 Series

www.utstar.com

Doc. Code: 8810027600.0510

www.utstar.com

May not be reproduced without prior written permission.

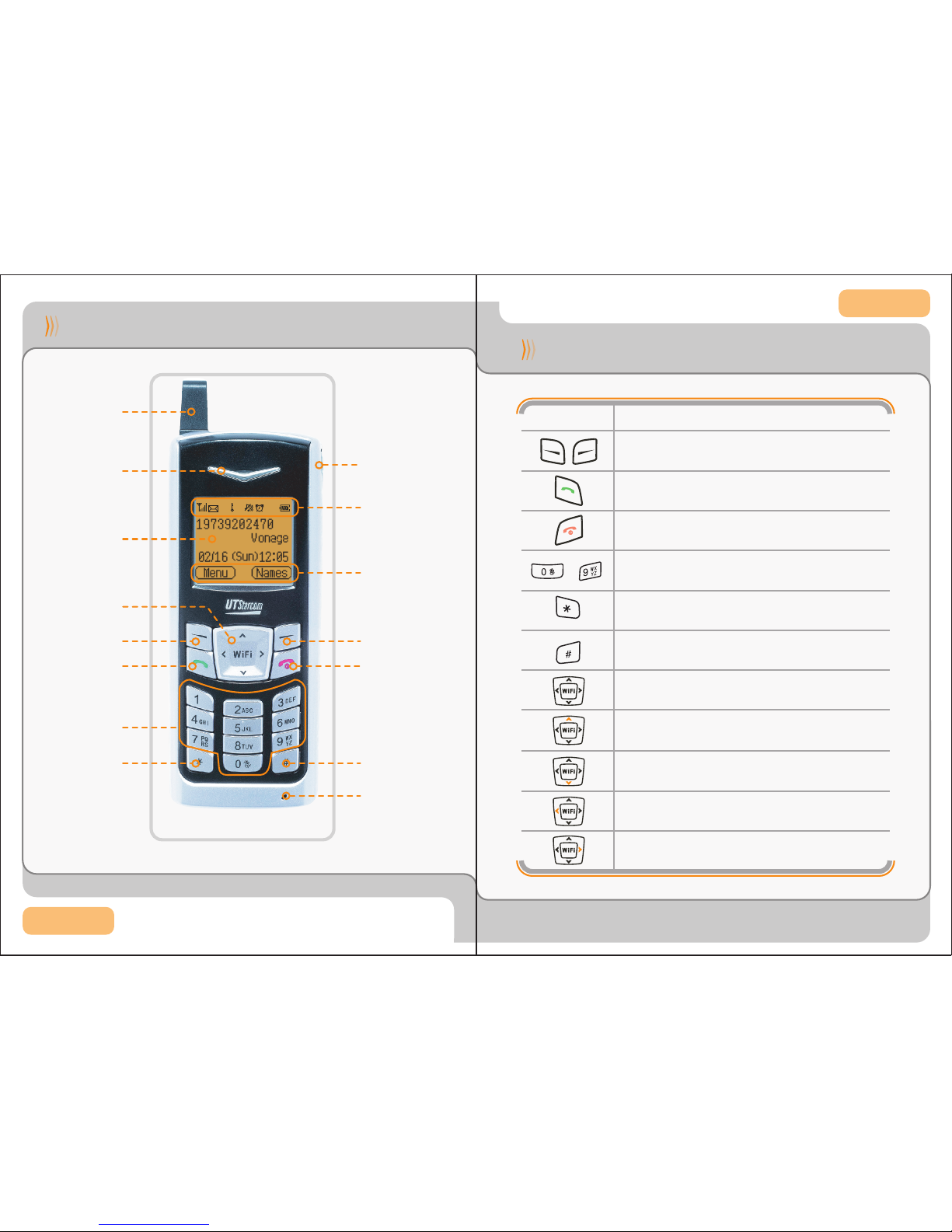

Getting to know your F1000 Handset

Your handset's keys and navigation

Switch the phone on and off, end a call, or

return to standby mode.

Key in "#" or pause symbol "P" (by pressing

and holding the key), or lock the keypad.

Enter numbers and characters.

Key in "*" or change the text input method.

Scroll through menu lists and move the

cursor.

Scroll up and access the Received Log.

Scroll down and access the Missed Log.

Access the custom functions menu.

Access the current profile menu.

Perform the function shown in the soft key

function display area directly above the soft key.

Make or receive a call; access the Dialed Log

in standby mode.

Key Function

Antenna

Earpiece

LCD screen

Left soft key

Talk key

Number keypad

* key / Switch key

Microphone

# key / Lock key

Power key

Right soft key

Soft key function

display area

Display indicators

Earphone socket

4-way

navigation key

II.

How do I...

Turn phone on/off

Many of these operations need to be performed while in standby

mode (when Menu is the left soft key function). When the phone

is idle, it enters Screen Saver mode (Clock displayed). To return

to standby mode, press .

You can make a call and use speed dial from either mode.

IMPORTANT 911 SERVICE INFORMATION: Our 911 offering is different

from that offered by traditional telephone companies; please visit the

Features section of our website, www.vonage.com, to learn more about it.

Make a call

Answer a call

Press and hold .

Key in the phone number and press .

Press (Answer) or .

End a call

Reject a call

Clear a keypad

entry

Use speed dial

Adjust listening

volume

Access menu

options

Press (Hangup) or .

Press (Clear) .

While on a call, press .

Press (Menu) to access the main

menu. Press to reach the desired

submenu/option, and then press (Ok).

Press (Hangup) or .The call will

go to voice mail.

Press and hold the speed dial key to

display the phone number, and then

press .

Turn Vibration

on/off

Set Time Zone

and DST

Press and hold until the indicator

appears/disappears.

Press (Menu). Scroll to Tools and press

(Ok). Scroll to Time Zone or DST Setting

and press (Ok). Scroll to the desired

option and press (Ok). The phone's

date and time is provided by the network.

Lock/Unlock

keypad

Press and hold until the indicator

appears/disappears.

WARNING: Prior to placing or receiving calls, the WiFi phone must be

connected to a Wireless Access Point and registered with the Vonage

Network. If you purchased this WiFi phone from a retail store, you need to

activate your device at www.vonage.com/activate. See Section 3,

"Connecting to a Wireless Network" for detailed instructions.

Adjust ring volume

Press . Scroll to Ring Volume and

press (Ok). Scroll to High or Low

and press (Ok).

IV.

III.

How do I...

Contents

1. Overview

2. Insert the Battery

3. Connecting to a Wireless Network

3.1 Connecting to Open Access Points

3.2 Connecting to Protected or Specific

Access Points

3.3 Finding and Saving the Access Point

3.3.1 Using Net Search

3.3.2 Entering SSIDs Directly

3.4 Tips for Alphanumeric Entry

3.5 Web Configuration

4. Initial Provisioning of F1000 WiFi

Phone

5. Troubleshooting

Phonebook

options:

Add a contact

Under the Phonebook submenu:

Select Add Entry; follow screen prompts.

Delete a contact

Edit a contact

phonebook

Assign a speed

dial key

Call Log options:

Select Delete Entry; follow screen prompts.

Contact name must already be in the

Phonebook. Select Speed Dial; press to

get to the desired key (1-9); press (Set);

scroll to the desired name; press (Ok).

Under the Call Log submenu:

View missed

call log

View received

call log

Select Missed Log. Press to browse.

Select Received Log. Press to

browse.

View outgoing

call log Select Dialed Log. Press to browse.

Select Search; scroll to name; press

(Details); press (Option); select Edit;

follow screen prompts.

Select Search; key in the first letter(s) of

the name; press to scroll.

VI.

Page 02

Page 01

1Overview

The UTStarcom F1000 Handheld is a wireless Voice

over IP (VoIP) telephone that, when coupled with

Vonage VoIP phone service, combines the benefits of

Internet telephone service, with mobility. This guide

covers how to configure and use your F1000 to make

VoIP phone calls via Vonage service. You can make and

receive calls as long as you are within range of a

wireless access point. See the F1000 Handbook for

more information on all features.

Note: Before using your F1000 Handheld, you should have high-

speed Internet access, a wireless router, and a Vonage phone

account set up.

HELPFUL HINT: If you purchased this WiFi phone from a retail store,

you need to activate your device at www.vonage.com/activate.

2Insert the Battery

IMPORTANT: Use ONLY the UTStarcom

rechargeable battery supplied with your new

phone!

1. Remove battery from packaging.

2. Remove the battery cover. With the

back of the phone facing you, press the

battery cover release button and lift the

cover off in the direction of the arrow.

3. Install the battery. Connect the cord of the

new battery by firmly inserting the

connector into its place. Do not reverse

the connector.

4. Replace the battery cover until it clicks

into place.

The F1000 comes partially charged, so the

phone can be used immediately. Please

refer to the "Charge the Battery" section of

the F1000 Handbook for instructions on fully

charging the battery.

Black

Yellow

Red

Internet

Page 04

Page 03

3Connecting to a Wireless Network

Your F1000 WiFi phone has been preconfigured to provide

Vonage service via any available open wireless Access Point (AP)

connected to the Internet. If you want to use a specific AP or your

AP is protected by encrypted access, refer to Section 3.2.

3Connecting to a Wireless Network

Before connecting to a protected or specific AP, you must define it

to the F1000. You can define a maximum of four APs. Typically

you would define frequently used APs such as that of your home

router. Defined APs can be open (available for use by anyone) or

protected (available for use by authorized users only).

Protected APs require use of an encryption code for access. The

F1000 supports WEP or WPA-PSK encryption codes. If your

home wireless router was installed with a WEP or WPA-PSK (Pre-

Shared Key), use it when defining the SSID to your F1000. If you

are defining a corporate AP, obtain the WEP or WPA-PSK from

the AP administrator.

Once APs are saved, the F1000 first tries to connect to one of the

defined APs and if none are available, it looks for an open AP to

use for your call. Refer to Section 3.3 for directions on how to find

and save APs.

You will see the message "Connecting to APname" while the

phone is attempting to connect.

Note: When the F1000 is used for the first time, and has successfully

connected to an AP, it will need to be provisioned. Please refer to Section 4.

When you turn on the F1000, it searches for

available APs, selects the AP with the best signal

and attempts to connect to it. You will see the

message "Connecting to APname" while the phone

is attempting to connect.

Note: When the F1000 is used for the first time, and has

successfully connected to an AP, it will need to be

provisioned. Please refer to Section 4.

Once connected (and provisioned if this is the first

time you are using your F1000), you will see the

message "Registering via APname". When the

Vonage screen appears displaying your phone

number, you are ready to make and receive calls.

Note: If the WiFi phone cannot connect to an AP, it will

keep searching and wear down your battery. Verify Open

AP availability. If not found, turn off the phone until you are

within range of an Access Point.

3.1 Connecting to Open Access Points

3.2 Connecting to Protected or Specific Access Points

Page 06

Page 05

3Connecting to a Wireless Network

APs can be defined and saved automatically using the Net

Search feature if APs have broadcast turned on. If the desired

AP has broadcast turned off, the AP can be entered directly

through a series of keystrokes on your handset.

3.3.1 Using Net Search

Note: You must be within range of the AP when using Net Search to

define it to the F1000.

1. There are two ways to initiate Net Search:

- Press (Search) while the F1000 is automatically

scanning for an AP (when the phone is first turned on).

Or,

- Use the menus to initiate Net Search:

Press (Menu); press to scroll to WiFi-Settings and

press (Ok); press to scroll to Net Search and press

(Ok).

3Connecting to a Wireless Network

Available SSIDs are displayed. Those with no lock next to the name

are open APs; those with a lock are protected APs and you will

need to supply their WEP keys or WPA-PSKs to access them.

2. Press to scroll to the desired SSID and press

(Save). Press to reach the desired AP profile and

press (Save) to save the SSID.

3. With the Security Mode option highlighted, press (Ok).

Select from Open AP, WEP Key and WPA-PSK according

to the AP's authentication mode.

4. If WEP Key or WPA-PSK is selected, the phone will directly

access the WEP KEY Info or WPA-PSK Info option. Follow

the prompt to set the option:

- WEP KEY Info: Select 64bit or 128bit to specify the encryption

method that was used to create the WEP; enter the WEP key

and press (Ok). To set the WEP key authentication method

and index, select Auth Method and WEP Key Index.

- WPA-PSK Info: Enter the WPA-PSK key and press (Ok).

3.3.2 Entering SSIDs Directly

1. Press (Menu); press to scroll to WiFi-Settings and

press (Ok); press to scroll to WiFi Config and press

(Ok); press to scroll to AP Profile and press (Ok).

2. Press to reach the desired AP profile and press

(Ok). With the SSID option highlighted, press (Ok).

3. Enter the desired AP's SSID and press (Ok).

4. Follow steps 3-4 specified in Section 3.3.1.

Once connected (and provisioned if this is the first

time you are using your F1000), you will see the

message "Registering via APname". When the

Vonage screen appears displaying your phone

number, you are ready to make and receive calls.

Note: If the WiFi phone cannot connect to an AP, it will

keep searching and wear down your battery. Verify Open

AP availability. If not found, turn off the phone until you are

within range of an Access Point.

3.3 Finding and Saving the Access Point

Page 08

Page 07

3Connecting to a Wireless Network

A shaded character ( or ) appears under

the entry line. indicates Alpha entry;

indicates numeric entry. Press to switch

between and .

For numeric entry, press the desired key once.

For alpha entry, rapidly press a key to toggle

through the letters assigned to that key. For

example, enters a, b, c, A, B, and C.

Rapidly press to toggle through the

entries. Therefore, to enter B, rapidly press

five times.

Pause between key presses to enter the next

character in the string. For example, to enter the

string "ab", press once, pause then rapidly

press twice.

If you want to change something previously

entered, press (Clear) to delete the

character to the left of the cursor; press and hold

(Clear) to delete all characters. Press

to move the cursor position in the string.

You can enter alpha and numeric values, such as a WEP Key,

using the F1000 phone keys.

3Connecting to a Wireless Network

A PC browser can be used as an alternative to configuring the

SSID/Encryption key information via the handset. Ensure that

the PC is connected to the same AP as the F1000 phone.

Enter the phone's IP address in the address bar of the PC's web

browser and press <Enter>. Follow screen prompts to enter the

user name ("user") and password (the phone's security code),

and then click <OK>. Select the desired item from the left pane

and configure the corresponding parameters. Click <submit>

and then click <REBOOT> to initiate and save the configurations.

Refer to the "Web Configuration" section of the F1000 Handbook

for detailed information.

3.4 Tips for Alphanumeric Entry

3.5 Web Configuration

Page 10

Page 09

4Initial Provisioning of F1000 WiFi

Phone

5Troubleshooting

These are the most common problems and solutions that

come up when starting to use the F1000 WiFi Phone with

Vonage service. If you are having trouble placing a phone call,

go through this checklist until your problem is solved:

I cannot make a phone call:

- Is the phone connected to an AP and registered with the

Vonage network?

If so, you will see the standby screen displaying your phone

number and Vonage logo. Key in the phone number to call

and press .

If you are using the phone for the first time, once the phone has

connected to the Internet successfully via the Access Point, the

F1000 will need to be provisioned with the latest configuration

and software. This process is automatic and will take several

minutes to complete. During this time, several status messages

such as downloading, decompressing will be displayed on the

phone's display. Once complete, the phone will power off.

Turn on the F1000 phone. The phone will use the same process

as previously described for connecting to Access Points.

If the phone hasn't connected to an AP, refer to Section 3.1

("Connecting to Open Access Points") and Section 3.2

("Connecting to Protected or Specific Access Points") for advice.

If the phone has connected to an AP, but hasn't registered

with the Vonage Network, the following message will

appear "No Service Try Another AP. This may indicate

connection to an AP for which there is no Internet, or

possibly an AP that has filtering. Try connecting to another AP.

- If you purchased this WiFi phone from a retail store, you

need to activate your device at www.vonage.com/activate.

- Is there sufficient signal strength?

Check the Signal Bars in the top left

corner of the display. Move closer to

AP for better signal strength.

- Is the Keypad locked? If so, unlock by

pressing and holding until the

indicator disappears.

The phone cannot be switched on:

- Press and make sure you hold it down for more than

2 seconds.

- If it still doesn't switch on, check your battery. Refer to Section 2,

"Insert the Battery", and if necessary, charge the battery.

Strong Weak

Page 12

Page 11

5Troubleshooting

My F1000 phone's time is off by one hour:

Check your Time Zone and Daylight Saving Time settings.

Refer to "Set Time Zone and DST" in the "How do I..."

section.

How do I know what my IP address and Mac Address

is?

Access the Network Information option: Press (Menu);

press to scroll to WiFi-Settings and press (Ok);

press to scroll to Network Parameter and press

(Ok). Press to scroll to Network Information and press

(Ok).

Net Search didn't find my AP:

Make sure SSID broadcasting is enabled on your AP.

Volume is too low or too loud on a call:

During a call, adjust the volume using .

I am using a headset/earpiece, but I can't seem

to hear the conversation or it is distorted:

Make sure your headset/earpiece has a round

2.5mm 3 conductor plug (4 silver sections with 3

black rings) as used by the F1000.

I'd like to use a different ring tone:

Several ring tone choices are available under

Profiles: Press to quickly access the menu

of the current profile. Press to scroll to Ring

Tone and press (Ok). Press to reach the

desired ring tone option and press (Ok).

I'd like to use a different standby screen

picture:

Several choices are available under Scheme:

Press (Menu); press to scroll to Settings

and press (Ok); press to scroll to Scheme

and press (Ok).

HELPFUL HINT: Your WiFi phone's Local Log function provides the

phone's status information. The troubleshooting help website may ask

you to refer to this information while analyzing the problem. Press

(Menu); press to reach MISC and press (Ok); press to

scroll to Local Log and press (Ok). The phone's status information

will be displayed.

For more troubleshooting help, visit www.vonage.com/help.

Andere Handbücher für F1000 Series

Inhaltsverzeichnis

Andere UTStarcom Handy Handbücher

UTStarcom

UTStarcom SideKick II Bedienungsanleitung

UTStarcom

UTStarcom CDM8932 Bedienungsanleitung

UTStarcom

UTStarcom PPC 6700 Bedienungsanleitung

UTStarcom

UTStarcom F1000 Series Bedienungsanleitung

UTStarcom

UTStarcom GPRS798 Bedienungsanleitung

UTStarcom

UTStarcom 860 Bedienungsanleitung

UTStarcom

UTStarcom CDM-8625 Bedienungsanleitung

UTStarcom

UTStarcom C1100 Bedienungsanleitung

UTStarcom

UTStarcom GPRS779 Bedienungsanleitung

UTStarcom

UTStarcom F1000 Series Bedienungsanleitung

UTStarcom

UTStarcom 5800 Bedienungsanleitung

UTStarcom

UTStarcom CDM7176M Bedienungsanleitung

UTStarcom

UTStarcom UT1200 Bedienungsanleitung

UTStarcom

UTStarcom PCS1400 Bedienungsanleitung

UTStarcom

UTStarcom 860 Konfigurationshandbuch

UTStarcom

UTStarcom cdm7126 Bedienungsanleitung

UTStarcom

UTStarcom CDM-8915 - annexe 1 Bedienungsanleitung

UTStarcom

UTStarcom Verizon CDM9200VW Bedienungsanleitung

UTStarcom

UTStarcom CDM7025 Bedienungsanleitung

UTStarcom

UTStarcom F1000 Series Bedienungsanleitung

UTStarcom

UTStarcom UT618 Bedienungsanleitung

UTStarcom

UTStarcom CDM-8625 Bedienungsanleitung

UTStarcom

UTStarcom Shuttle CDM8964VM Bedienungsanleitung

UTStarcom

UTStarcom PLS6800 Bedienungsanleitung

Beliebte Handy Handbücher anderer Marken

Zte

Zte BLADE A520 Bedienungsanleitung

Nokia

Nokia Lumia 620 Bedienungsanleitung

Blackbe;rry

Blackbe;rry KEYone Bedienungsanleitung

Bea-fon

Bea-fon X5 Premium Bedienungsanleitung

Blackbe;rry

Blackbe;rry 8707 Series Bedienungsanleitung

Blackbe;rry

Blackbe;rry Storm Betriebsanleitung

LG LM-X420QN Bedienungsanleitung

LifeWatch

LifeWatch V Bedienungsanleitung

Bea-fon

Bea-fon SILVER LINE SL860 Bedienungsanleitung

IKI Mobile

IKI Mobile KF4.5i Bedienungsanleitung

Hitech

Hitech HT-850 Bedienungsanleitung

Yezz

Yezz Fashion F10 Bedienungsanleitung

Point Mobile

Point Mobile PM60 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Q10 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Bold 9900 Bedienungsanleitung

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Bedienungsanleitung

LG LM-K420EMW Bedienungsanleitung

ISAFE MOBILE

ISAFE MOBILE IS655.2 Bedienungsanleitung
