UV Angel ADAPT Bedienungsanleitung

PACKAGE CONTENTS

A -(1) UV Angel Adapt HeadTM

B - (1) Work surface bracket

C -(2) 4-40 x ¼” Black oxide Phillips screws

D -(1) USB Cable 6 ft. Type A Male to Micro B Male

E -(1) 5/32” Hex wrench

(Other needed item not included: Phillips head

screwdriver -size #1)

a. Locate the work surface bracket (B) and insert the two

angled tabs (B1 and B2) into the corresponding slots

(A1 and A2) on the UV Angel Adapt Head (A) as

shown in (Figures 1 and 2). Secure in place using

Phillips screws (C) and size #1 Phillips head

screwdriver.

b. Locate the USB power cord (D) and plug the Micro B

male side into the back of the UV Angel Adapt unit

(Figure 3). Route Cable through bracket cut-out to

assure proper closure of work surface.

c. Locate the hex head screws already installed behind

the work surface by sliding out the work surface.

Unscrew the top two hex head screws under the work

surface and attach the bottom of the bracket using the

enclosed hex wrench (Figure 4).

FIGURE 1 FIGURE 2

FIGURE 3 FIGURE 4

FIGURE 5

Step 1 –Unpack contents from box

Unpack the UV Angel Adapt –Ergotron StyleView Work Surface Assembly

contents from the box and remove the protective bags.

Step 3 – Connect to power

Plug the Type Amale side into an available HP thin client or

laptop USB port close the work surface.(Figure 5).

For installation support visit: www.ergotron.com

1-800-888-8458

UV ANGEL ADAPT TM

Ergotron StyleView

Work Surface Assembly Instructions

UV Angel Air® are registered trademarks of UV Partners, Inc. 888.277.2596 • INFO@UVANGEL.COM • UVANGEL.COM

A1 A2

Micro B Male Attachment screws

Step 2 –Assemble and Mount UV Angel Adapt to

the Work Surface

TEC251508 | V3 | 12.18.20

Here are some important notes prior to installing your UV Angel Adapt:

•Ensure Step 3 has been completed and the UV Angel Adapt is securely in place.

•Requirements:

oWIFI Network -UV Angel AdaptTM supports 2.4 GHz Wireless Networks

(b/g/n); and WPA/WPA2 Personal Security Protocols

oWPA2 Enterprise Not Supported

oiOS or android application

oInternet browser (Requires Chrome, Safari, Microsoft Edge or Firefox

browsers. Internet Explorer browser not supported)

Step 4a –Mobile Provisioning and Activation

4a.1. Install the “UV Angel Ally” app from the Apple Store or Google Play.

4a.2.On your device:Ensure Bluetooth is turned on and connected to the

same WIFI network to which you will be connecting your UV Angel Adapt

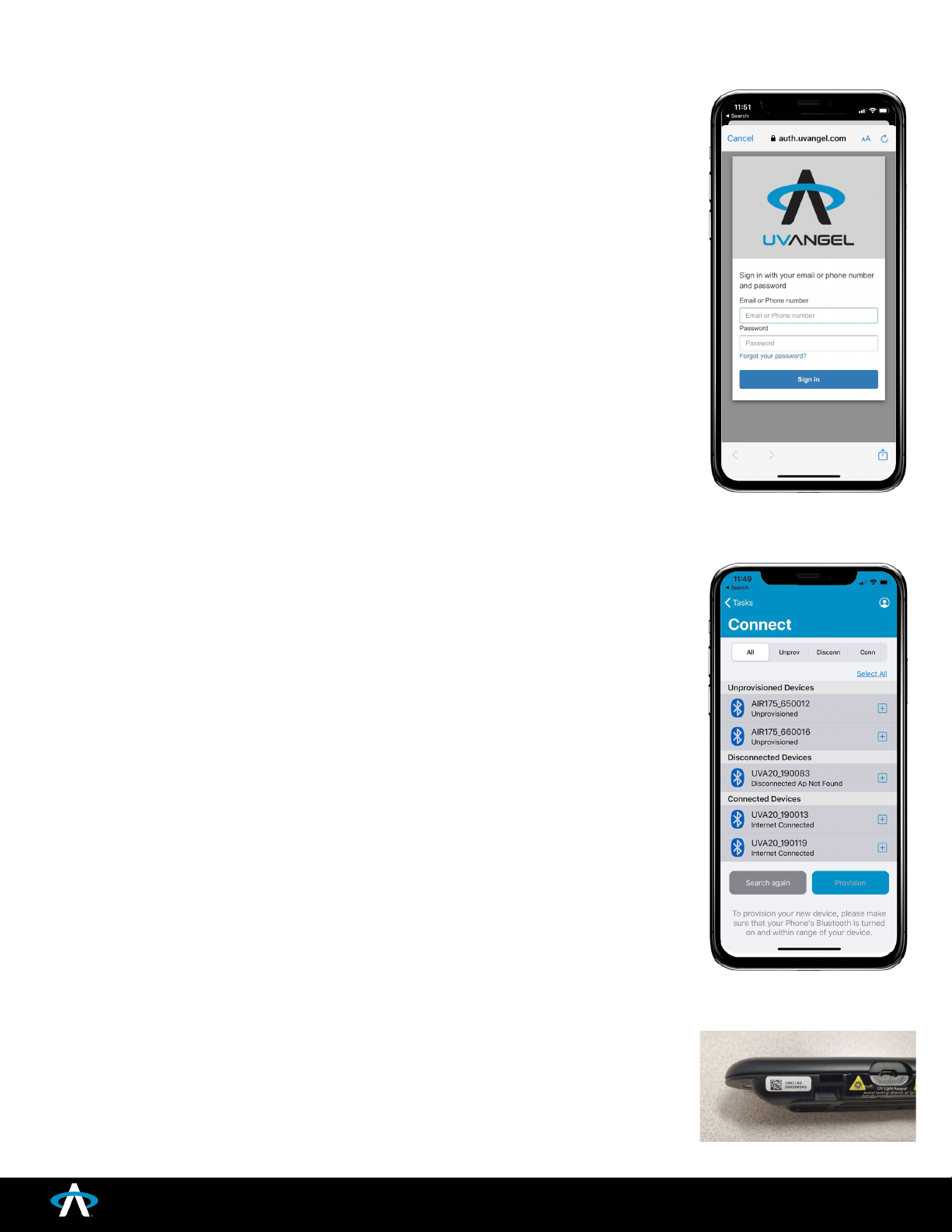

4a.3. Open the “UV Angel Ally” app and login (Figure 7)

a. If you do not have login credentials, please contact the UV Angel support team by

emailing "cloud@uvangel.com" or contact your UV Angel sales representative.You

will receive an email with your login credentials and be requested to change your

password. You may then login and continue to Step 4a.4.

4a.4. Under Eligible Workﬂows, select Provision

4a.5. On the Connect screen, wait for the device search to complete

a. If no UV Angel Adapt devices are listed:

i. Ensure your device is within 30 ft of the UV Angel Adapt device

ii. Ensure your UV Angel Adapt is powered on (solid red UV Angel

light)

iii. You may search for devices again using the “Search Again” button

iv. If you are still having trouble, please contact UV Angel at

"[email protected]"

4a.6. Select the UV Angel AdaptTM device(s) you wish to provision (Figure 8)

a. The numbers shown after ‘UVA20_’ is the device serial number. This

identiﬁer is located on the back of the UV Angel Adapt device and is the last

6 digits of the bottom row of numbers (Figure 9).

4a.7. Select Provision

4a.8. On the Provision screen, select the WIFI network to which you wish to

connect the UV Angel Adapt device(s).

4a.9. Enter the WIFI credentials and select Provision

FIGURE 9

FIGURE 7

FIGURE 8

888.277.2596 • INFO@UVANGEL.COM • UVANGEL.COM

UV Angel Air® are registered trademarks of UV Partners, Inc.

LED lights indicate the 3 treatment cycles for the UV Angel Adapt.

4a.10. Wait for the provisioning process to complete for all selected devices.

a. Upon completion of provisioning, you will be redirected back to the

“Connect” screen

4a.11. On the Connect screen, verify all devices are listed, and their status has

changed to “Internet Connected”

a. If devices do not show “Internet Connected”, as shown in Figure 8,

where one device shows "Connected":

i. Return to Step 4a.4 above -Search a few times until the device

fully updates its status

ii. Ensure the device is not in a cleaning cycle (Blue logo light). If

so,

1. Touch device and/or wave hand underneath device to

stop cleaning cycle

2. Search again (Step 4a.4 above)

4a.12. Ensure you are not interacting with the surface and confirm the UV

Angel indicator light transitions from red to blue and begins a treatment cycle

(see 3 cycles below). Your UV Angel Adapt is now activated.

Step 4b -Optional Manual Activation (without WIFI)

4b.1. Insert paper clip in left side of unit for 10 seconds, unit flashes blue. Do it again

for 10 seconds, unit flashes back to red. The unit is now working and activated.

Troubleshooting

•Ared/green alternating flash ("Gyro Lock"):Make sure the Adapt unit is

still in its intended position. Recalibration is required through the UV Ally

app, follow steps below.

•Recalibration: On the Tasks screen within the UV Angel Ally app,

select Recalibrate.Select Scan (Figure 11) and using your

camera, scan the QR code on the back of the UV Angel

AdaptTM. Select "Recalibrate …[serial no.].

•If you are still having trouble, contact the UV Angel team

at [email protected].

•A red only flash: If the UV Angel Adapt starts flashing

red continuously, contact the UV Angel team at cloud@uvangel.com.

EPA Est. No. 094778-MI-001

UV Angel | 233 Washington Ave | Suite L1 | Grand Haven, MI, 49417

FIGURE 11

FIGURE 10

UV Angel Air® are registered trademarks of UV Partners, Inc. 888.277.2596 • INFO@UVANGEL.COM • UVANGEL.COM
