V-ZUG 173 Bedienungsanleitung

Operating instructions

Unimatic TSL WP

Tumble dryer

Thank you for choosing to buy one of our products. Your appliance is made to high

standards and is easy to use. Nevertheless, please take the time to read these operating

instructions in order to familiarize yourself with the appliance and get the best use out of

it.

Please follow the safety precautions.

Modifications

Text, diagrams and data correspond to the technical standard of the appliance at the

time these operating instructions went to press. The right to make technical modifications

for the purpose of the further development of the appliances is reserved.

Validity

These operating instructions apply to:

Model Type Product family

Unimatic TSL WP WT-UTSL-WP 173

Variations depending on the model are noted in the text.

Contents

1 Safety precautions 4

1.1 Symbols used......................................................... 4

1.2 General safety precautions.................................. 4

1.3 Appliance-specific safety precautions ............... 4

1.4 Instructions for use................................................ 6

2 Using for the first time 7

2.1 Note.......................................................................... 7

2.2 Function description.............................................. 7

2.3 Starting the function test ...................................... 7

2.4 Ending the function test........................................ 7

2.5 Interrupting the function test................................ 8

2.6 Aborting the function test..................................... 8

2.7 Where is the identification plate?........................ 8

3 Appliance description 9

3.1 Appliance overview ............................................... 9

3.2 Appliance construction.......................................10

3.3 Operating and display elements.......................10

4 Programme overview 11

4.1 Programme sequence for the automatic

programmes .........................................................11

4.2 Automatic programmes......................................12

4.3 Fabric types ..........................................................12

4.4 Timed drying.........................................................14

4.5 Additional functions.............................................14

5 Drying 15

5.1 Preparing the appliance .....................................15

5.2 Loading the appliance ........................................15

5.3 General note on programme selection ...........15

5.4 Selecting an automatic programme.................16

5.5 Selecting timed drying ........................................17

5.6 Selecting ultra care or easy care .....................17

5.7 Selecting a delayed start....................................17

5.8 Interrupting a programme ..................................18

5.9 Aborting a programme before time .................18

5.10 With childproof lock activated...........................18

5.11 End of programme ..............................................19

6 User settings 19

6.1 Adjusting user settings ........................................19

6.2 Language ...............................................................20

6.3 Childproof lock......................................................20

6.4 Level of dryness....................................................21

6.5 Automatic door opener........................................21

6.6 Brightness ..............................................................22

6.7 Restoring factory settings ...................................22

7 Care and maintenance 23

7.1 Cleaning intervals .................................................23

7.2 With message «A9» or «A11»............................24

7.3 Removing any fluff................................................24

7.4 Cleaning the door filter / door filter mat ..........25

7.5 Cleaning the front filter / front filter mat ...........27

7.6 Cleaning the temperature sensor......................28

7.7 Cleaning the evaporator......................................29

7.8 Cleaning the cooler filter .....................................29

8 Trouble-shooting 31

8.1 What to do if …......................................................31

9 Drying tips 35

9.1 Fabric care symbols.............................................35

9.2 General tips ...........................................................35

9.3 Energy-saving tips ................................................35

10 Spare parts 36

11 Technical data 37

11.1 Product fiche .........................................................37

11.2 Note for testing institutes ....................................38

11.3 Consumption values ............................................38

11.4 EcoStandby............................................................39

12 Disposal 40

13 Index 41

14 Service & Support 43

1 Safety precautions

1.1 Symbols used

Denotes important safety precau-

tions.

Failure to observe said precautions

can result in injury or in damage to

the appliance or fittings!

Information and precautions that

should be observed.

Information on disposal

Information about the Operating In-

structions

▸ Indicates step-by-step instructions.

–Describes how the appliance reacts

to the steps taken.

▪Indicates a list.

1.2 General safety precautions

▪Read the operating instruc-

tions before using the appli-

ance for the first time.

▪This appliance can be used

by children aged 8 and above

and by persons with reduced

physical, sensory or mental

capabilities, or lack of experi-

ence and/or knowledge,

provided they are supervised

or have been instructed on

the safe use of the appliance

and have understood the haz-

ards involved. Children shall

not play with the appliance.

Cleaning and user mainten-

ance shall not be undertaken

by children without supervi-

sion.

▪If an appliance is not

equipped with a mains cable

and a plug or other means for

disconnecting from the mains

with a contact opening on

each pole complying with the

conditions of overvoltage cat-

egory III for full isolation, an

isolating device must be in-

corporated into the perman-

ently installed electrical install-

ation in accordance with the

installation regulations.

▪If the mains cable of this ap-

pliance is damaged, it must

be replaced by the manufac-

turer or its Customer Services

or a similarly qualified person

in order to avoid hazard.

1.3 Appliance-specific safety

precautions

▪Children under 3 years of age

must be kept away from the

appliance unless they are

constantly supervised.

▪The appliance has a max-

imum dry load capacity of

7 kg.

1 Safety precautions

▪This appliance is only suitable

for drying textiles which have

been washed in water.

▪The appliance is only to be

used with the recommended

vaporizing medium. The use

of other substances may give

rise to a toxic or fire risk.

▪The appliance has hot sur-

faces to evaporate active

components. These surfaces

should not be touched during

use.

▪The tumble dryer may not be

used if industrial chemicals

were used for cleaning.

▪Clean the fluff filters regularly.

▪Do not allow fluff to build up

around the tumble dryer.

▪Do not dry unwashed items in

the tumble dryer.

▪Textiles that have been

cleaned, treated or soaked

with flammable chemicals,

detergents or solvents (such

as white spirit, alcohol, stain

remover, oil, turpentine, acet-

one, paint, wax, etc.) are a

fire and explosion hazard!

Wash materials containing

such substances first by hand

with water or allow the solvent

to evaporate completely.

▪Items such as foam rubber

(latex foam), shower caps,

waterproof textiles, rubber

backed articles and clothes

or pillows fitted with foam rub-

ber pads should not be dried

in the tumble dryer.

▪Fabric conditioner (softener)

and similar products must be

used as per the manufac-

turer’s instructions.

▪Remove objects such as

lighters and matches and the

like.

▪Never stop a tumble dryer be-

fore the end of the drying

cycle unless all items are

quickly removed and spread

out so that the heat is dissip-

ated.

▪If the appliance is installed on

a carpeted floor ensure that

any ventilation openings on

the base of the appliance are

not obstructed.

▪If the appliance is installed in

a housing, the ventilation

openings are to be kept free

of obstruction.

▪Exhaust air must not be dis-

charged into a flue which is

used for exhausting fumes

from appliances burning gas

or other fuels.

▪Do not install the appliance

behind a door that locks, a

sliding door or a door with a

hinge that lies opposite the

hinge of the appliance.

1 Safety precautions

1.4 Instructions for use

Before using for the first time

▪The appliance must be installed and

connected to the electricity supply in

accordance with the separate installa-

tion instructions. Have a qualified fitter/

electrician carry out the necessary

work.

▪Ensure access to the place of discon-

nection (e.g. socket outlet, wall switch,

fuse) and the water tap.

Correct use

▪The appliance is only suitable for drying

home textiles. It is designed for use in

the home and for the above-mentioned

purpose only. No liability is assumed for

any damage caused by improper or in-

correct use.

▪Any repairs, modifications or manipula-

tions to the appliance, especially any

electrically live parts, may only be car-

ried out by the manufacturer, its cus-

tomer service department or similarly

qualified persons. Repairs if carried out

incorrectly may cause serious injury,

damage to the appliance and fittings,

as well as affect the functioning of the

appliance.

▪If the appliance is not working properly

or in case a repair is needed, follow the

instructions given in the 'Service & Sup-

port' section. Contact our Customer

Services if necessary.

▪Use original spare parts only.

▪Before closing the appliance door and

starting a programme, ensure that there

are no foreign objects or pets in the

washing drum.

Note on use

▪If the appliance is not functioning prop-

erly, disconnect it from the power sup-

ply immediately.

▪To protect your washing, follow the fab-

ric care symbols and the hints and ad-

vice in the 'Drying tips' section.

▪Do not operate the appliance without a

door filter or with a damaged door filter.

Fluff can destroy the appliance!

Caution: Burns hazard!

▪Do not dry fabrics that contain traces of

hair spray, hair gel, nail varnish remover

or other similar substances. Danger of

gas build-up!

Caution: Risk to life!

▪Packaging material, e.g. plastic film and

polystyrene, can be dangerous for chil-

dren. Danger of suffocation! Keep pack-

aging material away from children.

How to avoid damaging the appliance

▪Transport the appliance in an upright

position only! Transporting it in any

other position will result in damage to

the appliance! When carried carefully

without being shaken, the appliance

may be tilted a maximum of 90° to the

left (viewed from the front).

Front

Front Back

Front,

upside down Side

▪Close the appliance door carefully.

▪When cleaning the appliance make

sure no water gets inside it. Use a mod-

erately damp cloth. Do not spray the

outside or the inside of the appliance

with water. If water gets inside the appli-

ance, it will cause damage.

2 Using for the first time

2.1 Note

The appliance can only be operated after standing in the normal operating posi-

tion for about 2 hours.

The appliance must be installed and connected to the electricity supply in accordance

with the separate installation instructions. Have a qualified fitter/electrician carry out the

necessary work.

2.2 Function description

When the appliance is connected to the power supply for the first time, it is possible to

select a function test. The purpose of the function test is to check the installation. It takes

about 3 minutes. The function test can be selected immediately after installation. The

heat pump is not started during the function test. Before the definitive initial start-up of

the appliance, it must stand in the normal operating position for around 2 hours, other-

wise the heat pump could become damaged.

The function test cannot be aborted by interrupting the power supply.

Once the function test has been run or aborted, it can no longer be selected and

the appliance enters the normal selection mode.

2.3 Starting the function test

▸ Connect the appliance to the mains.

–In the display appears:

–The indicator lights for the programme buttons

and flash.

Pause function test

ende continue

▸ Press the button.

–The function test starts.

–The duration remaining of the function test appears

in the display.

Function test 0h03

2.4 Ending the function test

Once the function test is completed, in the

display appears:

Pause function test

ende continue

The display goes out automatically after

30minutes or after taking the following ac-

tions:

▸ Open the appliance door.

▸ Touch the button.

The appliance can only be operated after standing in the normal operating position

for around 2 hours.

2 Using for the first time

2.5 Interrupting the function test

The function test can be interrupted in 2 ways.

Either:

▸ Open the appliance door.

–In the display appears:

Pause function test

Close appliance door

–After closing the appliance door, in

the display appears:

Function test complete

Or:

▸ Touch the button.

–In the display appears:

Pause function test

ende continue

The appliance can only be operated after standing in the normal operating position

for around 2 hours.

2.6 Aborting the function test

–In the display appears:

Pause function test

ende continue

▸ Touch the button.

–In the display appears:

Function test complete

The appliance can only be operated after standing in the normal operating position

for around 2 hours.

2.7 Where is the identification plate?

1Identification plate with serial number (SN)

Note down the serial number (SN) of your appliance on the back page of these operat-

ing instructions.

Depending on when the appliance was manufactured, it may have a manufac-

turer’s number (FN) or serial number (SN). There is no difference between the two.

3 Appliance description

3.1 Appliance overview

The appliance operates with a closed air circuit. Moisture is extracted from the air with

the help of a heat pump and then the air is reheated. Recovering heat in this way sharply

reduces energy consumption.

Thanks to the heat pump, the appliance dries at lower temperatures. All the programmes

are therefore gentler on your laundry.

The condensate water collected is discharged through an outlet at the rear into the drain-

age system.

As a general rule, rooms containing a heat pump dryer should be ventilated as these

produce some humidity. If the room is kept closed, it must be aired occasionally (either

by opening the door to the room or a window) between several consecutive drying pro-

grammes.

▪Load capacity: 7 kg dry washing

▪5 automatic programmes

▪1 automatic programme for 12 different textiles

▪1 additional programme

▪3 additional functions

▪Crease guard at end of programme

▪Plain text display

▪Childproof lock

▪Language selection

▪Automatic door opener

▪Automatic energy-saving «EcoStandby» function

3 Appliance description

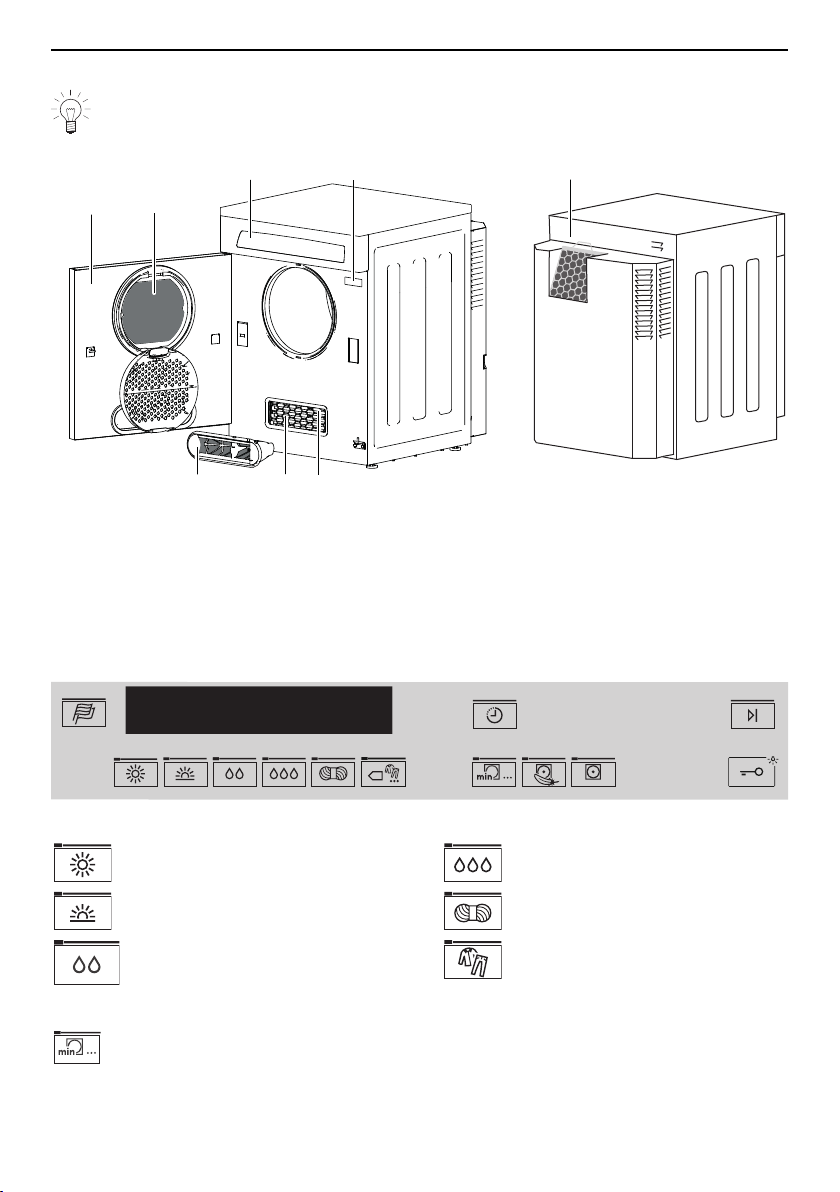

3.2 Appliance construction

The appliance door can be set to open to the left or to the right. Our Customer

Services can make the necessary adjustments to the appliance.

1 Appliance door

2 Door filter with door filter mat

3 Operating and display elements

4 Identification plate

5 Temperature sensor

6 Evaporator

7 Front filter with front filter mat

8 Cooler filter

3.3 Operating and display elements

Automatic programmes

Extra dry Damp

Normal dry Woollens

Iron dry Fabric type

Timed drying

Andere Handbücher für 173

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere V-ZUG Trockner Handbücher

V-ZUG

V-ZUG Unimatic TL WP Bedienungsanleitung

V-ZUG

V-ZUG Adora TSL WP Bedienungsanleitung

V-ZUG

V-ZUG CombiAdoraDry V4000 DualDry Bedienungsanleitung

V-ZUG

V-ZUG REFRESH-BUTLER Bedienungsanleitung

V-ZUG

V-ZUG Adora TSLQ WP Bedienungsanleitung

V-ZUG

V-ZUG WT-ATLWPZ 958 Bedienungsanleitung

V-ZUG

V-ZUG AdoraDry V6000 Bedienungsanleitung

V-ZUG

V-ZUG Adora TSLQ WP Bedienungsanleitung

V-ZUG

V-ZUG AdorinaDry V200 Bedienungsanleitung

V-ZUG

V-ZUG 12017 Bedienungsanleitung

V-ZUG

V-ZUG 296 Bedienungsanleitung

V-ZUG

V-ZUG 173 Bedienungsanleitung

V-ZUG

V-ZUG AT6TWHWR Bedienungsanleitung

V-ZUG

V-ZUG Adora TSL WP Bedienungsanleitung

V-ZUG

V-ZUG Adora TSL WP Bedienungsanleitung

V-ZUG

V-ZUG Unimatic TL WP Bedienungsanleitung

V-ZUG

V-ZUG Adora TLA Bedienungsanleitung

V-ZUG

V-ZUG AdoraDry V2000 Bedienungsanleitung

V-ZUG

V-ZUG UnimaticDry V2000 Bedienungsanleitung

V-ZUG

V-ZUG Adora TSA Bedienungsanleitung

V-ZUG

V-ZUG CombiAdoraDry V4000 DualDry Bedienungsanleitung

V-ZUG

V-ZUG Unimatic TSL WP Bedienungsanleitung

V-ZUG

V-ZUG Unimatic TSL WP Bedienungsanleitung

V-ZUG

V-ZUG AdoraDry V2000 Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
