V-ZUG DF-S5 Bedienungsanleitung

Range Hood

DF-S5 / DF-S6

Operating instructions

V-ZUG Ltd

Thank you for choosing to buy one of our products. Your appliance is made

to high standards and is easy to use. Nevertheless, please take the time to

read these operating instructions in order to familiarize yourself with the

appliance and get the best use out of it.

Please follow the safety precautions.

Modifications

Text, diagrams and data correspond to the technical standard of the

appliance at the time these operating instructions went to press. The right to

make technical modifications for the purpose of the further development of

the appliance is reserved.

Symbols used

AIndicates step-by-step instructions.

– Describes how the appliance reacts to the steps taken.

䡲Indicates a list.

Validity

The model number corresponds to the first 3 digits on the identification plate.

These operating instructions apply to the models:

Variations depending on the model are noted in the text.

Denotes important safety precautions. Failure to observe said

precautions can result in injury or damage to the appliance or

fittings!

Denotes useful tips for the user.

Type Model no. Size system

DF-S5 364 55

DF-S6 596 60

Contents

Safety precautions 5

Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . 5

Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Appliance description 9

Extraction model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Recirculation model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Operating elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Use 12

Switching appliance on . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Switching extractor fan on and off . . . . . . . . . . . . . . . . . . . 12

Switching the illumination on and off . . . . . . . . . . . . . . . . . 13

Switching off the appliance . . . . . . . . . . . . . . . . . . . . . . . . . 13

Care and maintenance 14

Cleaning the housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning the illumination cover . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning the grease filters . . . . . . . . . . . . . . . . . . . . . . . . . 15

Replacing the standard activated charcoal filter . . . . . . . . . 18

Cleaning and replacing long-life activated charcoal filters . 19

Replacing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Trouble-shooting 21

What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

… Contents

Accessories and spare parts 22

Technical data 23

Disposal 24

Index 25

Repair service 27

Quick instructions 28

Safety precautions

In accordance with the requirements of IEC 60335-1:

䡲This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless supervised or unless they have been given instruction

concerning the use of the appliance by a person responsible for their

safety.

Before using for the first time

䡲The appliance must be installed and connected up to the electricity supply

according to the separate installation instructions. The necessary work

should be carried out by a qualified fitter or electrician.

䡲Dispose of the packaging material in accordance with local regulations.

The appliance corresponds to recognised technology standards

and the relevant safety regulations. Proper use of the appliance is

however essential to avoid damage and accidents. Please there-

fore follow the precautions given in these operating instructions.

… Safety precautions

Correct use

䡲The appliance is designed for use in the home for extracting cooking fumes

and smells from above the cooking surface.

䡲Any repairs, modifications or manipulations to the appliance, especially

any electrically live parts, should only be carried out by the manufacturer,

its Customer Services or similarly qualified persons. Repairs if carried out

incorrectly may cause serious injury, damage to the appliance and fittings,

as well as affect the functioning of the appliance. If the appliance is not

working properly or in case of a repair order, follow the instructions given

in the 'Repair service' section. Please contact our Customer Services if

necessary.

䡲Use original spare parts only.

䡲Retain these operating instructions for future reference. If you sell or pass

the appliance on to a third party, please ensure these operating instruc-

tions, together with the installation instructions, accompany the appliance.

In this way, the new owner can inform themselves about how to use the

appliance correctly and read the pertinent safety precautions.

Children in the home

䡲Packaging material e.g. plastic and polystyrene can be dangerous for chil-

dren. Danger of suffocation! Please keep packaging material away from

children.

䡲The appliance is designed for use by adults who are familiar with these op-

erating instructions. Children are often unable to recognise the danger of

electrical appliances. Ensure proper supervision and do not allow children

to play with the appliance – there is a danger that children could hurt

themselves.

… Safety precautions

Note on use

䡲If the appliance is visibly damaged, do not use it. Contact our Customer

Services.

䡲If the appliance is not operating properly, disconnect it from the electricity

supply immediately.

䡲Do not flambé food underneath the hood as the grease filters if laden with

grease could catch fire.

䡲If frying on the cooking surface, do not leave the frying appliance unattend-

ed. The cooking oil in the frying appliance could overheat and catch fire.

Constantly monitor the temperature of the cooking oil, keeping it below the

temperature at which it can catch fire. Change the cooking oil regularly –

dirty oil catches fire more easily than clean oil.

䡲Clean the filters regularly. Failure to do so can increase the fire hazard due

to the build-up of grease in the grease filter.

䡲Do not operate the individual cooking zones of the cooking surface without

a pan on them or with an empty pan on them so as to avoid damaging the

appliance or the kitchen fittings through a build-up of heat. Avoid open fires

with oil, gas, wood and coal fired cookers.

䡲Ensure there is adequate ventilation when the extraction fan is on so as to

avoid creating a disturbing underpressure in the kitchen and to achieve op-

timal air extraction.

䡲Avoid a cross-current of air, which could blow the cooking vapours over

the cooking area.

… Safety precautions

䡲If other appliances – fuelled by gas or other fuels – are being used at the

same time, ensure that there is a sufficient supply of fresh air. This does

not apply to air recirculation appliances.

䡲If other firing systems are being used at the same time (e.g. wood, gas, oil

or coal-fired heating appliances), safe operation is only possible providing

a room negative pressure of 4 Pa (0.04 mbar) is not exceeded at the loca-

tion of the appliance. Risk of toxic fumes! An adequate flow of fresh air

must be guaranteed e.g. via non-closable openings in doors or windows

and in combination with an air-intake/exhaust-air wall box or by other tech-

nical means.

䡲When carrying out maintenance work on the appliance, including replacing

the light bulb, cut off the electricity supply to the appliance (remove the

screw fuse from the holder or switch the circuit breaker off, or disconnect

from the mains supply).

䡲When cleaning the appliance make sure no water gets inside the appli-

ance. Use a moderately damp cloth. Do not spray the inside or outside of

the appliance with water. Do not use a steam cleaner. If water gets inside

the appliance, it can cause damage.

Appliance description

The appliance is used to extract cooking fumes and smells from a cooking

area and is normally installed in an overhead unit. This particular model can

be used in the extraction mode or the recirculation mode.

Extraction model

The integrated fan extracts cooking fumes and smells from above the

cooking surface. The air is cleaned through the grease filters and then fed

through the exhaust air conduit to the outside.

Recirculation model

Using an activated charcoal filter in the appliance

After being filtered through the grease filters, the cooking fumes and smells

above the cooking surface are passed through an activated charcoal filter.

The cleaned air is then circulated through the grille – at the top of the

appliance – and back into the room.

Using an LRC1 air recycling cassette

The appliance extracts the cooking fumes and smells from above the cooking

surface through the grease filters, which remove the grease particles. The air

is then blown via a duct through the air recycling cassette. An activated

charcoal filter in the air recycling cassette removes the cooking fumes and

smells. The cleaned air is then circulated through the outlet grille back into

the room.

When the appliance is in use, ensure there is a sufficient supply of

fresh air to replace the air that is being extracted.

The activated charcoal filter is more effective at the lower power

levels.

… Appliance description

Features

䡲Flat pull-out deflector plate

䡲2extractorfans

䡲2 metal grease filters

䡲Cooking surface illumination

䡲1 activated charcoal filter (only with air recirculation, not supplied)

The extractor fan has 3 power levels:

䡲1 = low, 2 = medium, 3 = high capacity

䡲Levels 1 and 2 are suitable for longer periods of use.

䡲Level 3 (high) is used for short, intensive extraction of fumes, e.g. when fry-

ing. It should then be switched back to level 1 or 2.

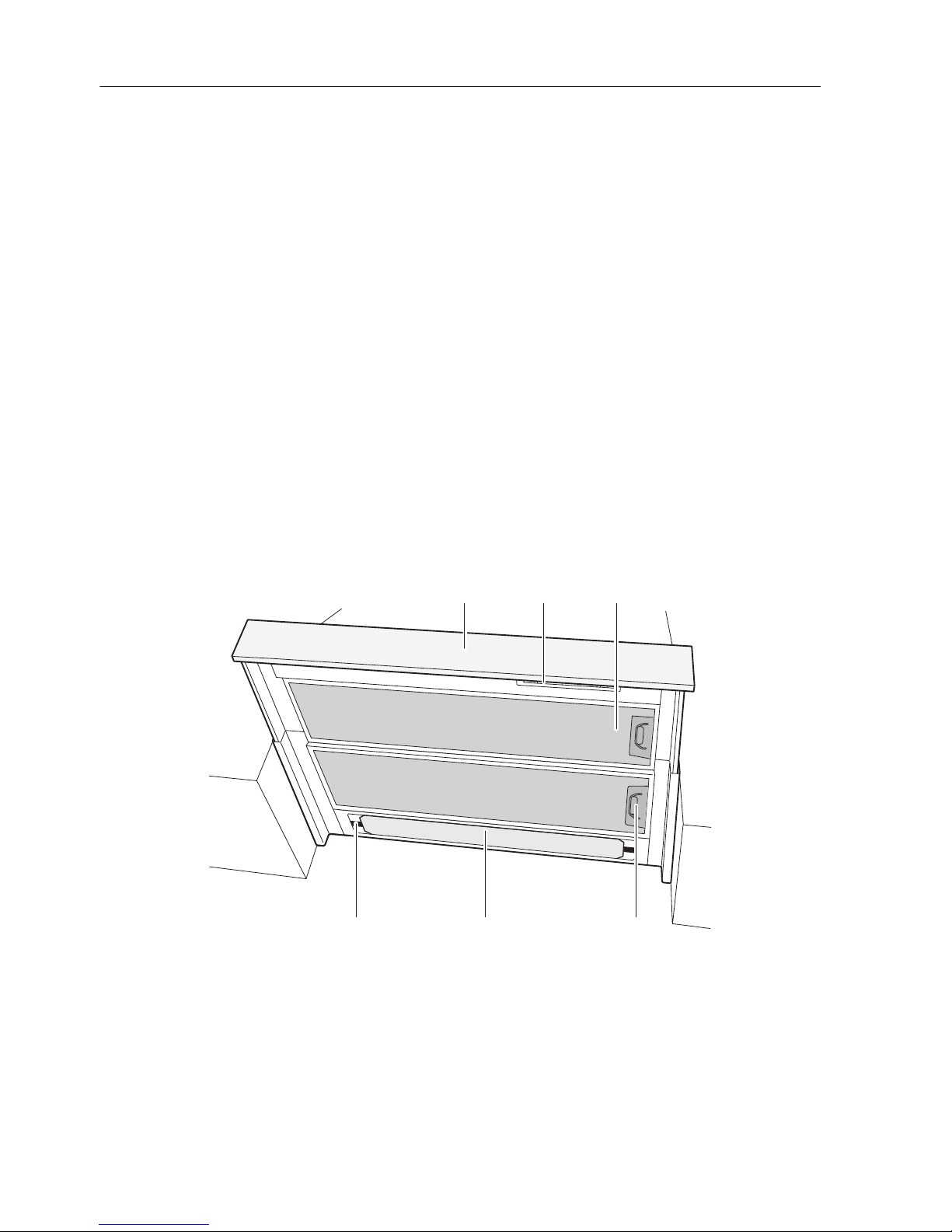

Construction

1Flat pull-out deflector plate 5Illumination

2Operating elements 6Illumination cover

3Metal grease filter 7Locking bar

4Handle

123

75/6
