Thank you for purchasing this Vacmaster®wet/dry vacuum cleaner. Feel confident that with

Vacmaster®you are obtaining a high quality product engineered for optimal performance. This

vacuum is capable of picking up liquids and dry materials.

FOR YOUR SAFETY CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS

We take pride in producing a high quality, durable product. This Vacmaster®product carries a limited three

(3) year warranty against defects in workmanship and materials from date of purchase under normal

household use. If product is to be used for commercial, industrial or rental use, a 90 day limited warranty

will apply. Warranty does not apply to defects due to direct or indirect abuse, negligence, misuse, accidents,

repairs or alterations and lack of maintenance. Please keep your receipt as proof of purchase. This

warranty gives you specific legal rights. For product service call Customer Service at 866- 384-8432.

IMPORTANT SAFETY INSTRUCTIONS

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM

Read and understand this owner’s manual and all labels on the Wet/Dry Vacuum cleaner before operating.

Safety is a combination of common sense, staying alert and knowing how your vacuum works. Use this

Wet/Dry Vac only as described in this manual. To reduce the risk of personal injury or damage to your

Wet/Dry Vac, use only Vacmaster®recommended accessories.

Household Type

SAVE THIS MANUAL FOR FUTURE REFERENCE.

TABLE OF CONTENTS

Warranty………………………………………………………………………………………………

Safety Instructions and Warnings…………………………………………………………………

Double Insulation Instructions....……………………………………………………………………

Extension Cord……………………………………………………………………………………….

Unpacking and Checking Carton Contents………….……………………..………………………

General Assembly Instructions……………………………………………………………………...

Dry Vacuum Operation……………………………………………………………………………….

Liquid Vacuum Operation……………………………………………………………………………

Blowing Operation……………………………………………………………………………………

Maintenance…………………………………………………………………………………………..

Installing & Cleaning Cartridge Filter……………………………...………………..….…………..

Installing & Cleaning Foam Sleeve Filter………………………...………………….…..….……..

Troubleshooting………………………………………………………………………………………

Exploded View and Parts List…………………………………………………………..…………..

WARRANTY

SAFETY INSTRUCTIONS & WARNINGS

When using an electrical appliance, basic precautions should always be followed including the

following:

WARNING:TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Do not run vac unattended.

• Do not vacuum, or use this Wet/Dry Vac near flammable liquids, gases, or explosive vapors like gasoline

or other fuels, lighter fluids, cleaners, oil-based paints, natural gas, hydrogen, or explosive dusts like coal

dust, magnesium dust, grain dust, or gun power. Sparks inside the motor can ignite flammable vapors or

dust.

• Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Keep cord away from heated surfaces.

• Do not expose to rain. Store indoors.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not use with damaged cord, plug or other parts.

• If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water,

return it to a service center.

• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or

corners.

• Do not run Wet/Dry Vac over cord.

• Do not handle plug or the Wet/Dry Vac with wet hands.

• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.

• Do not use or store near hazardous materials.

• Do not use this Wet/Dry Vac with a torn filter or without the filter installed except when vacuuming liquids

as described in the operation section of this manual.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.

• Do not leave Wet/Dry Vac unattended when plugged in. Unplug from outlet when not in use and before

servicing.

• Turn off Wet/Dry Vac before unplugging.

• Do not put any object into ventilation openings. Do not vacuum with any ventilation openings blocked;

keep free of dust, lint, hair or anything that may reduce air flow.

• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• To reduce the risk of falls, use extra care when cleaning on stairs.

When using as blower:

• Direct air discharge only at work area.

• Do not use Wet/Dry Vac as a sprayer.

• Do not direct air at bystanders.

• Keep children away when blowing.

• Use safety goggles.

This Wet/Dry Vac is double-insulated, eliminating the need for a separate grounding system. Use only

identical replacements parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacs before

servicing. Use this Wet/Dry Vac as described in this manual. Observe the following warnings that appear

on the motor housing of your Wet/Dry Vac.

DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE ONLY

IDENTICAL REPLACEMENT PARTS.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK-DO NOT EXPOSE TO RAIN. STORE

INDOORS.

DOUBLE INSULATION INSTRUCTIONS

WARNING: FOR YOUR OWN SAFETY, READ AND UNDERSTAND OPERATOR’S MANUAL. DO NOT

RUN UNATTENDED. DO NOT PICK UP HOT ASHES, COALS, TOXIC, FLAMMABLE OR OTHER

HAZARDOUS MATERIALS, DO NOT USE AROUND EXPLOSIVE LIQUIDS OR VAPORS.

CAUTION:

• Do not vacuum drywall dust or fireplace soot or ash with standard Wet/Dry filter. This is a very fine dust

which will not be captured by the filter and may cause damage to motor. When vacuuming fine dust use a

fine dust filter (sold separately).

WARNING: SERVICING OF DOUBLE-INSULATED WET/DRY VACUUMM

WITH A DOUBLE-INSULATED WET/DRY VACUUM, TWO SYSTEMS OF INSULATION ARE PROVIDED

INSTEAD OF GROUNDING. NO GROUNDING MEANS IS PROVIDED ON A DOUBLE-INSULATED

APPLIANCE, NOR SHOULD A MEANS FOR GROUNDING BE ADDED. SERVICING A DOUBLE

INSULATED WET/DRY VACUUM REQUIRES EXTREME CARE AND KNOWLEDGE OF THE SYSTEM,

AND SHOULD BE DONE ONLY BY QUALIFIED SERVICE PERSONNEL. REPLACEMENT PARTS FOR

A DOUBLE-INSULATED WET/DRY VACUUM MUST BE IDENTICAL TO THE PARTS THEY REPLACE.

YOUR DOUBLE-INSULATED WET/DRY VAC IS MARKED WITH THE WORDS ‘DOUBLE INSULATED’

AND THE SYMBOL (SQUARE WITHIN A SQUARE) MAY ALSO BE MARKED ON THE

APPLIANCE.

• To reduce the risk of electric shock-unplug before cleaning or servicing.

• DO NOT use without filters in place.

CAUTION: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS- UNPLUG BEFORE

SERVICING.

When using an extension cord with your Wet/Dry Vac refer to the following table to determine the required

A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good

working conditions. Make repairs or replacements before using the vacuum cleaner. Only use extension

cords that are rated for outdoor use.

Length of Extension Cord

110V-120V

25 Feet

7.5 Meter 50 Feet

15.25 Meters 100 Feet

30.5 Meters 150 Feet

45.7 Meters

Amps

A.W.G Wire Size

0-6

7-10

11-12

13-16 14 12 Not recommended

EXTENSION CORDS

Remove entire contents of carton. Check each

item against the carton contents list.

Carton contents lists

Key Description……………………..………QTY

A Vac Assembly…………………….……..

B Hose……………………………………...

C Utility Nozzle………………………..…...

D Caster Foot W/Accessory Storage…....

E Casters…………………………………...

F 4 Screws (Bag)…………………….……

G Car Nozzle……………………………….

H Extension Wands…..………………..….

I Crevice Nozzle……….……………..…...

J Floor Squeegee………………...............

K Cartridge Filter…………………..……...

L Filter Retainer…………………………...

M Foam Sleeve.......………………………..

N Dust Collection Bag………………………

O Rear Wheel………………………………

P Hub Cap…………….…………..……….

Q ‘R’ (Lock Pin)………..…………..……...

R Washer……….………………….….……

S Wheel Shaft.………………..……………

T Accessory Pouch..…………………..….

U Push/Pull Handle .……………….……..

V Rear Support Block……………………..

W Blower Nozzle…………………………...

X Blower Adaptor………………………….

Y Operator’s Manual....……………..…….

Z Noise Diffuser……………………………

UNPACKING AND CHECKING CARTON

CONTENTS

NOTE: The hose and accessories for these

vacuums are 2.5 inch (6.4 cm) diameter.

A Philips head screw driver is required.

WARNING: DO NOT PLUG IN POWER CORD TO POWER OUTLET, MAKE SURE PLUG IS

DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC.

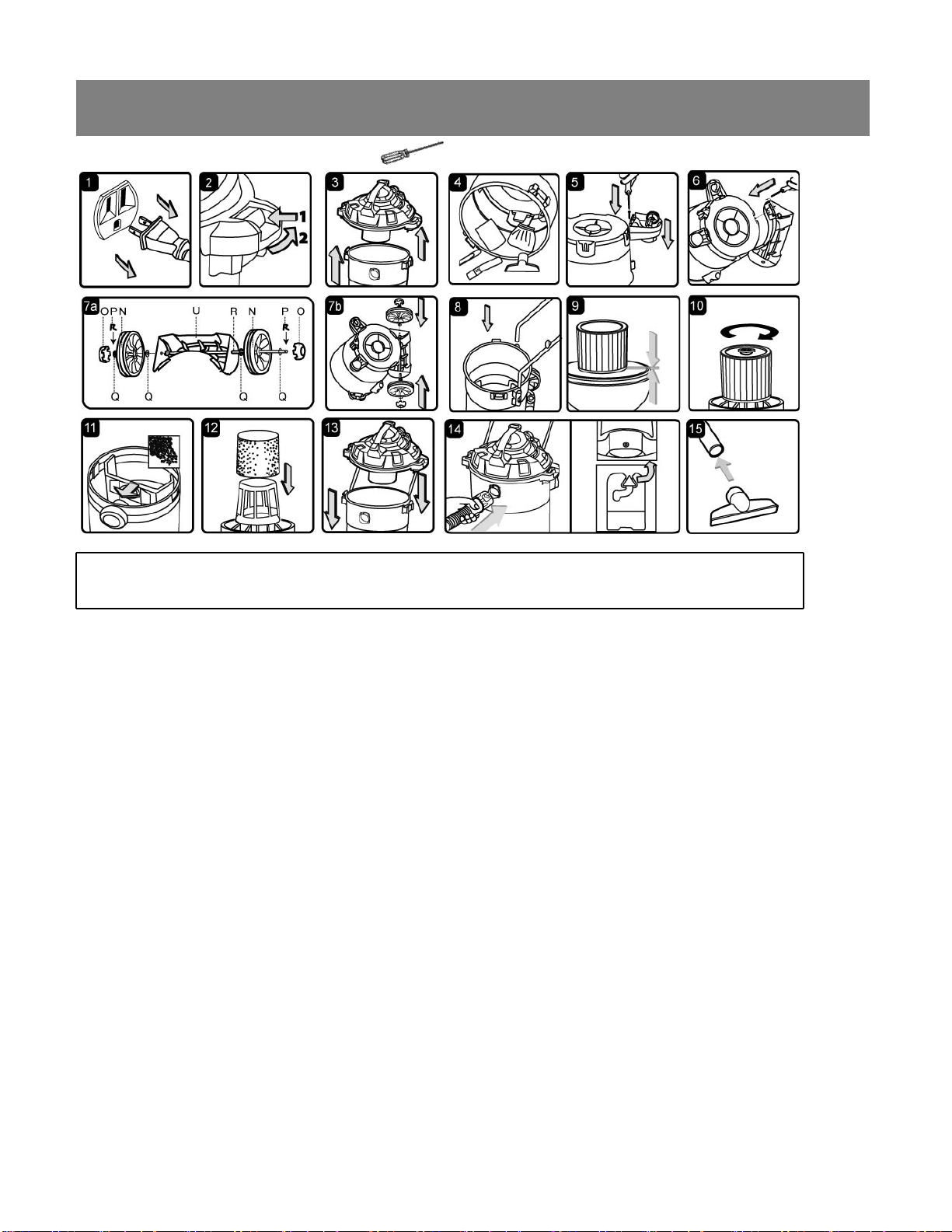

UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY

1. Verify that the power cord is disconnected from the outlet. (fig. 1)

2. Undo the latches. (fig. 2)

3. Lift the power head off the container. (fig. 3)

4. Remove the contents from inside the container, make sure you have all contents as listed on page 5.

(fig. 4)

5. Turn the container upside down and insert the two caster feet into the front slots on the container and

tighten with supplied screws. Verify that the casters are mounted correctly. Do not over-tighten screw.

(fig. 5)

6. Insert the rear support block (U) and secure with the supplied screws. Verify that they are mounted

correctly. Do not over-tighten screws. (fig. 6)

7. Insert the wheel shaft (R) into the rear support block (U). Insert washer (Q) onto the shaft followed by

rear wheel (N) and insert washer again. Insert the ‘R’ locking pin (P) into the hole on the end of the shaft

to lock the wheel. Snap the hub cap (O) on to the wheel. Repeat the same steps at the other end of the

shaft. (fig. 7a & 7b)

8. Insert the push/pull main handle into the handle socket mounted on the tank body. Push down until the

locking pins click in place. (fig. 8)

9. Your vacuum comes ready for dry vacuum cleaning. If cartridge filter is not installed refer to page 10 for

filter installation.（fig. 9 & 10）

10. Optional, for improved dust filtering, fit collection bag flange onto the inlet stub, taking care not to

damage the bag. (fig. 11)

11. For wet vacuum cleaning, install the supplied foam filter. (fig. 12) See page 11 for filter installation.

12. Place the power head back on the container, aligning the top section with the latches, and snap into

GENERAL ASSEMBLY INSTRUCTIONS

place. (fig. 13)

13. Insert the locking end of the hose into the vacuum port and turn to lock in to place. (fig. 14)

14. Choose the desired accessories and push onto the suction tube. (fig. 15)

POLARIZED PLUG

To reduce the risk of electrical shock, this appliance has a polarized plug (one with the blade wider than the

other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse

the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the

plug in any way. Double insulation eliminates the need for the three wire grounded power cord and

grounded power supply system.

DRY VACUUM

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY

INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS,

OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT

LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE,

ALCOHOL OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO;

COAL, MAGNESIUM, GRAIN OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS

FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

1. Verify that the power cord is disconnected from the outlet. (fig. 1)

2. In order to prepare your vacuum for dry vacuuming, verify that the cartridge filter is securely mounted.

With power head removed and in upside down position, make sure the filter is pushed in until it stops

against the power head and the retainer is installed. (fig. 2 & 3) (Your Wet/Dry Vac comes with the

cartridge filter pre-installed, if not, see page 10 for installation instructions.)

3. Optional, for improved dust filtering, fit collection bag flange onto the inlet stub, taking care not to damage

the bag. (fig. 4)

4. Place the power head back on the container, and secure it in place using the latches. (fig. 5)

OPERATING INSTRUCTIONS: DRY VACUUMING

6. Insert the locking end of the hose into the vacuum port and lock in place. Push the required attachment

onto the free end of the hose or extension. (fig. 6)

7. Plug in the power cord into the outlet. (fig. 7)

8. Turn the motor on by flipping the switch to the ‘I’ ON position. (fig. 8)

9. Once you have completed vacuuming, flip the switch to the ‘O’ OFF position and unplug the power cord

from the outlet.

O = OFF I = ON

DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.

DRY-VACUUM OPERATION

LIQUID VACUUMING

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY

INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS,

OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT

LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE,

ALCOHOL OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO;

COAL, MAGNESIUM, GRAIN OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS

FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

WARNING: DO NOT PLUG IN POWER CORD TO POWER OUTLET, MAKE SURE PLUG IS

DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC

1. Verify that the power cord is disconnected from the outlet. Verify that the container is clean and free of

dust and dirt. (fig. 1)

2. Remove cartridge filter, then carefully install the foam sleeve filter over the filter cage and place the

power head back on the container. (fig. 2) See filter installing instructions on page 11.

DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.

OPERATING INSTRUCTIONS – WET VACUUMING

3. Fit the desired nozzle to the vacuum hose. (fig. 3)

4. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the outlet. (fig. 4)

5. Turn the motor on by flipping the switch to the ‘I’ ON position. (fig. 5)

6. After use, empty the container by unscrewing the drain cap. Drain liquids into a suitable receptacle or

drain. Remember to refit the drain cap to the container after draining container. (fig. 6)

IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely in the

liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float valve

that stops the suction action when the container reaches its maximum capacity. You will notice an increase

in motor speed. When this happens, turn off the machine, disconnect from power supply, and drain the

liquid into a suitable receptacle or drain. To continue vacuuming, refit the container with the drain cap. After

wet vacuuming, turn the machine off and remove plug from power supply. Empty the container, clean and

dry the inside and outside before storage.

REMEMBER! The foam filter must be removed after wet vacuuming, and a cartridge filter must be

installed before dry vacuuming again.

LIQUID VACUUM OPERATION

This Wet/Dry Vac converts to a detachable blower that can be used for leaf blowing in yards, decks and

patios. To use the detachable blower feature follow the instructions listed.

WARNING: ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR IN CANADA,

CSAZ94.3) BEFORE USING BLOWER.

CAUTION: TO REDUCE THE RISK OF HEARING DAMAGE, WEAR EAR PROTECTION WHEN USING

THE VAC/BLOWER FOR EXTENDED HOURS OR WHEN USING IT IN NOISY AREAS.

WARNING: KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.

WARNING: WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED.

1. Verify that the power cord is disconnected from the outlet. (fig. 1)

2. Remove noise diffuser from the blower port. (fig. 2)

3. While squeezing the locking lever, lift the detachable blower from the vacuum lid. (fig. 3 & 4)

4. Insert the adaptor into the blowing port and fit it the desired extension wands and or nozzles. (fig. 5 & 6)

5. Ensure the power switch is turned off and plug into the power supply. (fig. 7)

6. Firmly hold the blower before turning it on. Turn the motor on by flipping the switch to

the ‘I’ ON position. (fig. 8)

BLOWING OPERATION

MAINTENANCE

WARNING!

ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE

REMOVING THE POWER HEAD FROM THE CONTAINER.

1. Verify that the power cord is disconnected from the outlet. (fig. 1)

2. Disconnect the hose from the vacuum. (fig. 2)

3. Undo the latches and remove the power head from the container. (fig. 3)

4. Clear all dirt or debris from the container and hose. (fig. 4)

5. Clean the foam filter by washing it with water and mild soap. (fig. 5)

6. Check the hose, attachments, and power cord to verify that they have not been damaged.

BLOWER INTAKE

After using the blower, examine the bottom of the blower for debris and blockages and remove if found. To

clean the foam pad of the intake:

1. Verify that the power cord is disconnected from the outlet. (fig. 1)

2. Remove the four screws holding the intake shield and lift off the shield. (fig. 2)

3. Remove the foam pad from the blower and clean the foam pad with soapy water and allow to dry. (fig. 3)

4. Check the foam pad for reuse. If you need to replace the foam pad consult the parts list of the manual.

5. Replace the foam pad on to the blower aligning the wholes to the screw tabs. (fig. 4)

6. Reinstall the intake shield and the four screws. (fig. 5)

Installing Cartridge Filter

1. Verify that the power cord is disconnected from the outlet. (fig. 1)

2. Remove power head and place in upside down position.

3. Install the cartridge filter over the filter cage with the flat end of the filter towards the vacuum power head.

Carefully push filter in until it stops against the power head. (ﬁg. 2 & 3)

4. Place filter retainer on top of cartridge filter over the raise lip and tighten down by turning retainer

Clockwise, do not over tighten. (fig. 4 & 5)

Removing and Cleaning Cartridge Filter

1. Unlock and remove the filter retainer by tuning retainer handle counter clockwise.

2. Carefully hold and pull the cartridge filter up for removal. (ﬁg. 6)

3. Clean the cartridge filter by gently tapping or brushing dirt off. Cleaning should not be done indoors in

living areas. For optimal performance a new filter is recommended.

4. Install cleaned or new filter into place as instructed above in steps 2 and 3 of Installing Cartridge Filter.

5. Wet filters should be removed and allowed to air dry for 24 hours before installing onto the filter cage.

INSTALLING & CLEANING CARTRIDGE

FILTER

WARNING! ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE

REMOVING THE POWER HEAD FROM THE CONTAINER.

Andere Handbücher für VBV1412P

Inhaltsverzeichnis

Andere Vacmaster Gebläse Handbücher

Vacmaster

Vacmaster CARDIO54 AM1202R Bedienungsanleitung

Beliebte Gebläse Handbücher anderer Marken

Weed Eater

Weed Eater VS2000BV Bedienungsanleitung

KRAUSMANN

KRAUSMANN U37020-00 Bedienungsanleitung

Bosch

Bosch ALB 36 LI Bedienungsanleitung

Cub Cadet

Cub Cadet HB425 Bedienungsanleitung

GreenWorks Pro

GreenWorks Pro BLB482 Bedienungsanleitung

ARIETE

ARIETE 2768 Bedienungsanleitung

NuTone

NuTone 331H Bedienungsanleitung

GÜDE

GÜDE GLB 200 18 Li-Ion Bedienungsanleitung

I.VA.CO.

I.VA.CO. SC Series Betriebsanleitung

DeWalt

DeWalt DCE100 Bedienungsanleitung

Becker

Becker SV 7.330 Bedienungsanleitung

Metabo

Metabo AG 18 Pro Bedienungsanleitung

Desa

Desa GA3650TB Bedienungsanleitung

Echo

Echo Power Blower PB-230LN Bedienungsanleitung

Echo

Echo PB-413H Bedienungsanleitung

Black & Decker

Black & Decker BV3100 Bedienungsanleitung

Ryobi

Ryobi RY08570 Bedienungsanleitung

Haaga

Haaga 355 Bedienungsanleitung
