Full HD 1080P
Vehicle Video Recorder
User Manual
2013 FEB V1.0
Vehicle Video Recorder User Manual
i
Index
A. Feature Description .......................................................................1
B. Specification ..................................................................................2
C. Accessories ...................................................................................2
D. Schematic Diagram of The Installation Steps................................3
E. Product Function Introduction........................................................5
F. SD Card Installation.......................................................................6
G. Remote Controller Description.......................................................7
H. Operation Setting...........................................................................8
1. OSD List Menu......................................................................8
2. Setup Menu...........................................................................9
3. Camcorder Menu.................................................................14
4. Camera Menu......................................................................16
5. Motion Menu........................................................................17
I. Playback......................................................................................18
1. Direct playback on machine side.........................................18
2. Video modes .......................................................................18
3. Snapshot playback..............................................................20
J. Software operating instruction .....................................................22
K. Formatting memory card..............................................................28
L. Record Time Estimation (based on constant record mode
with 8GB card) ...................................................................................29
M. Appendix: The Indication of Bright and Dark Spot of LCD...........30
Vehicle Video Recorder User Manual
1
A. Feature Description
Built-in Full HD 5M CMOS Sensor. Viewing angle approx. 105
degrees.
Suitable for all types of vehicles use. Small Design, Easy
Installation。
Equipped with 3 inch TFT LCD screen to make the adjustment of
recording angle easily; also providing photo shooting manually.
During playback of video footage and photo, the built-in screen
direction sensor will detect screen side.
Video record outside driving conditions and audio record inside the
vehicle simultaneously.
SD card Class 10 or above recommend. MAX to 32GB
G-sensor sensitivity can be adjusted according to vehicles and
road situations. When detecting a strong shock, system will start
emergency recording and keep the files without being overwritten.
Motion detection recording function during car stopping (External
power source is needed)
Vehicle Video Recorder User Manual
2
B. Specification
Items Description
Chipset Ambarella H.264 image compression chip
Sensor Device Full HD 5M CMOS Sensor
View Angle Approx. 105 degrees
Display LCD 3 inch 4:3 monitor
Voltage Start at 5V±5%；650mA (5V/1A Power Adaptor)
Operating
Temperature -10℃~ +70℃
Storage Device For the performance issue, use SanDisk SD card Class
10 or above read/write speed 15MB/s recommend. (min
capacity 4G, Max 32G)
Recording Frame
and Content
1920x1080（Full HD1080P / 30F）; 1280x720 (HD720P /
30F). Auto recording when power up system.
Maximum Recording frame: 30fps (NTSC/PAL)
Camera Mode Resolution 3M, 5M, 8M
Photo Shooting by Manually/ G-Sensor/ Timer
Recording Content Date, Time, Image, Sound, G-Sensor data
Recording Format Specific format for exclusive player (Recording Mode)
Microphone Built-in Dual High Sensitivity Microphone.
Time Setup Built-in clock will be used.
G-Sensor Built in Internal 3D G-Sensor
C. Accessories
Standard:
1. 5V cigarette Power adapter 2. Remote controller
3. Product Disc 4. Suction cup bracket
5. Bracket holder 6. Quick user guide
Optional:
1. 16G _Class 10 SD card
2. 5M RCA Video output cable
Vehicle Video Recorder User Manual
3

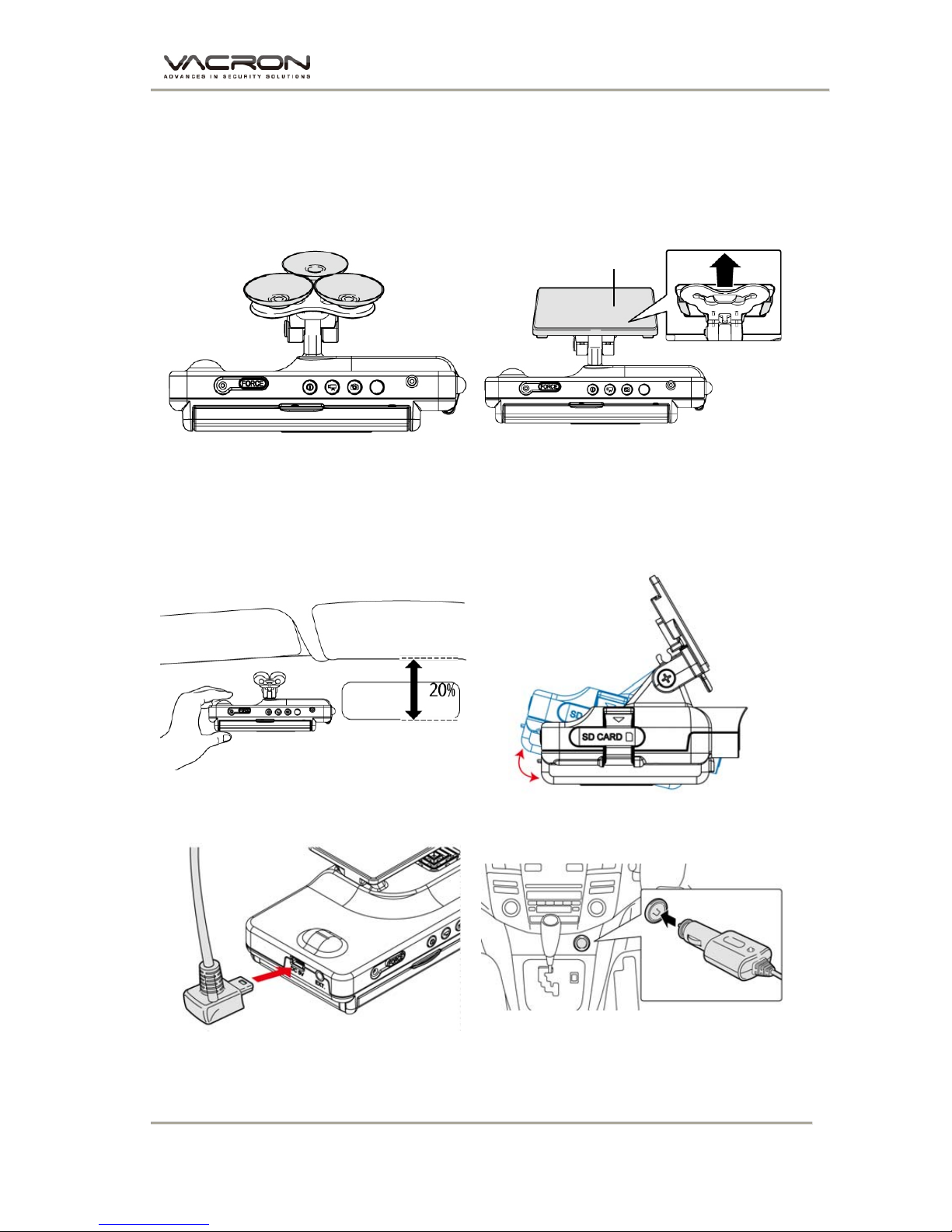

D. Schematic Diagram of The Installation Steps
1. To install the device on the windshield by “Suction Cups” or
“Stick-Holder” Type
Suction Cups Type Stick-Holder Type
2. The best position to install
the device on the windshield 3. To adjust the recording angle
properly
4. Plug in DC5V Power Supply 5. Plug in the Cigarette Charger
Sticker Adhesive Spot
Vehicle Video Recorder User Manual
4
6. VVR installation
Description：
(a) Indicator Lighting Mode- Day and Night mode/Auto Detection.
(b) Mini-USB Port reserved for USB PC Link.
Notice
(1). This device should be installed in the area where the windshield will be
able to be cleaned.
(2). Formatting SD card on the device before beginning to use.
(3). NTSC or PAL setting through OSD.
(4). Electricity consumption: 650mA. If power supplied by PC, please use Y
Type USB Cable.
Best location
Cigarette adapter
Vehicle Video Recorder User Manual
5
E. Product Function Introduction
Light Indicator
Green light：Power
Red light：Recording
Yellow Light：Playback
1. Lens
2. USB cover / Reserved for USB PC Link
3. Force recording
4. Indicator
5. IR Receiver
6. Screen
7. SD card Slot
8. DC5V
9. AV OUT
Vehicle Video Recorder User Manual
6

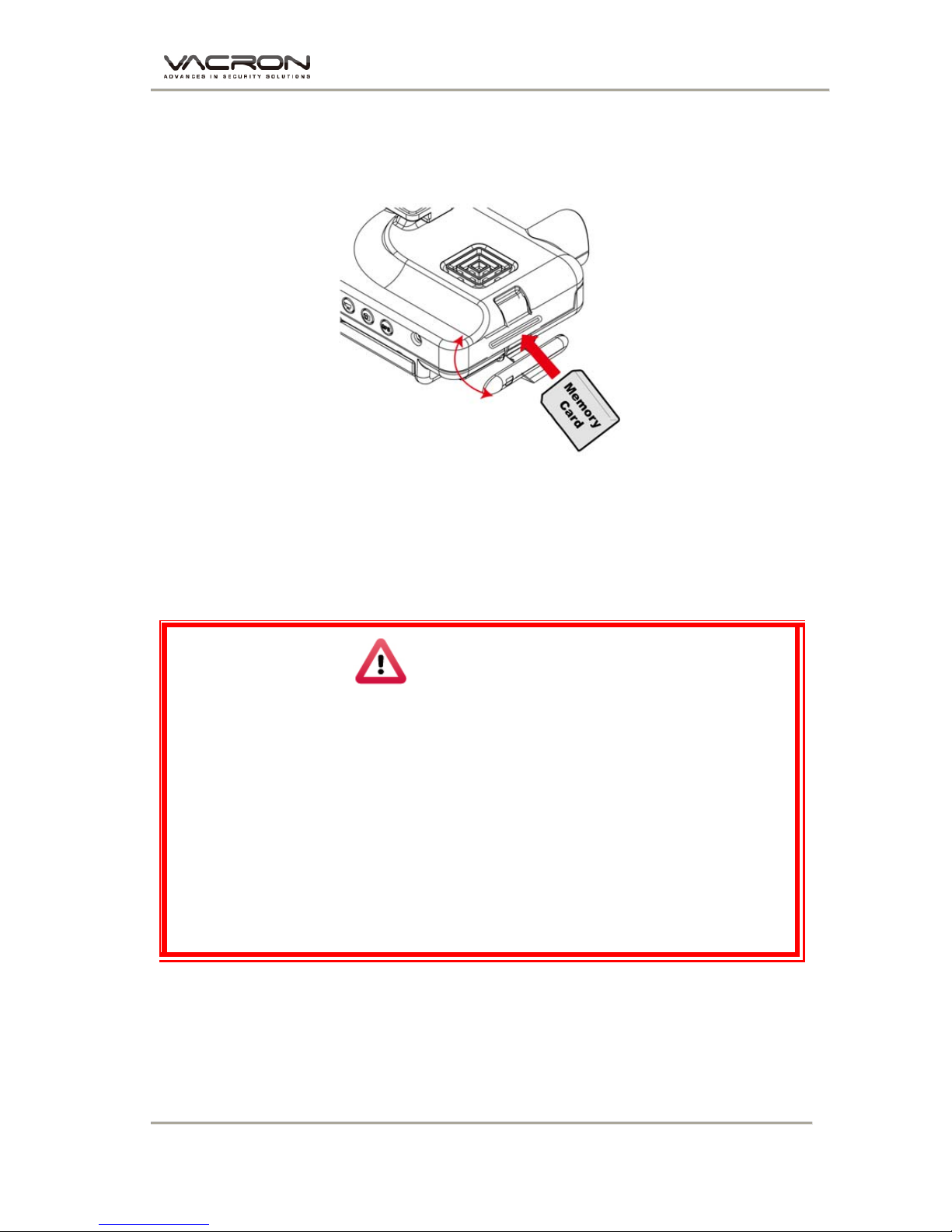

F. SD Card Installation
(1). Open SD card cover on the device to insert of remove SD
card.
(2). Format memory card; please refer to the other chapter
“Formatting memory card” for more detail.
Remark: Memory Card is optional
Warning
(1). Recommend Memory Card “SanDisk” or “Transcend” Class 10 or
above. (Minimum of 4GB)
(2). If the memory card is not formatted by our exclusive player, the device
will automatically erase all the data inside of the memory card after
inserting it, start recording at default setting.
(3). Please don’t convert Micro SD to SD card to begin recording, to avoid
the damage during recording.
(4). Since memory cards have the writing endurance situation, we
recommend to inspect the memory card and use pc for playback
regularly, to ensure that the memory card can read and write
Vehicle Video Recorder User Manual
7
G. Remote Controller Description
Playback
Manual Force Recording
Volume Down
Stop Voice Recording
Menu
Confirm
Fast Forward
StopPlay
Pause
Fast Rewind
Up / Down /
Left / Right
Speaker On/Of
f
Volume Up
Camera/ Camcorder
/
Motion Mode Switch
Vehicle Video Recorder User Manual
8
H. Operation Setting
1. OSD List Menu
Setup Menu
1/2 2/2
Camcorder Menu Camera Menu
Motion Menu
Please use IR controller to select function
List Function Key on IR Controller
List Moving [LEFT OR RIGHT ]
Bar Moving [UP OR DOWN]
Confirmation [CONFIRM ]
Go to Previous Menu or Main Menu [MENU ]
