Vacron CDR-E06 Bedienungsanleitung

Vehicle Digital Video Recorder

Manual

2011 JAN. V1.0

Optional

CONTENTS

A.Features.................................................................................1

B.Specifications........................................................................2

C.Front Panel............................................................................3

D.Rear Panel.............................................................................3

E.Dimension..............................................................................4

F.Recording and Stop Recording..........................................4

G.Playback................................................................................5

H.CF Card Record Files Illustration.....................................10

I.Format CF Card..................................................................11

A. Features

1. The image quality is clear and uninterrupted at speed 120km/Hr.

2. Video Output Switch: Select Rear view camera or camera for

DVR to display on LCD.

3. Recording formats: D1.

4. With external Noise-canceling microphone, video and audio can

be recorded synchronously.

5. The video player is built in the CF card. Users can playback the

recorded video by inserting the CF card into the PC. No software

installation is needed.

6. Friendly PC viewer, easy to use!

7. Complete recording event lists provided and easily to be

searched.

8. Complete record of time /date can be shown on the screen while

is on the process of playback.

9. New design of wide range of input voltages.

10. Insert the CF card and power-on, it will begin recording

automatically.

11. The image is stored with CF card, anti-vibration while vehicle is

traveling.

12. With special file format, last record can be kept when power-off.

13. Driving routes are recorded and can be showed in Google Map

when playback.

14. Driving video and audio can be recorded.

B. Specifications

Items Specifications

Video signal Input 1 Vp-p composite video input, 75 ohms

Video signal output 1 Vp-p composite video output, 75 ohms

Voltage Range 11V~ 14.5V (Suitable for Motorcycles and Cars)

Power consumption: +12V @ 400mA (Without cameras)

Operating

Temperature Inside the car: -5℃~65℃.

Storage Device CF card (Speed 233X or above, 8G/16G/32G)

Recording Format

Record Mode: Constant Recording when Power on.

Video compression Format: MPEG4

Audio compression Format: PCM

Recording Resolution Record: 720x240 ( NTSC) / 720x288 (PAL)

Play: 720x480 ( NTSC) / 720x576 (PAL)

Recording Frame D1-30 fps ( NTSC) / D1-25 fps (PAL)

Recording Content Footage including DATE, TIME

LED Indicator

RED: Flashing during recording

YELLOW: System Error

GREEN: Power

Control Button Reserved

Sound Notification

Buzzer Notification:

(A)Normal Startup: One long and two short beeps.

(B)After startup for 5 minutes: When “Recording Error”, “G-

mouse not connected”, “GPS positioning not ready” are

detected, the buzzer will sound three short beeps per 3 sec.

and continue for 60 seconds.

Software Player Application for Windows OS.

Accessories Standard: Software CD (Manual, Player), Cables

Optional: 8G CF card, G-MOUSE

Input Voltage DC+11V ~ DC+14.5V

Video Input / Output

(Rear View Priority)

When power-on, it will start recording the front camera

images into CF card. You can also enable/disable to display

live view on LCD monitor.

Rear View Video

Input / Output

On “R” Shift, the Video output will be switched to Rear View

Camera and display automatically; However Rear View

camera’s video will not be saved into CF card.

Map Google Map

Notice

1. Please avoid direct sunlight exposure.

2. Please do not install the machine in high temperature place

(ex. Engine room).

3. Please install G-mouse outside the car to have a better

signal reception.

4. Please install the CF card properly to prevent the connect

pin broken.

5. Please turn the power off before removing the CF card.

Size 115mm(W)x102mm(D)x30mm(H)

Weight 0.27kg

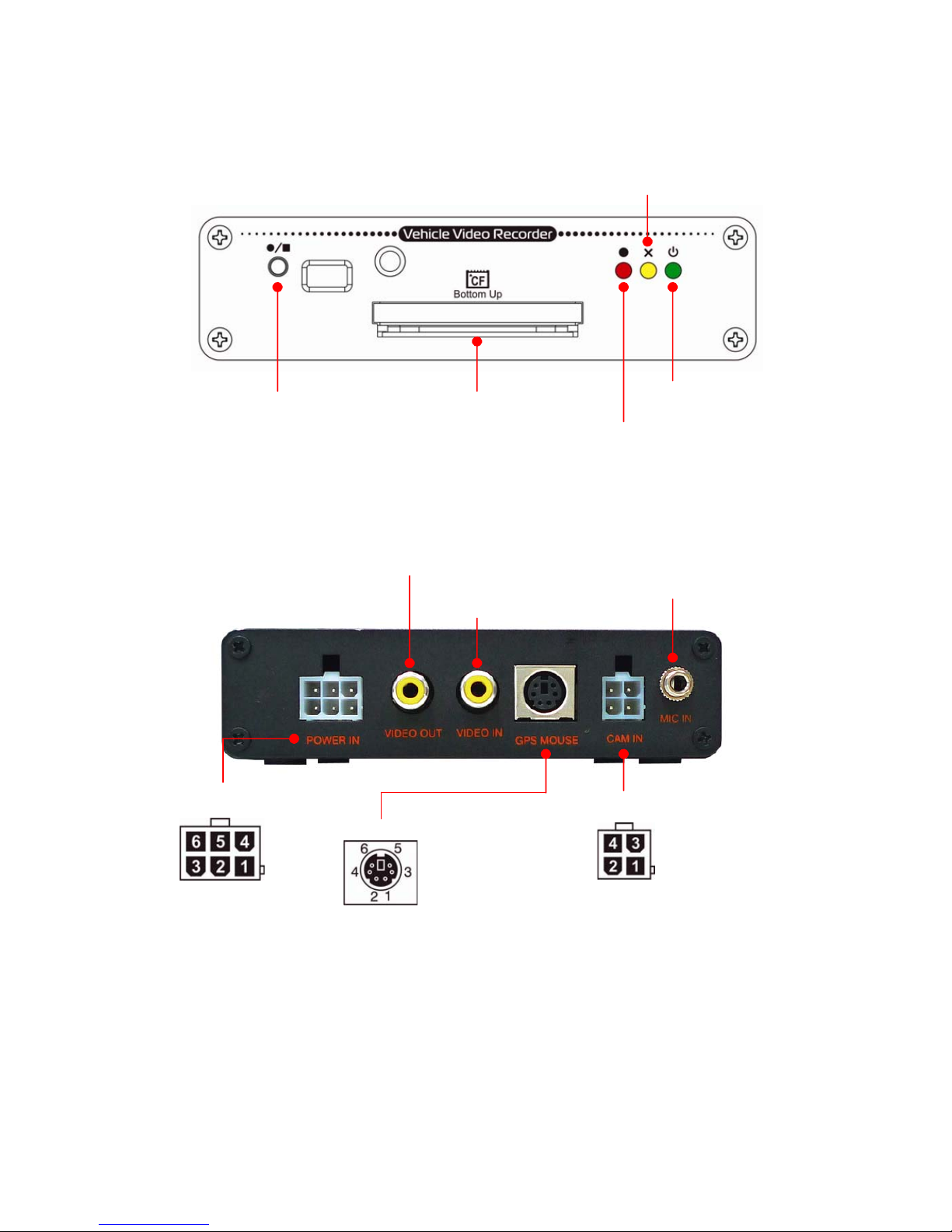

C. Front Panel

D. Rear Panel

Green LED (Power On)

RED LED (REC) Slow Flashing:

Recording video and audio

Fast Flashing: Recording video only.

Audio Record / Stop CF Card Slot

Yellow LED (Error)

Power In

Video Out

Video In Audio In

1. Signal GND

2. Power GND

3. SW2

4. N.C

5. DC 12V Input

(DC11~14.5V)

6. SW1

GPS Mouse

1. N.C

2. N.C

3. N.C (Reserved: For expansion

Output to GPS)

4. Output DC+5v±10%,

Max.400mA

5. GND (GND)

6. GPS Input

(For GPS GPRMC packets)

Camera Input

1. GND

2. N.C

3. DC12V (DC11~14.5v)

4. Video Input

E. Dimension

UNIT: mm

F. Recording and Stop Recording

1. Turn on/Recording:

Turn on the power and wait for 1 minute. When the buzzer beeps

(one long and two short beeps), System Initialization is completed.

During the recorder booting up, the three LED lights will light up at

the same time.

Once the yellow LED light is turned off, the red LED light will start

flashing and the recording is in progress.

Light indicator:

Red light: Slow flashing - video & audio recorded simultaneously,

fast flashing - video recorded only.

Yellow light: Error (Please inspect all peripheral to see whether

the installation is correct).

Green light: Power on.

2. Turn off/Stop recording:

Remove or turn off the power, the power indicator will be off and

it stop recording.

Green LED (Power On)

Red LED (REC)

Yellow LED (Error)

G. Playback

1. How to read the files from CF card?

a. Take out the CF card, then insert into card reader.

b. Connect the CF card to PC USB port.

c. Loading all data from the CF card; or copy all data into sub-

directory of PC

2. Playback

Execute the CarPlayer in the folder.

The screen shot is listed below. Click Play button to

play from CF card or HD automatically. Or Play by

choosing 『Event list』. Play button icon will change from

to when playback in process.

Actual Recording Image

3. Operation Instruction

a. Event list: When each time the power on to the power off, then

forms one『event recording』.

b. Date: Choose the date of the recorded files.

c. Functional button operation interface is as follows:

Main Windo

Minute

Hou

Time BAR

Date

Year/Month

Even List

ID Start End Time

Toolbox

(1) / Play/Pause Compound key: First Click will show

to choose files from CF card or Hard Disk. Click

to play the selected files. When it is in playing process, the

play key will be changed to pause key .

(2) Stop key.

(3) Fast forward: the fast forward will play in double of

original speed after clicking in each time. (Max.240

frames/sec).

(4) Slow motion; the playing speed will reduce to half of

current playing speed after click the key in each time, the

slowest forward can be up to 1 frame per second. The current

playing fps will present in the viewing window on the top of

left-hand corner.

(5) Utility Box: Format CF card, CF Card Set, System Set

and Version Information.

i.Format CF card: Browse the path, select the CF drive and

format it.

ii.CF Card Set:

Time Synchronization

Step 1: Set correct time on PC before proceeding

synchronize time procedures. Click [CF Card Set] ->

[Synchronize]. The current time will appear in the time

block. “Check Time OK!” will show on the screen after

synchronization.

Play

Pause

Settings

Backup

Google Map

Frame Rate

Snapshot

Bit Rate ON/OFF

Image Rotate

Exit

udio ON/OFF

Slow Forward

Fast ForwardStop

Minimize

Step 2: Remove the CF Card from the CF card reader and

install the card in the video recorder.

★Remark: If G-MOUSE is installed, the System Time will be

synchronized automatically.

Recording frame rate

Recording speed setup: 25 / 20 / 10 / 5 / 4 / 2 / 1fps,

please choose the suitable frame Rate. 30fps is

recommended for cars, trucks, and heavy motor; 10fps is

for scooter which runs in cities where there are many

traffic lights. And 5fps or less is ideal for still recording.

iii.System Set

Snapshot path: select a path to save the snapshots.

After storage path is selected, click and "snapShot

success" will appears on the screen and “SnapShot”

folder will be created as well.

All snapshot images will be saved in the SnapShot folder.

Language Set: English/ Simplified Chinese / Traditional

Chinese.

iv.Version Information: Player version, Firmware version and

Date.

(6) Info for Frame Rate: Fps of Playing display (ON/OFF).

(7) Info for Bite Rate: (ON/OFF).

(8) Audio (ON/OFF).

(9) Backup.

i. Backup format can be .REC or .AVI up to your selection.

ii. The default Video compression format is Microsoft

Video 1.

iii. Export GPS tracking data(W or W/O)

iv. Enter Backup Start Time.

v. Enter Backup End Time.

★Remark: File only can be backup successfully when the footage is

available between selected time.

(10) Snapshot

After click the snapshot button, the system will create a

“SnapShot” sub-folder under the “CarPlayer” folder. All

snapshots will be saved in the “SnapShot” sub-folder.
