VADANIA VA1045 Bedienungsanleitung

The oﬃcial website

https://vadania.com/

Email: [email protected]

Page 1

Package

1Pair of drawer slide

8 x Mount screws

Facebook Page

Hardware for your life

VA1045/1245 DRAWER SLIDES MANUAL

Page 2

1 1

Detach Button

010

010 80 90

NAME：VADANIA Drawer Slides VA1245/VA1045

MATERIAL: Cold-Rolled （Cold Rolled）Steel

INSTALLATION METHOD: Side Mount

MAXIMUM LOAD CAPACITY: 100lb / 45kg.

MINI DEPTH OF CABINET: Drawer Length + 0.12in / 3mm

SURFACE TREATMENT: Galvanized / Electrophoretic Black

SLIDE STYLE: 3 Folds Full Extension, Side Mount, Separable

PLATE THICKNESS: Outer Slider 0.04in(1.2mm) /

Middle Slider 0.04in(1.2mm) / Inner Slider 0.06in(1.5mm)

SIZE: 8-24in / 200-600mm

SCOPE OF APPLICATION: &LYLO)XUQLWXUH2ႈFH)XUQLWXUH

Cabinets/Wardrobes, etc

3-Fold Slides

Enable the slides to fully extend

Solid Ball Bearing

Provides slient and friction-free

motionwhen open drawer

Page 3

Product Features

Galvanizing Treatment

Prevent oxidation and rust,keep clean and durable.

0.5±0.01” / 12.56±0.25mm

1.7” / 45.10mm Drawer floor

Space Between Drawer and Cabinet

Page 4

Step2

Installation Instruction

Make sure the slides are leveled during the

installation process

Step1 Separate drawer and base portion before

mounting with provided lever

Step3 Place the outer member ush with the front

edge of cabinet

Step5 Adjust and level the inner member. mount the

screws in the permanent mounting holes

Step4 Mount the screws in the permanent mounting

(Breathing) holes

Step6 Move the metal retainer to the front of cabinet

member and insert the drawer box carefully.

Installation Precautions

How to Chose Size

Measure the depth of the drawer ( for example, if the depth is 13in/330mm,

choose 12in/300mm drawer slides. Deviations of 0.7in/20mm-1in/30mm are suitable)

Item Size

8’’/200mm

10’’/250mm

12’’/300mm

14’’/350mm

16’’/400mm

18’’/450mm

20’’/500mm

22’’/550mm

24’’/600mm

Load bearing

30kg

36kg

39kg

42kg

45kg

42kg

39kg

36kg

Origina Length

8.2’’/204mm

10’’/254mm

12’’/304.8mm

14’’/355mm

16’’/406.4mm

18’’/457.2mm

20’/508mm

22’’/558.8mm

24’’/609.6mm

Extended Length [A+B]

15.8[8.0+7.8]”/402[204+198]mm

20[10+10]”/508[254+254]mm

24.1[12+12.1]”/611.8[304.8+307]mm

28[14+14]”/710[355+355]mm

32[16+16]”/813.4[406.4+407]mm

36[18+18]”/912.2[457.2+455]mm

40[20+20]”/1016[508+508]mm

44[22+22]”/1118.8[558.8+560]mm

48[24+24]”/1219.6[609.6+610]mm

Width Thickness

1.7”/45mm 0.5”/12.7mm

Dimension

(Refer to the below table)

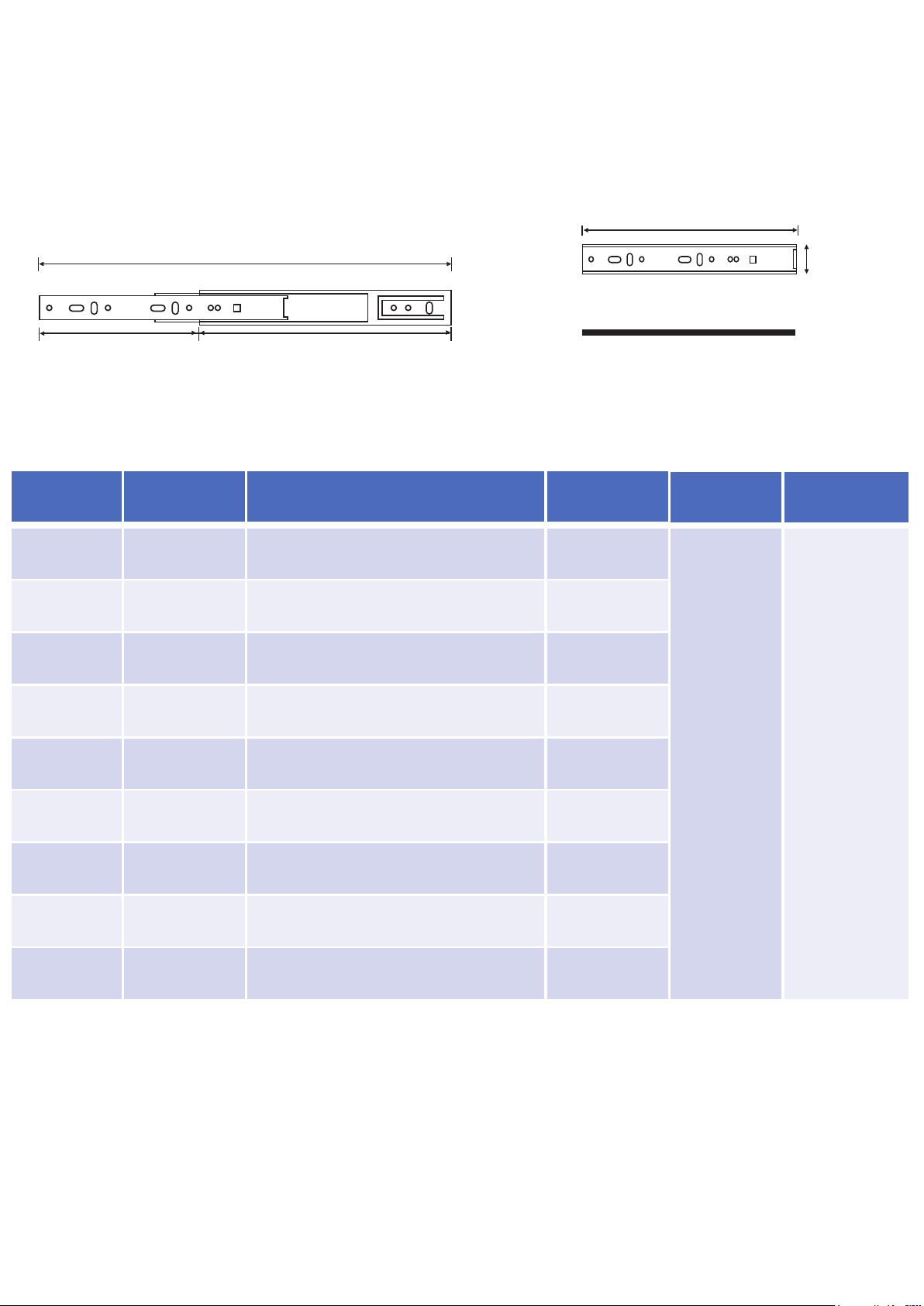

Extended Length Pull Back

Thickness

Gap of Installation: 0.51

’’

/ 13mm

Original Length

1.7

’’

/ 45.10mm

0.5

’’

/ 12.7mm

Full Extend

Page 5

Size Table

A deviation of 0.2’’/5mm may apply to the actual extended length.
