Vaisala Humicap HM40 Bedienungsanleitung

User’s Guide

www.vaisala.com

M211088EN-A

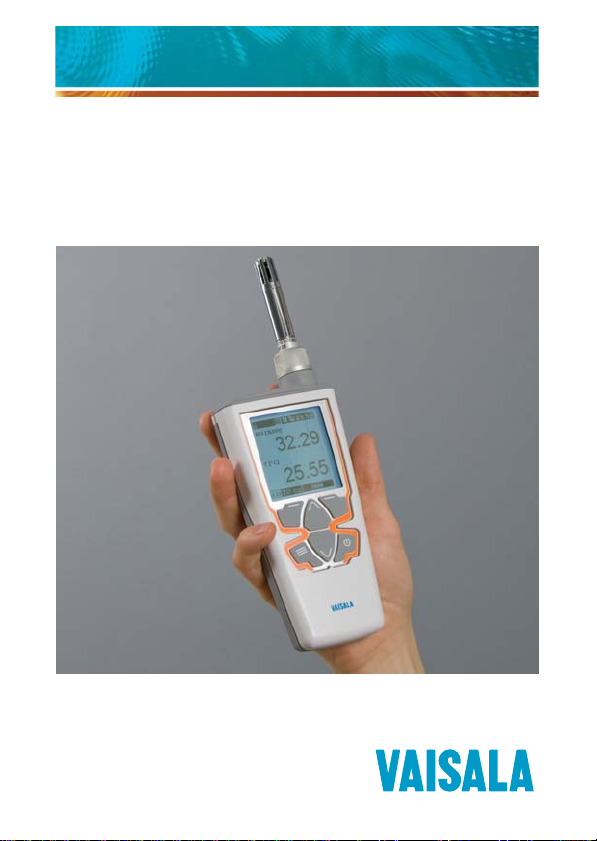

Vaisala HUMICAP®Hand-Held

Humidity and Temperature Meter

HM40

User’s Guide ________________________________________________ HM40

Table of Contents

First Startup....................................................................................3

Initial Settings ............................................................................3

Product Overview ........................................................................4

The HM40 Meter - Front ............................................................ 5

The HM40 Meter – Back.............................................................6

Batteries........................................................................................... 7

Charging...........................................................................................8

Quantities Explained ...................................................................9

Measurement Views................................................................... 10

Screen Layout and Controls............................................... 10

Indicators.....................................................................................11

Numeric View............................................................................12

Statistics View ..........................................................................13

Graph View ............................................................................... 14

Hold and Tag.............................................................................16

Main Menu ......................................................................................18

Tagged Points...........................................................................19

Graph Duration....................................................................... 20

Settings ..................................................................................... 20

Calibration..................................................................................21

Help...............................................................................................21

Settings Submenu ......................................................................22

Language...................................................................................22

Units.............................................................................................23

Time & Date ..............................................................................23

Pressure......................................................................................25

User’s Guide________________________________________________ HM40

Backlight....................................................................................25

Battery........................................................................................26

Navigation.................................................................................26

Factory Settings......................................................................26

How to Measure ..........................................................................27

Maintenance .................................................................................29

Cleaning .....................................................................................29

Changing the Filter ............................................................... 30

Changing the Probe................................................................31

Calibration.....................................................................................33

Calibrating the HM40 Using the HMK15 Humidity

Calibrator.................................................................................. 34

Accessories and Parts...............................................................38

HMP110 Probe...........................................................................38

Filters ..........................................................................................39

Chargers and Batteries.........................................................39

Belt Clips and Battery Covers............................................39

Technical Data ............................................................................ 40

Performance............................................................................40

Mechanical................................................................................. 41

General ....................................................................................... 41

Dimensions (in mm).............................................................. 42

User’s Guide ________________________________________________ HM40

First Startup

1. Check that the HMP110 probe is securely attached

and remove the yellow transport protection cap from

the probe.

2. Open the battery cover and insert two AA-size

batteries.

3. Close the battery cover and turn on the meter by

pressing the Power button. If the meter does not turn

on, check the battery orientation. Replace the

batteries with fresh/recharged ones if needed.

Initial Settings

When you power on the HM40 for the first time (or

after a factory reset of the settings), you must first

select the operation language. You will then be asked if

you want to change the following settings:

-Units

-Date

-Time

If you answer Yes to the question (recommended), the

meter will show the settings screens before showing

the measurement view. Use the arrow and function

buttons to select. For more information, see section

Settings Submenu on page 22.

HM40 will retain the date and time even during

battery changes. The clock will have to be set

again only if the meter is without battery power

for several hours.

User’s Guide________________________________________________ HM40

Product Overview

The Vaisala HUMICAP®Hand-Held Humidity and

Temperature Meter HM40 is a hand-held meter for

various portable measurement applications.

Main features:

-Compact and robust housing

-Measures a wide range of quantities: RH, Td, Tw, a, x,

h, T. See section Quantities Explained on page 9.

-Large graphical display

-Graphs for selected quantity and temperature

-Interchangeable HMP110 probe

-Can be user calibrated (using the HMK15 humidity

calibrator, for example)

-Powered by standard AA size batteries (2×)

-Operation temperature range -10°C ... +60°C

-Belt clip

Optional:

-USB-powered portable charger for AA-size NiMH

rechargeables

-Membrane filter for HMP110 probe for increased

protection against contaminants

For more information and order codes of the

accessories, see section Accessories and Parts

on page 38.

User’s Guide ________________________________________________ HM40

The HM40 Meter - Front

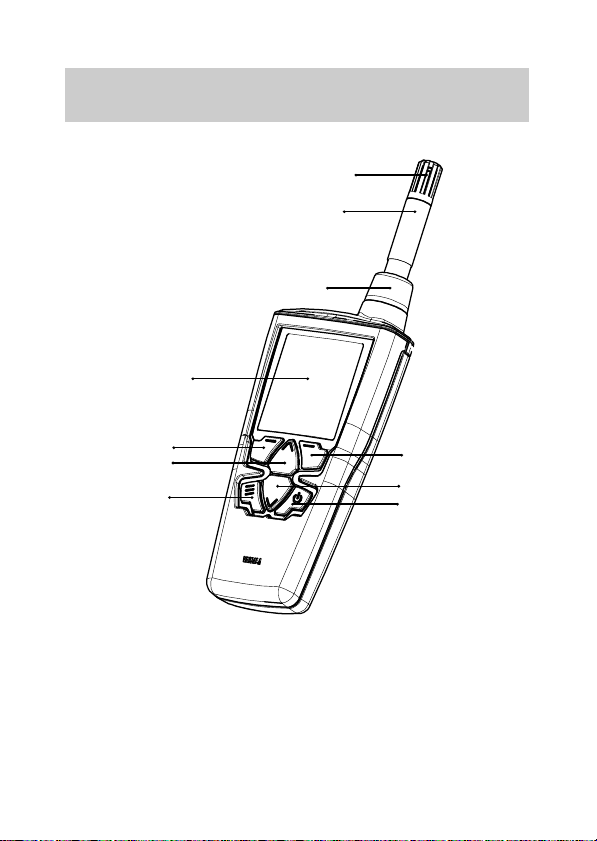

HMP110 probe

Filter and sensor

Probe holder

Display

Right function

eft function

Down

Power

User’s Guide________________________________________________ HM40

The HM40 Meter – Back

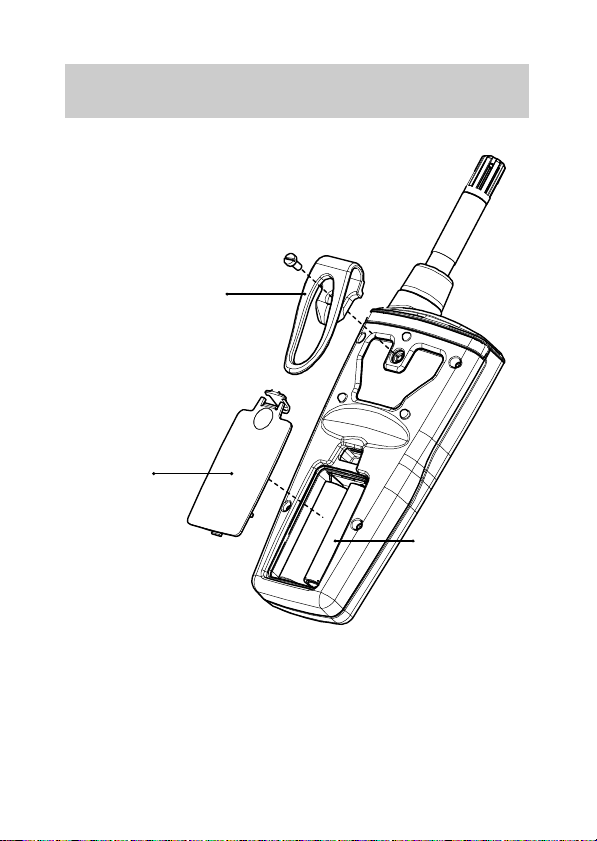

Belt clip

Battery

cover

Batteries

2 x AA

User’s Guide ________________________________________________ HM40

Batteries

The HM40 is powered by two AA-size batteries. You

can use the following battery types:

-Alkaline (IEC-LR6)

-Lithium (IEC-FR6)

-NiMH (IEC-HR6)

Do not mix batteries of different types. Both

batteries must be of the same type.

Observe instructions storage and operation

instructions of the battery manufacturer.

Alkaline batteries are the standard choice in non-

rechargeable batteries. They are a good match for the

power requirements of the HM40.

Lithium batteries are a good choice if you need the

longest battery life or best capacity in low

temperatures. Lithium batteries are not rechargeable.

Do not confuse them with lithium-ion batteries, which

cannot be used in the HM40.

NiMH batteries are rechargeable, and available from

Vaisala as an option. For order codes, see section

Accessories and Parts on page 38. Instructions for using

the optional USB charger are provided in section

Charging on page 8.

User’s Guide________________________________________________ HM40

Charging

The optional USB charger provides a convenient way to

charge two NiMH batteries from any powered USB port

(for example, from a laptop computer).

1. Place the rechargeable batteries in the charger and

plug it into a USB port. The blue LED on top of the

charger starts to blink.

2. When the LED stops blinking and stays on, the

batteries are charged. The charging time is several

hours for two fully discharged NiMH batteries.

If you are not using a Vaisala-supplied charger and

rechargeable batteries, read and follow the

manufacturer’s own charging instructions.

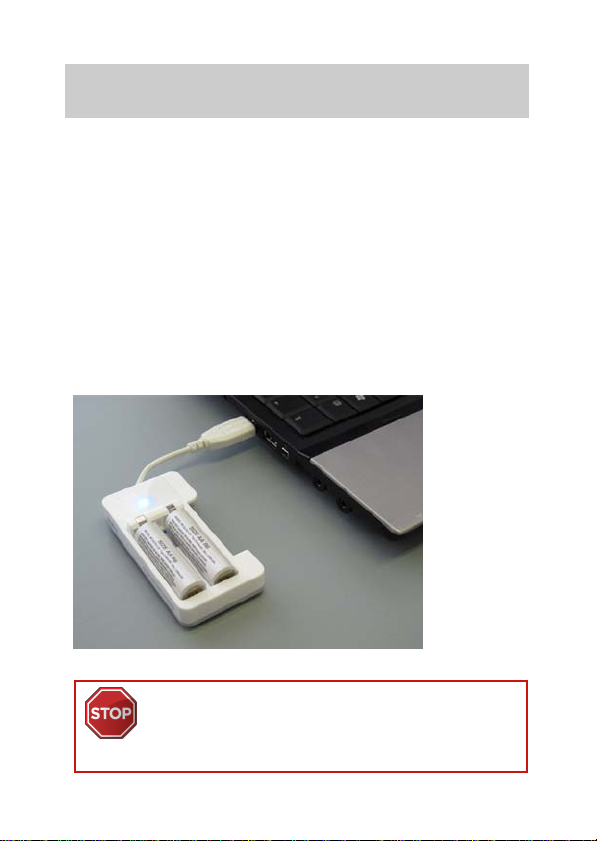

Figure 1

USB Charger with Two NiMH Batteries

Do not attempt to charge non-rechargeable

(alkaline or lithium) batteries! Doing so leads to a

risk of battery leakage, equipment damage, and

risk of explosion and/or fire.
