USER'S GUIDE

Mains Power Supply

WHP25

M210376en-A

PUBLISHED BY

Vaisala Oyj Phone (int.):+358 9 8949 1

P.O. Box 26 Fax: +358 9 8949 2227

FIN-00421 Helsinki

Finland

Visit our Internet pages at http://www.vaisala.com/

No part of this manual may be reproduced in any form or by any

means, electronic or mechanical (including photocopying), nor may its

contents be communicated to a third party without prior written

permission of the copyright holder.

The contents are subject to change without prior notice.

Please observe that this manual does not create any legally binding

obligations for Vaisala towards the customer or end user. All legally

binding commitments and agreements are included exclusively in the

applicable supply contract or Conditions of Sale.

___________________________________________________________________

VAISALA___________________________________________________________1

Table of Contents

CHAPTER 1

GENERAL INFORMATION.......................................................3

About This Manual..................................................3

Contents of This Manual.......................................3

Version Information...............................................4

Feedback..............................................................4

Safety.......................................................................4

General Safety Considerations.............................4

Product Related Safety Precautions.....................5

ESD Protection.....................................................5

Warranty..................................................................6

CHAPTER 2

PRODUCT OVERVIEW.............................................................7

Introduction to WHP25 Mains Power Supply........7

CHAPTER 3

INSTALLATION ........................................................................9

Installation Procedure............................................9

Installation Examples...........................................14

Installation with WAC151 and WA25 Wind Set...14

Installation with WAT12 and WA25 Wind Set.....16

CHAPTER 4

TROUBLESHOOTING ............................................................19

Common Problems...............................................19

Replacing Fuses.................................................20

Technical Support.................................................21

Return Instructions...............................................22

CHAPTER 5

TECHNICAL DATA.................................................................23

Specifications .......................................................23

Dimensions ...........................................................24

User's Guide ________________________________________________________

2 ______________________________________________________ M210376en-A

List of Figures

Figure 1 WHP25 Mains Power Supply ...................................8

Figure 2 Mounting WHP25 Mains Power Supply on

a Pole Mast ............................................................ 10

Figure 3 Location of the WHP25 Jumpers............................11

Figure 4 Instructions Label for the WHP25 Jumper

Settings and Wiring................................................11

Figure 5 WHP25 Connectors and Glands ............................12

Figure 6 Grounding the Cable..............................................13

Figure 7 Typical Installation with WA25 Wind Set................14

Figure 8 Wiring WAC151 with WHP25 Mains Power

Supply and WA25 Wind Set...................................15

Figure 9 Wiring WAT12 with WHP25 Mains Power

Supply and WA25 Wind Set...................................17

Figure 10 Location of the Fuses F1 and F2............................20

Figure 11 WHP25 Main Dimensions ......................................24

List of Tables

Table 1 Manual Revisions.....................................................4

Table 2 Some Common Problems and their Remedies......19

Table 3 WHP25 Mains Power Supply Specifications ..........23

Chapter 1 ___________________________________________General Information

VAISALA___________________________________________________________3

CHAPTER 1

GENERAL INFORMATION

This chapter provides general notes for the product.

About This Manual

This manual provides information for installing, operating,

and maintaining WHP25 Mains Power Supply.

Contents of This Manual

This manual consists of the following chapters:

- Chapter 1, General Information, provides general notes

for the product.

- Chapter 2, Product Overview, introduces the WHP25

Mains Power Supply features.

- Chapter 3, Installation, provides you with information

that is intended to help you install WHP25 Mains Power

Supply.

- Chapter 4, Troubleshooting, describes common problems,

their probable causes and remedies, and contact

information.

- Chapter 5, Technical Data, provides the technical data for

WHP25 Mains Power Supply.

User's Guide ________________________________________________________

4 ______________________________________________________ M210376en-A

Version Information

Table 1 Manual Revisions

Manual Code Description

T647en-1.1 WHP25 Power Supply Technical

Reference

U146en-1.1 WHP25 Power Supply Quick Reference

Guide

M210376en-A This manual, the first version of the

WHP25 Mains Power Supply User's

Guide. Replaces the above mentioned

Technical Reference and Quick

Reference Guide.

Feedback

Vaisala Customer Documentation Team welcomes your

comments and suggestions on the quality and usefulness of

this publication. If you find errors or have other suggestions

for improvement, please indicate the chapter, section, and

page number. You can send comments to us by e-mail:

manuals@vaisala.com

Safety

General Safety Considerations

Throughout the manual, important safety considerations are

highlighted as follows:

WARNING Warning alerts you to a serious hazard. If you do not read

and follow instructions very carefully at this point, there is

a risk of injury or even death.

Chapter 1 ___________________________________________General Information

VAISALA___________________________________________________________5

CAUTION Caution warns you of a potential hazard. If you do not read

and follow instructions carefully at this point, the product

could be damaged or important data could be lost.

NOTE Note highlights important information on using the product.

Product Related Safety

Precautions

WHP25 Mains Power Supply delivered to you has been

tested for safety and approved as shipped from the factory.

Note the following precautions:

WARNING Ground the product, and verify outdoor installation

grounding periodically to minimize shock hazard.

CAUTION Do not modify the unit. Improper modification can damage

the product or lead to malfunction.

ESD Protection

Electrostatic Discharge (ESD) can cause immediate or latent

damage to electronic circuits. Vaisala products are

adequately protected against ESD for their intended use.

However, it is possible to damage the product by delivering

electrostatic discharges when touching, removing, or

inserting any objects inside the equipment housing.

To make sure you are not delivering high static voltages

yourself:

User's Guide ________________________________________________________

6 ______________________________________________________ M210376en-A

- Handle ESD sensitive components on a properly

grounded and protected ESD workbench. When this is

not possible, ground yourself to the equipment chassis

before touching the boards. Ground yourself with a wrist

strap and a resistive connection cord. When neither of the

above is possible, touch a conductive part of the

equipment chassis with your other hand before touching

the boards.

- Always hold the boards by the edges and avoid touching

the component contacts.

Warranty

For certain products Vaisala normally gives a limited one

year warranty. Please observe that any such warranty may

not be valid in case of damage due to normal wear and tear,

exceptional operating conditions, negligent handling or

installation, or unauthorized modifications. Please see the

applicable supply contract or conditions of sale for details of

the warranty for each product.

Chapter 2 ____________________________________________ Product Overview

VAISALA___________________________________________________________7

CHAPTER 2

PRODUCT OVERVIEW

This chapter introduces the WHP25 Mains Power Supply

features.

Introduction to WHP25 Mains Power

Supply

WHP25 is a compact AC (Mains) Power Supply Unit

intended for outdoor use. The unit is capable of delivering

power, for example, to the WA25 Wind Set.

The nominal input power of 230 VAC can be changed by

jumpers between 100 VAC and 245 VAC (±10 %). The

WHP25 unit provides two power outputs, namely 24.0 VDC

(max 5.2 A) and 38.0 VAC (max 0.9 A).

The WHP25 unit has a waterproof housing made from cast

aluminum. The mounting hardware is included in the

delivery. It is mountable to a Ø 100 mm standard pole mast.

User's Guide ________________________________________________________

8 ______________________________________________________ M210376en-A

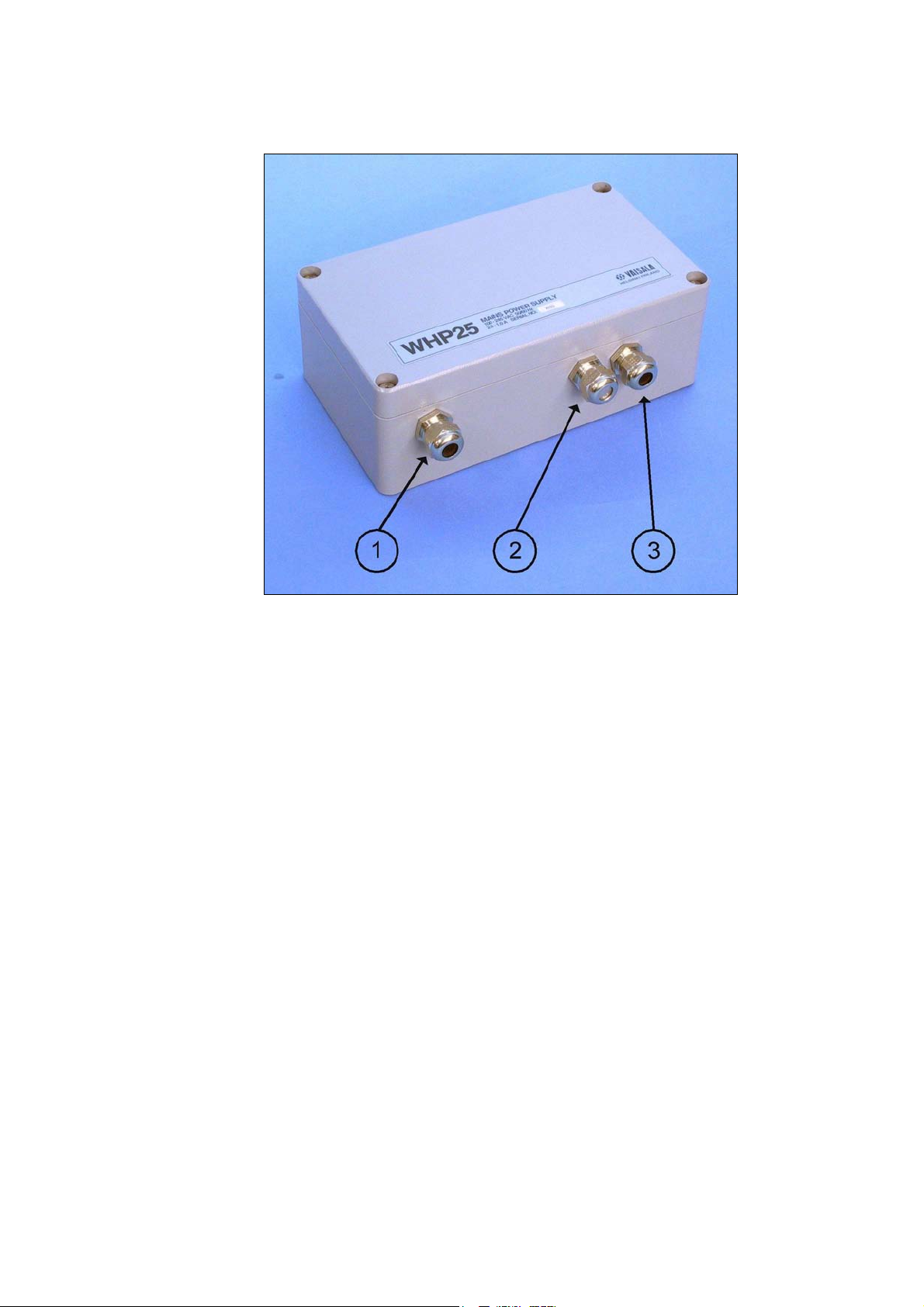

0212-184

Figure 1 WHP25 Mains Power Supply

The following numbers refer to Figure 1 above:

1 = Gland for AC (mains) input cable

2 = Gland for optional power output cable

3 = Gland for power output cable
