VALCOBABY Tri-Mode Twin Installations- und Betriebshandbuch

Product Reference Guide

Read and follow the instructions contained within carefully before use. Retain this guide in

a safe and easily accessible place for future reference.

Drawings, pictures and specifications contained in this manual are for illustration

purposes only – actual product may vary. VALCO BABY reserves the right to alter any

specification(s), colour or features without prior notice or incurring any obligation to

similarly alter products previously purchased.

Thank you for purchasing a quality VALCO product. Due to our policy of continuous product

development, this product is constantly evolving. It is possible that some features or

procedures outlined here have changed since this document was written. If you are unsure of

any procedure outlined here please contact the store from which you purchased it to obtain

the most up to date information, or contact us via the internet. See relevant web contact

addresses on the back page.

Stroller Overview

1 x Chassis installed with Seat Liner and Basket

Basic Com

onents

2 x Front Forks & Front Wheels

2 x Rear Wheels

1 x Rear Axle-Brake System

2 x Rear Axle Pins (SQR Axles)

2 x Hoods (Left & Right Side)

1 x Twin Runabout Front Bar 4 x Nylon Housing Bracket Plugs

Remove the stroller from the carton and dispose of all packaging immediately including the

black rubber protectors on either side of the brake bar and front wheel protector. The front

wheel forks, rear wheels, front bar, and hood all need to be installed

rior to use.

Stroller Assembly

1. Take the rear axle with the longer

part of the centre pedal facing to

the rear.

2. Identify the locking pins (A)

located on both rear frame legs.

3. Align the locking pins (A) with the

corresponding notches in the

brake housing (B).

4. Push brake housing upwards on

frame leg until pins (A) lock into

the housing (B).

5. Pull on the entire axle to test

that it is securely locked into

place.

Installin

/Removin

the rear axle-brake s

stem

Lay the stroller flat on the floor and

carefully cut the cable tie which holds

the frame.

To unfold the chassis, locate the rear

legs.

NOTE: The rear centre leg is

highlighted in red.

enin

the stroller chassis

6. Should you need to remove the

brake system for long-term

storage, release each brake

housing by pressing on the pin

release flap (C) and

simultaneously pushing the

housing downwards.

IMPORTANT WARNING: Always test that all latches are securely engaged before use.

Installin

/Removin

the rear wheels

Unfold the chassis:

1. Holding the rear centre leg, lift

the stroller upwards.

2. Pull the centre leg outwards as

far as it can go.

3. Lift the handle upward and back to

a vertical position.

4. Secure the handle by swinging the

locking clamps (located on both sides

of the frame) and fully engaging them

tightly onto the frame.

5. Press down on the basket frame

locking hinge with your hand or

foot.

1. Pressing on the centre hub

button, insert the SQR axle

through the outside of the hub in

each wheel.

IMPORTANT: Insert through outside

of the wheel (the side which does

NOT have the nylon brake cog).

Installin

/Removin

and usin

the front wheel forks

Pressing the axle button, insert the

protruding long axle into the opening in

the axle tube. (Refer to ‘Using your

brakes’)

NOTE: Ensure that the brake pedal is fully

retracted, so that the brake pin

(highlighted in red) does not obstruct the

wheel cog from fully engaging the housing.

Repeat the procedure for the other side.

TEST that each wheel is securely engaged

by pulling on it.

To remove the wheel, simply press the

axle button in the centre of the wheel hub

and simultaneously pull the wheel

outward.

If your brakes do not engage, check to see

the nylon brake cogs are on the INSIDE of

each wheel when it is attached to the

chassis. If not, remove the wheel and SQR

axle and re-insert the SQR axle from the

other side of the wheel, so that the cog will

be on the inside of the wheel.

Your Twin Runabout stroller utilises our

unique and revolutionary new DUAL TRI-

MODE™ front swivel system:

1. Tilt the stroller frame upward so that

it rests on the handle and the rear

wheels.

2. Insert each fork shaft respectively into

each TRI-MODE housing till it “clicks”

into place.

IMPORTANT: Before use, always test that

the fork is securely engaged in the

housing by pulling on it.

To remove the front fork:

1. Rotate the TRI-MODE selection

dial to the centre (45°) position.

2. Tilt the stroller frame upward so

that it rests on the handle and

the rear wheels.

3. Press the centre release button

and pull the fork away from the

mechanism.

The unique TRI-MODE™ swivel system is as

flexible as it is functional over a variety of

terrains and uses.

1. LOCK: This position is best for use on

extremely rough or soft terrain such as sand

etc which inhibit wheel swivel. To lock your

wheel, rotate the dial to the “LOCK” position.

Swivel the wheel around till it locks into

position.

2. O: The central position locks the wheel into a

tight 45°swivel arc. This provides more

stability for use with a toddlerseat or when

going down inclines so as not to turn so

sharply!

3. SWIVEL: This position allows full, unfettered

360°swivel action.

Installin

/Removin

our hoods

Identify left right side hoods, where

each hood centre housing (A) is in

the middle of the pram.

Place the rear hood skirt OVER the

stabiliser bar (C).

1. Insert hood section housing (A)

into the corresponding housing in

the centre of the seat (B).

2. Place the other plastic hood housing

above the corresponding housing on the

side of the stroller. Be sure that the

locking strap is out of the way and ABOVE

the hood housing.

3. Align the raised track on the stroller

housing with the corresponding channel in

the hood housing.

4. Slide the hood housing downward,

engaging the track in the channel,

continue sliding downward until

the rivet outside (D) is fully

engaged in the housing.

5. Repeat the procedure for the

other hood.

6. Secure each hood to the rear of

the frame with Velcro straps at

the centre (E), and both sides of

the hood (F).

NOTE: Before using your stroller, be

sure to attach the tether straps

around the stroller frame by feeding

the strap through the slit in the

steel buckle. While not essential for

safety, these additionally secure the

seat to the stroller frame.

The new “no zip” recline offers an

almost infinite amount of seat

adjustments:

1. RECLINE: While squeezing the

centre release mechanism in a

pincer action, ease the seat down

to the desired position.

2. INCLINE: Place your hand in the

centre of the rear of the seat.

3. Pull the incline strap while gently

pushing on the rear of the seat

until the desired position has

been reached.

IMPORTANT WARNING: Always test that the seat is securely locked in place.

Usin

our brakes

1. Remove the plugs from the nylon

housing at either side of the stroller

frame by pressing each inner “release

button” and pulling the plug upward.

NOTE: DO NOT remove the plugs in the

centre between both seats. Be sure to

store the removed plugs in a secure place

as they MUST be used whenever nothing

is engaged in the front bar housing to

prevent finger entrapment.

2. Insert the bar ends into the nylon

housing located on either side of the

frame. Be sure that the red buttons

are facing towards the seat and that

the bar is securely engaged.

3. Adjust the front bar by simultaneously

pressing the two red buttons and

swivelling the bar (forward or

backward) to the desired position.

4. Insert the bar ends into the nylon

housing located on either side of

the frame. Be sure that the red

buttons are facing towards the

seat and that the bar is securely

engaged.

5. Adjust the front bar by

simultaneously pressing the two

red buttons and swivelling the bar

(forward or backward) to the

desired position.

IMPORTANT WARNING: The front bar IS NOT a carrying or restraining

device.

TO ENGAGE:

1. Press down on the centre pedal until

the brake pins engage in the nylon brake

cogs in the wheel hub.

IMPORTANT: Always check that the brake

has engaged before use, if not you may

need to move the stroller forward or back

slightly until it locks into place.

2. To disengage, lift the centre pedal

upward till it locks in the upright

position.

Installin

/Removin

our front bar

Foldin

enin

our stroller

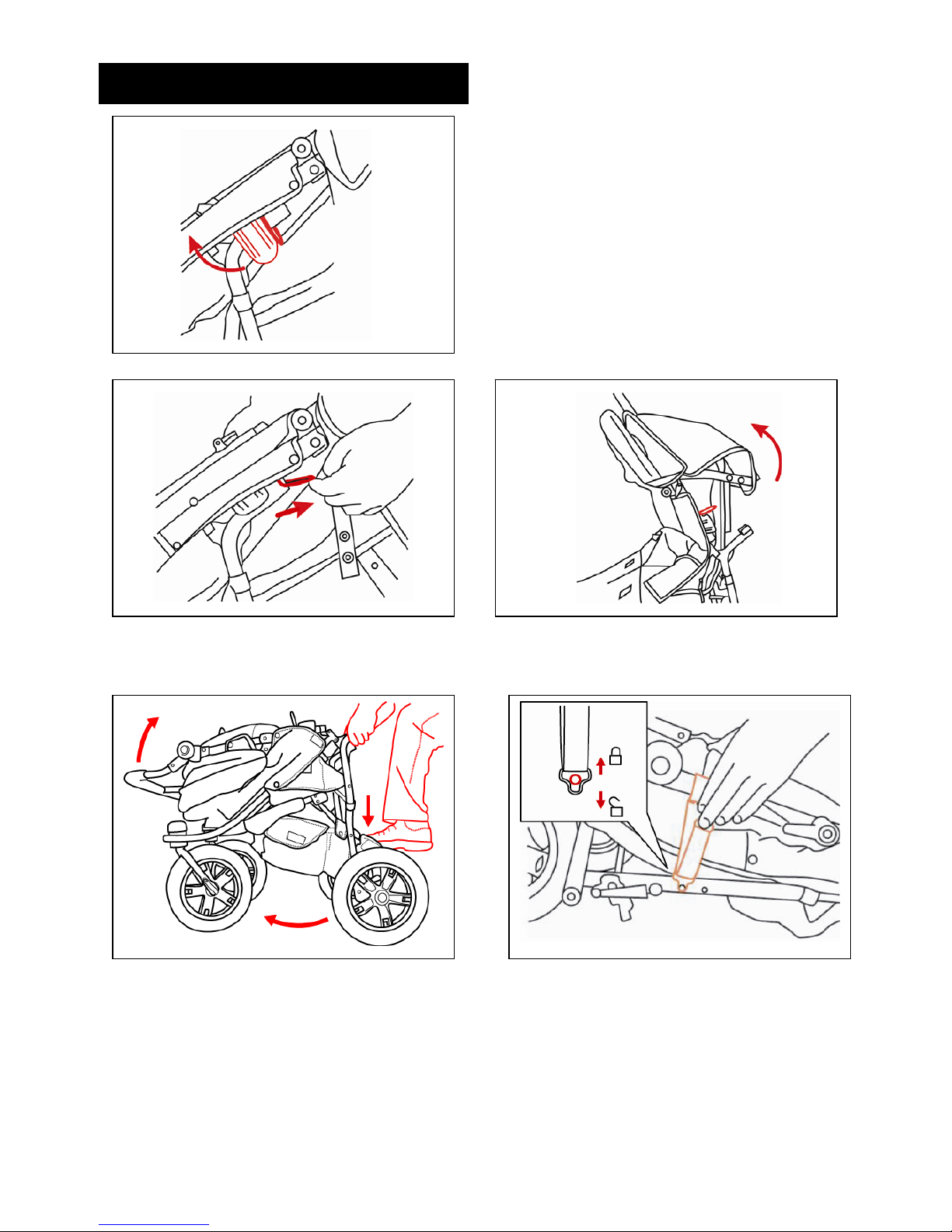

1. Fold the hood back up against the

handle.

2. Release the locking clamps at

either side of the stroller.

3. Simultaneously lift the secondary safety catch (located at the left hand side of

the stroller while standin

behind) and swin

the handle forward.

4. Holding the rear legs at both

sides, press down with your foot

on the rear basket tube. This will

disengage the basket frame

locking hinges.

5. Continue pushing the rear of the

basket, moving the rear wheels

forward beneath the frame.

6. You can lock the frame closed by

stretching each locking strap

(located at either side of the

chassis) over the frame, placing each

catch over the rivet on the chassis.

7. To open, unlock each locking catch by

pushing downward in the catch till it

disengages from the rivet head.

8. Push the handle bar downward to

assist in fastening and releasing the

locking strap.

Inhaltsverzeichnis

Andere VALCOBABY Kinderwagen Handbücher

VALCOBABY

VALCOBABY URBAN ULTRALIGHT STROLLER Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY Vee Bee Dash Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY T3 PLUS Bedienungsanleitung

VALCOBABY

VALCOBABY snap ultra Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY Zee Spark Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY RunAbout Tri-mode series Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY ORION Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY VEE BEE LIO Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY velo Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY ION STROLLER Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY Zeetwo Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY Vee Bee SCOUT Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY ZEE Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY SNAP Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY RAD Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY Zee Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY Mini Marathon Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY SPARK DUO Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY BASSINET Bedienungsanleitung

VALCOBABY

VALCOBABY TRI MODE EX Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY EZ Rider Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY Tri Mode Series Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY BUGGSTER BASSINET Installations- und Betriebshandbuch

VALCOBABY

VALCOBABY Latitude Stroller Installations- und Betriebshandbuch

Beliebte Kinderwagen Handbücher anderer Marken

Hauck

Hauck Priya Trioset Bedienungsanleitung

CHILDHOME

CHILDHOME CWQDN Bedienungsanleitung

Dreamer Design

Dreamer Design Rebound GST Bedienungsanleitung

Britax

Britax STEELCRAFT AGILE Bedienungsanleitung

Graco

Graco 7427 Bedienungsanleitung

Comfort

Comfort COMPASS Bedienungsanleitung

OBaby

OBaby Aura Bedienungsanleitung

Tutek

Tutek Tirso Bedienungsanleitung

Babify

Babify Dual Plus Bedienungsanleitung

Graco

Graco Stroller Bedienungsanleitung

Special Tomato

Special Tomato Jogger Bedienungsanleitung

Chicco

Chicco CORTINA TOGETHER TWO-PASSENGER STROLLER Bedienungsanleitung

Otto Bock

Otto Bock Kimba neo Bedienungsanleitung

Milly Mally

Milly Mally ROYAL Kurzanleitung

Hauck

Hauck DUETT 3 PRAM Bedienungsanleitung

BOB

BOB DUALLIE Bedienungsanleitung

Nuna

Nuna Pepp Bedienungsanleitung

Britax

Britax B2 Bedienungsanleitung
