P-TEC VOICE PAGING SPEAKERS

V-5330100 (VOICE COIL)

V-5330200 (70 VOLT)

PagePac®

INTRODUCTION

P-TEC Voice Paging Speakers are suitable for

voice paging as well as background music. The

V-5330200 is a 70 volt model with adjustable taps

and volumecontrol. The V-5330100 isa voice coil

(45 Ohm) 3.4 volt model with volume control.

P-TEC speakers consist of a 3.6 inch cone

speaker mounted in a unique surface-mount baf-

fle. The baffle is designed for mounting on

acoustic tile, such as those normally found in sus-

pended-ceilings; and can be mounted without

cutting large holes in the tile. The mounting pins

can be removed for mounting in a hard ceiling.

The speaker housing has screw holes for securing

speaker without mounting pins. Although the

P-TEC speakers are designed especially for stan-

dard suspended ceilings, they can be used on

many types of ceiling materials.

DIMENSIONS/WEIGHT

• 8”Dia. x 2.5”D (20.32cm x 6.35cm)

Voice Coil .75 lbs. (.34 kg)

70 Volt 1.25 lbs. (.56 kg)

INSTALLATION

Selecting the Power-Tap Wire (70V)

Note: For the V-5330100 Speakers (Voice Coil),

begin at Suspended Ceiling Installation.

1. Remove the Quick-Connect connector from

the accessory pack.

2. Select the desired power-tap wire:

Yellow = 1/4W

Red = 1/2W

Green = 1W

White = 2W

Blue = 4W

Note: Refer to spacing chart (Figure 6) for recom-

mended speaker spacing.

Figure 1. P-TEC Paging Speaker (70V shown)

3. Install the Quick-Connect connector on the

wire. Use pliers to close the connector over

the wire. The connector can be removed by

prying it open with a screwdriver, and can be

reused several times (see Figure 2).

Figure 2. Attaching the Reuseable Quick-Connect

Connector (V-5330200 Only)

Back Box (Optional)

Volume Control

Reusable

Quick-Connect

Connector

Tap Wire

2947165

4. Connect the power-tap wire to the gold (+)

terminal (see Figure 3).

5. Arrange the unused power-tap wires neatly

inside the speaker housing and tape them to

the inside of the housing.

Figure 3. Connecting the Tap Wire

(V-5330200 Only)

Suspended Ceiling

Note: Wrap wires around strain relief posts so

speaker wires will not pull free.

1. Lift the adjacent ceiling tile and slide it out of

the way.

2. Install the speaker by inserting the mounting

pins through the ceiling tile, and hold the

speaker in place.

3. Place the wire and washers, and speaker

mounting clips over mounting pins (so pins

slide through clips).

Figure 4. P-TEC Installation

Note: Washers provide isolation from the pins if

the back of the tile is covered with metal

foil.

4. If necessary, adjust paging volume after instal-

lation. The volume control is located on the

side of the speaker. Use a small screwdriver to

turn the control.

5. Install the volume control cover found in the

accessory pack.

Note: When using a PagePac®Amplicenter,

music volume should be adjusted at the

paging amplifier or music source. Adjust

paging before adjusting background music.

Maintain Speaker Phasing

When using multiple speakers in a single run,

keep speakers in phase by connecting the

speaker wires to the same spike on each speaker

(either wire can connect on either spike, as long

as the pattern is followed on each speaker). The

gold spike is the plus (+) terminal (see Figure 5).

Figure 5. Maintaining Speaker Phasing

Handling Shielded Speaker Cable

V-5330200 Only

If you are using shielded speaker cable, splice the

shield wire at the speaker location so a continu-

ous shield is maintained. When connecting a sin-

gle speaker, or the last speaker on the run, clip

the shield wire where it emerges from the outer

insulation on the speaker cable.

TECHNICAL ASSISTANCE

When calling, have a VOM and a telephone test

set available and call from the job site. Call (540)

427-3900 and ask for PagePac Technical Sup-

port, or call (540) 427-6000 for Valcom 24-hour

Automated Support or visit our websites at

http://www.pagepac.com and www.valcom.com.

( + ) Gold

( - ) Silver

Black - Common

(Connected at Factory)

Tap Wire

70V Transformer

Reusable

uick-Connect

Connector

Power Tap Wires

Yellow

Red

Green

White

Blue

- 1/4 Watt

- 1/2 Watt

- 1 Watt

- 2 Watt

- 4 Watt

Arrange unused wires

neatly inside speaker housing.

Power Tap Wires

Yellow - 1/4 Watt

Red - 1/2 Watt

Green - 1 Watt

White - 2 Watt

Blue - 4 Watt

Gold

Spike Silver

Spike

Red Black

Amplifier

Use mounting holes and screws

when spikes can not be used.

Gold ( + )

To Paging

Amplifier To Next

Speaker

3947165

Should repairs be necessary, attach a tag to the

unit clearly stating company name, address,

phone number, contact person, and the nature of

the problem. Send the unit to:

Valcom, Inc.

PagePac®Repair Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

NOISE

LEVEL

IN dB

55 dB

56 dB

57 dB

58 dB

59 dB

60 dB

61 dB

62 dB

63 dB

64 dB

65 dB

66 dB

67 dB

68 dB

69 dB

70 dB

71 dB

72 dB

73 dB

74 dB

75 dB

76 dB

77 dB

SPL-76

.25 WATT SPL-78

.50 WATT SPL-80

1.0 WATT

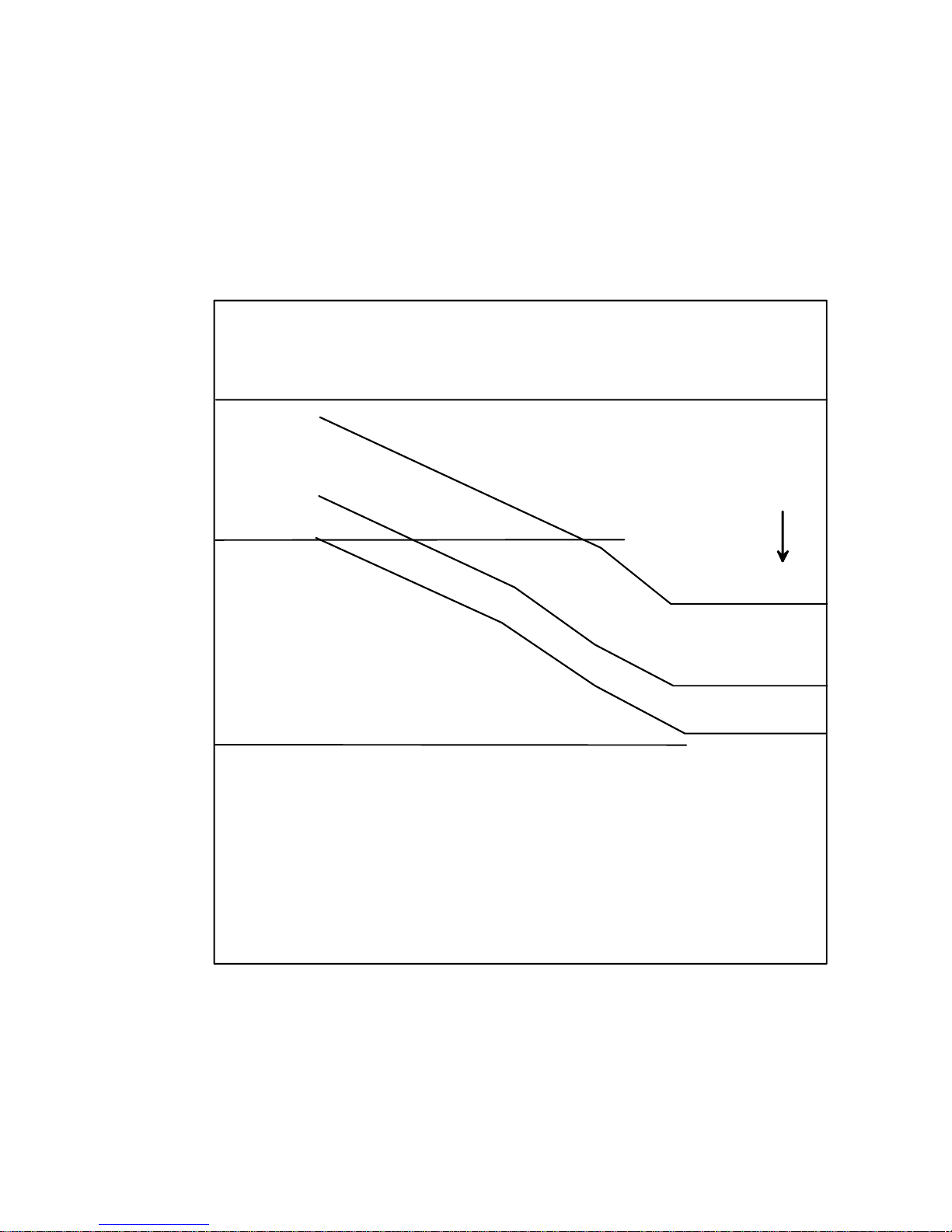

P-TEC SPEAKER PROJECTION DISTANCE

SOUND PRESSURE LEVELS AND WATTAGE SETTINGS FOR 70 VOLT SPK

SPL-83

2.0 WATT

MINIMUM

MOUNTING

HEIGHT

15 FT

10 FT

8 FT

P-TEC SPEAKERS ARE INTENDED FOR USE IN STANDARD 8 FOOT DROPPED CEILING TILE.

CEILING HEIGHTS OF MORE THAN 8 FEET OR HIGHER, NOISE LEVELS MAY REQUIRE LESS

THAN THE STANDARD 25 FOOT SPACING OR HIGHER TAP SETTINGS.

SPL-86

4.0 WATT

Figure 6
