VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and

workmanship under conditions of normal use and service for a period of one year

from the date of shipment. The obligation under this warranty shall be limited to the

replacement, repair or refund of any such defective device within the warranty

period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim,

2. the defect is not the result of damage, misuse, or negligence after the

original shipment,

3. the product has not been altered in any way or repaired by others and

that factory sealed units are unopened (A service charge plus parts and

labor will be applied to units defaced or physically damaged),

4. freight charges for the return of products to Valcom are prepaid,

5. all units ‘out of warranty’ are subject to a service charge. The service

charge will cover minor repairs (Major repairs will be subject to additional

charges for parts and labor).

This warranty is in lieuof and excludes all other warranties, expressed or

implied, and in no event shall Valcom, Inc. be liable for any anticipated

profits, consequential damages, loss of time or other losses incurred by

the buyer in connection with the purchase, operation, oruse of the

product.

This warranty specifically excludes damage incurred in shipment. In the event a

product is received in damaged condition, the carrier should be notified immediately.

Claims for such damage should be filed with the carrier involved in accordance

with the F.O.B. point.

Headquarters: In Canada

Valcom, Inc. CMX Corporation

5614 Hollins Road 35 Van Kirk Drive #11 and 12

Roanoke, VA 24019-5056 Brampton, Ontario L7A1A5

Phone: (540) 563-2000 Phone: (905) 456-1072

FAX: (540) 362-9800 FAX: (905) 456-2269

INSTALLATION INSTRUCTIONS FOR

FLUSH MOUNT DOOR SPEAKER

V-1072A-ST

V-1072A-BRASS

V-1072B-ST

V-1072B-BRASS

Issue 5 947073

V-1072A-BRASS,V-1072A-ST,V-1072B-BRASS,V-1072B-ST

These Talkback Door Speakers can be used with all Valcom Handsfree Talkback

Page Controls, Door Answering Units or any control with a 45 Ohm speaker

output. Four (4) screws are provided for mounting to a double-gang 4" x 4"

electrical box.

INSTALLATION

NOTES:

Connect using unshielded, twisted pair cable and limit runs to 800 feet

or less. Up to three (3) pair cable may be required when connecting to

the door speaker.

After making wire connections, cover uninsulated connections

with silicone tape, insulating putty or paint to prevent tracking.

1. Connect TIP and RING from the Valcom Page Control speaker output to

the speaker connections (marked TIP and RING) on the Door Speaker as

shown.

2. Connect CALL button on the Door Speaker to the customer provided

signal equipment as shown below. Switch is rated at 100mA maximum

current.

3. "B" Versions only-Connect the LED (lamp) on the Door Speaker to the

GND (+) and Switched Battery (-24VDC) terminals on the Valcom Page

Control as shown.

TROUBLESHOOTING CHART

PROBLEM CORRECTIVE ACTION

No sound in page

mode

1. Check tip and ring for audio at speaker.

2. Check tip and ring at control unit.

Low volume in page

mode

1. Check volume controls at page control.

2. Check for open circuits in wiring.

Poor listening in

talkback mode

1. Check talkback volume controls at page control.

Set control at minimum suitable listening level.

No LED indication 1. Check presence and polarity of LED input signal (V-

1072B models only).

TECHNICAL ASSISTANCE

When trouble is reported, verify there are no broken connections to the unit.

Assistance in troubleshooting is available from the factory. When calling, you

should have a Volt-ohm meter and a lineman's test set available and be calling from

the job site. Call (540) 563-2000 and ask for Technical Assistance, or call (540) 767-

1555 for Valcom 24-hour Faxback System or visit our website at

http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in

Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating

your company name, address, phone number, contact person and the nature of the

problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

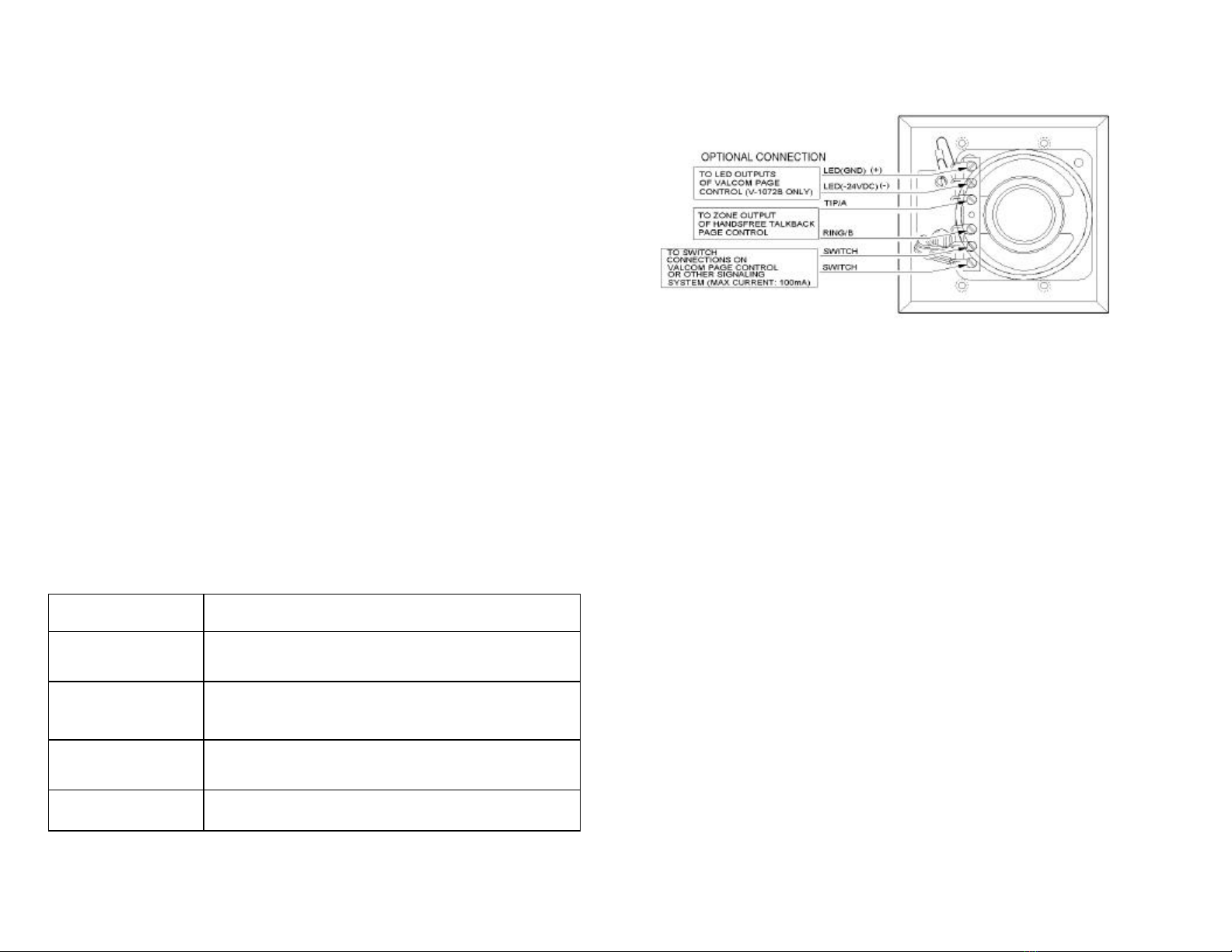

CONNECTIONS

Dimensions/Weight

•4.50"H x 4.50"W x 1.30"D (11.43cm x 11.43cm x 3.30cm)

•0.5 lbs. (.23 kg)
