Vanco 280502 Bedienungsanleitung

HDMI® Extender

Over 2X Category

5e Cables

Vanco Part Number:

280502

Technical Support

www.vanco1.com • [email protected] • 800-626-6445

HOME

THEATER

www.vanco1.com 800-626-6445

1. Do not expose this unit to water, moisture,

or excessive humidity.

2. Do not install or place this unit in a built-in

cabinet, or other conned space without

adequate ventilation.

3. To prevent risk of electrical shock or re

hazard, due to overheating, do not obstruct

unit’s ventilation openings.

4. Do not install near any source of heat,

including other units that may produce heat.

5. Do not place unit near ames.

6. Only clean unit with a dry cloth.

7. Unplug unit during lightening storms, or

when not used for an extended period

of time. A surge protector is strongly

recommended.

8. Protect the power cord from being walked

on or pinched, particularly at the plugs.

9. Use unit only with accessories specied by

the manufacturer.

10. Refer all servicing to qualied personnel.

CAUTION

HDMI is a very complex technology requiring continuous authentication of the signal and the same

video resolution and audio settings on all electronic equipment in the system. When there are multiple

sources and displays, the video resolution and audio setting on all connected units must be adjusted

to correspond with that of the display having the lowest video and audio capability.

WARNING

DEAR CUSTOMER

Thank you for purchasing this product.

For optimum performance and safety, please

read these instructions carefully before

connecting, operating or adjusting this product.

Please keep this manual for future reference.

This product is 100% inspected and tested in the United States

to verify HDMI performance parameters.

www.vanco1.com 800-626-6445 3

FEATURES

Vanco HDMI Extender over dual category cable (280502) is an active short range dual cable extender set

capable of transmitting full 1080p HD video and HD audio together, and achieves this through the HDMI signal

over dual Cat5e/6 of up to 98 ft under ideal conditions. Also features HDCP compliancy to ensure source and

display compatibility. For a simple source to display HDMI signal extension, the 280502 is a great solution.

Benets for using 280502:

1. The length of HDMI cable is xed and unchangeable after it is produced. Because the HDMI connector can

only be soldered or terminated by professional worker in factory, the users can not reduce or increase by

themselves. However Cat5e/Cat6 cables are available everywhere and be processed easily by the user or

installer.

2. The 280502 transmission distance for 1080P reaches 30 meters (98.4 ft), and 60 meters (196.9 ft) for

1080i.

3. Offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and

Projector factory, noise, space and security concerns, data center control, information distribution,

conference room presentation, school and corporate training environments.

HDMI® Extender Over 2X Category 5e Cables

Part # 280502

• Allows HDMI audio/video signals to be

transmitted using two Cat5e or Cat6 cables

• Transmission Range:Extends 1080p resolution

up to 30 meters ( 98 ft);Extends 1080i

resolution up to 50 meters (164 ft);Extends

720p resolution up to 60 meters (196 ft)

• Supports High Denition Resolution 1080p

• Supports computer resolutions up to

1920x1200 (WUXGA), 12-bit color depth

• H.D.C.P. (High-Bandwidth Digital Content

Protection) Compliant

• Not recommended for cascading purposes or to

work with any other component, to be used as a

source to display extender only

• 5V DC, UL Listed Power Supply

• Dimensions: 2” W x 1.88” H x 3.25” D

www.vanco1.com 800-626-6445

PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are

contained in the shipping carton:

• 1 Vanco 280502 TRANSMITTER balun

• 1 Vanco 280502 RECEIVER balun

• 5V DC Power Supply

• Product Manual

SPECIFICATIONS

Operating Temperature Range................................................. -5 to +35°C (-41 to 23 °F)

Operating Humidity Range ...................................................... 5 to 90 % RH (no condensation)

Input Video Signal ................................................................. 0.5-1.0 volts p-p

Input DDC Signal ................................................................... 5 volts p-p (TTL)

Video Format Supported......................................................... DTV/HDTV;1080p/1080i/720p/576p/480p/5

76i/480i

Output Video ......................................................................... HDMI 1.3a + HDCP 1.2

Maximum Transmission Distance............................................. 1080p: 30m; 1080i: 60m

Power Supply ....................................................................... 5VDC

Power Consumption .............................................................. 120 mW (max.)

Dimensions: .......................................................................... 2” W x 1.88” H x 3.25” D

Mass (Main unit) .................................................................. 0.26 kg (transmitter & receiver)

Specications are subject to change without notice. Mass and dimensions are

approximate.

www.vanco1.com 800-626-6445 5

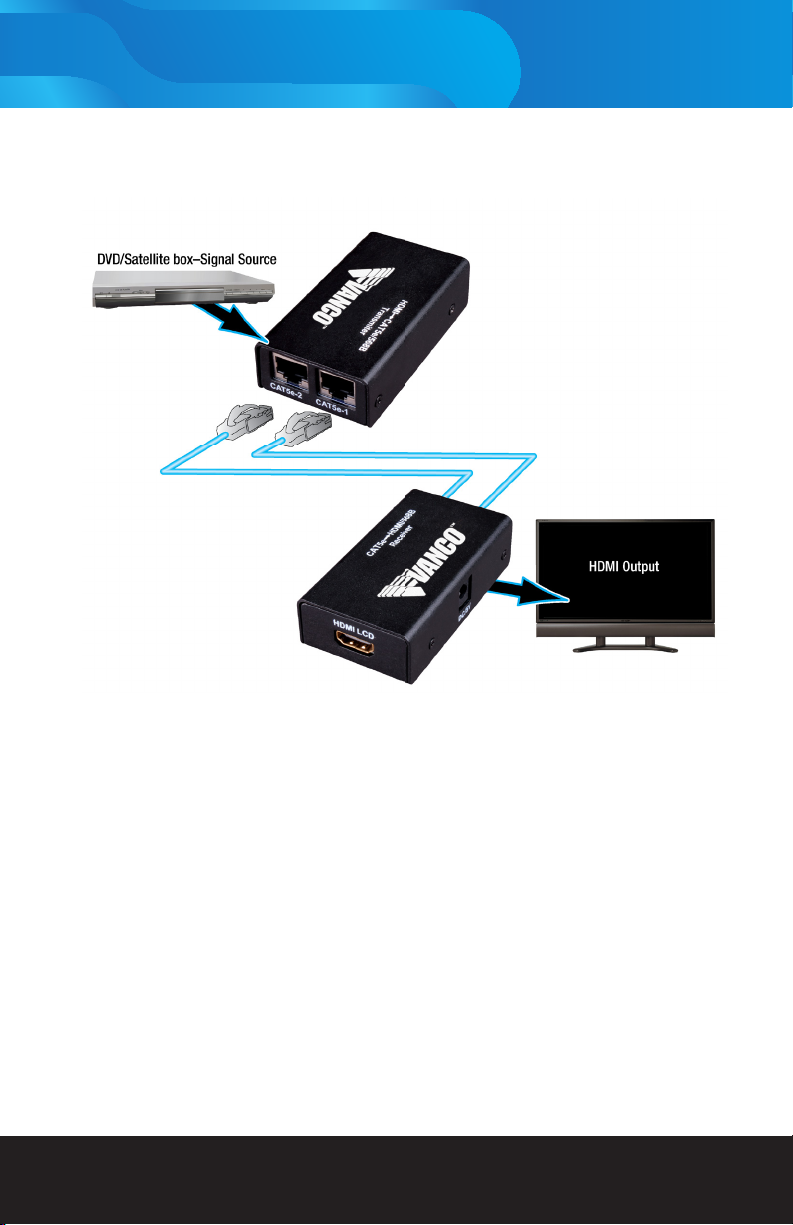

CONNECT AND OPERATE

1. Connect 1 source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc.

to the HDMI input on the transmitter balun.

2. Connect 1 display such as an HDTV or HD Projector to the HDMI output on the receiver balun.

3. Connect dual Category 5e/6 cables up to 98 ft (30m) to both transmitter and receiver baluns. (Ensure

Category cables are terminated correctly)

4. For power, plug in the source rst, followed by the Vanco Extender set ( 5V DC power supply included),

followed by the output connected.

5. Power on each device in the same sequence

At this point the display connected should display the source signal connected to the extender set. If no

signal is being displayed, connect shorter Cat5e/6 cables (less than 15 ft). If a display is still having difculty

receiving a signal, access the display’s menu and adjust the resolution (lowest to highest until signal is

displayed). A 24 Hz vertical refresh rate may work better than 60 Hz or higher.

www.vanco1.com 800-626-6445

LIMITED WARRANTY

With the exceptions noted in the next paragraph, Vanco warrants to the original purchaser that the equipment

it manufactures or sells will be free from defects in materials and workmanship for a period of one year from

the date of purchase. Should this product, in Vanco’s opinion, prove defective within this warranty period,

Vanco, at its option, will repair or replace this product without charge. Any defective parts replaced become

the property of Vanco. This warranty does not apply to those products which have been damaged due to

accident, unauthorized alterations, improper repair, modications, inadequate maintenance and care, or use in

any manner for which the product was not originally intended.

Items integrated into Vanco products that are made by other manufacturers, notably computer hard

drives and liquid crystal display panels, are limited to the term of the warranty offered by the respective

manufacturers. Such specic warranties are available upon request to Vanco. A surge protector, power

conditioner unit, or a uninterruptible power supply must be installed in the electrical circuit to protect against

power surges.

If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt

or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco

regarding warranty repair or replacement.

LIABILITY STATEMENT

Every effort has been made to ensure that this product is free of defects. The manufacturer of this product

cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising

from its use. It is the responsibility of the user and installer of the hardware to check that it is suitable for

their requirements and that it is installed correctly. All rights are reserved. No parts of this manual may be

reproduced or transmitted by any form or means electronic or mechanical, including photocopying, recording

or by any information storage or retrieval system without the written consent of the publisher.

Manufacturer reserves the right to revise any of its hardware and software following its policy to modify and/or

improve its products where necessary or desirable. This statement does not affect the legal rights of the user

in any way.

www.vanco1.com 800-626-6445 7

TECHNICAL SUPPORT

In case of problems, please contact Vanco Technical Support by e-mail at [email protected] or call 1-800-

626-6445 between the hours of 8am and 5pm central US time zone on Monday through Friday.

When calling, please have the Model Number, Serial Number (afxed to the bottom of the unit) and Invoice

available for reference during the call.

Please read this Instruction Manual prior to calling or installing this unit, since it will familiarize you with the

capabilities of this product and its proper installation.

All active electronic products are 100% inspected and tested to insure highest product quality and trouble-

free installation and operation. The testing process utilizes the types of high-denition sources and displays

typically installed for entertainment and home theater applications.

For additional information, such as helpful installation videos, glossary of terms, etc. please visit www.vanco1.

com

Vanco® International

506 Kingsland Drive

Batavia, Illinois 60510

call: 800.626.6445

fax: 630.879.9189

visit: www.vanco1.com
