Vanguard VN20BT Originalbetriebsanleitung

UNVENTED (VENT-FREE)

BLUE FLAME GAS HEATER

SAFETY INFORMATION AND

INSTALLATION MANUAL

For more information, visit www.desatech.com

WARNING: If the information in this manual is not

followedexactly,afireorexplosionmayresultcaus-

ing property damage, personal injury, or loss of life.

— Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Donottouchanyelectricalswitch;donotuseany

phone in your building.

• Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s in-

structions.

• Ifyoucannot reach yourgassupplier,callthe fire

department.

— Installation and service must be performed by a

qualified installer, service agency, or the gas

supplier.

WARNING: Improper installation,

adjustment,alteration,service,or

maintenance can cause injury or

property damage. Refer to this

manualforcorrectinstallationand

operational procedures. For as-

sistanceoradditionalinformation

consult a qualified installer, ser-

vice agency, or the gas supplier.

WARNING: This is an unvented

gas-fired heater. It uses air (oxy-

gen) from the room in which it is

installed. Provisions for ad-

equate combustion and ventila-

tion air must be provided. Refer

AirforCombustionandVenti-

lation

section on page 4 of this

manual.

This appliance may be installed in an aftermarket*, permanently located, manufactured

(mobile) home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This

appliance is not convertible for use with other gases.

*Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

Save this manual for future reference.

VN20BT

VP20BT

VN30BT

VP30BT

107886-01F

For more information, visit www.desatech.com

TABLE OF CONTENTS

SAFETY INFORMATION

WARNING ICON G 001

WARNINGS

IMPORTANT: Read this owner’s manual carefully and

completely before trying to assemble, operate, or ser-

vice this heater. Improper use of this heater can cause

serious injury or death from burns, fire, explosion,

electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide poisoning may lead

to death!

WARNING: Any change to this heater or its

controls can be dangerous.

1. This appliance is only for use with the type of gas indicated on

the rating plate. This appliance is not convertible for use with

other gases.

2. Do not place propane/LP supply tank(s) inside any structure.

Locate propane/LP supply tank(s) outdoors.

Do not place clothing or other flammable material on

ornearthe appliance. Neverplaceanyobjects on the

heater.

Surface of heater becomes very hot when running

heater. Keep children and adults away from hot sur-

face to avoid burns or clothing ignition. Heater will

remainhotforatimeaftershutdown.Allowsurfaceto

cool before touching.

Carefully supervise young children when they are in

the same room with heater.

Make sure grill guard is in place before running

heater.

Keeptheappliancearea clear and free from combus-

tible materials, gasoline and other flammable vapors

and liquids.

WARNING: Do not use any accessory not ap-

proved for use with this heater.

Carbon Monoxide Poisoning: Early signs of carbon monoxide

poisoningresemble the flu, with headaches, dizziness, ornausea. If

you have these signs, the heater may not be working properly. Get

fresh air at once! Have heater serviced. Some people are more

affected by carbon monoxide than others. These include pregnant

women,peoplewithheartorlungdiseaseoranemia,thoseunderthe

influence of alcohol, and those at high altitudes.

Natural and Propane/LP Gas: Natural and propane/LP gases are

fuelgases.Fuelgasesareodorless.Anodor-makingagentareadded

to fuel gases. The odor helps you detect a fuel gas leak. However,

the odor added to fuel gas can fade. Fuel gas may be present even

though no odor exists.

Make certain you read and understand all warnings. Keep this

manual for reference. It is your guide to safe and proper operation

of this heater.

Due to high temperatures, the appliance should be

located out of traffic and away from furniture and

draperies.

SAFETY INFORMATION

TABLE OF CONTENTS

SAFETY INFORMATION ............................................................ 2

LOCAL CODES........................................................................... 3

PRODUCT IDENTIFICATION ..................................................... 3

UNPACKING ............................................................................... 3

PRODUCT FEATURES .............................................................. 3

AIR FOR COMBUSTION AND VENTILATION ........................... 4

INSTALLATION ........................................................................... 7

OPERATING HEATER.............................................................. 13

INSPECTING HEATER............................................................. 14

CLEANING AND MAINTENANCE ............................................ 15

SPECIFICATIONS .................................................................... 16

SERVICE HINTS....................................................................... 16

TECHNICAL SERVICE ............................................................. 16

SERVICE PUBLICATIONS ....................................................... 16

TROUBLESHOOTING .............................................................. 17

ILLUSTRATED PARTS BREAKDOWNAND PARTS LIST ....... 20

REPLACEMENT PARTS .......................................................... 22

ACCESSORIES ........................................................................ 22

WARRANTY INFORMATION.......................................Back cover

107886-01F

For more information, visit www.desatech.com

SAFETY INFORMATION

LOCAL CODES

PRODUCT IDENTIFICATION

UNPACKING

PRODUCT FEATURES

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do not use any phone in

your building

• immediately call your gas supplier from a neighbor’s phone.

Follow the gas supplier’s instructions

• if you cannot reach your gas supplier, call the fire department

4. This heater shall not be installed in a bedroom or bathroom.

5. This heater needs fresh, outside air ventilation to run properly.

This heater has an Oxygen Depletion Sensing (ODS) safety

shutoff system. The ODS shuts down the heater if not enough

fresh air is available. See Air for Combustion and Ventilation,

pages 4 through 6.

6. Keep all air openings in front and bottom of heater clear and free

of debris. This will insure enough air for proper combustion.

7. If heater shuts off, do not relight until you provide fresh, out-

side air. If heater keeps shutting off, have it serviced.

8. Do not run heater

• where flammable liquids or vapors are used or stored

• under dusty conditions

9. Do not use heater if any part has been under water. Immedi-

ately call a qualified service technician to inspect the room

heater and to replace any part of the control system and any

gas control which has been under water.

10. Turn off and let cool before servicing. Only a qualified service

person should service and repair heater.

11. Operating heater above elevations of 4,500 feet could cause

pilot outage.

12. To prevent performance problems, do not use propane/LP fuel

tank of less than 100 lbs. capacity.

13. Provide adequate clearances around air openings.

SAFETY INFORMATION

Continued

PRODUCT IDENTIFICATION

LOCAL CODES

Installanduseheaterwithcare. Follow all local codes. In theabsence

oflocalcodes,usethelatesteditionofNationalFuelGasCode, ANSI

Z223.1/NFPA 54*.

*Available from:

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

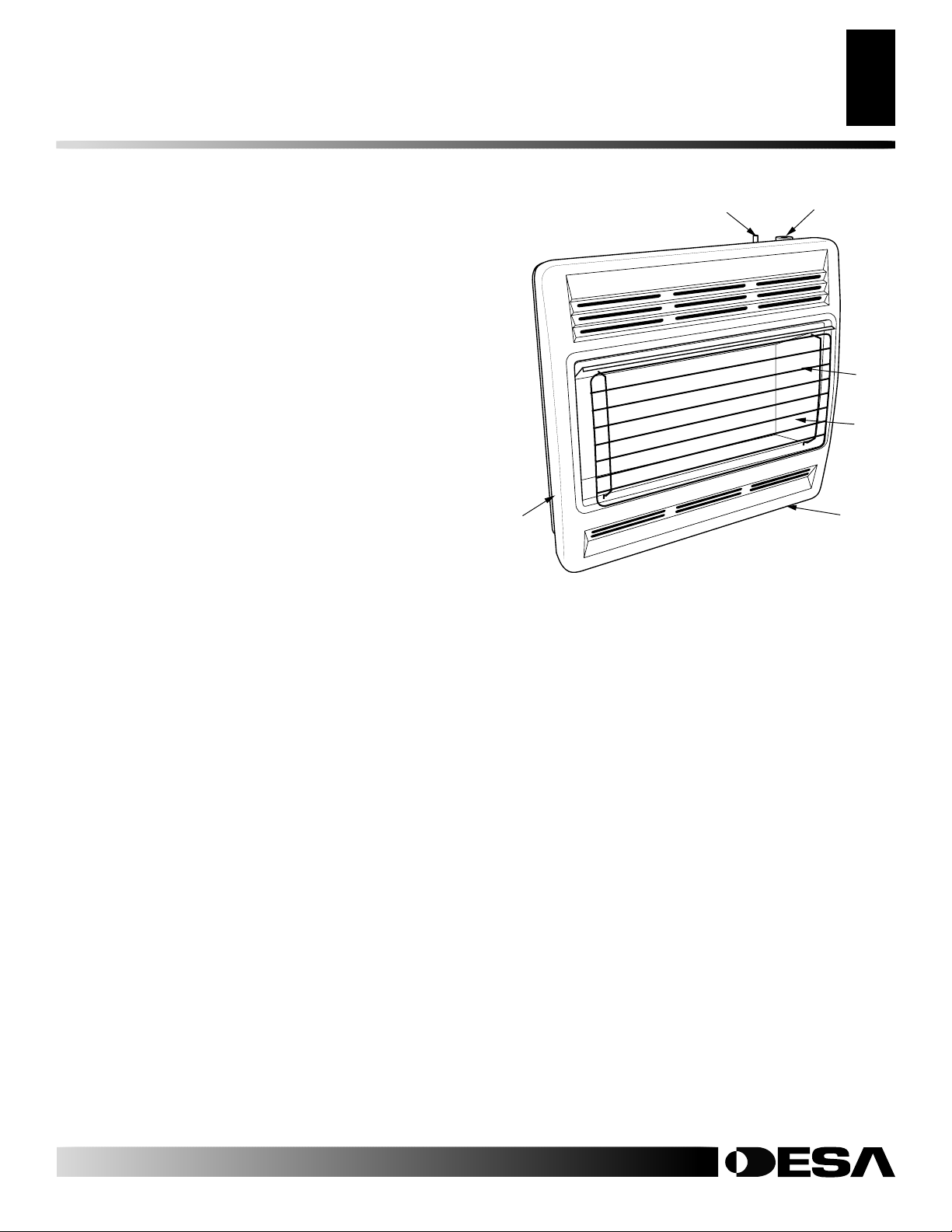

Figure 1 - Vent-Free Gas Heater

UNPACKING

1. Remove heater from carton.

2. Removeall protectivepackaging applied toheater forshipment.

3. Check heater for any shipping damage. If heater is damaged,

promptly inform dealer where you bought heater.

Control Knob

Heater

Cabinet

Front

Panel

Glass

Panel

Grill

Guard

PRODUCT FEATURES

SAFETY DEVICE

This heater has a pilot with an Oxygen Depletion Sensing (ODS)

safety shutoff system. The ODS/pilot is a required feature for vent-

free room heaters. The ODS/pilot shuts off the heater if there is not

enough fresh air.

PIEZO IGNITION SYSTEM

This heater has a piezo ignitor. This system requires no matches,

batteries, or other sources to light heater.

THERMOSTATIC HEAT CONTROL

Thermostat models have a thermostat sensing bulb and a control

valve.Thisresultsinthegreatestheatercomfort.Thiscanalsoresult

in lower gas bills.

Ignitor Button

107886-01F

For more information, visit www.desatech.com

AIR FOR COMBUSTION AND

VENTILATION

Today’s homes are built more energy efficient than ever. New

materials,increased insulation,and new constructionmethods help

reduce heat loss in homes. Home owners weather strip and caulk

aroundwindows anddoors to keepthe coldair out andthe warmair

in. During heating months, home owners want their homes as

airtight as possible.

While it is good to make your home energy efficient, your home

needs to breathe. Fresh air must enter your home. All fuel-burning

appliances need fresh air for proper combustion and ventilation.

Exhaustfans,fireplaces,clothesdryers,andfuelburningappliances

drawairfromthehousetooperate.Youmustprovideadequatefresh

air for these appliances. This will insure proper venting of vented

fuel-burning appliances.

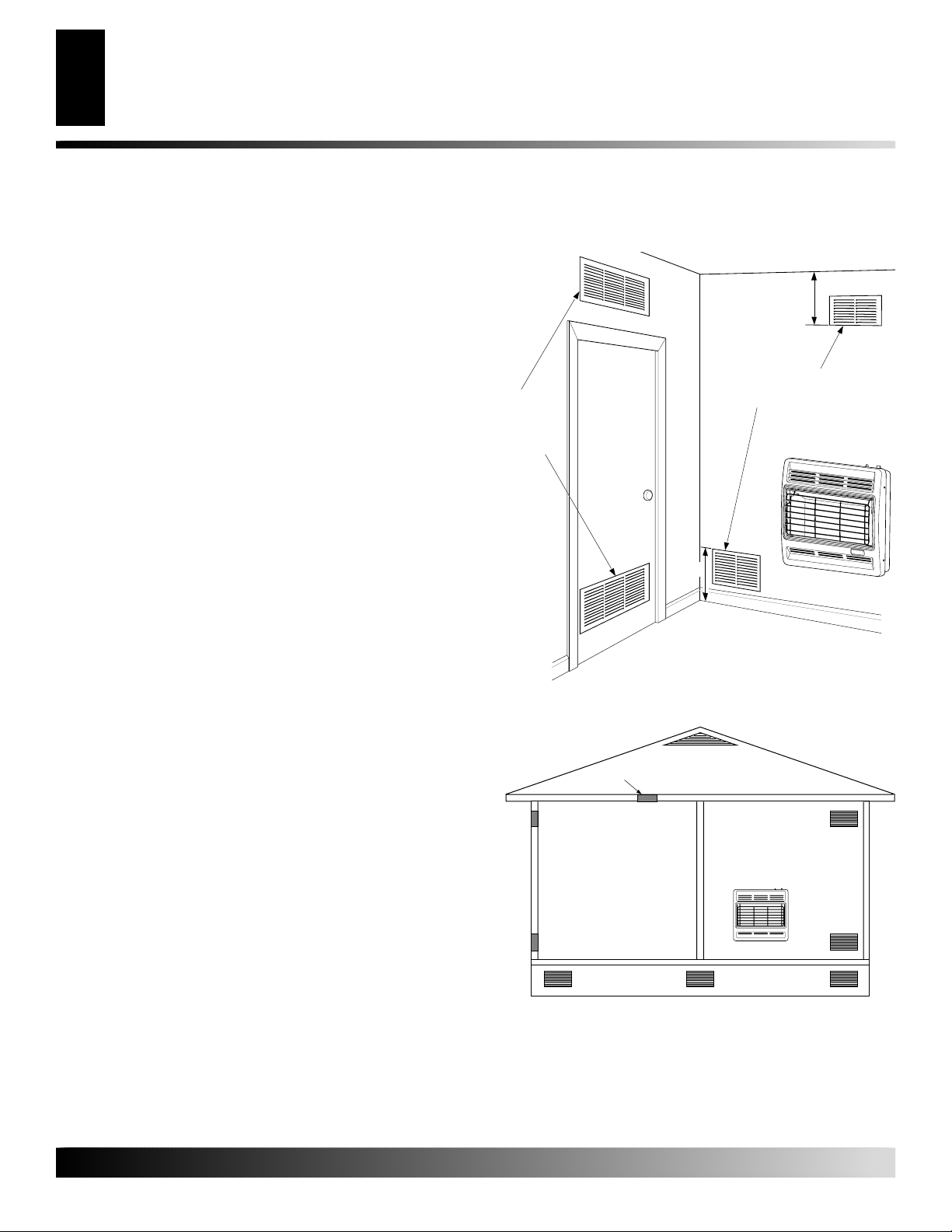

PROVIDING ADEQUATE VENTILATION

The following are excerpts from National Fuel Gas Code, ANSI

Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three following ventilation

classifications:

1. Unusually Tight Construction

2. Unconfined Space

3. Confined Space

The information on pages 4 through 6 will help you classify your

space and provide adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough

fresh air for combustion and ventilation. However, in buildings of

unusually tight construction, you must provide additional fresh air.

WARNING: This heater shall not be installed in a

confined space or unusually tight construction un-

lessprovisionsareprovidedforadequatecombustion

and ventilation air. Read the following instructions to

insure proper fresh air for this and other fuel-burning

appliances in your home.

Unusually tight construction is defined as construction

where:

a. walls and ceilings exposedtotheoutsideatmosphere

have a continuous water vapor retarder with a rating

of one perm (6x10-11 kg per pa-sec-m2) or less with

openings gasketed or sealed

and

b. weather stripping has been added on openable win-

dows and doors

and

c. caulking or sealants are applied to areas such as

joints around window and door frames,between sole

platesandfloors,betweenwall-ceilingjoints,between

wall panels, at penetrations for plumbing, electrical,

and gas lines, and at other openings.

If your home meets all of the three criteria above, you

must provide additional fresh air. See

Ventilation Air

From Outdoors

, page 6.

Ifyourhomedoes not meet all of the threecriteriaabove,

proceed to

Determining Fresh-Air Flow For Heater Loca-

tion

, page 5.

Confined and Unconfined Space

The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines a

confined space as a space whose volume is less than 50 cubic feet

per 1,000 Btu per hour (4.8 m3per kw) of the aggregate input rating

of all appliances installed in that space and an unconfined space as

aspacewhosevolumeisnotlessthan50cubicfeetper1,000Btuper

hour (4.8 m3per kw) of the aggregate input rating of all appliances

installed in that space. Rooms communicating directly with the

space in which the appliances are installed*, through openings not

furnishedwithdoors,are considered apartoftheunconfined space.

* Adjoining rooms are communicating only if there are doorless

passageways or ventilation grills between them.

AIR FOR COMBUSTION AND VENTILATION

Providing Adequate Ventilation

107886-01F

For more information, visit www.desatech.com

AIR FOR COMBUSTION AND

VENTILATION

Continued

DETERMINING FRESH-AIR FLOW FOR

HEATER LOCATION

Determining if You Have a Confined or

Unconfined Space

Usethis worksheet to determineif youhavea confinedorunconfined space.

Space:Includestheroominwhichyouwillinstallheaterplusanyadjoining

rooms with doorless passageways or ventilation grills between the rooms.

1. Determine the volume of the space (length x width x height).

Length x Width x Height = ___________ cu. ft. (volume of space)

Example:

Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling

height) = 2560 cu. ft. (volume of space)

Ifadditional ventilationto adjoiningroomis suppliedwith grills oropen-

ings, add the volume of these rooms to the total volume of the space.

2. Multiply the space volume by 20 to determine the maximum Btu/Hr

the space can support.

__________ (volume of space) x 20 = (Maximum Btu/Hr the space

can support)

Example:

2560 cu. ft. (volume of space) x 20 = 51,200 (maximum

Btu/Hr the space can support)

3. Add the Btu/Hr of all fuel burning appliances in the space.

Vent-free heater _____________ Btu/Hr

Gas water heater* _____________ Btu/Hr

Gas furnace _____________ Btu/Hr

Vented gas heater _____________ Btu/Hr

Gas fireplace logs _____________ Btu/Hr

Other gas appliances* + _____________ Btu/Hr

Total = _____________ Btu/Hr

* Do not include direct-vent gas appliances. Direct-vent draws com-

bustion air from the outdoors and vents to the outdoors.

Example:

Gas water heater _____________ Btu/Hr

Vent-free heater + _____________ Btu/Hr

Total = _____________ Btu/Hr

WARNING: If the area in which the heater may be

operated is smaller than that defined as an uncon-

fined space or if the building is of unusually tight

construction,provideadequatecombustionandven-

tilation air by one of the methods described in the

National Fuel Gas Code, ANSI Z223.1/NFPA 54 Sec-

tion 5.3

or applicable local codes

4. Compare the maximum Btu/Hr the space can support with the actual

amount of Btu/Hr used.

__________________ Btu/Hr (maximum the space can support)

__________________ Btu/Hr (actual amount of Btu/Hr used)

Example:

51,200 Btu/Hr (maximum the space can support)

60,000 Btu/Hr (actual amount of Btu/Hr used)

The space in the above example is a confined space because the actual Btu/Hr

used is more than the maximum Btu/Hr the space can support. You must

provide additional fresh air. Your options are as follows:

A. Rework worksheet, adding the space of an adjoining room. If the

extra space provides an unconfined space, remove door to adjoining

roomoradd ventilation grills between rooms. See VentilationAir From

Inside Building, page 6.

B. Vent room directly to the outdoors. See Ventilation Air From Out-

doors, page 6.

C. Installa lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined.

If the actual Btu/Hr used is less than the maximum Btu/Hr the space can

support, the space is an unconfined space. You will need no additional fresh

air ventilation.

40,000

20,000

60,000

AIR FOR COMBUSTION AND VENTILATION

Determining Fresh-Air Flow For Heater Location

107886-01F

For more information, visit www.desatech.com

Figure 3 - Ventilation Air from Outdoors

AIR FOR COMBUSTION AND

VENTILATION

Continued

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining unconfined space.

When ventilating to an adjoining unconfined space, you must

provide two permanent openings: one within 12" of the ceiling and

one within 12" of the floor on the wall connecting the two spaces

(see options 1 and 2, Figure 2). You can also remove door into

adjoining room (see option 3, Figure 2). Follow the National Fuel

Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion

and Ventilation for required size of ventilation grills or ducts.

Ventilation Air From Outdoors

Provideextrafresh airbyusingventilationgrillsorducts.Youmust

provide two permanent openings: one within 12" of the ceiling and

one within 12" of the floor. Connect these items directly to the

outdoorsorspacesopentotheoutdoors.Thesespacesincludeattics

and crawl spaces. Follow the National Fuel Gas Code, ANSI

Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation

for required size of ventilation grills or ducts.

IMPORTANT:

Do not provide openings for inlet or outlet air into

attic if attic has a thermostat-controlled power vent. Heated air

entering the attic will activate the power vent.

Figure 2 - Ventilation Air from Inside Building

AIR FOR COMBUSTION AND VENTILATION

Ventilation Air

Outlet

Air Ventilated

Attic

Outlet

Air

Inlet

Air

Inlet Air Ventilated

Crawl Space

Crawl

Space

To Attic

Remove

Door into

Adjoining

Room,

Option 3

Ventilation Grills

Into Adjoining Room,

Option 2

12"

Ventilation

Grills

into Adjoining

Room,

Option 1

107886-01F

For more information, visit www.desatech.com

INSTALLATION

WARNING: A qualified service person must in-

stall heater. Follow all local codes.

CHECK GAS TYPE

Useonlythe correct typeofgas (natural orpropane/LP).Ifyour gas

supply is not the correct gas type, do not install heater. Call dealer

where you bought heater for proper type heater.

INSTALLATION ITEMS

Beforeinstallingheater,make sure youhavetheitemslisted below.

• for propane/LP gas, external regulator (supplied by installer)

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• ground joint union

• sediment trap

• tee joint

• pipe wrench

• for natural gas, test gauge connection*

* A CSA design-certified equipment shutoff valve with 1/8" NPT

tap is an acceptable alternative to test gauge connection. The

optional CSA design-certified equipment shutoff valve can be

purchased from your dealer. See Accessories, page 22.

NOTICE: This heater is intended for use as supple-

mental heat. Use this heater along with your primary

heating system. Do not install this heater as your

primary heat source. If you have a central heating

system, you may run system’s circulating blower

while using heater. This will help circulate the heat

throughoutthehouse.Intheeventofapoweroutage,

you can use this heater as your primary heat source.

CAUTION: This heater creates warm air currents.

These currents move heat to wall surfaces next to

heater. Installing heater next to vinyl or cloth wall

coveringsoroperatingheaterwhereimpurities(such

as, but not limited to, tobacco smoke, aromatic

candles, cleaning fluids, oil or kerosene lamps, etc.)

in the air exist, may discolor walls or cause odors.

WARNING: Never install the heater

•in a bedroom or bathroom

•in a recreational vehicle

•where curtains, furniture, clothing, or other flam-

mable objects are less than 36 inches from the

front, top, or sides of the heater

•as a fireplace insert

•in high traffic areas

•in windy or drafty areas

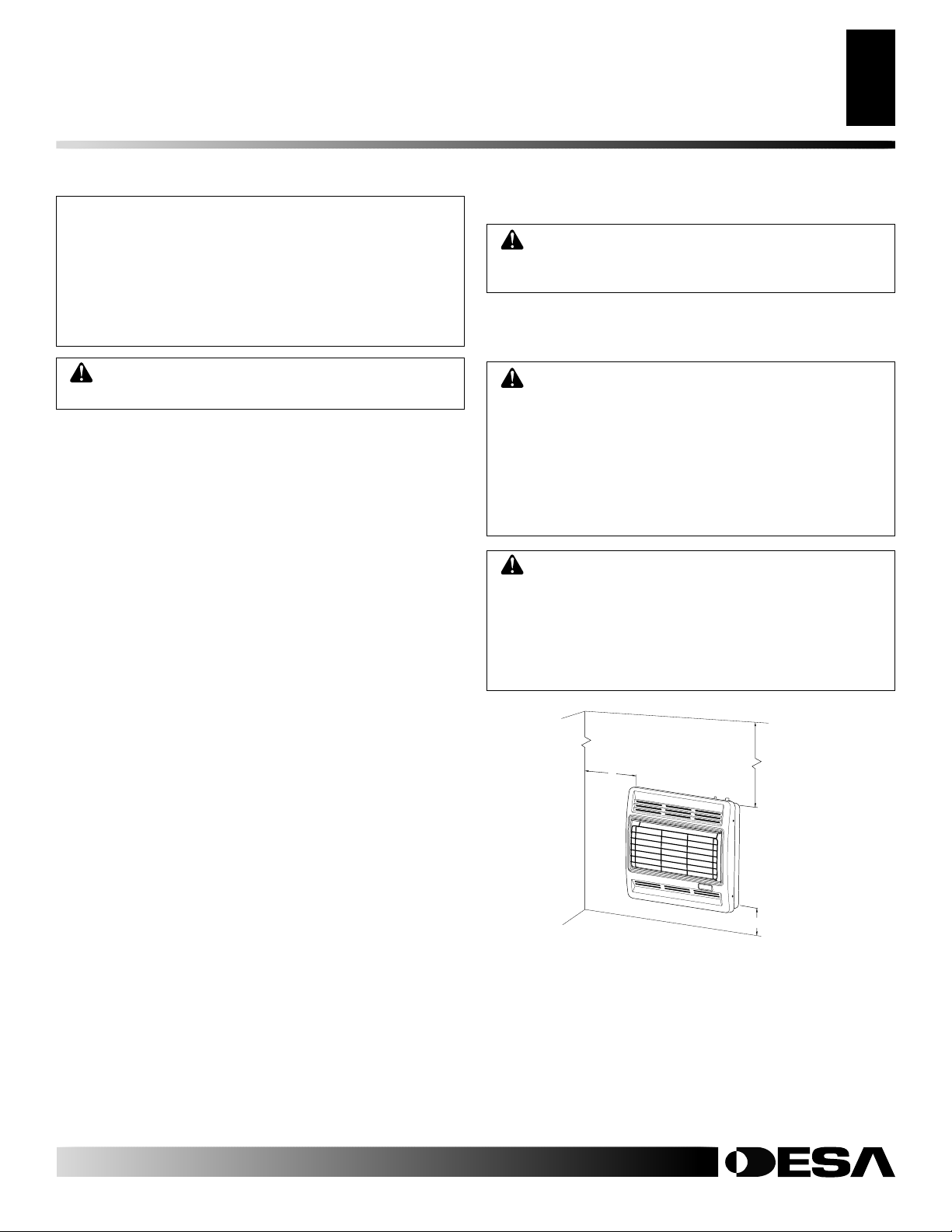

LOCATING HEATER

WARNING: Maintain the minimum clearances

shown in Figure 4. If you can, provide greater clear-

ances from floor, ceiling, and joining wall.

You can locate heater on the floor, away from a wall. A wall

mountingbracketandfloorbasestandare included with thisheater.

Determine which method is best for your application.

Figure4-MountingClearancesAsViewedFromFrontofHeater

INSTALLATION

Check Gas Type

Installation Items

Locating Heater

Minimum

From

Sides Of

Heater

36"

FLOOR

CEILING

Minimum

Minimum To

Top Surface

Of Carpeting

Tile Or Other

Combustible

Material

Left

Side Right

Side

107886-01F

For more information, visit www.desatech.com

INSTALLATION

Locating Heater (Cont.)

Thermostat Sensing Bulb

Installing Heater To Wall

INSTALLATION

Continued

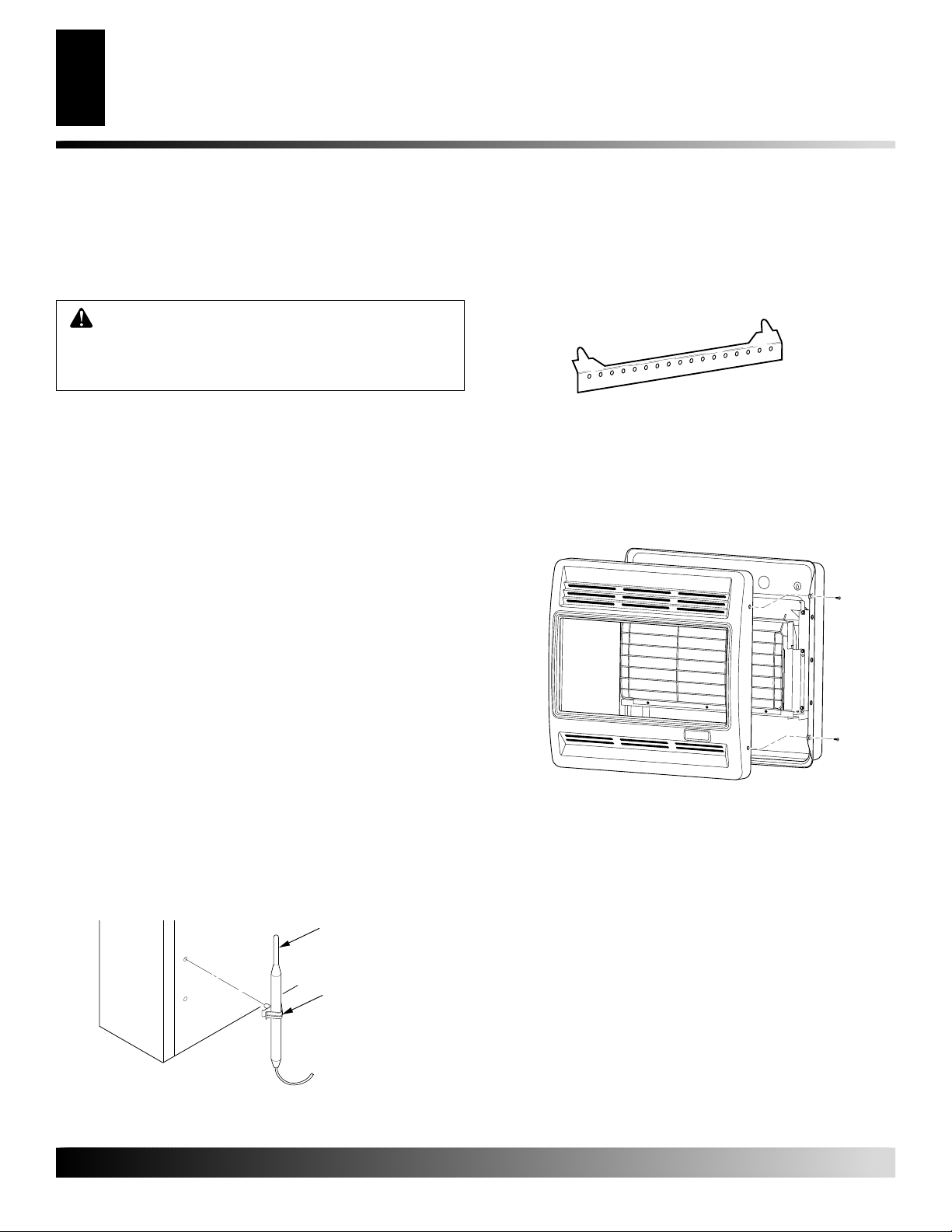

THERMOSTAT SENSING BULB

Thethermostatsensing bulbhasbeenplacedinsidetheheaterfor

protection during shipping.

Locating Thermostat Sensing Bulb (for thermostat

applications)

1. Remove front panel of heater (see Figure 7).

2. Locate thermostat sensing bulb just under burner assembly.

IMPORTANT:

Attachthermostatsensingbulbtobackofheaterfor

proper operation.

Attaching Thermostat Sensing Bulb

1. Remove thermostat sensing bulb from holders inside heater.

Route through slot opening in bottom of heater.

2. Place clamp on thermostat sensing bulb as shown in Figure 5.

Clamp is provided in hardware package.

3. Snap clamp into upper mounting hole as shown in Figure 5.

Mounting hole is located on lower left edge on back of heater.

Make sure the thermostat sensing bulb is pointing up.

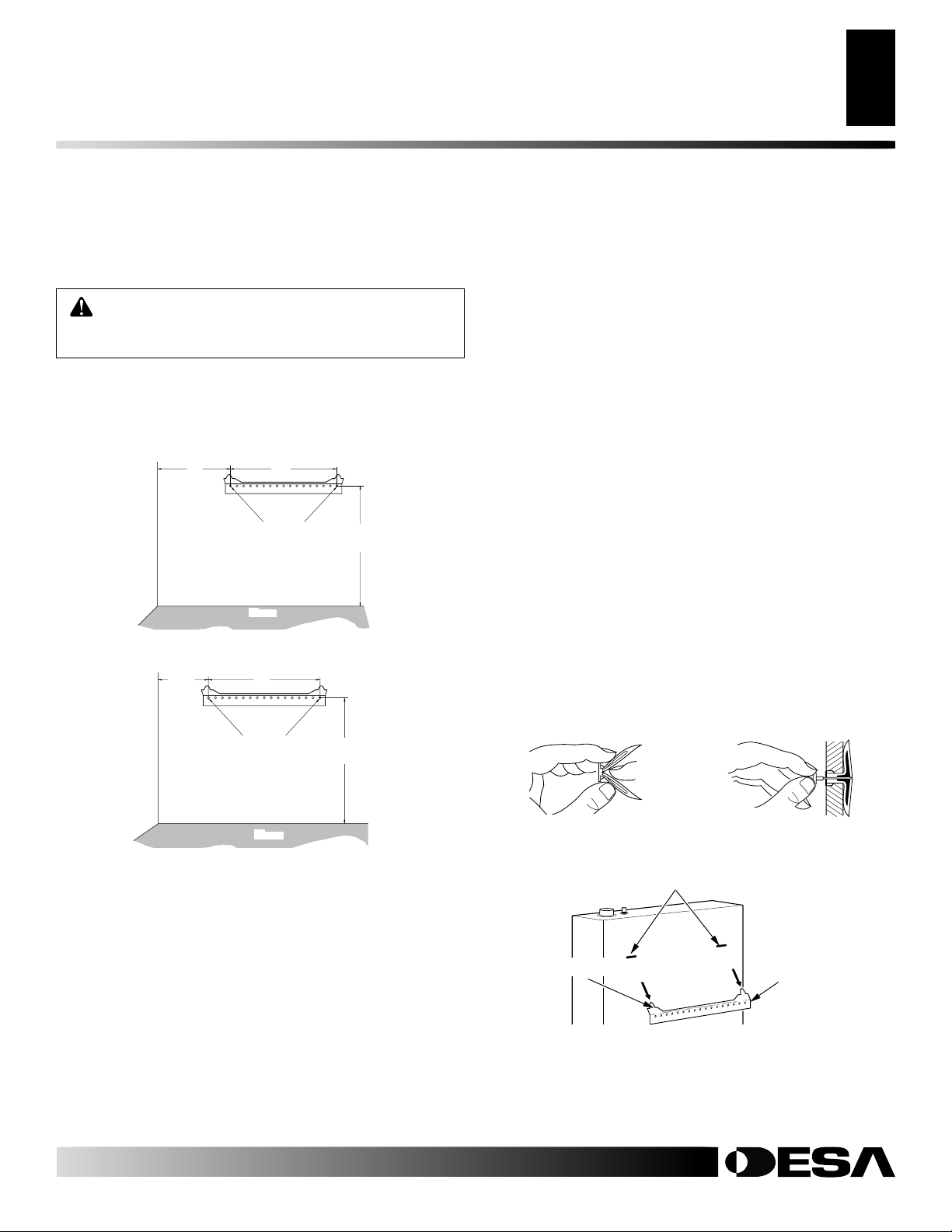

Methods For Attaching Mounting Bracket To Wall

Onlyuselastholeoneachendofmountingbrackettoattachbracket

to wall. These two holes are 14 inches apart from their centers.

Attach mounting bracket to wall in one of two ways:

1. Attaching to wall stud

2. Attaching to wall anchor

Attaching to Wall Stud: This method provides the strongest hold.

Insertmountingscrewsthroughmountingbracketandintowallstuds.

Attaching to Wall Anchor: This method allows you to attach

mounting bracket to hollow walls (wall areas between studs) or to

solid walls (concrete or masonry).

Decide which method better suits your needs. Either method will

provide a secure hold for the mounting bracket.

Figure 5 - Attaching Thermostat Sensing Bulb

INSTALLING HEATER TO WALL

Mounting Bracket

Locate mounting bracket in heater carton. Remove mounting bracket

from heater carton.

Figure 7 - Removing Front Panel Of Heater

Removing Front Panel Of Heater

1. Removethe four paintedscrews, twooneach sideoffront panel.

2. Pull bottom of front panel forward, then out.

3. Remove any remaining packaging materials.

Figure 6 - Mounting Bracket

Clamp

Thermostat Sensing Bulb

CAUTION:Ifyouinstalltheheaterinahomegarage

•heater pilot and burner must be at least 18 inches

above floor

•locate heater where moving vehicle will not hit it

IMPORTANT:

Vent-free heatersadd moistureto theair. Although

this is beneficial, installing heater in rooms without enough venti-

lation air may cause mildew to form from too much moisture. See

Air for Combustion and Ventilation, pages 4 through 6.

For convenience and efficiency, install heater

• where there is easy access for operation, inspection, and service

• in coldest part of room

An optional fan kit is available from your dealer. See Accessories,

page22.Ifplanningtousefan,locateheaternearanelectricaloutlet.

107886-01F

For more information, visit www.desatech.com

INSTALLATION

Installing Heater To Wall (Cont.)

WARNING:Maintainminimumclearances shown

in Figure 8. If you can, provide greater clearances

from floor and joining wall.

Marking Screw Locations

1. Tape mounting bracket to wall where heater will be located.

Make sure mounting bracket is level.

INSTALLATION

Continued

2. Mark screw locations on wall (see Figure 8).

Note:

Only mark last hole on each end of mounting bracket.

Insert mounting screws through these holes only.

3. Remove tape and mounting bracket from wall.

Figure 8 - Mounting Bracket Clearances

Min.

12"

Min. 14"

Adjoining Wall

Only Insert Mounting

Screws Through Last

Hole On Each End

Floor

14"

18 3/4"

Min.

Adjoining Wall

Only Insert Mounting

Screws Through Last

Hole On Each End

Floor

Attaching Mounting Bracket To Wall

Note:

Wallanchors,mountingscrews,andspacersareinhardware

package. The hardware package is provided with heater.

Attaching To Wall Stud Method

For attaching mounting bracket to wall studs

1. Drill holes at marked locations using 9/64" drill bit.

2. Place mounting bracket onto wall. Line up last hole on each

end of bracket with holes drilled in wall.

Figure 9 - Folding Anchor Figure 10 - Popping Open

Anchor Wings For Thin Walls

Figure 11 - Mounting Heater Onto Mounting Bracket

Mounting Bracket

(attached to wall)

Horizontal Slots

Stand-Out Tab

3. Insert mounting screws through bracket and into wall studs.

4. Tighten screws until mounting bracket is firmly fastened to

wall studs.

Attaching To Wall Anchor Method

Forattachingmountingbrackettohollowwalls(wallareasbetween

studs) or solid walls (concrete or masonry)

1. Drill holes at marked locations using 5/16" drill bit. For solid

walls (concrete or masonry), drill at least 1" deep.

2. Fold wall anchor as shown in Figure 9.

3. Insert wall anchor (wings first) into hole. Tap anchor flush to

wall.

4. For thin walls (1/2" or less), insert red key into wall anchor.

Push red key to “pop” open anchor wings.

IMPORTANT:

Do not hammer key!

For thick walls (over 1/2" thick) or solid walls, do not pop

open wings.

5. Place mounting bracket onto wall. Line up last hole on each

end of bracket with wall anchors.

6. Insert mounting screws through bracket and into wall anchors.

7. Tightenscrewsuntil mountingbracketis firmlyfastened to wall.

Placing Heater On Mounting Bracket

1. Locate two horizontal slots on back panel of heater.

2. Place heater onto mounting bracket. Slide horizontal slots onto

stand-out tabs on mounting bracket.

Models VN30BT & VP30BT

Models VN20BT & VP20BT

107886-01F

For more information, visit www.desatech.com

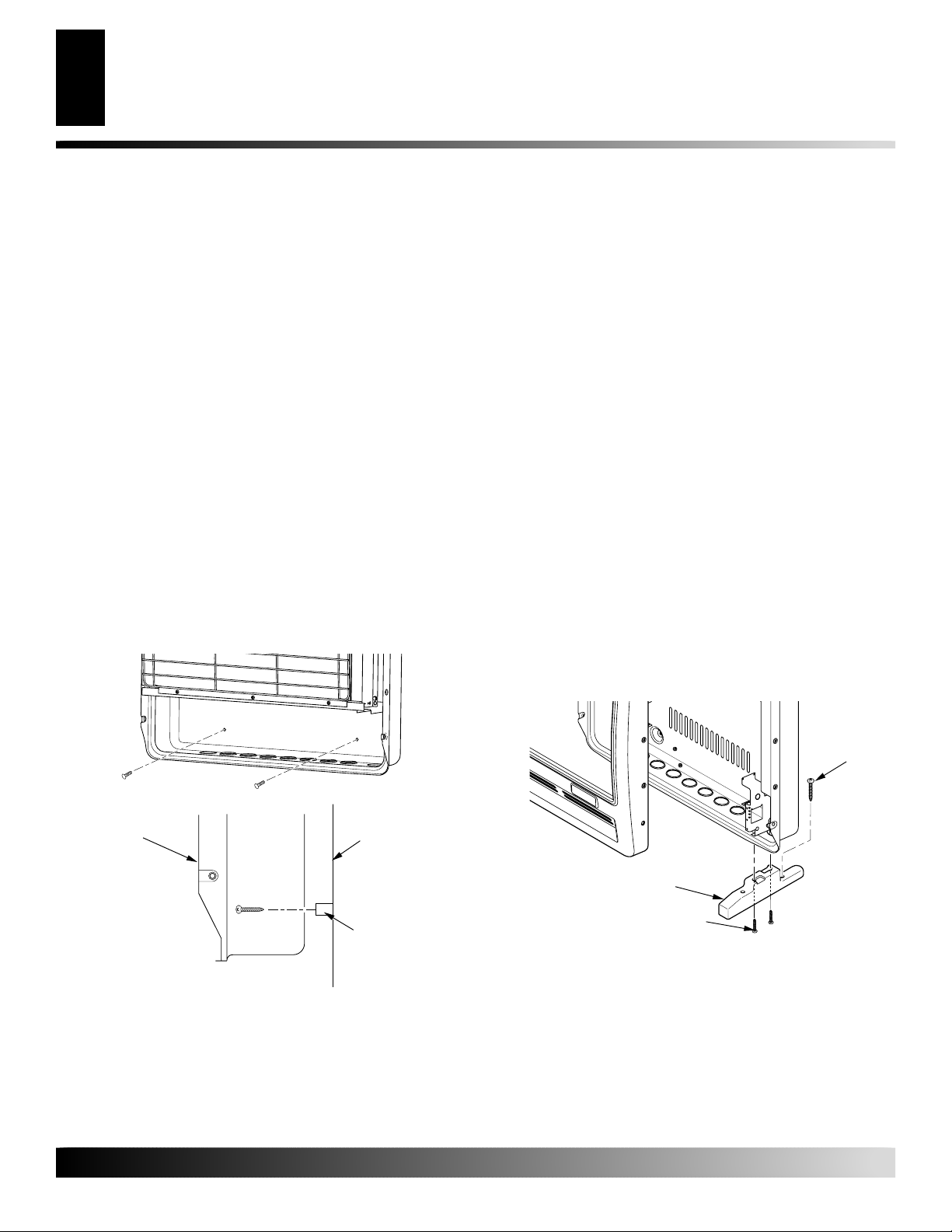

Figure 12 - Installing Bottom Mounting Screws

Side View

Front View

Wall

Spacer

Heater

INSTALLATION

Continued

INSTALLATION

Installing Heater To Wall (Cont.)

Mounting Heater To Floor

MOUNTING HEATER TO FLOOR

Mounting Base Feet to Heater

1. Lay heater cabinet on its back on a table with the heater bot-

tom overhanging the table edge.

2. Align holes in base foot with mounting holes on bottom of

cabinet (see Figure 13).

3. Secure base foot to heater using sheet metal screws.

4. Repeat for other side.

Mounting Base Feet to Floor (Where required by

local code)

1. Removefrontcover(see Removing Front PanelofHeater, page8).

2. Position heater with base feet in desired location. Mark holes

for drilling. Remove heater with base.

3. For carpeted floors, make a small cut with a sharp knife at

marked locations prior to drilling. If mounting base to a wood

floor, drill 1/8 inch diameter hole, 3/4 inch deep. (Do not use

anchors in wood floors).

If mounting base to a concrete floor, drill with 1/4 inch diam-

eterconcrete drill bit,13/8inches intofloor. Insert anchorscom-

pletely into holes.

4. Reposition heaterwith base feet over holes.Secure baseto floor

with wood screws. See Figure 13.

Figure 13 - Installing Base Feet

Wood

Screw

Sheet Metal Screw

Base Foot

Installing Bottom Mounting Screws

1. Locate two bottom mounting holes. These holes are near bot-

tom on back panel of heater (see Figure 12).

2. Mark screw locations on wall.

3. Remove heater from mounting bracket.

4. If installing bottom mounting screws into hollow or solid wall,

install wall anchors. Follow steps 1 through 4 under AttachingTo

Wall Anchor Method, page 9.

If installing bottom mounting screw into wall stud, drill holes

at marked locations using 9/64" drill bit.

5. Replace heater onto mounting bracket.

6. Place spacers between bottom mounting holes and wall anchor

or drilled hole.

7. Hold spacer in place with one hand. With other hand, insert

mounting screw through bottom mounting hole and spacer.

Place tip of screw in opening of wall anchor or drilled hole.

8. Tighten both screws until heater is firmly secured to wall. Do

not over tighten.

Note:

Do not replace front panel at this time. Replace front

panel after making gas connections and checking for leaks (see

pages 11 and 12).

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Vanguard Heizung Handbücher

Vanguard

Vanguard VE 2 EPA Bedienungsanleitung

Beliebte Heizung Handbücher anderer Marken

oventrop

oventrop Regucor Series Bedienungsanleitung

Blaze King

Blaze King CLARITY CL2118.IPI.1 Bedienungsanleitung

ELMEKO

ELMEKO ML 150 Bedienungsanleitung

BN Thermic

BN Thermic 830T Bedienungsanleitung

KING

KING K Series Leitfaden

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Kurzanleitung

Well Straler

Well Straler RC-16B Bedienungsanleitung

EUROM

EUROM 333299 Bedienungsanleitung

Heylo

Heylo K 170 Bedienungsanleitung

Eterna

Eterna TR70W Bedienungsanleitung

Clarke

Clarke GRH15 Bedienungsanleitung

IRSAP

IRSAP The Radiator Company Ovali Bedienungsanleitung

Empire Heating Systems

Empire Heating Systems WCC65 Bedienungsanleitung

Wetekom

Wetekom 92 86 43 Bedienungsanleitung

Desa

Desa SPC170-F Bedienungsanleitung

Watlow

Watlow Watrod Electric Tubular Heaters Bedienungsanleitung

Haverland

Haverland ECO-DRY GPS Series Stücklistenhandbuch

Stelpro

Stelpro ASILVC2060 Series Bedienungsanleitung
