Vankyo Performance V630 Bedienungsanleitung
Performance V630
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch
2
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention
to the safety instructions. If you have any questions or comments about the device,
please contact the customer line.
✉www.alza.co.uk/kontakt
✆+44 (0)203 514 4411
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz
3
Please read tis manual thoroughly before using this product and keep it for future
reference.
Packing list
Performance V630 Remote Carrying Bag User Manual
(Batteries not included)
AV Cable HD Cable Power Cable
Notice
Recommended – Video, Movie
NOT Recommended – PowerPoint, Excel, Word
4
Function overview
Lens
Focus
Keystone
Menu
Power Button
Input Source
Down
Left
Up
Right
Power Input
Speaker
Air Inlet
IR
HD-1
USB
Air Outlet
Memory Card Slot
AV In Audio Out
VGA
Play/Pause
Power Button
Fast Reverse
Up
Left
Back
Volume -
Mute
Fast Forward
Right
Down
Input Source
Menu
Volume +
Vertical/Horizontal
Keystone Correction
Play/Pause
5V Out
HD-2
5

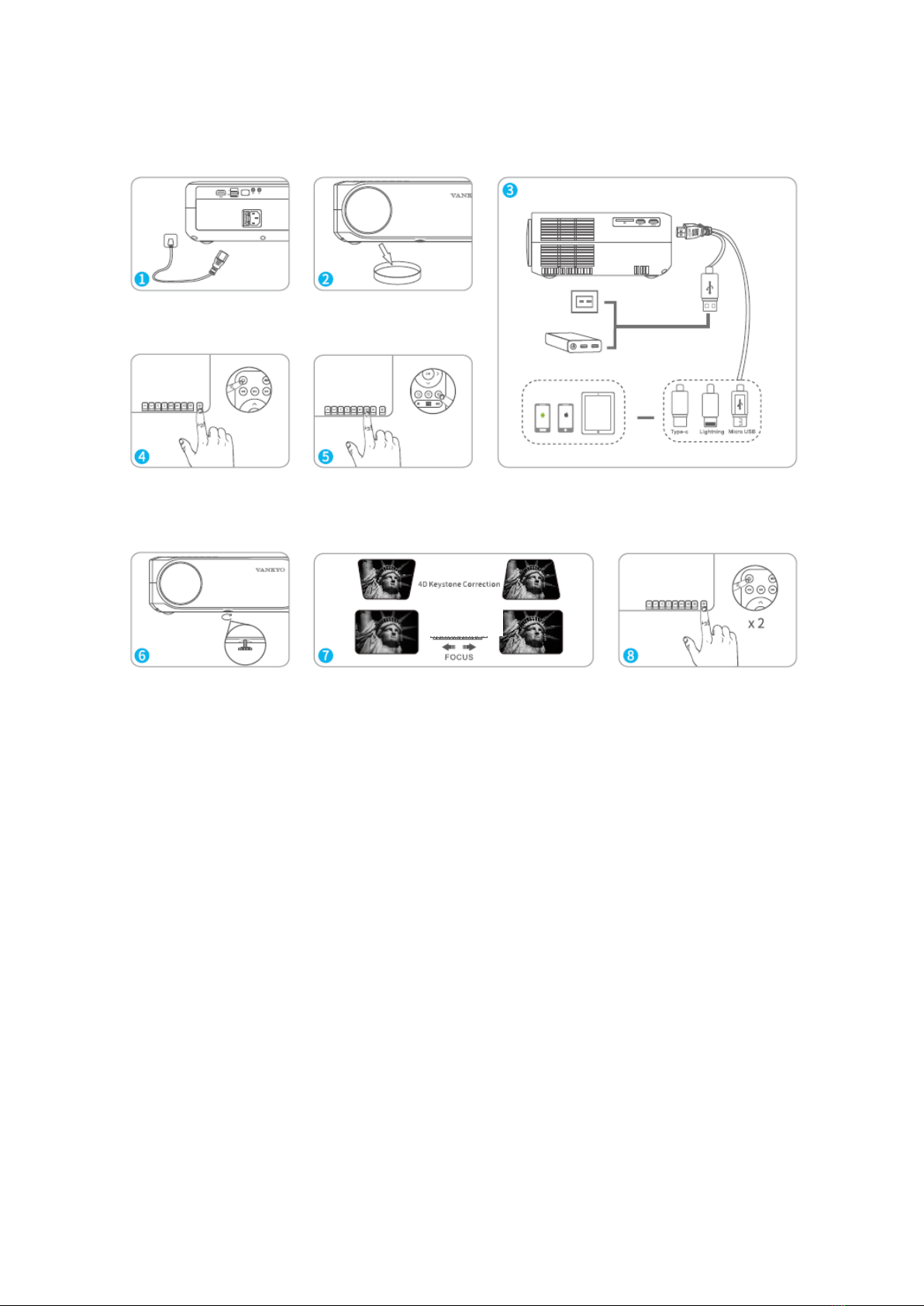

Quick Start
1) Plug the power cord into an outlet.
2) Take off lens cover.
3) Connect your device to the projector correctly.
* Original USB cable (not included)
4) Press the Power Button to turn on the projector.
5) Select the correct input source to project your device.
6) Adjust the kickstand accordingly.
7) Adjust the keystone and focus ring to get the best image performance.
8) Press the Power Button twice to turn off the projector.
Keystone
Focus
6
Keystone Correction
Press on the projector/remote, then select OPTION > Keystone. Press the button
to select from H. Calibration, V. Calibration and Auto Adjust, then press to start
correcting the image shape.
Vertical & Horizontal Correction
Projection distance & size
The recommended projection screen is around 90 inches with a projection distance of
around 9.84ft.
Ambient darkness will improve the clarity of the projected images.
7
Input source
Press on the projector or remote to enter the interface of Input Source.
A. Multimedia Connection
B. HD Connection
C. VGA Connection
8
Projector Connection
9
Specification
Display Technology
LCD
Resolution
Native 1920 x 1080
Installation Type
Front/Rear/Ceiling
Focus
Manual
Speaker
5W/4ohm
Unit Dimension 315 x 235 x 109mm
(12.4 x 9.3 x 4.3in)
Photo Format
Supported
BMP/JPG/PNG/GIF
Video Format
Supported
AVI/MP4/MKV/FLV/MOV/RMVB/3GP/MPEG1/MPEG2/H.264
/XVID/JPEG
Mounting Screw
M4 Metric
Light Source
LED
Input Signal
576i-720P-1080i-1080P
Aspect Ration
4:3/16:9/auto
Keystone
±15°/±50°
Power Supply
100V-240V, 50/60Hz
Unit Net Weight
1.3kg (2.87lb)
Audio Format
Supported
ACC/MP2/MP3/PCM/FLAC/WMA
Ports
HD in 2x/ USB x1/ 5V Out x1/VGA x1/ AV In x1/ Audio Out
x1/Memory Card Slot x1
Number of Screw
4
Troubleshooting guide
1) Blurry Image
* Adjust focus ring (keystone)
* Projector and screen/wall must be in effective distance.
2) Remote Unresponsive
* Make sure remote points at IR receiver directly.
* Do not cover IR receiver.
* Try a new pair of AAA batteries.
3) Mobile Connection
* iOS: Genuine lightning to HDMI cable
* Android: Micro USB to HDMI adapter/Type C to HDMI cable
4) Upside Down Images
* Go to Menu > PICTURE > Projection Mode to flip the projection image.
10
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you
need repair or other services during the warranty period, contact the product seller
directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for
which the claimed claim may not be recognized:
•Using the product for any purpose other than that for which the product is intended
or failing to follow the instructions for maintenance, operation and service of the
product.
•Damage to the product by a natural disaster, the intervention of an unauthorized
person or mechanically through the fault of the buyer (e.g. during transport, cleaning
by inappropriate means, etc.).
•Natural wear and aging of consumables or components during use (such as
batteries, etc.).
•Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,
electrostatic discharge voltage (including lightning), faulty supply or input voltage and
inappropriate polarity of this voltage, chemical processes such as used power
supplies, etc.
•If anyone has made modifications, modifications, alterations to the design or
adaptation to change or extend the functions of the product compared to the
purchased design or use of non-original components.
