Vantech FULL HD Vehicle Video Recorder Bedienungsanleitung
FULL HD
Vehicle Video Recorder
User Manual
2013 JUN V1.0
i
Index
A. Feature Description ...................................................................... 1
B. Specification ................................................................................. 2
C. Accessories .................................................................................. 2
D. Schematic Diagram of The Installation Steps............................... 3
E. Product Function Introduction....................................................... 5
F. SD Card Installation...................................................................... 6
G. Remote Controller Description...................................................... 7
H. OSD Menu function ...................................................................... 8
I. Recording / Stop Recording.......................................................... 8
J. Viewer Player................................................................................ 9
1. Operation icon introduction................................................... 9
2. Capture .............................................................................. 10
3. Configuration...................................................................... 10
4. File backup......................................................................... 12
5. Play back............................................................................ 14
6. Play BAR............................................................................ 14
7. Play speed.......................................................................... 14
8. Volume control.................................................................... 14
9. G-SENSOR........................................................................ 15
10. Format: Format memory card/Langue setting .................... 15
K. Record Time Estimation.............................................................. 17
L. Appendix: The Indication of Bright and Dark Spot of LCD.......... 18
1
A. Feature Description
Full HD Real-time recorder (H.264 compression technology).
105° Wide-angle CMOS Lens.
2.5”TFT LCD.
Record video with sound inside and outside the car.
Compatible with SDHC Card up to 32GB.
Loop recording / on start recording.
Emergency recording, file save to separate area to prevent
overwritten.
Built-in G-Sensor, auto recording accident footage.
Made in Taiwan, Provide 3 year’s product guarantee – the longest
duration time in the Car black box community.
2
B. Specification
Items Description
Sensor CMOS
View Angle 105° Wide-angle
Resolution NTSC 30fps / PAL 25fps
V / A DC5V±5% / 1A
Operating tmp. -10℃~ +60℃
Display 2.5” TFT LCD
Storage 4GB SDHC Card or above (Recommend
『SanDisk』or『Transcend』Class 10 or
above)
Recording way On start auto recording, stop recording when
power off
Recording
content Date/Time/Image/Sound/G-Sensor data)
Storage Format Special format, playing on LCD screen with
remote control. Or specific Player bundled.
Audio Input Built-in microphone
Time setting Built-in permanent calendar with adjustable
function through remote control or bundled
Player
G-Sensor Built-in 3D G-Sensor
C. Accessories
Standard
Adapter / IR remote control / Software CD /
Bracket / 3M sticker
Optional
4G / 8G / 16G / 32G Class10 or above SDHC Card
3

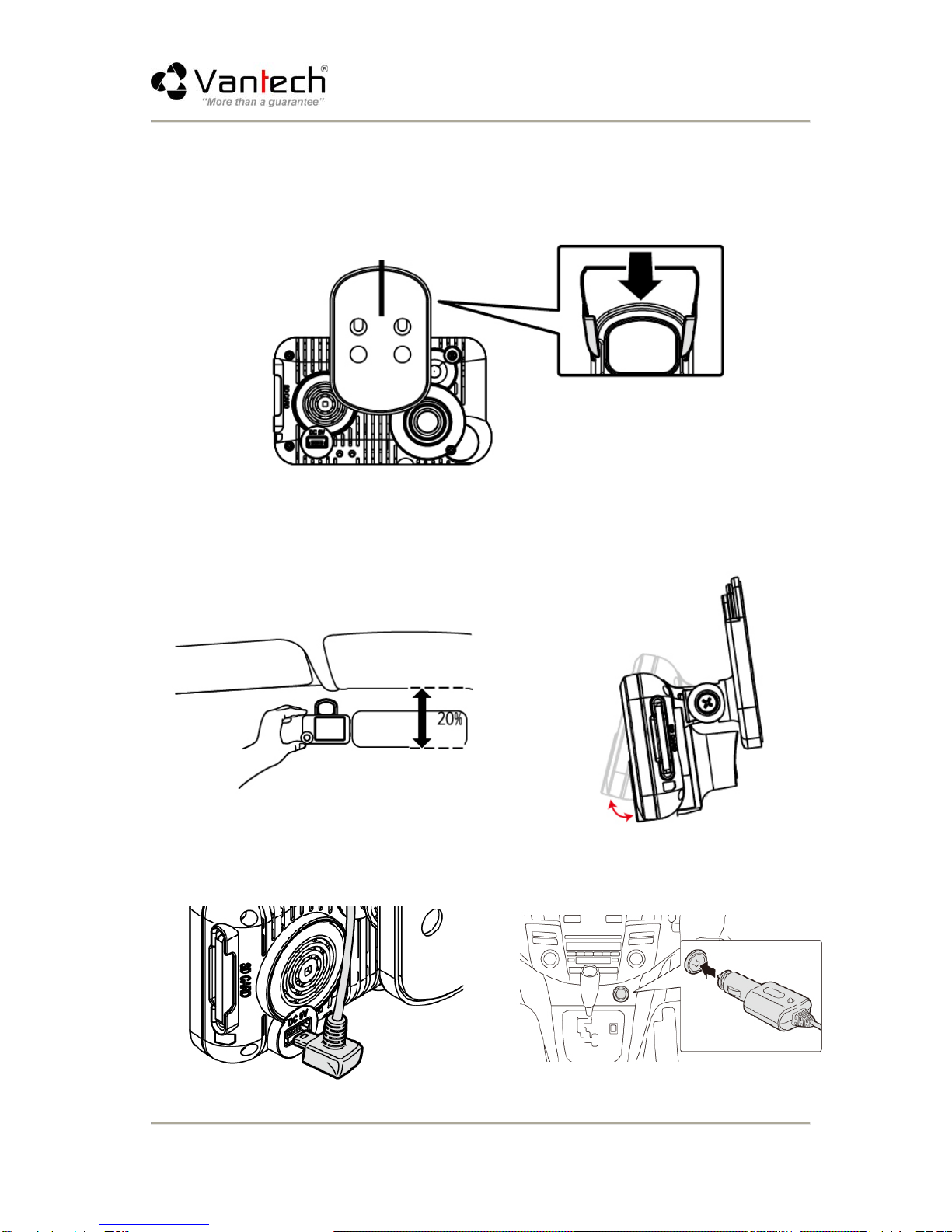

D. Schematic Diagram of The Installation Steps
1. To install the device on the windshield by “Stick-Holder” Type
2. The best position to install
the device on the windshield 3. To adjust the recording angle
properly
4. Plug in DC5V Power Supply 5. Plug in the Cigarette Charger
Sticker Adhesive S
p
ot
Stic
k
-Holder T
yp
e
4

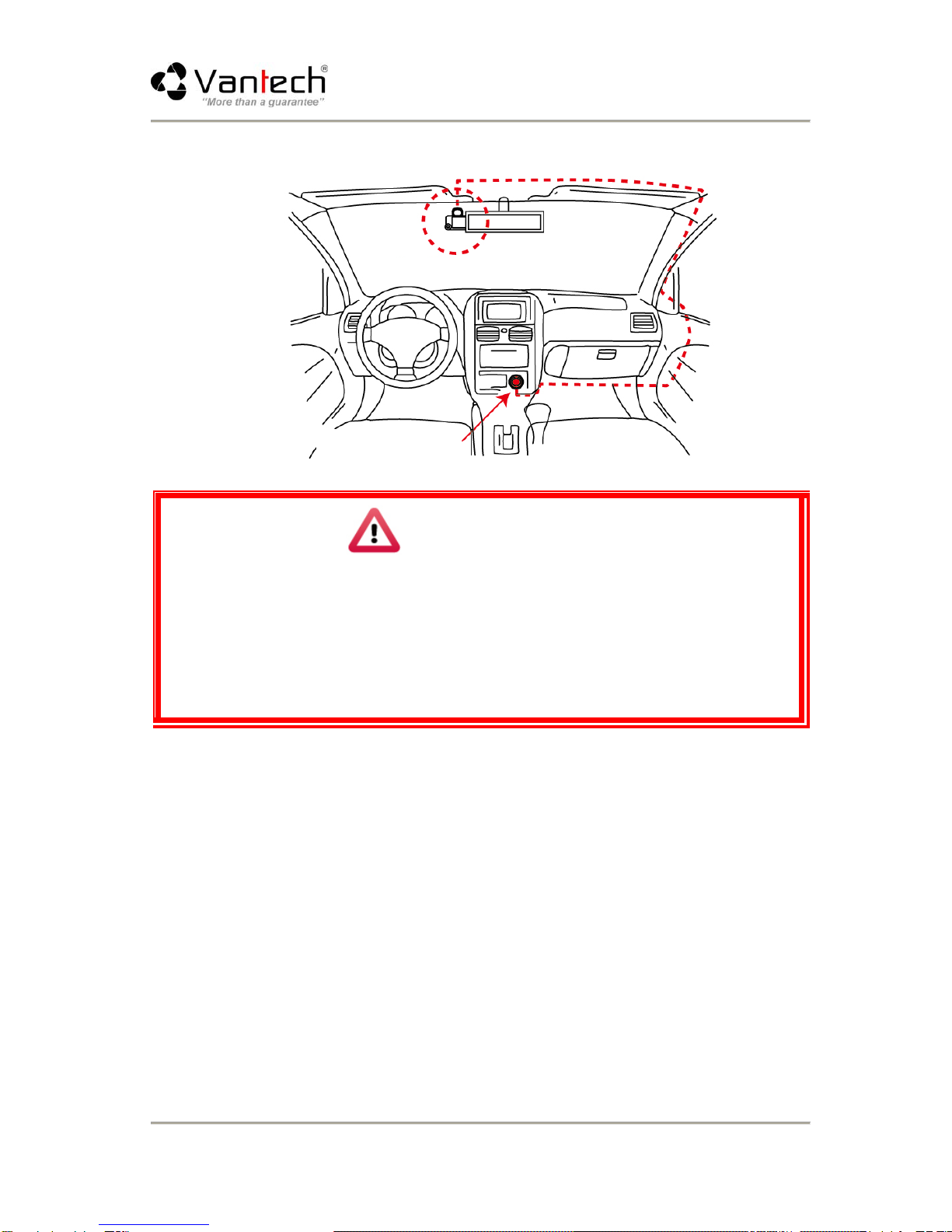

6. VVR installation
Notice
(1). This device should be installed in the area where the
windshield will be able to be cleaned.
(2). Formatting SD card on the device before beginning to use.
(3). Set time zone and timing on OSD, or auto-calibrating by GPS.
(4). NTSC or PAL setting through OSD.
Best location
Cigarette adapte
r
5

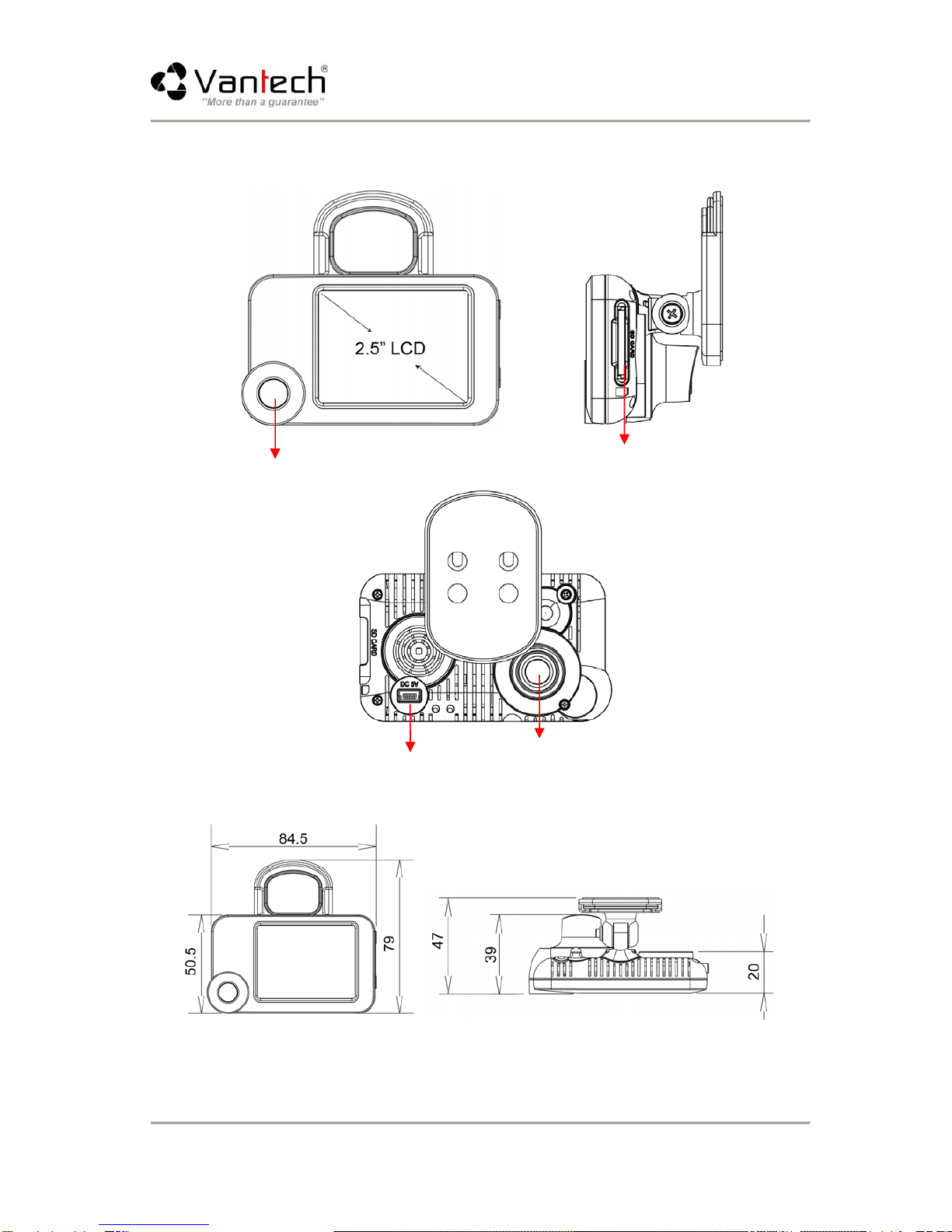

E. Product Function Introduction
Unit: mm
Force recording SD card Slot
DC5V
Power input
Lens
6

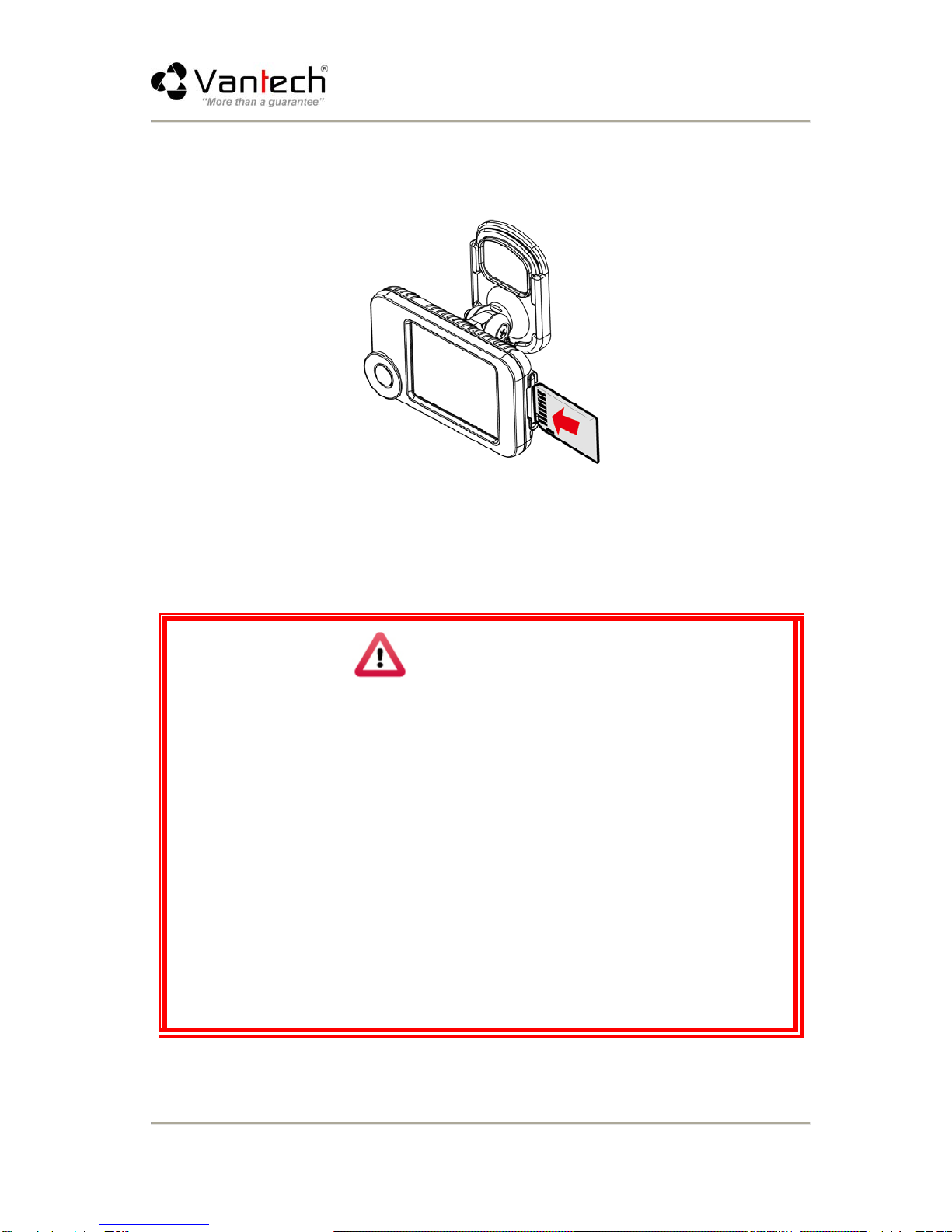

F. SD Card Installation
(1). Format memory card; please refer to the other chapter
“Formatting memory card” for more detail.
Remark: Memory Card is optional
Warning
(1). Recommend Memory Card “SanDisk” or “Transcend” Class
10 or above. (Minimum of 4GB)
(2). If the memory card is not formatted by our exclusive player,
the device will automatically erase all the data inside of the
memory card after inserting it, start recording at default
setting.
(3). Please don’t convert Micro SD to SD card to begin
recording, to avoid the damage during recording.
(4). Since memory cards have the writing endurance situation,
we recommend to inspect the memory card and use pc for
playback regularly, to ensure that the memory card can
read and write
7

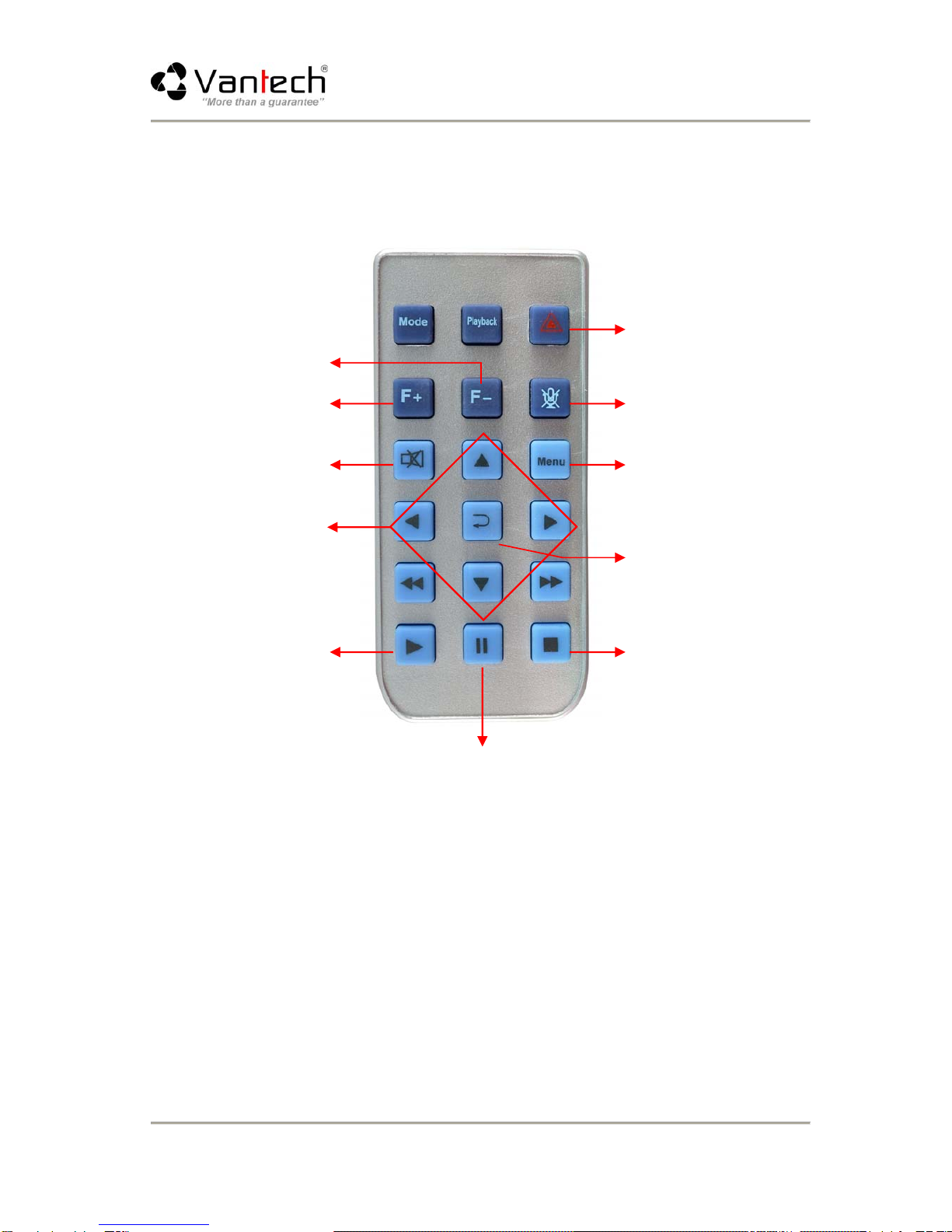

G. Remote Controller Description
Force Recording
Volume Down
Stop Voice Recording
Menu
Confirm
StopPlay
Pause
Up / Down /
Left / Righ
t
Speaker On/Of
f
Volume Up
8

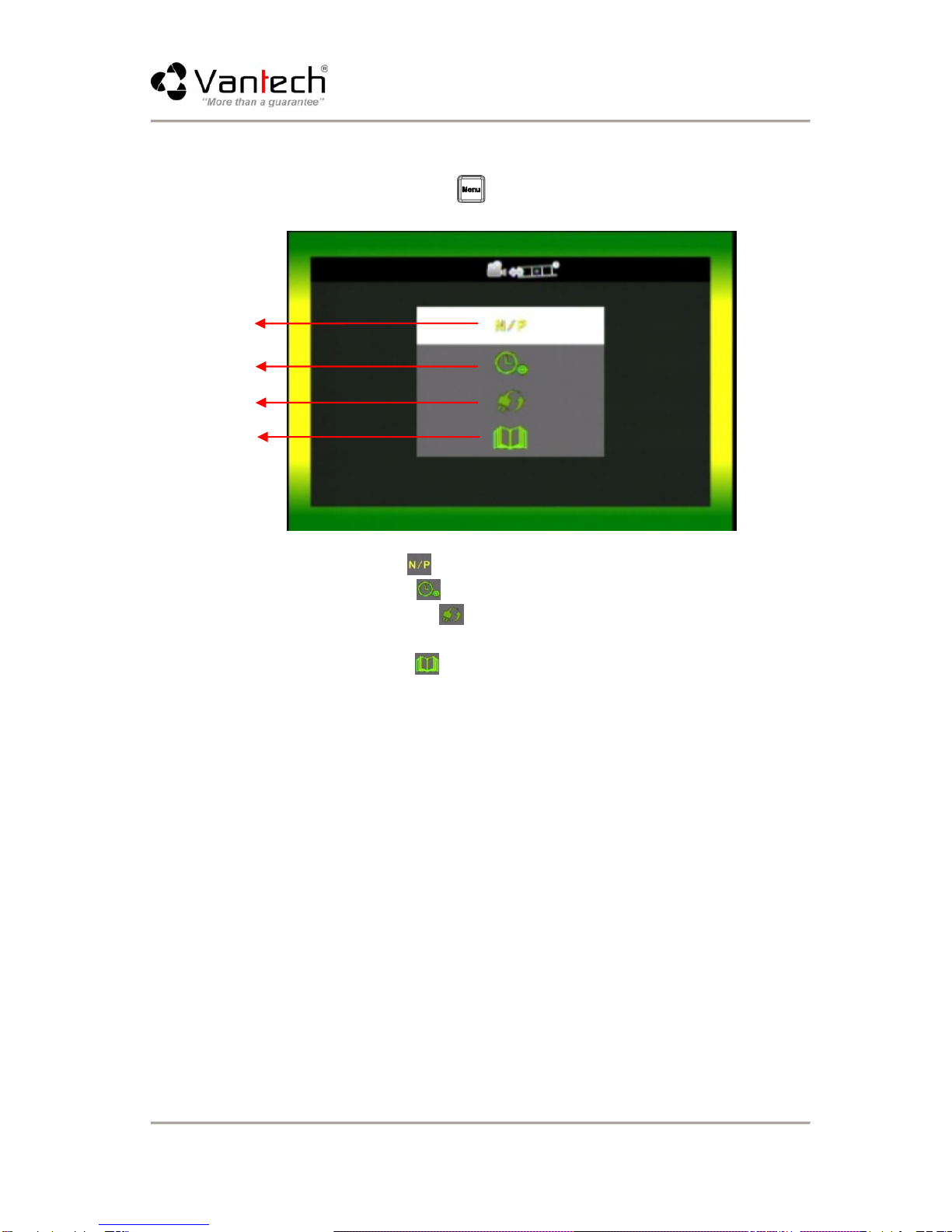

H. OSD Menu function
In Live view screen press will popup OSD operation menu
as follows:
1. Video Type :Click to choose NTSC /Pal
2. Time setting: Click to adjust clock
3. Screen Saving: Click to setup the delay time of screen
off.
4. Firmware Version: Show Firmware Version
I. Recording / Stop Recording
1.Power On/Recording
When car power on, the device start up automatically. Please
wait for 30 Sec. to start recording.
2.Power Off/Stop recording
When the car power off, the device will stop to record video and
sound. You can take off the memory card and insert to computer
to view the video.
3.Indication
Red light Blinking when recording. (Emergency recording
blinking fast)
NTSC / PAL
Time setting
Screen Saving
Firmware Version
