Varme VT3130 Betriebsanleitung

SERVICE INSTRUCTIONS

VT3130 / VT3131 / VT3132 VT3130 ECO / VT3131 ECO / VT3132 ECO VT2130 / VT2131 / VT2132

SERVICE

• Technical data

• Installation requirements

• Remove heat pump from pallet

• Adjustment of feet

• The display

• System options

• Alarm descriptions

• Piping (water connections)

• Safety group (water connections)

• Piping (air connections)

• Use of coils

• Use of Photovoltaic

• How to change components

• Complaints

• Contact

INDEX

SERVICE

TECHNICAL DATA

Voltage/frequency: 230 V ~ 50 Hz (Phase-Neutral-Earth)

Heat pump output: (with SC10GHH compressor / with BSD122 DT compressor) 1,4 kW / 1,7 kW

Heat pump input: (with SC10GHH compressor / with BSD122 DT compressor) 395 W / 600 W

High supplementary heating: 2,0 kW / 230 V

Fuse protection: > 13 A

Thermostat for supplementary heating: Bei 65 °C, Controlled via the display

Protection: IP20

Water temperature: Adjustable - max. 62 °C

Refrigerant: R 134 a (CH2FCF3)

Amount of refrigerant: 0,990 Kg or see name plate

Leak tested:

Air temperature: -10 °C to +35 °C

Air flow: 200 to 300 m3/h

Stock temperature: -20 °C bis +60 °C

External pressure in ventilation system without affecting the performance: 80 Pa (Fan speed 1)

Boiler – VT3130 / VT3130 ECO / VT2130: 270 l, Enamelled

Boiler – VT3131 / VT3131 ECO / VT2131: 258 l, Enamelled

Boiler – VT3132 / VT3132 ECO / VT2132: 242 l, Enamelled

Anode: 5/4” RT

Pressure tested: 13 bar / 1.3 MPa

Working pressure: 10 bar / 1 MPa

Max. boiler temperature: 65 °C

Weight without packaging – VT3130 / VT3131 / VT3132: 145 Kg / 168 Kg / 190 Kg

Weight without packaging – VT3130 ECO / VT3131 ECO / VT3132 ECO: 134 Kg / 157 Kg / 179 Kg

Weight without packaging – VT2130 / VT2131 / VT2132: 152 Kg / 175 Kg / 197 Kg

Weight (full load) – VT3130 / VT3131 / VT3132: 396 Kg / 411 Kg / 417 Kg

Weight (full load) – VT3130 ECO / VT3131 ECO / VT3132 ECO: 384 Kg / 399 Kg / 405 Kg

Weight (full load) – VT2130 / VT2131 / VT2132: 406 Kg / 421 Kg / 427 Kg

Water connections: Cold water: 1” RT

Hot water: 1” RT

Condensation water: 1/2” RT

Heat exchanger: 1” RT

Cirkulation: 3/4” RT

Heat exchanger, heat surface VT3131 / VT3131 ECO / VT2131: 1.00 m2 (5.90 l)

Heat exchanger, heat surface VT3231 / VT3231 ECO / VT2231: Lower 1.5m2 (9.57L) +

upper 0.6m2 (3..83 L)

Idle consumption - at 7 °C outside air and 55 °C hot water temperature: 27 W / 24 hours*

Idle consumption - at 20 °C ambient air and 55 °C hot water temperature: 20 W / 24 hours*

COP: 2.83*

COP: 3,61**

*According to EN16147:2011, XL-Profile, outside air 7 °C / hot water reference 55 °C

** According to EN16147:2011, XL-Profile, ambient air 20 °C / hot water reference 55 °C

SERVICE

INSTALLATION REQUIREMENTS

Models: VT3130, VT3131 and VT3132

Minimum ceiling height (Still a risk of EPP touching the ceiling) = 1970 mm

Recommended ceiling height is 1970 mm plus 300 mm = 2270 mm

to assure free movement and possibility of mounting duct connections.

Models: VT3130 ECO, VT3131 ECO and VT3132 ECO

Minimum ceiling height (Still a risk of EPP touching the ceiling) = 2100 mm

Recommended ceiling height is 2100 mm plus 300 mm = 2400 mm

to assure free movement and possibility of mounting duct connections.

SERVICE

INSTALLATION REQUIREMENTS

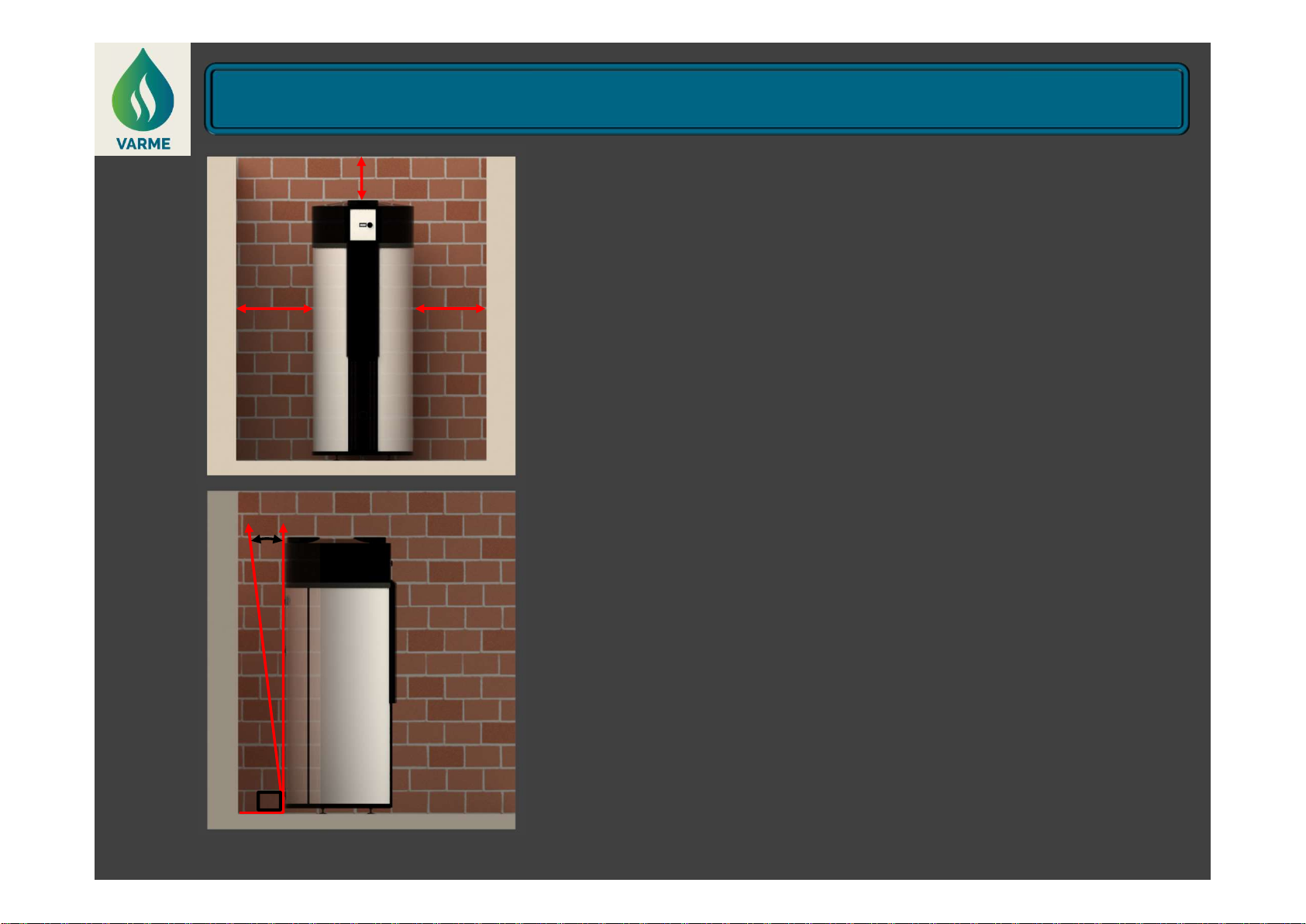

Recommended free space around the heat pump for optimal maintenance and

servicing possibilities and duct connections.

On the backside of the heat pump please also respect free space for maintenance

and servicing all hydraulic connections.

All damage and service impossibilities due to reduced accessibilty are part of the

installer/user responsibility and not covered by the manufacturer’s warranty.

300 mm

500 mm 500 mm

The heat pump should always be positioned in correct level or 1° backwards for

the defrost water to run out in a proper way.

SERVICE

INSTALLATION REQUIREMENTS

Defrost water tube must be mounted in

correct level of the defrost water outlet of the

heat pump and into the drainage. If tube is

above correct level the defrost water will run

backwards and into the heat pump and could

cause water leakage and this will cause

exclusion of warranty.

SERVICE

When the heat pump is placed at the customer the pallet must be removed.

• Tip or place the heat pump horizontal on the floor for easy dismounting of the pallet

• Loosen the screws that act as adjustable feet. (do not remove the screws)

• Remove the disc from all three feet

• Remove the pallet

REMOVE HEAT PUMP FROM PALLET

SERVICE

To adjust the feet do the following.

• The thrust washer (3) is placed under the adjustment screw

• The lock nut (1) is loosened

• The foot screw (2) is adjusted so that the heat pump is in a vertical position (90° or 1° backwards) and does not tilt

(important for the outlet of the defrost water)

• The lock nut (1) is tightened again.

• Ensure that the heat pump is installed in the right level to keep Manufacturer’s warranty

ADJUSTMENT OF FEET

SERVICE

LED for compressor

LED for supplementary heating

Button:

• choose option by rotation

• Accept option by press

• If submenus are available

a flash will appear;

rotate and press for acceptance

Display

THE DISPLAY

SERVICE

SYSTEM OPTIONS

Display View – Main menu

Main menu is visible for the consumer

When the power is first connected select language

(Factory setting is standard ENGLISH)

You can choose between: Danish, German, English, Spanish, French,

Polish, Slovenian and Italian.

If you need to change language at a later stage, this can be done

through the installers menu (service menu).

Shows the consumer the current water temperature

Only Info

Shows the customer the current evaporator temperature

Only info
