Vauxhall Insignia 2009 Bedienungsanleitung

0 - 1VAUXHALL Insignia

VAUXHALL Insignia

Owner’s Manual

Model Year 2009.5

Edition: January 2009

TS 1674-B-09

Ofrecido por www.electromanuales.com

Introduction .................................... 2

In brief ............................................ 6

Keys, doors and windows ............ 19

Seats, restraints ........................... 39

Storage ........................................ 59

Instruments and controls ............. 72

Lighting ...................................... 101

Infotainment system ................... 111

Climate control ........................... 114

Driving and operating ................. 122

Vehicle care ............................... 151

Service and maintenance .......... 190

Technical data ........................... 198

Customer information ................ 247

Index .......................................... 248

Contents

Ofrecido por www.electromanuales.com

2Introduction

Introduction

Ofrecido por www.electromanuales.com

Introduction 3

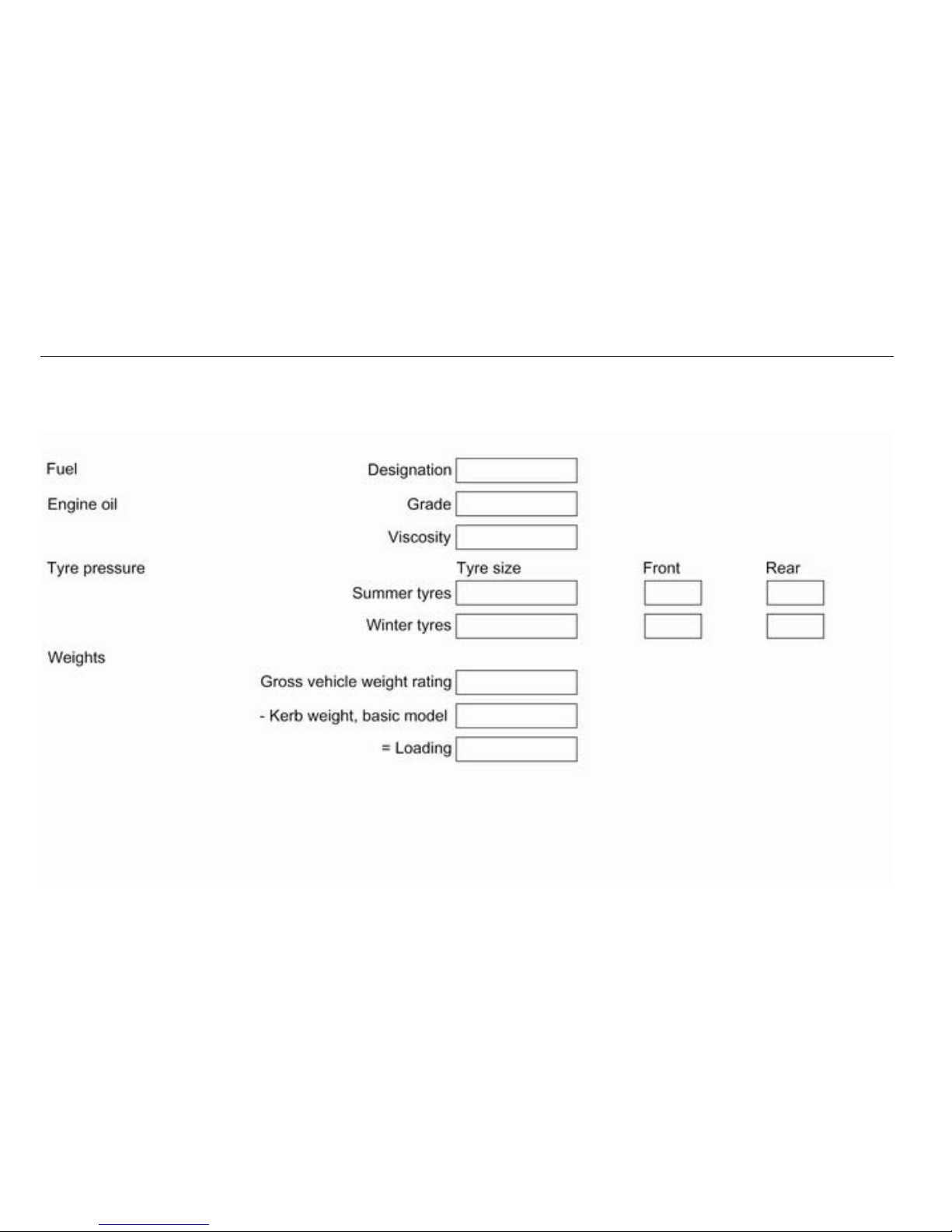

Vehicle specific data

Please enter your vehicle's data on

the previous page to keep it easily

accessible. This information is

available in the sections "Service and

maintenance" and "Technical data"

as well as on the identification plate.

Introduction

Your vehicle is a designed

combination of advanced technology,

safety, environmental friendliness

and economy.

This Owner's Manual provides you

with all the necessary information to

enable you to drive your vehicle

safely and efficiently.

Make sure your passengers are

aware of the possible risk of accident

and injury which may result from

improper use of the vehicle.

You must always comply with the

specific laws and regulations of the

country that you are in. These laws

may differ from the information in this

Owner's Manual.

When this Owner's Manual refers to

a workshop visit, we recommend your

Vauxhall Authorised Repairer.

All Vauxhall Authorised Repairers

provide first-class service at

reasonable prices. Experienced

mechanics trained by Vauxhall work

according to specific Vauxhall

instructions.

The customer literature pack should

always be kept ready to hand in the

vehicle.

Using this manual

■ The "In brief" section will give you

an initial overview.

■ The table of contents at the

beginning of this manual and within

each chapter shows where the

information is located.

■ The index will enable you to search

for specific information.

■ This Owner's Manual depicts left-

hand drive vehicles. Operation is

similar for right-hand drive vehicles.

■ The Owner's Manual uses the

factory engine designations. The

corresponding sales designations

can be found in the chapter

"Technical data".

■ Directional data, e.g. left or right, or

front or back, always relate to the

direction of travel.

■ Depending on the model variant,

country variant, integrated special

equipment and accessories, the

scope of equipment in your vehicle

can differ from the items mentioned

in this Owner's Manual.

■ Display messages and interior

labelling are written in bold letters.

Danger, Warnings and

Cautions

9Danger

Text marked 9 Danger provides

information on risk of fatal injury.

Disregarding this information may

endanger life.

Ofrecido por www.electromanuales.com

4Introduction

9Warning

Text marked 9 Warning provides

information on risk of accident or

injury. Disregarding this

information may lead to injury.

Caution

Text marked Caution provides

information on possible damage to

the vehicle. Disregarding this

information may lead to vehicle

damage.

Symbols

Page references are indicated with

3. 3 means "see page".

Thank you for choosing a Vauxhall.

We wish you many hours of

pleasurable driving.

Your Vauxhall Team

Ofrecido por www.electromanuales.com

Introduction 5

Ofrecido por www.electromanuales.com

6In brief

In brief

Initial drive information

Vehicle unlocking

Press button c to unlock the doors

and load compartment. Open the

doors by pulling the handles. To open

the tailgate, pull the button under the

tailgate moulding.

Press button x; only the load

compartment is unlocked and opens.

Radio remote control 3 20, Central

locking system 3 21, Load

compartment 3 24.

Seat adjustment

Seat positioning

Pull handle, slide seat, release

handle.

Seat position 3 40, Seat adjustment

3 41.

9Danger

Do not sit nearer than 25 cm (10

inches) from the steering wheel, to

permit safe airbag deployment.

Ofrecido por www.electromanuales.com

In brief 7

Seat backrests

Pull lever, adjust inclination and

release lever. Allow the seat to

engage audibly. Do not lean on

backrest when adjusting.

Seat position 3 40, Seat adjustment

3 41.

Seat height

Press switch

top = seat higher

bottom = seat lower

Seat position 3 40, Seat adjustment

3 41.

Seat inclination

Lever pumping motion

up = front end higher

down = front end lower

Seat position 3 40, Seat adjustment

3 41.

Ofrecido por www.electromanuales.com

8In brief

Power seat adjustment

Operate switches.

positioning = move switch

forwards/backwards

height = move switch upwards/

downwards

inclination = move switch upwards/

downwards at front

backrest = turn switch forwards/

backwards

Head restraint adjustment

Press release button, adjust height,

engage.

Head restraints 3 39.

Seat belt

Pull out the seat belt and engage in

belt buckle. The seat belt must not be

twisted and must fit close against the

body. The backrest must not be tilted

back too far (maximum approx. 25 °).

To release belt, press red button on

belt buckle.

Seat position 3 40, Seat belts

3 46, Airbag system 3 49.

Ofrecido por www.electromanuales.com

In brief 9

Mirror adjustment

Interior mirror

Adjust the lever on the underside to

reduce dazzle.

Interior mirror 3 33, Automatic anti-

dazzle interior mirror 3 33.

Exterior mirrors

Select the relevant exterior mirror and

adjust.

Convex exterior mirrors 3 31,

Electric adjustment 3 31, Folding

exterior mirrors 3 31, Heated

exterior mirrors 3 32.

Steering wheel adjustment

Unlock lever, adjust steering wheel,

then engage lever and ensure it is

fully locked. Do not adjust steering

wheel unless vehicle is stationary and

steering wheel lock has been

released.

Airbag system 3 49, Ignition

positions 3 123.
