VeEX MX100 Series Leitfaden

MX100/120 series e-Manual

Please direct all questions to your local VeEX Sales Office, Representative or Distributor or contact VeEX technical support at

No part of this user manual may be reproduced, translated into a foreign language or be transmitted electronically without prior

agreement and written consent of VeEX Incorporated as governed by International copyright laws. Information contained in this

manual is provided "as is" and is subject to change without notice. ™Trademarks of VeEX Incorporated have been identified

where applicable, however the absence of such identification does not affect the legal status of any trademark.

MX100/120 e-Manual D07-00-004 Rev A04

Page 1 of 115

Table of Contents

1.0 Product Introduction

2.0 About this User Manual

3.0 Safety Information

4.0 Basic Operations

4.1 Keypad

4.2 Touch-Screen Display

4.3 Battery

4.4 Connectors and Panels

4.4.1 Test Ports

4.4.2 Utility Ports

4.5 LEDs

5.0 Home Screen and Menu

5.1 Screen Layout

5.2 Screen Icons

5.3 Actions Menu

6.0 Setup

6.1 Port Setup

6.2 Port Status

6.3 Laser Activation

6.4 Profiles

6.5 Measurement Settings

6.6 Dual Port Navigation

7.0 Test Applications

7.1 BERT

7.1.1 Setup

7.1.1.1 Header Settings

MX100/120 e-Manual D07-00-004 Rev A04

Page 2 of 115

7.1.1.2 Traffic Settings

7.1.1.3 Error Injection Settings

7.1.1.4 Control Settings

7.1.1.5 Starting/Stopping a BERT Measurement

7.1.2 Results

7.1.2.1 Summary

7.1.2.2 Errors

7.1.2.3 Events

7.1.2.4 Alarms

7.1.2.5 Traffic

7.1.2.6 Rates

7.1.2.7 Delay

7.1.2.8 Saving BERT Results

7.2 RFC2544 Conformance Testing

7.2.1 Setup

7.2.1.1 Header Settings

7.2.1.2 Frame Settings

7.2.1.3 Threshold Settings

7.2.1.4 Throughput, Latency, Frame Loss, and Burst Settings

7.2.1.5 Control Settings

7.2.1.6 Starting/Stopping a RFC2544 Measurement

7.2.2 Results

7.2.2.1 Status and Events

7.2.2.2 Throughput

7.2.2.3 Latency

7.2.2.4 Frame Loss

7.2.2.5 Burstability

7.2.2.6 Saving RFC Results

7.3 Thoughput Testing

7.3.1. Setup

MX100/120 e-Manual D07-00-004 Rev A04

Page 3 of 115

7.3.1.1 General Settings

7.3.1.2 Control Settings

7.3.1.3 Header Configurations (individual streams)

7.3.1.4 Traffic Settings (individual streams)

7.3.1.5 Error Injection Settings (individual streams)

7.3.1.6 Starting/Stopping a Throughput Test

7.3.2 Results

7.3.2.1 Viewing Results

7.3.2.2 Global Results (multiple streams)

7.3.2.3 Results (individual streams)

7.3.2.4 Saving Throughput Results

7.4 Monitor (Pass-Through) Mode

7.4.1 Setup

7.4.2 Results

7.4.2.1 Errors

7.4.2.2 Alarms

7.4.2.3 Events and Status

7.4.2.4 Traffic Distribution

7.4.2.5 Delay and Rates

7.4.2.6 Port Selection

7.5 Loopback Mode

8.0 IP Tools

8.1 IP Connection

8.1.1 IP Setup

8.1.2 IP Status

8.2 Advanced IP Tests

8.2.1 Ping Test

8.2.2 Trace Route

8.2.3 FTP Test

MX100/120 e-Manual D07-00-004 Rev A04

Page 4 of 115

8.2.4 Web Test

8.2.5 Web Browser

8.2.6 ARP Wiz

8.3 Net Wiz

8.3.1 Status

8.3.2 Discovery

8.3.3 Results

8.4 WiFi Wiz

8.4.1 Setup

8.4.2 Connection Status

8.4.3 Ping Test

8.5 VoIP Testing

8.5.1 VoIP Check

8.5.2 VoIP Expert

8.5.3 VoIP Call Expert

8.6 IPTV Testing

8.6.1 Setup

8.6.2 Results

9.0 Utilities

9.1 Help

9.2 Settings

9.2.1 About

9.2.2 Screen

9.2.3 Selftest

9.2.4 Power

9.2.5 Backlight

9.2.6 Global

9.2.7 Date and Time

9.3 Files (Test Results)

MX100/120 e-Manual D07-00-004 Rev A04

Page 5 of 115

9.3.1 Saving Results

9.3.2 Recalling and Viewing Results

9.3.3 File Transfer

9.3.3.1 USB File Transfer

9.3.3.2 FTP File Transfer

9.4 ReVeal Software

9.4.1 Profiles

9.4.2 Results

9.4.3 Software

9.4.4 Tools

9.4.4.1 Remote Control

10.0 Warranty and Software

11.0 Product Specifications

12.0 Certification and Declarations

13.0 About VeEX

Go back to top

1.0 Product Introduction

VeEX™ MX100 and MX120 Ethernet Expert test sets are next generation of Metro and Carrier Ethernet field test equipment for

Ethernet Networks. The units are lightweight, rugged and weather resistant, and feature Gigabit Ethernet and Fast Ethernet test

ports complete with advanced Triple Play verification capabilities. The MX100 and MX120 test sets can be used in conjunction with

the MPX100 loopback device offering simplified network testing and monitoring.

MX100/120 e-Manual D07-00-004 Rev A04

Page 6 of 115

Go back to top

MX100 Introduction:

The MX100 is part of the MX product family and is configured for;

Single port operation

Single Copper port 10/100/1000Base-T

Single Fiber port 1000Base-X

Test Applications: When the unit is operating in any of the physical ports above, each port is enabled to run the same

test application.

BERT - Unframed / Framed Layer 1, and Framed Layer 2/3 Ethernet traffic generation with user selectable test

pattern for Bit Error Rate analysis.

RFC 2544 - Throughput, Back-to-Back, Frame Loss and Latency conformance tests in accordance with RFC 2544

specifications.

Throughput - Ethernet traffic generation and analysis with multiple-streams to verify network throughput and jitter

Loopback - Loop back the transmitted data while swapping the source and destination addresses of the MAC, IP

and UDP layers.

MX100 - End-to-End Performance Test Application

Go back to top

MX100/120 e-Manual D07-00-004 Rev A04

Page 7 of 115

MX120 Introduction:

The MX120 is part of the MX product family - in essence the MX120 is similar to having two MX100's in one chassis. The default

configuration of the MX120 allows for single port operation (same as the MX100) and pass through monitor mode. Pass through

monitor mode enables bidirectional monitoring between the two 1000Base-X ports or the two 10/100/1000 Base-T ports.

Dual Port operation

When the dual port interfaces and software options are enabled, the test set can operate a combination of two ports at the

same time with the following physical port operation combinations:

Port 1 10/100/1000Base-T and Port 2 10/100/1000Base-T (copper ports only)

Port 1 1000Base-X and Port 2 1000Base-X (fiber ports only)

Port 1 10/100/1000Base-T and Port 1 1000Base-X (copper and fiber port combination)

Port 1 (Throughput) and Port 2 (Throughput)

Port 1 (Loopback) and Port 2 (any application)

Port 1 (any application) and Port 2 (Loopback)

Port 1 (Loopback) and Port 2 (Loopback)

Test Applications: When the unit is operating in any of the physical ports above, each port (single or dual) will be

enabled to run the same test application.

BERT - Unframed / Framed Layer 1, and Framed Layer 2/3 Ethernet traffic generation with user selectable test

pattern for Bit Error Rate analysis.

RFC 2544 - Throughput, Back-to-Back, Frame Loss and Latency conformance tests in accordance with RFC 2544

specifications.

Throughput - Ethernet traffic generation and analysis with multiple-streams to verify network throughput and jitter

Loopback - Loop back the transmitted data while swapping the source and destination addresses of the MAC, IP

and UDP layers.

When the MX120 is operating in any of the physical port combinations described above, each port will by enabled to run the same

application (BERT, RFC 2544, Throughput). The configuration parameters (header, bandwidth, etc) for each application (on each of

the ports) are completely independent from one another - for example;

Port 1 (RFC 2544) and Port 2 (RFC 2544)

Port 1 (BERT) and Port 2 (BERT)

MX120 - Dual Port Test Application

Go back to top

2.0 About this User Manual

Every effort was made to ensure that the information contained in this user manual is accurate. Information is subject to change

without notice and we accept no responsibility for any errors or omissions. In case of discrepancy, the web version takes

precedence over any printed literature.

the the USA and certain other countries. All trademarks or registered trademarks are the property of their respective companies.

No part of this document may be reproduced or transmitted electronically or otherwise without written permission from VeEX Inc.

MX100/120 e-Manual D07-00-004 Rev A04

Page 8 of 115

This device uses software either developed by VeEX Inc or licensed by VeEX Inc from third parties and is the confidential and

proprietary of VeEX Inc. The software is protected by copyright and contains trade secrets of VeEX Inc or VeEX's licensors. The

purchaser of this device agrees that it has received a license solely to use the software as embedded in the device, and the

purchaser is prohibited from copying, reverse engineering, decompiling, or disassembling the software.

This user manual is suitable for novice, intermediate, and experienced users and is intended to help you successfully use the

features and capabilities of the VePAL MX300 test set. It is assumed that you have basic computer experience and skills, and are

familiar with IP and telecommunication concepts, terminology, and safety.

For more technical resources, visit VeEX Inc web site at www.veexinc.com.

If you need assistance or have questions related to the use of this product, call or e-mail our customer care department for

customer support. Before contacting our customer care department, you must have your product serial number and software

version ready. Please go to the Basic Operations section for details on locating your unit serial number in the menus or locate the

serial number on the back of the chassis. Please provide this number when contacting VeEX customer service.

Customer Care:

Phone: + 1 408 970 9090

E-mail: [email protected]

Website: www.veexinc.com

Go back to top

3.0 Safety Information

Safety precautions should be observed during all phases of operation of this instrument. The instrument has been designed to

ensure safe operation however please observe all safety markings and instructions. Do not operate the instrument in the presence

of flammable gases or fumes or any other combustible environment. VeEX Inc. assumes no liability for the customer's failure to

comply with safety precautions and requirements.

Go back to top

4.0 Basic Operations

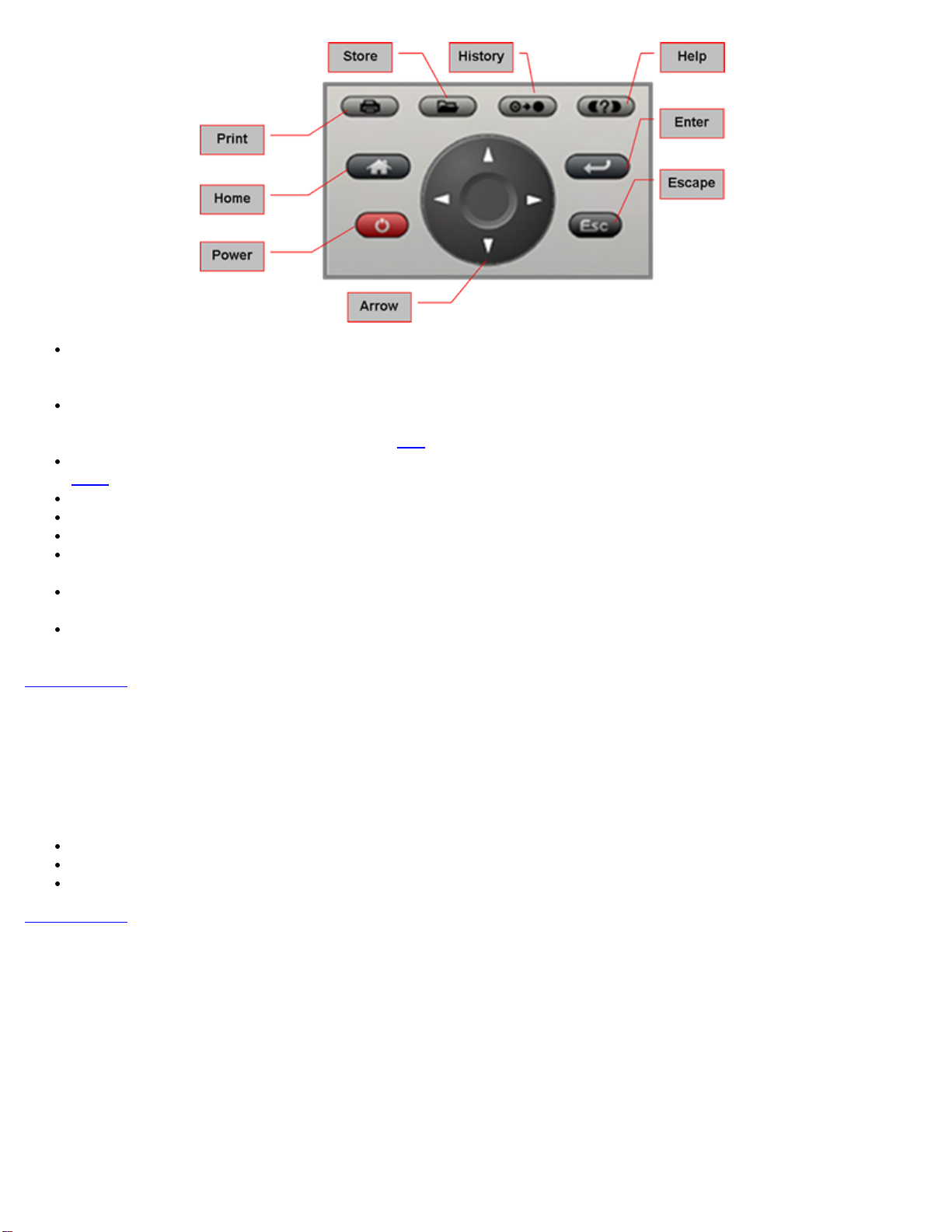

4.1 Keypad

The keypad comprises the following keys:

MX100/120 e-Manual D07-00-004 Rev A04

Page 9 of 115

Power key: The unit is powered on and off from the red key on the keypad. The button is recessed to prevent accidental

power on. Press the key for 3-5 seconds to turn the unit on. To turn off the unit, press the power key for at least 2

seconds. If the unit does not respond, holding the power key down by more than 10 seconds will force the unit to switch off.

Save key: Saves test results in the unit's memory. If the measurement is still running, it will provide a snap shot the

moment the key is pressed. The Save function provides automatic storage with automatic naming and time stamping

function. To process a stored file, please go to files.

History key: The history key resets any blinking LED due to a history condition. For more details on the LED, please go to

LEDs.

Help key: The help key brings the user to the online help, regardless of the current user interface location of the unit.

Lock key: Locks the keypad

Home key: Bring the unit to its home menu regardless of its location on the user interface.

Arrow key: The arrow key moves the cursor in any of the four supported directions (left, right, up, down). The arrow key

works in conjunction with the Enter and Escape keys.

Enter key: The enter key provides an enter sequence to the user interface. It is used in non touch-screen operation mode

to enter menus and functions.

Escape key: The escape key provides an escape sequence to the user interface. It is used in non touch-screen operation

mode to escape menus and functions.

Go back to top

4.2 Touch-Screen Display

The LCD supports touch-screen operation. To operate the touch-screen, use the stylus located in the top cover to navigate the

menus and tabs. The unit can also be used in a non touch-screen mode i.e. use the arrow, enter, and escape keys to navigate.

The location of the cursor on the screen is indicated by a focus state. The focus state varies depending on the function or section

of the test set. Please observe the following precautions;

Never use excessive pressure on the touch-screen as this may damage its functionality

Never use sharp objects such as a pen, screwdriver etc. as this may damage the surface

Clean the surface of the touch-screen using a soft cloth and mild detergent only. Do not use alcohol.

Go back to top

4.3 Battery

The VPAL300 chassis is equipped with an intelligent Lilon rechargeable battery pack which is located in the rear of the unit. The

battery will be partially charged upon delivery, so it is recommended to charge the battery fully before use. Please charge the

battery at room temperature to preserve its life and to obtain maximum charge. The battery is charged during operation provided

the unit is connected to the AC Mains using the supplied AC adapter. Removing the battery, while the unit is powered on is not

recommended - this may result in damage. Remove the rubber cover on the left side to connect the AC Main adapter to the unit.

MX100/120 e-Manual D07-00-004 Rev A04

Page 10 of 115

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere VeEX Prüfgeräte Handbücher

VeEX

VeEX VePAL TX300 Bedienungsanleitung

VeEX

VeEX V-SAM VePAL V300 Bedienungsanleitung

VeEX

VeEX TX300s Bedienungsanleitung

VeEX

VeEX Fiber Scope Inspector Bedienungsanleitung

VeEX

VeEX CX380C Bedienungsanleitung

VeEX

VeEX VePAL TX300 Bedienungsanleitung

VeEX

VeEX MTT-14B Bedienungsanleitung

VeEX

VeEX OTDR FX150+ Series Bedienungsanleitung

VeEX

VeEX MTTplus Bedienungsanleitung

VeEX

VeEX RTU-300 Bedienungsanleitung

VeEX

VeEX VePAL TX300 Bedienungsanleitung

VeEX

VeEX WiFi Air Expert Series Bedienungsanleitung

VeEX

VeEX MTX150 Series Bedienungsanleitung

VeEX

VeEX VePAL TX300 Bedienungsanleitung

VeEX

VeEX RXT-1200 Bedienungsanleitung

VeEX

VeEX VePAL TX320s Bedienungsanleitung

VeEX

VeEX UX400 Bedienungsanleitung

VeEX

VeEX NET-BOX Bedienungsanleitung

VeEX

VeEX MTX150x Lite Bedienungsanleitung

VeEX

VeEX VePAL TX300 Bedienungsanleitung

VeEX

VeEX VePAL TX300 Bedienungsanleitung

VeEX

VeEX DS3 BERT Bedienungsanleitung

VeEX

VeEX CX100 Series Bedienungsanleitung

VeEX

VeEX VePAL TX300M Bedienungsanleitung

Beliebte Prüfgeräte Handbücher anderer Marken

SMART

SMART KANAAD SBT XTREME 3G Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies BERT Serial Bedienungsanleitung

Agilent Technologies

Agilent Technologies N3280A Bedienungsanleitung

Vernier

Vernier Go Direct Voltage Bedienungsanleitung

Lifeloc

Lifeloc R.A.D.A.R. Bedienungsanleitung

Fluke

Fluke T5-600 Bedienungs- und Montageanleitung

Mercury

Mercury TSL01 Bedienungsanleitung

MAHA

MAHA MBT Series Bedienungsanleitung

Fuji Electric

Fuji Electric P-61 Bedienungsanleitung

ETC

ETC SealerAtor Bedienungsanleitung

Skyfine

Skyfine ETHYWAY V2 Bedienungsanleitung

Appion

Appion G5 Twin Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 8159-0112A Bedienungsanleitung

BW Technologies

BW Technologies MicroDock II Bedienungsanleitung

Sun Nuclear

Sun Nuclear 1027 Bedienungsanleitung

Biomark

Biomark HPR LITE READER Bedienungsanleitung

Hioki

Hioki 3169-20 Bedienungsanleitung

Ashcroft

Ashcroft ATE-100 Bedienungsanleitung
