Chapter 1 Overview
Thanks for using AC80T high-performance VC frequency inverter produced by Veichi Electric Co.,
Ltd. This manual tells you how to use it perfectly. Please read this manual carefully and fully
understand the safety requirement and cautions before use (installation, wiring, operation, maintain,
checking, and etc...).
1.1 Safety requirements and cautions
Pls do totally understand this part before using the inverter.
Warning signs and meanings
This manual has used belowing signs that mean there is an important part of security. While
observing against the rules, there is danger of injury even death or machine system damage.
Danger: Wrong operation may cause death or large accident.
Warning: Wrong operation may cause death or large accident.
Caution: Wrong operation may cause minor wound.
Important: Wrong operation may cause the inverter and other machine
system damage
Operation requirement
Only Professonal trained person are allowed to operate the equipment such as installation, wiring,
running, maintain and etc. “Professonal trained person”in this manual means the workers on this
product must experience professional skill train, must be familiar with installation, wiring, running
and maintain and can rightly deal with emergency cases in use.
Safety guidance
Safety regulations and warning signs come for your security. They are measures to prevent the
operator and machine system from damage. Pls carefylly read this manual before using and strictly
observe the refulations and warning signs while operating. Safety regulations and warning signs
are classified into: routine regulation, transport and store regulation, installation and wiring
regulation, running regulation, maintenance regulation, dismantlement and disposal regulation.
●Routine regulation
●This product carries dangerous voltage and controls driver machine with
potential danger. If you don’t abide by the regulations or requirements in this
manual, there is danger of body injury even death and machine system
damage.
●Only qualified personnels are allowed to operate the equipment.this product.
Before using, the operator must be familiar with all safety specifications and
operation regulatons in this manual. Safe and stable work of the product is
based on right operation and maintenance.
●Do not wire while the power is conneted. Otherwise, there is danger of death
for electric shock. Before wiring, inspection, maintenance, please cut power
AC80T Tower Crane Purpose VFD Manual
2
supply of all related equipments and ensure mains DC voltage in safe range.
And please operate it after 5 mins.
●Away from children and public.
●Only used in application fields as maker stated. No use in equipments related
to special fields such as emergency, succor, ship, medical treatment,
avigation, nuclear and etc.
●Unauthorized alteration or use of accessories which are not sold or
recommended by the maker may cause faults.
●Please make sure this manual is in the final user’hand before using.
●Before installation and debugging pls carefully read and totally understand
these safety regulation and warning signs.
●Transport and store regulation
●Correct transport, store, installation and careful operation and maintenance are
important for inverter safe operation.
●In transport and store process, make sure the inverter is free from impact and
vibration. It must be stored where is dry without corrosive air and conductive
dust, and the temperature must be lower than 60℃.
●Installation and wiring regulation
●Only professional trained person can operate it.
●Power wire, motor wire and control wire should be all connected firmly. Earth
must be reliable and earth resistance must be lower than 10Ω.
●Before opening the inverter, please disconnect all related equipment power
supply and make sure the mains DC voltage is in safe range and operate after
5mins.
●Human body electrostatic will damage inner sensitive components seriously.
Before operation, please follow ESD measures. Otherwise, there is danger of
iverter damage.
●Inverter output voltage is pulse wave. If components such as capacitor which
improves power factor and pressure-sensitive resistance for anti-thunder and
so on are installed at the output side, please dismantle them or change to input
side.
●No switch components such as breaker and contactor at the output side. (If
there must be one, please make sure the output current is 0 while the switch
acting).
●Run regulation
●Inverter runs at high voltage. So dangerous voltage is in some components
inevitably.
●No matter where the fault is, there is danger of serious accident, even human
body injury what means dangerous malfunction possibility. So there must be
additional external prevent measures or other safety devices, such as
independent current limiting switch, machinery fense and so on.
●In order to guarantee the right action of the motor’s overload protection, the
input parameters of motor to the inverter must be must be in full compliance
with the actual used motor.
AC80T Tower Crane Purpose VFD Manual
3
●Maintenance regulation
●Only Shenzhen Veichi Electric co., ltd service department or its authorized
service center or professional person trained and authorized by Veichi can
maintain the products. They should be very familiar with the safety warning
and operation gist in this manual.
●Any defective components must be changed in time.
●Before opening the inverter to repair please cut power supply of all related
equipments and ensure mains DC voltage in safe range. And please do
operation after 5 mins.
●Dismantlement and disposal regulation
●Packing case can be reused. Please keep them and reuse or send back to
maker.
●Dismantled metal components are retractable and can be reused.
●Some components such as electrolytic capacitor are harmful to environment.
Please dispose accronding to environmental protection departments.
1.2 Technical Specification
Items Description
Power
Input
Voltage, frequency Three phase 380V 50/60Hz
Allowable
fluctuations
Voltage: 320V～440V; voltage unbalance rate: <3%;
Frequency: ±5%; distotion rate: confirm to IEC61800-2.
Power factor ≥0.94 (with DC reactor)
Efficiency ≥96%
Output
Output voltage 3 phase, 0～input voltage, tolerance less than 5%, in standard
Output frequency 0-320Hz
Output frequency
accuracy ±0.5% of maximum frequency
Overload tolerance 150% rated current: 1min, 180% rated current: 10s, 200% rated
current: 0.5s
Key
Control
Performan
ce
Carrier frequency 0.6～15.0kHz
Steady speed
control accuracy VC without PG: ≤1% rated synchronized speed
Starting torque Flux VC without PG: 180% rated torque at 0.5Hz
Frequency
accuracy
Digital input: maximum × ±0.01%
Analog input: maximum × ±0.2%
Frequency
resolution
Digital input: 0.01Hz
Anolog input: maximum × 0.05%
Basic
Functions DC braking
Starting frequency: 0.00～60.00Hz
Braking time:0.0～60.0s
Braking current: 0.0～150.0% rated current
AC80T Tower Crane Purpose VFD Manual
4
ACC/ DEC curve Two modes: line ACC/ DEC, S curve ACC/ DEC.;
Four sets ACC/ DEC, time unit: 0.01s, maximum: 650.00s.
AVR (Auto Voltage
Regulation)
Auto voltage regulation for keeping output voltage stable when
grid voltage fluctuation.
Auto current limit Auto current limit during running mode to avoid trip occurs
frequently.
Momentary power
loss with no stop
running function
Achieve continuous running through bus voltage control, when
momentary power loss.
Frequency setting
methods
Keypad digital setting, potentiometer of keypad, analog voltage
terminal VS1, analog voltage terminal VS2, analog current
terminal AS, communication given and multiple terminal, main
and auxiliary composition setting.
Feedback input
channel
Voltage terminal VS1, VS2, current terminal AS, communication
given and pulse input PUL.
Running command
channel Keypad given, external terminal given, communication given.
Input command
signal
Start, stop, FEW/REV, JOG, multiple speed, free stop, reset,
ACC/ DEC. Time selection, frequency setting channel selection,
external fault alarm.
External output
signal
1 relay output, 2 collector output, 0～10V output, 4～20mA
output, frequency pulse output.
Protection function
Overvoltage, undervoltage, current limit, overcurrent, overload,
electric thermal relay, overheat, overvoltage stall, data
protection.
Keyboard
display
LED display Double line 4 digital tube
display Can monitor the status of 2 VFD.
Parameter copy Upload & download parameter code of inverter to achieve easy
& fast parameter copy.
Monitor function
Output frequency, given frequency, output current, input voltage,
output voltage, motor speed, PID feedback value, PID given
value, module temperature, input/output terminal status.
Alarm
Overvoltage, undervoltage, overcurrent, short circuit, phase loss,
overload, overheat, overvoltage stall, current limit, parameter
lock damage; Fault running state at present; Fault history.
Environmen
t
Installation site Indoor, altitude ≤1000m, no corrosive gases and direct sunshine
Temperature,
humidity
-10 ~ +40℃(wall-mounted type)
20%~90%RH (no condensation)
Vibration ≤0.5g under 20Hz
Store temperatue -25~+65℃
Installation type Wall-mounted type
Protection degress IP20
Cooling method Forced air-cooling
AC80T Tower Crane Purpose VFD Manual
5
1.3 Product Features
Tower crane lifting purpose frequency inverter: high working efficiency, fast response,
good speed performance, smooth operation, no impact and high safety factor.
1. Stall protection function (closed-loop mode)
When the actual speed exceeds 115% of the rated speed, the frequency inverter sends brake
signal to realize emergency braking.
2. Anti-slip hook protection
In closed-loop mode, when the frequency inverter is power on in the standby mode, activate the
function immediately if the motor rotation is detected at this time. Frequency inverter, locked to
zero speed output, has provided the greatest safeguard for the system safe movement.
3. Light load automatic speed up function (weak magnetic speed)
Automatic high-speed lifting when tower crane is under light load (below 30% of rated load) or
empty hook, greatly improves the work efficiency.
4. Special logic brake control function
Through the brake frequency, release current, brake release time, brake closing time, to achieve
special logic brake control, to ensure system safety and reliability.
Tower crane slewing purpose frequency inverter: strong load capacity, smooth start
without shaking, fast and efficient in-place, more reliable performance.
1. One-way PWM pulse output signal provided to the eddy current controller, so that the arm is
smooth and reliable without shaking when braking.
2. Built-in anti-swing function: easy hook, effectively improves working efficiency.
3. Strong jog, stable arm without shaking, high-speed shutdown, accurate in place.
Tower crane luffing purpose frequency inverter: high efficiency, smooth running,
good speed performance, accurate positioning, reliable performance.
Built-in anti-swing function: by adjusting the speed and dynamic adjustment in acceleration
and deceleration time to limit objects’ swing.
The braking unit of traditional frequency inverter has no short-circuit protection while
Veichi tower crane purpose frequency inverter has built-in braking unit with braking
resistor short-circuit protection.
Special GPS/GPRS communication port.
GPS/GPRS communication port for satellite positioning and remote monitoring (construction
machinery information management platform). Remote lock and unlock function, easy for
installment customer management (with special GPS module).
AC80T Tower Crane Purpose VFD Manual
6
Chapter 2 Before Use
2.1 Purchase inspection
When you receive the product, please check if there is any damage on the outer packing before
you open it. If the package is ok, pls open it and check the inverter. Note: any damage caused in
transport will not be duty of our company, but pls contact us and the transport company
immediately.
After checking the product, pls also check if the model is the one you ordered. The model of the
product is on the nameplate “MODEL” column. If the model is not in accodance with your need,
please contact the agent of the sales department in our company.
2.2 Nameplate
Nameplate position and content
Input
Model
Output
Input power
Series NO.
Model explanation
Tower crane
special purpose driver
AC80T series
AC80T - 037 Q
Code
name Power
037
045
055
37KW
45KW
55KW
075 75KW
030 30KW
Code
name Inverter type
QLifting
HSlewing
BLuffing
AC80T Tower Crane Purpose VFD Manual
7
2.3 Model and rated output current
Model Adaptive motor
power Rated input voltage Rated current
AC80T-O04(H/B) 4KW
3PH
380VAC
10A
AC80T-5R5(H/B) 5.5KW 13A
AC80T-7R5(H/B) 7.5KW 17A
AC80T-011(H/B) 11KW 25A
AC80T-015(H/B) 15KW 32A
AC80T-018(Q/H/B) 18KW 38A
AC80T-022Q 22KW 45A
AC80T-O30Q 30KW 60A
AC80T-O37Q 37KW 75A
AC80T-O45Q 45KW 90A
AC80T-O55Q 55KW 120A
AC80T-O75Q 75KW 150A
AC80T-O90Q 90KW 180A
AC80T-110Q 110KW 210A
AC80T-132Q 132KW 250A
AC80T-160Q 160KW 310A
AC80T Tower Crane Purpose VFD Manual
8

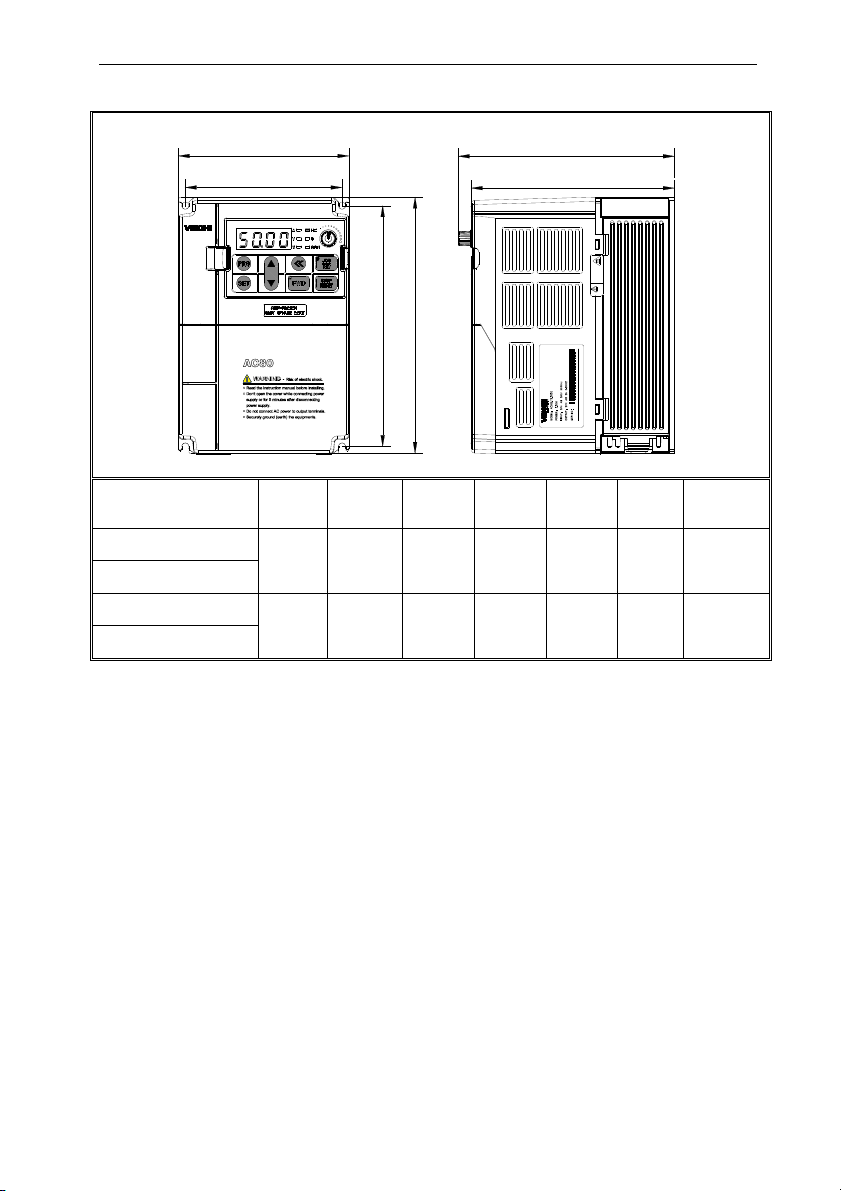

2.4 Dimension
W1
W
H1
H
D1
D
Inverter model W W1 H H1 D D1 Mounting
diatmeter
AC80T-004(H/B)
159 147.2 246 236 157.5 148 ф5.5
AC80T-5R5(H/B)
AC80T-7R5(H/B)
195 179 291 275 167.5 158 ф7
AC80T-011(H/B)
AC80T Tower Crane Purpose VFD Manual
9
Risk of electric shock
Please follow the safety instructions
in the manual before installationor
operation.
Wait 10 minutes f or capacitor
discharge after disconnecting
power supply.
Do not connect AC power to output
terminals UVW.
To conform to requirements,
make sure to ground the supply
neutral for 380V class.
After opening the manual switch
between the drive and motor,
please wait 10 minutes before
inspecting, performing maintenance
or wiring the drive.
WARNING
W
W1
D
H
H1
H2
Mounting diatmeter
Inverter model W W1 H H1 H2 D Mounting
diameter
AC80T-015(H/B)
255 160 434 418 390 224 ф7
AC80T-018(Q/H/B)
AC80T-022Q
285 200 493 473 445 265 ф9AC80T-030Q
AC80T-037Q
AC80T-045Q
375 200 620 597 567 286 ф11AC80T-055Q
AC80T-075Q
Dieses Handbuch passt für folgende Modelle
23
Inhaltsverzeichnis
Andere Veichi Gleichstromantrieb Handbücher
Beliebte Gleichstromantrieb Handbücher anderer Marken
Vincent Associates
Vincent Associates UNIBLITZ ED12DSS Bedienungsanleitung
EKSMA OPTICS
EKSMA OPTICS DQ-100-4 Stücklistenhandbuch
Chamberlain Garog
Chamberlain Garog D Series Bedienungsanleitung
Parker
Parker PDS Series Bedienungsanleitung
Festo
Festo DGC G Series Einrichtungshandbuch
Binks
Binks QS-5012-1-CE Bedienungsanleitung
