User Manual
VK1560Pro Pen Display
BATTERY-FREE PEN DISPLAY
www.veikk.com
PRECAUTIONS
1. Please read this manual carefully before using, and keep it well
for future reference.
2. Before cleaning the display please unplug the USB cable and
wipe with a soft damp cloth, don’t use any kind of detergents.
3. Please don’t place the display near water sources such as bathtub,
washbasin, sinks, washing machine, damp basement, swimming
pool, etc.
4. Do not place this display on an unstable surface.
5. Do not step or place heavy objects on this display as this could
damage it.
6. Do not place the display a height for children reaching easily in
order to avoid danger. Make sure that a child does not put the pen
or pen tip in his/her mouth.
7. Do not place the display and digital pen close to the magnetic field.
8. To protect your display, please switch off the power when it is not
in use. During blackouts or not using for long time, please unplug
the display from the socket.
9. Don’t overload the socket or lengthen the power wire, which may
lead to electric shocks.
10. If the display has a breakdown, do not open the main case and
try to repair it by yourself. Please ask for a service for proper repair
and maintenance.
11. When the following situations occur, please unplug the power
adapter and you may need a service for full repair and
maintenance:
A. The power wire or plug is damaged or worn out;
B. There is liquid splashed inside of the display;
C. The display has fallen or the LCD is broken;
D. When obvious abnormalities occur to the display.
12. While getting the components replaced, you are supposed to
guarantee that the repairman is using the substitute components
specified by the manufacturer. Unauthorized component
replacement might cause fire, electric shocks or other dangers.
Catalog
1. General Information ..................................................................1
1.1 Overview
................................................................................1
1.2 System Requirement
.............................................................1
1.3 Hardware Specification ..........................................................1
1.4 Display Connection ................................................................2
1.5 AC Adapter Connection .........................................................3
1.6 Driver Installation ...................................................................3
1.7 Monitor Mapping ....................................................................5
1.8 Specification
..........................................................................6
2.VK1560 Pro Pen Display Configuration ...................................7
2.1 Pen
........................................................................................7
2.2 Mapping .................................................................................8
2.3 Function ...............................................................................11
2.4 About us
..............................................................................13
1.General Information
1.1 Overview
1.2 System Requirement
Welcometothe VEIKK!Thisuser manualwillhelpyousetuptheVK1560Proand installthe
driver. Either you are a beginner or professional, this one can satisfy your requirement. For the
driver, please download from http://www.veikk.com/download
Windows 7/8/10(32/64 bits)
Mac OS 10.10 or later.
1.3 Hardware Specification
1
1.4 Display Connection
1. ConnectmaleendofUSBY-cabletocomputer.
2. ConnectfemaleportofUSBY-cabletoUSBcable.
3. ConnectredendofUSBY-cabletoACAdapter.
4. Connectmicro-USBendofUSBcabletoVK1560Pro.
5. Connectmini-HDMIendofHDMIcabletoVK1560Pro.
6. ConnectHDMIofHDMIcabletocomputer.
7. PlugACadapterintopoweroutlet.
8. Ifconnectedproperly,afterpressingthepowerbuttontheVK1560Pro logowillappearandyou
willsoonseeyourcomputermonitordisplay.
Note 1:WerecommendyouinserttheVK1560ProUSBcabletothehostUSBportofyourcomputer.
YoumayuseaUSBhubwithanattachedexternalpowersupplytoadequatelypoweryourVK1560 Pro
ifneeded.
Note 2:Makesureyourcomputersupportsmultiplemonitors.CheckifyourcomputerhasextraHDMI
ports.Ifyourcomputerhasanindependentvideocard, pleaseusetheHDMIportsthere.
Note 3:If there is not any input signal, itmeansthetabletdoesn’t receiveHDMIvideoinput.Please
reconnect the HDMI cable, or change another HDMI cable or change another computer to have a try.
5.
6.
7.
2
1.5 AC Adapter Connection
1. Find AC Adapter Accessories.
2. Plug in red power USB end into adapter.
3. Plug black male USB end into computer.
4. Plug male USB end of VEIKK display cable into female end of Y cable.
1.6 Driver Installation
1. Before installing driver, please uninstall all tablet drivers from your computer, and keep all
antivirus and drawing program disabled.
2. Connect the tablet to your computer before installation
3. Please download updated driver from www.veikk.com
4. Click “VK Tablet Driver.exe” and follow the prompts to install. For Mac system, please open
it with default installer.
Note: Please remove power adapter first when removing your VK1560 Pro from your computer.
Note: Use only power adapters and cables approved by VEIKK for use
3
USB to micro-USB
1.AC Adapter 2.Plug Red Power USB
End into Adapter
3.Plug USB End
Into Computer
4.Plug into each other
5. Once the driver is completely installed, you will see an icon appearing on the system tray
(lower right corner) and the desktop(Windows) and System Preference (Mac).
4
1.7 Monitor Mapping

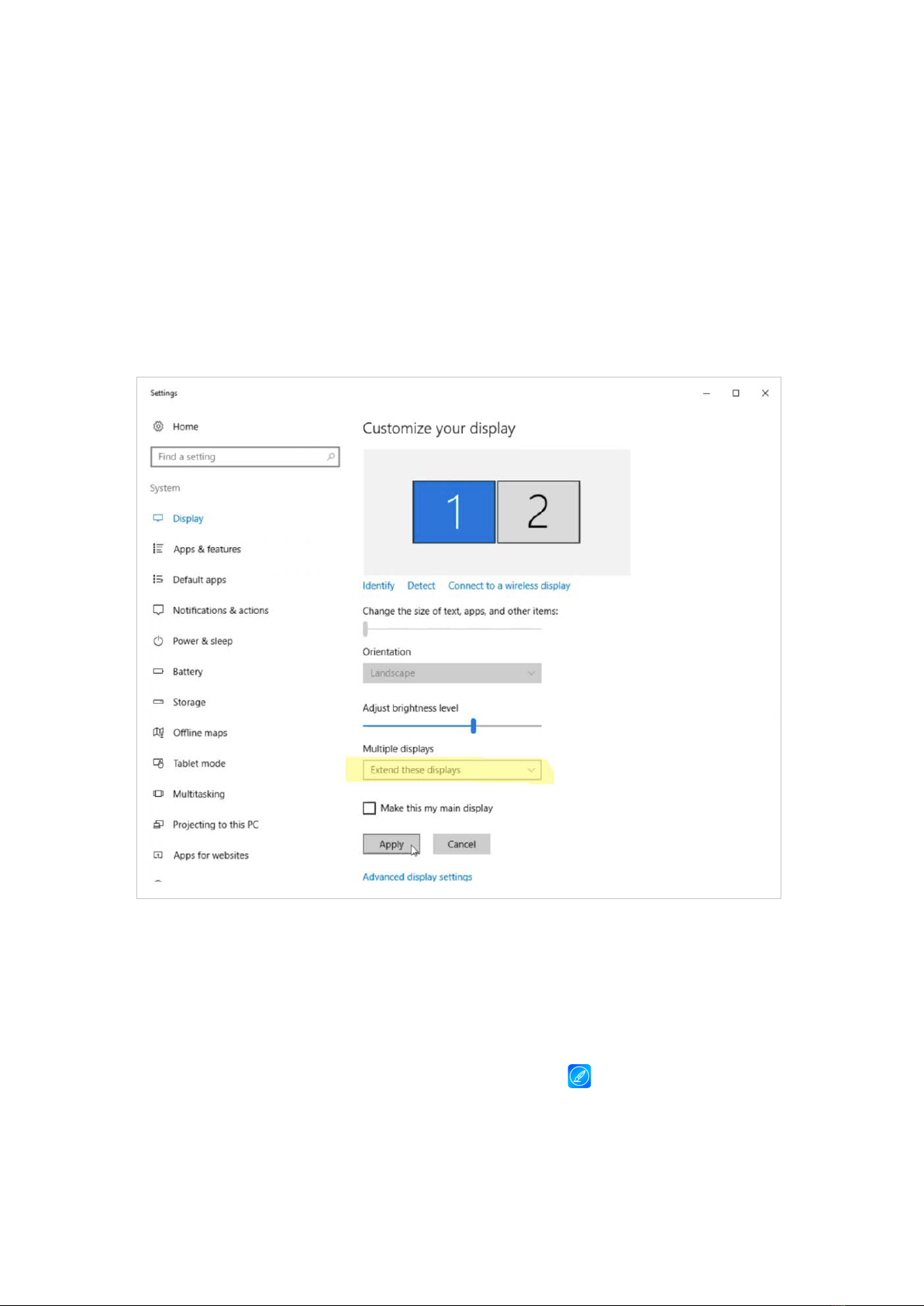

How to Change to Extended Display
Extended Display means you work with a larger Windows desktop area spanning your computer
monitor and your VK1560 Pro LCD Display. Applications can be moved from one display to the
other, and will allow you to work in different screen resolutions.
1. Right-click your desktop and select Screen Resolution.
2. In Multiple Displays dropdown, change to [Extend these Displays]
3. If your computer is equipped with more than one monitor, your VK1560Pro pen display will map
to the monitors based on how they are configured in the DISPLAY PROPERTIES control panel.
4. After you have correctly configured your computer for multiple monitors, you can then adjust your
VK1560Pro pen display mapping by opening the driver icon and changing the appropriate
options. This enables you to toggle the current VK1560Pro mapping and screen cursor between
the system desktop or primary display and your other monitors.
5
1.8 Specification
Note: Under the Duplicate display mode of the Multiple Display function, the display
resolution of your monitor must be set to the same resolution as yourVK1560Pro.
Otherwise, your pen cursor will be misplaced on the screen. For VK1560Pro, please
make sure the other monitor resolution is set to 1920x1080.
ProductDimension
ActiveArea
Pen
DPI
PenPressure
Resolution
DataReportRate
Brightness
424.2mm(L)x262mm(W)x16.5mm(H)
293.76mm(L)x165.24mm(W)11.5x6.5inch
Battery-freePassivePen
1920x1080
8192levels
5080LPI
230pps(points/second)
300(cd/m²)
6
